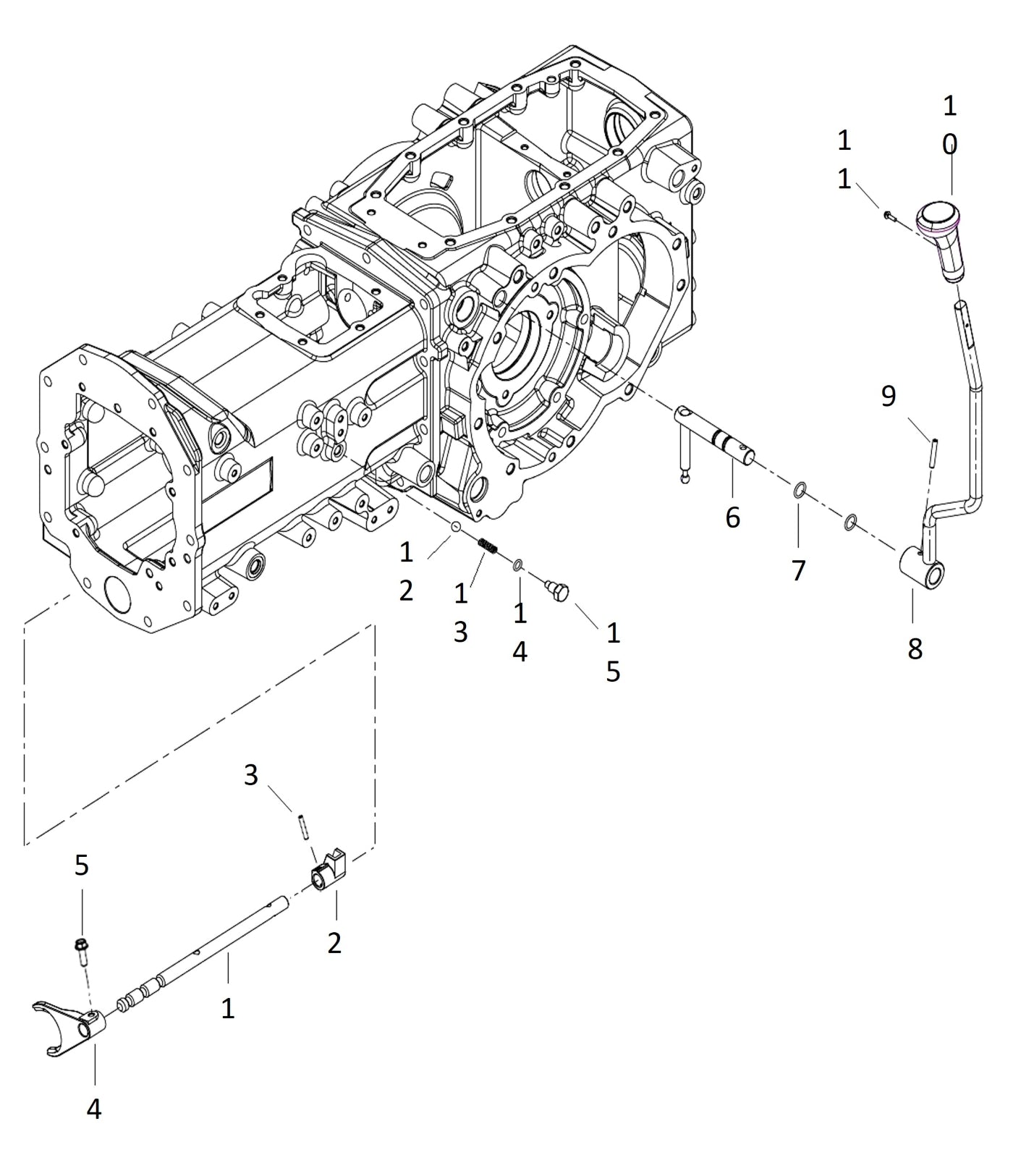

Lever Assembly, Range Shift
Parts Index
- 1 RANGE SHIFT FORK SHAFT (Qty 1)
- 2 ADAPTOR, RANGE (Qty 1)
- 3 SPRING PIN (Qty 1)
- 5 HEX BOLT W/WASHER for BB2024H/BB3026H/BB4025H/ (Qty 1)
- 7 O-RING (Qty 2)
- 8 LEVER, RANGE SHIFT (Qty 1)
- 9 PIN, SPRING (6-36) (Qty 1)
- 11 SCREW for BB4025H/BB4035H/BB4035CH (Qty 1)
- 12 STEEL BALL (Qty 1)
- 13 SPRING (Qty 1)
- 14 SEAL, O-RING for BB2024H/BB3026H/BB4025H/BB4035H/ (Qty 1)
- 15 BOLT, RAIL (Qty 1)
-
1#TA00038541C
RANGE SHIFT FORK SHAFT
Qty Used: 1Regular price $50.99 USDRegular priceUnit price per
-
2#TA00038542C
ADAPTOR, RANGE
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
-
3#22351-060025
SPRING PIN
Qty Used: 1Regular price $2.00 USDRegular priceUnit price per
-
5#26013-080302
HEX BOLT W/WASHER for BB2024H/BB3026H/BB4025H/
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
-
8#TA00038640D
LEVER, RANGE SHIFT
Qty Used: 1Regular price $100.99 USDRegular priceUnit price per
-
9#22351-060036
PIN, SPRING (6-36)
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
11#26023-040162
SCREW for BB4025H/BB4035H/BB4035CH
Qty Used: 1Regular price $0.29 USDRegular priceUnit price per
-
12#24190-110001
STEEL BALL
Qty Used: 1Regular price $0.45 USDRegular priceUnit price per
-
-
14#24311-240100
SEAL, O-RING for BB2024H/BB3026H/BB4025H/BB4035H/
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
15#TA00038540A
BOLT, RAIL
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
