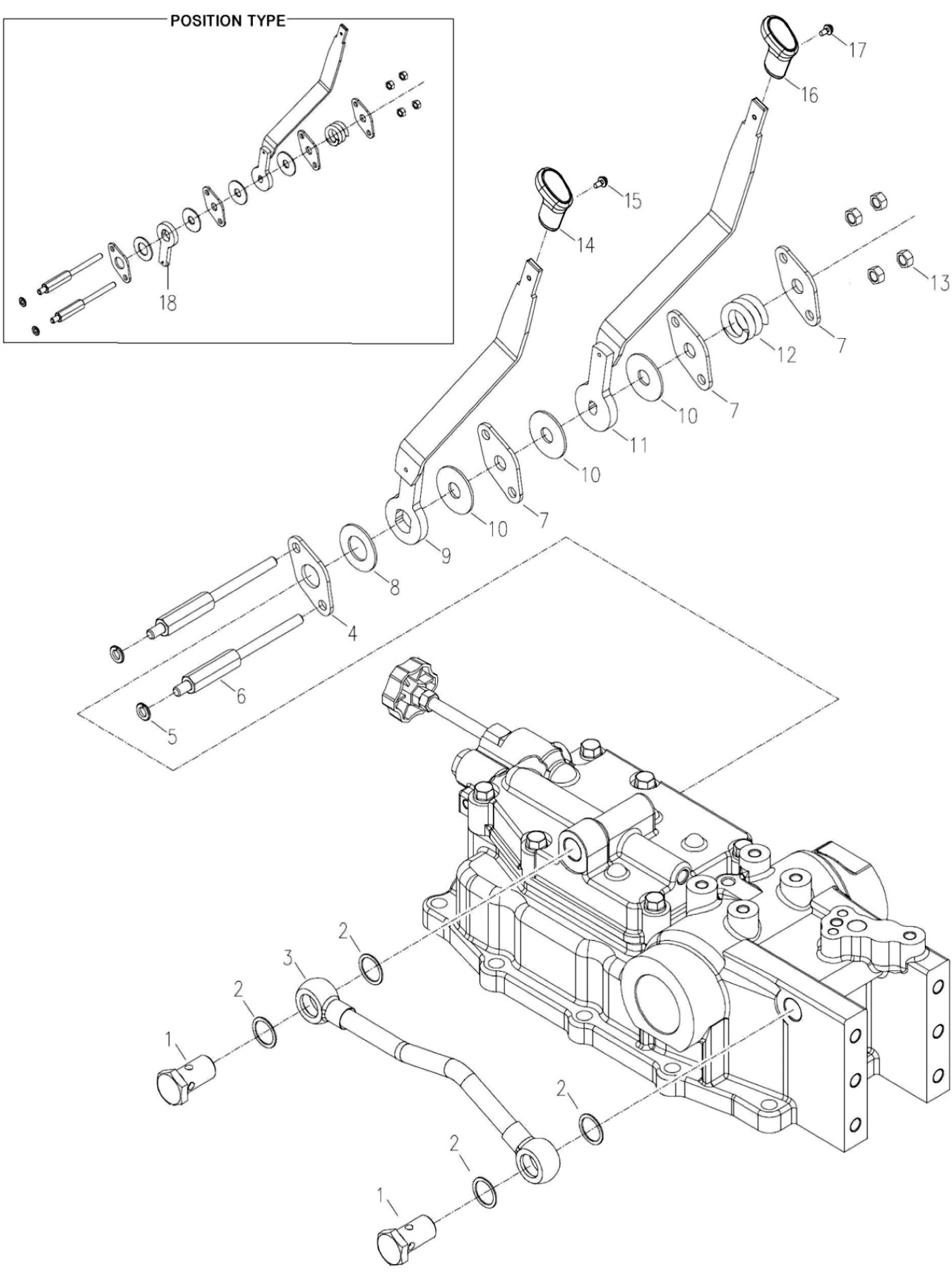

Hydro Control Position Continued
Parts Index
- 2 BONDID SEAL, (Qty 4)
- 4 BRACKET for BB4025H/BB4035H/BB4035CH (Qty 1)
- 6 BOLT (Qty 2)
- 7 BRACKET A for BB4025H/BB4035H/BB4035CH (Qty 3)
- 8 PLATE,FRICTION (Qty 1)
- 10 PLATE A for Position Control Lever (Qty 3)
- 11 POSITION LEVER ASSY(US) for BB4025H/BB4035H/ (Qty 1)
- 12 SPRING (Qty 1)
- 13 HEX NUT (Qty 4)
- 15 SCREW W/WASHER for BB2024H/BB3026H/BB4025H/BB4035H (Qty 1)
- 17 SCREW for BB4025H/BB4035H/BB4035CH (Qty 1)
- 18 LEVER ARM, DRAFT (Qty 1)
-
2#TA00036405A
BONDID SEAL, same part as 23414-120000
Qty Used: 4Regular price $2.49 USDRegular priceUnit price per
-
4#TA00033964A
BRACKET for BB4025H/BB4035H/BB4035CH
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
-
7#TA00033965A
BRACKET A for BB4025H/BB4035H/BB4035CH
Qty Used: 3Regular price $9.99 USDRegular priceUnit price per
-
8#TA00033155A
PLATE,FRICTION
Qty Used: 1Regular price $2.89 USDRegular priceUnit price per
-
10#TA00033966A
PLATE A for Position Control Lever
Qty Used: 3Regular price $2.99 USDRegular priceUnit price per
-
11#TA00042363A
POSITION LEVER ASSY(US) for BB4025H/BB4035H/
Qty Used: 1Regular price $65.99 USDRegular priceUnit price per
-
-
-
15#26023-040102
SCREW W/WASHER for BB2024H/BB3026H/BB4025H/BB4035H
Qty Used: 1Regular price $0.35 USDRegular priceUnit price per
-
17#26023-040162
SCREW for BB4025H/BB4035H/BB4035CH
Qty Used: 1Regular price $0.29 USDRegular priceUnit price per
-
18#TA00033156A
LEVER ARM, DRAFT
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
