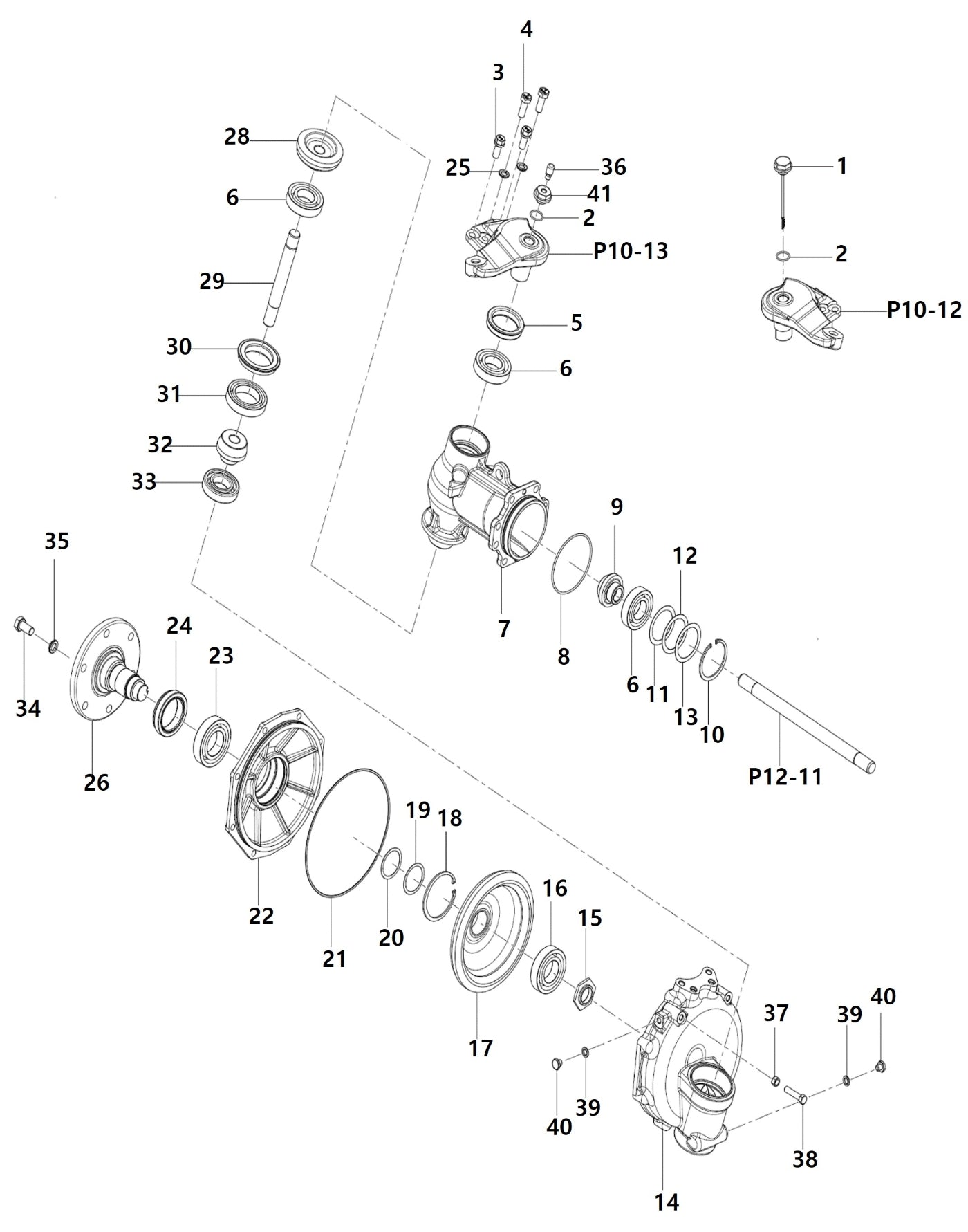

Gear Case, Front Axle
Parts Index
- 1 OIL LEVEL (Qty 1)
- 2 O RING (Qty 2)
- 3 BOLT W/WASHER (Qty 4)
- 4 RIMER BOLT (Qty 4)
- 5 SEAL, OIL for BB4025H/BB4035H/BB4035CH/BB2024H/BB (Qty 2)
- 6 BALL BEARING (#6207) (Qty 6)
- 7 CASE, FRONT GEAR (Qty 2)
- 8 O-RING (Qty 2)
- 10 SNAP RING (Qty 2)
- 11 SHIM 0.2T (Qty 2)
- 12 SHIM 0.3T (Qty 2)
- 14 HOUSING FRONT GEAR BBH4025H/BB4035H/BB4035CH (Qty 2)
- 15 LOCK NUT (Qty 2)
- 16 BALL BEARING (Qty 2)
- 17 GEAR BEVEL 49T (Qty 2)
- 18 RING, CIRCLIP (F 85) (Qty 2)
- 19 SHIM 0.2T (Qty 1)

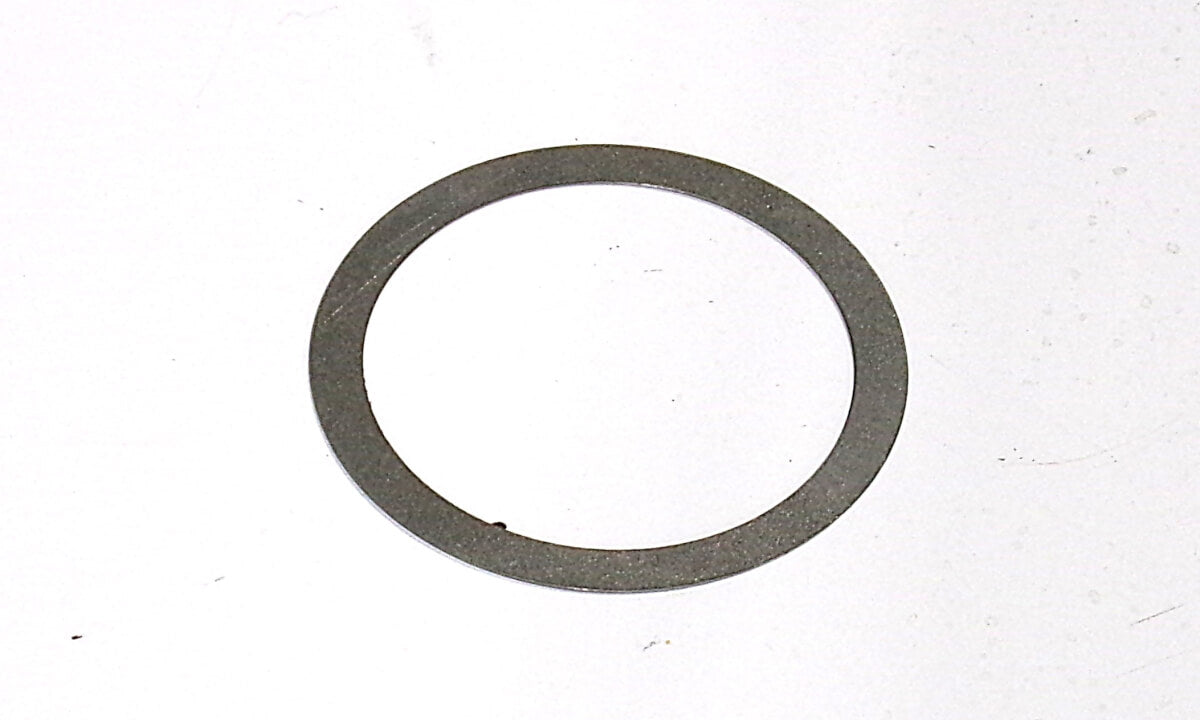

- 20 SHIM 0.5T (Qty 1)
- 21 O RING (Qty 2)
- 22 BEARING CASE, FRONT (Qty 1)
- 23 BALL BEARING (Qty 2)
- 24 OIL SEAL (Qty 2)
- 25 SPRING WASHER (Qty 2)
- 26 SPINDLE, FRONT (Qty 2)
- 28 FRONT 2ND AXLE LH (Qty 2)
- 29 FRONT SECOND SHAFT (Qty 2)
- 30 SEAL (Qty 2)
- 31 BEARING, BALL (Qty 2)
- 32 GEAR BRVEL 11T (Qty 2)
- 33 BEARING (Qty 2)
- 35 WASHER, SPRING (Qty 12)
- 36 AIR BREATHER, Replaced with TA00049842B (Qty 1)
- 39 WASHER (Qty 4)
- 40 Screw, Hexagoneheadcap (Qty 4)
- 41 ADAPATER (Qty 1)
-
-
-
3#TA00033468B
BOLT W/WASHER
Qty Used: 4Regular price $3.09 USDRegular priceUnit price per
-
4#TA00033475A
RIMER BOLT
Qty Used: 4Regular price $3.49 USDRegular priceUnit price per
-
5#FE78010000B
SEAL, OIL for BB4025H/BB4035H/BB4035CH/BB2024H/BB
Qty Used: 2Regular price $38.49 USDRegular priceUnit price per
-
6#24101-062074
BALL BEARING (#6207)
Qty Used: 6Regular price $24.99 USDRegular priceUnit price per
-
7#TA00033457C
CASE, FRONT GEAR
Qty Used: 2Regular price $241.99 USDRegular priceUnit price per
-
-
-
-
-
14#TA00033458B
HOUSING FRONT GEAR BBH4025H/BB4035H/BB4035CH
Qty Used: 2Regular price $279.99 USDRegular priceUnit price per
-
-
16#24101-062084
BALL BEARING
Qty Used: 2Regular price $30.99 USDRegular priceUnit price per
-
17#TA00033474A
GEAR BEVEL 49T
Qty Used: 2Regular price $249.99 USDRegular priceUnit price per
-
18#22252-000850
RING, CIRCLIP (F 85)
Qty Used: 2Regular price $5.99 USDRegular priceUnit price per
-
-
-
-
22#TA00033459B
BEARING CASE, FRONT
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
23#24101-062094
BALL BEARING
Qty Used: 2Regular price $43.99 USDRegular priceUnit price per
-
-
25#22217-120000
SPRING WASHER
Qty Used: 2Regular price $1.29 USDRegular priceUnit price per
-
26#TA00033460B
SPINDLE, FRONT
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
28#TA00033463A
FRONT 2ND AXLE LH
Qty Used: 2Regular price $131.99 USDRegular priceUnit price per
-
29#TA00033464A
FRONT SECOND SHAFT
Qty Used: 2Regular price $69.99 USDRegular priceUnit price per
-
-
31#24101-060104
BEARING, BALL
Qty Used: 2Regular price $54.99 USDRegular priceUnit price per
-
32#TA00033473A
GEAR BRVEL 11T
Qty Used: 2Regular price $69.09 USDRegular priceUnit price per
-
-
35#22217-140000
WASHER, SPRING
Qty Used: 12Regular price $0.29 USDRegular priceUnit price per
-
36#TA00049842A
AIR BREATHER, Replaced with TA00049842B
Qty Used: 1Regular price $27.99 USDRegular priceUnit price per
-
-
40#23887-100002
Screw, Hexagoneheadcap
Qty Used: 4Regular price $2.09 USDRegular priceUnit price per
-
