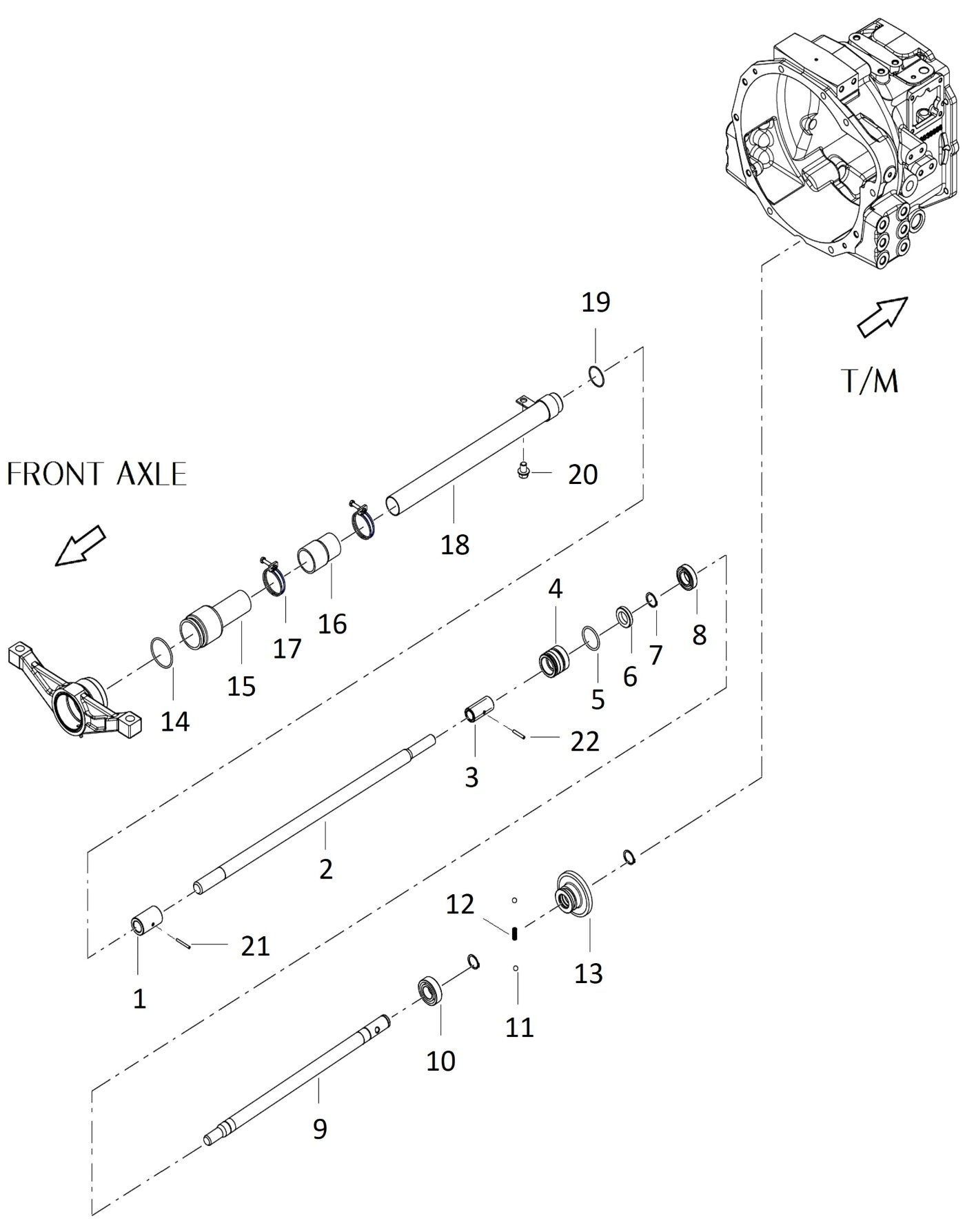

Front Drive Shaft
Parts Index
- 1 COUPLE RING R, Replaced with NT15080000B4 (Qty 1)
- 2 PROPELLER SHAFT (Qty 1)
- 3 4WD JOINT (Qty 1)
- 5 O-RING (Qty 1)
- 6 Seal, Oil (#25-40-08) (Qty 1)
- 7 C-Ring, Shaft (Qty 3)
- 8 BALL BEARING (Qty 1)
- 9 SHAFT 4WD DRV (Qty 1)
- 10 Bearing, Ball (#6205) (Qty 1)
- 11 STEEL BALL (Qty 2)
- 12 SPRING (Qty 1)
- 13 FOUR WHEEL DRIVEN GEAR (Qty 1)
- 14 SEAL,O-RING for BB2024/BB3026H/BB4025H/BB4035H/ (Qty 1)
- 15 COVER (Qty 1)
- 16 BOOTS (Qty 1)
- 17 Clamp, Hose (Qty 2)
- 19 O-RING (Qty 1)
- 20 BOLT (Qty 1)
- 21 SPRING PIN (Qty 1)
-
1#NT15080000B
COUPLE RING R, Replaced with NT15080000B4
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
2#TA00038621C
PROPELLER SHAFT
Qty Used: 1Regular price $80.99 USDRegular priceUnit price per
-
-
-
6#24421-254008
Seal, Oil (#25-40-08)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
7#22242-000250
C-Ring, Shaft
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
8#24101-060050
BALL BEARING
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
9#TA00038094B
SHAFT 4WD DRV
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
10#24101-062054
Bearing, Ball (#6205)
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
11#24190-110001
STEEL BALL
Qty Used: 2Regular price $0.45 USDRegular priceUnit price per
-
-
13#TA00050634A
FOUR WHEEL DRIVEN GEAR
Qty Used: 1Regular price $164.99 USDRegular priceUnit price per
-
14#24321-000550
SEAL,O-RING for BB2024/BB3026H/BB4025H/BB4035H/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
-
-
17#23000-048000
Clamp, Hose
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
-
-
21#22351-040036
SPRING PIN
Qty Used: 1Regular price $1.15 USDRegular priceUnit price per
