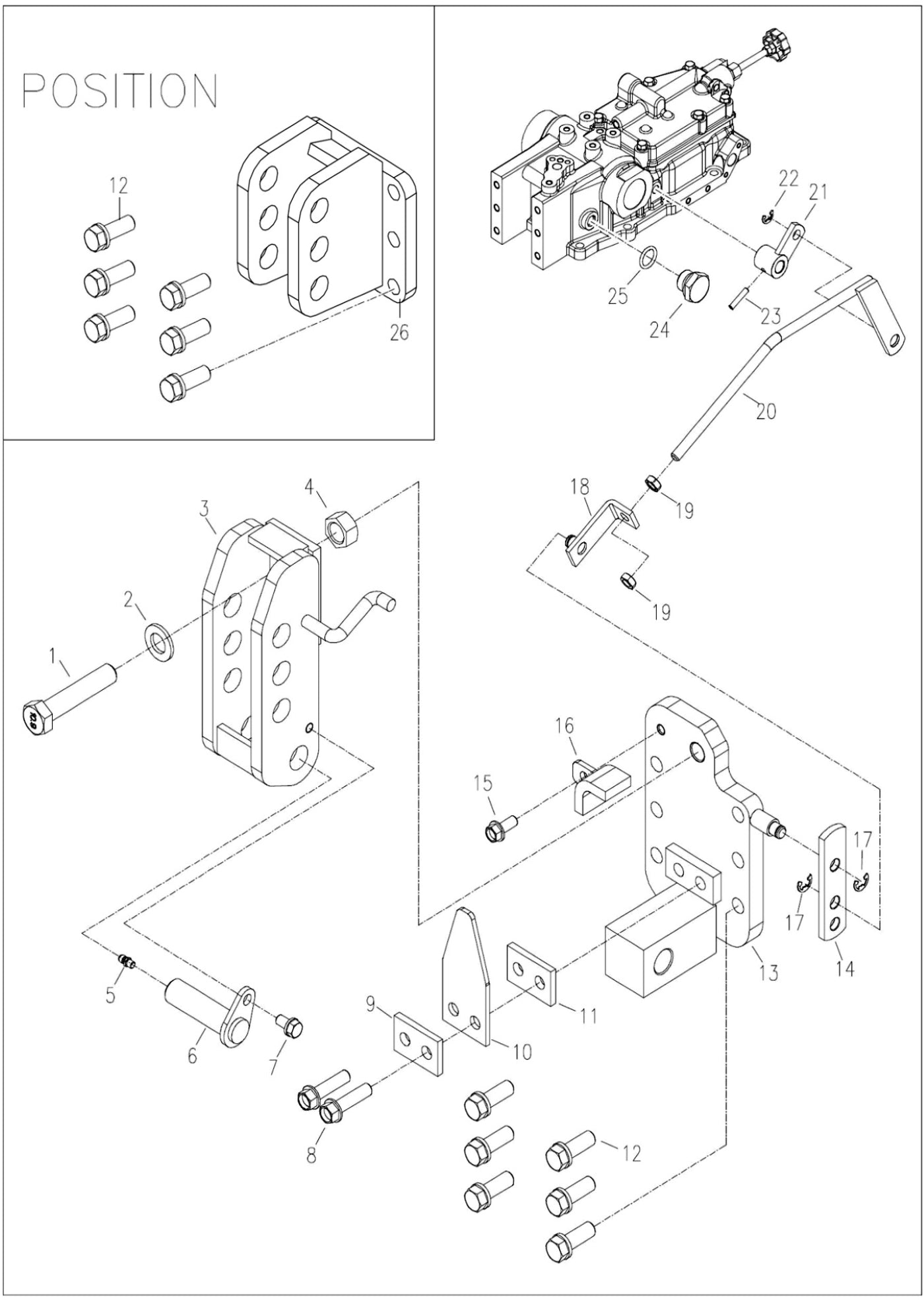

Draft Control
Parts Index
- 1 BOLT (Qty 1)
- 4 HEXNUT (Qty 1)
- 7 Bolt, Hexa (8-16) for BB2024H/BB3026H/BB4025H/BB40 (Qty 1)
- 8 SCREW,HEXFLANGEHEADCAP (Qty 2)
- 9 PLATE (Qty 1)
- 10 PLATE, HINGE (Qty 1)
- 11 PLATE (Qty 1)
- 12 SCREW,CAPTIVEWASHERCAP for BB2024H/BB3026H/BB4025H (Qty 6)
- 15 SQR FLANGE BOLT for BB4025H/BB4035H/BB4035CH (Qty 1)
- 16 PLATE ASS'Y (Qty 1)
- 17 RING, CIRCLIP (F 08) (Qty 2)
- 18 PLATE ASSY (Qty 1)
- 20 CONTROL ROD, DRAFT (Qty 1)
- 21 LINK ASSY (OUT) (Qty 1)
- 22 RING, CIRCLIP (F 06) for BB2024H/BB3026H/BB4025H/ (Qty 1)
- 23 PIN, SPRING (4X20) (Qty 1)
- 25 O-RING, DYNAMIC (F14) for BB2024H/BB3026H/BB4025H/ (Qty 1)
- 26 BRACKET ASS'Y, TOP LINK (Qty 1)
-
-
-
7#26013-080162
Bolt, Hexa (8-16) for BB2024H/BB3026H/BB4025H/BB40
Qty Used: 1Regular price $1.32 USDRegular priceUnit price per
-
8#26106-100402
SCREW,HEXFLANGEHEADCAP
Qty Used: 2Regular price $1.15 USDRegular priceUnit price per
-
-
10#TA00033137A
PLATE, HINGE
Qty Used: 1Regular price $49.00 USDRegular priceUnit price per
-
12#26013-120352
SCREW,CAPTIVEWASHERCAP for BB2024H/BB3026H/BB4025H
Qty Used: 6Regular price $1.79 USDRegular priceUnit price per
-
15#26106-080202
SQR FLANGE BOLT for BB4025H/BB4035H/BB4035CH
Qty Used: 1Regular price $0.55 USDRegular priceUnit price per
-
16#TA00034142B
PLATE ASS'Y
Qty Used: 1Regular price $26.49 USDRegular priceUnit price per
-
17#22272-000080
RING, CIRCLIP (F 08)
Qty Used: 2Regular price $0.20 USDRegular priceUnit price per
-
18#TA00033144B
PLATE ASSY
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
20#TA00033150B
CONTROL ROD, DRAFT
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-
21#TA00033147B
LINK ASSY (OUT)
Qty Used: 1Regular price $23.19 USDRegular priceUnit price per
-
22#22272-000060
RING, CIRCLIP (F 06) for BB2024H/BB3026H/BB4025H/
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
23#22351-040020
PIN, SPRING (4X20)
Qty Used: 1Regular price $0.29 USDRegular priceUnit price per
-
25#24311-000140
O-RING, DYNAMIC (F14) for BB2024H/BB3026H/BB4025H/
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
26#TA00034323A
BRACKET ASS'Y, TOP LINK
Qty Used: 1Regular price $439.99 USDRegular priceUnit price per
