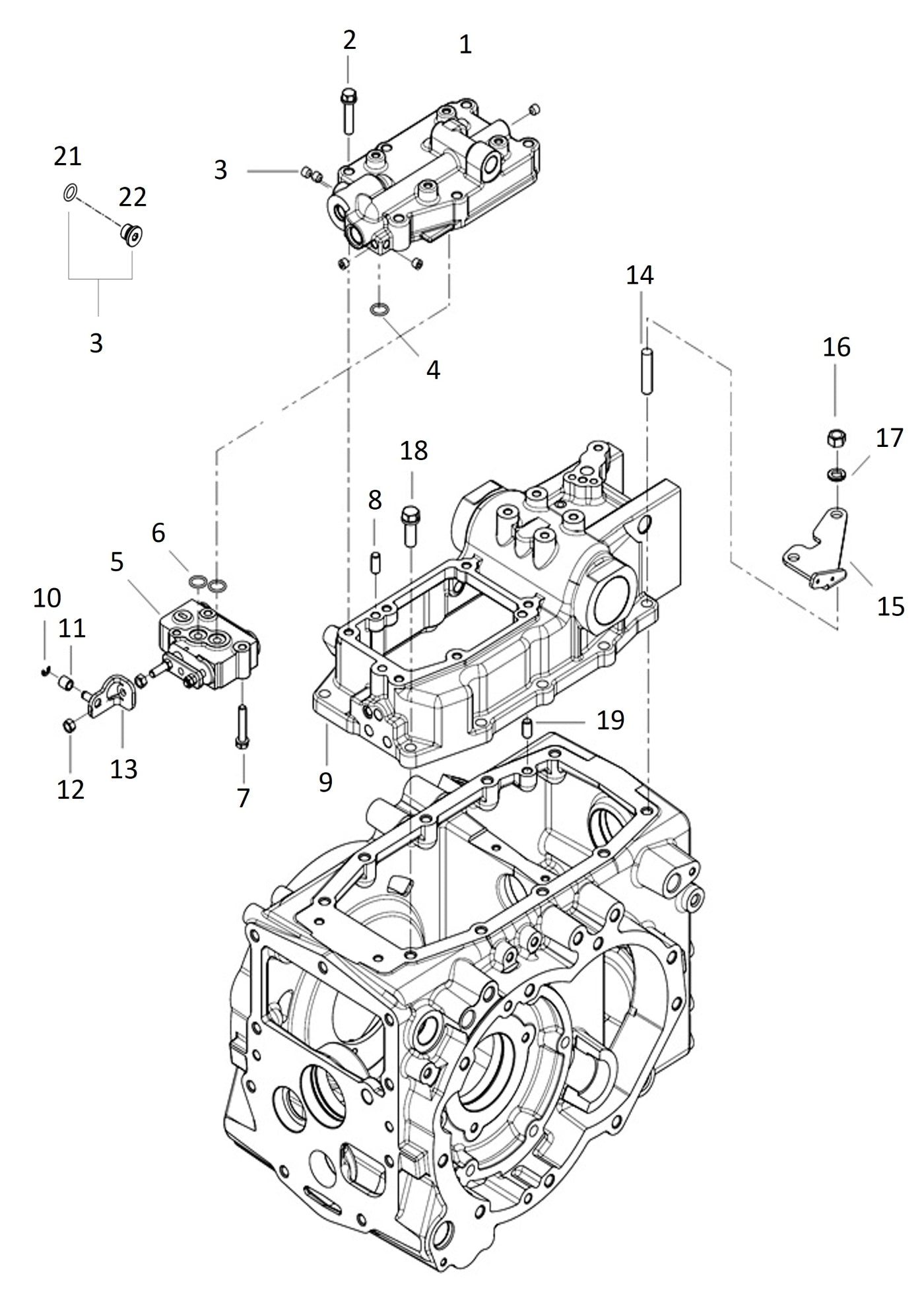

Case Hyd Cylinder
Parts Index
- 2 HEX BOLT W/WASHER for BB2024H/BB3026H/BB4025H/ (Qty 6)
- 3 PLUG ASS'Y (Qty 5)
- 4 O-RING, DYNAMIC (F12) for BB2024H/BB3026H/BB4025H/ (Qty 1)
- 6 O-RING (Qty 2)
- 8 PIN, STRAIGHT (Qty 2)
- 10 RING, CIRCLIP (F 06) for BB2024H/BB3026H/BB4025H/ (Qty 1)
- 11 ROLLER for BB4025H/BB4035H/BB4035CH (Qty 1)
- 13 CLEVIS AS'Y (Qty 1)
- 14 STEELBOLT (Qty 5)
- 15 BRACKET, SWITCH (Qty 1)
- 16 SPRING WASHER (Qty 5)
- 17 Hexa Nut for BB2024H/BB3026H/BB4025H/ (Qty 5)
- 18 SCREW,CAPTIVEWASHERCAP for BB2024H/BB3026H/BB4025H (Qty 5)
- 19 PIN, DOWEL (10-18) (Qty 1)
- 21 O-RING, DYNAMIC (F8) (Qty 5)
-
2#26013-100452
HEX BOLT W/WASHER for BB2024H/BB3026H/BB4025H/
Qty Used: 6Regular price $0.89 USDRegular priceUnit price per
-
3#TA00045690A
PLUG ASS'Y
Qty Used: 5Regular price $7.99 USDRegular priceUnit price per
-
4#24311-000120
O-RING, DYNAMIC (F12) for BB2024H/BB3026H/BB4025H/
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
-
8#22312-100200
PIN, STRAIGHT
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
10#22272-000060
RING, CIRCLIP (F 06) for BB2024H/BB3026H/BB4025H/
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
11#TA00033126A
ROLLER for BB4025H/BB4035H/BB4035CH
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
13#TA00034000C
CLEVIS AS'Y
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
-
15#TA00034079B
BRACKET, SWITCH
Qty Used: 1Regular price $20.99 USDRegular priceUnit price per
-
16#22217-120000
SPRING WASHER
Qty Used: 5Regular price $1.29 USDRegular priceUnit price per
-
17#26716-120002
Hexa Nut for BB2024H/BB3026H/BB4025H/
Qty Used: 5Regular price $1.19 USDRegular priceUnit price per
-
18#26013-120352
SCREW,CAPTIVEWASHERCAP for BB2024H/BB3026H/BB4025H
Qty Used: 5Regular price $1.79 USDRegular priceUnit price per
-
19#22312-100180
PIN, DOWEL (10-18)
Qty Used: 1Regular price $2.29 USDRegular priceUnit price per
-
21#24311-000080
O-RING, DYNAMIC (F8)
Qty Used: 5Regular price $0.35 USDRegular priceUnit price per
