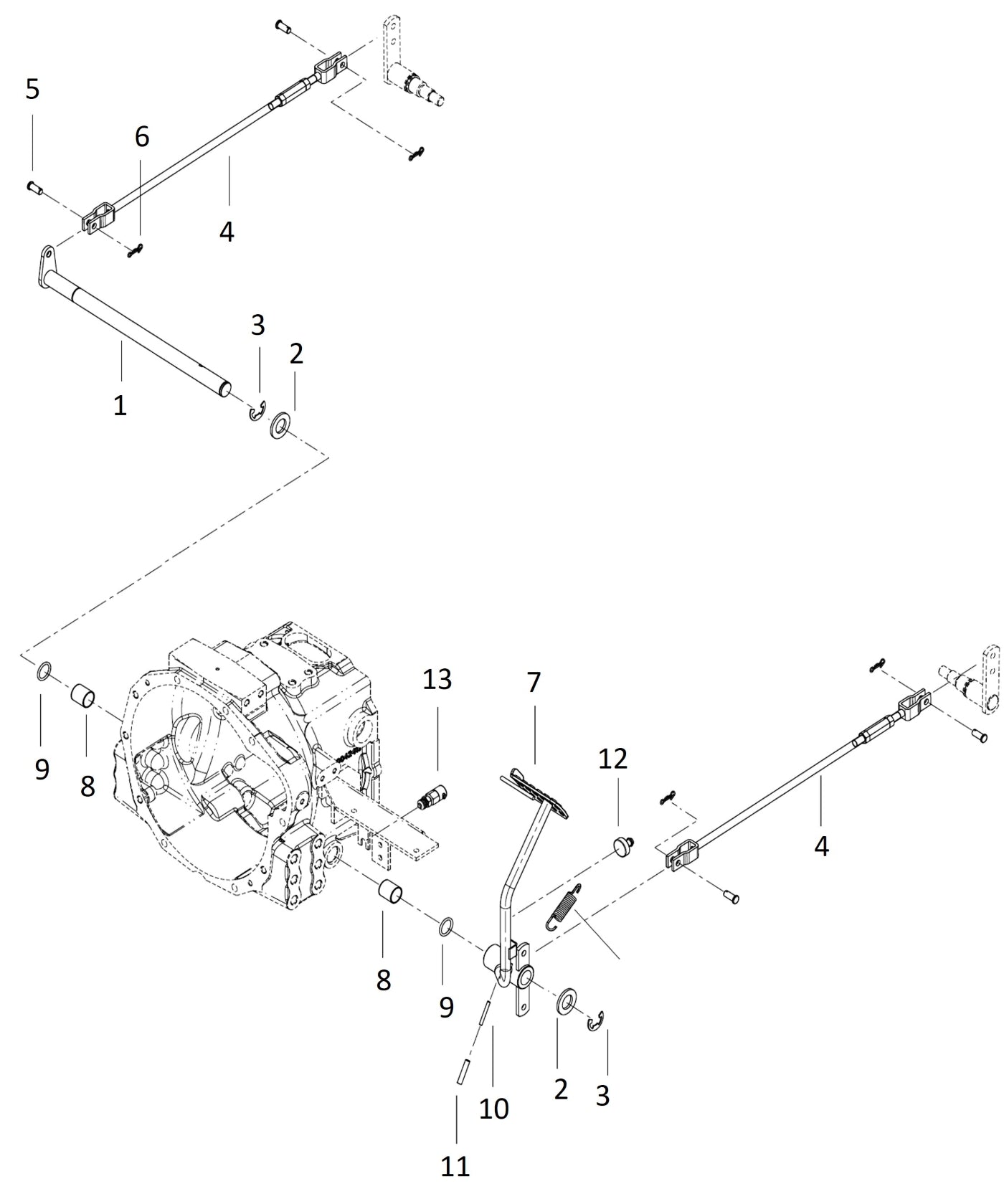

Brake Pedal
Parts Index
- 1 SHAFT, PEDAL ROD for BB4025H/BB4035H (Qty 1)
- 2 WASHER, PLAIN (F 24) for BB4025H/BB4035H (Qty 2)
- 3 RING, CIRCLIP (F 19) for BB2024H/BB3026H/BB4025H/ (Qty 2)
- 5 PIN, HEAD (10-20) for BB2024H/BB3026H/BB4025H/ (Qty 4)
- 7 BRAKE PEDAL for BB4025H/BB4035H (Qty 1)
- 8 DRY BUSH for BB4025H/BB4035H/BB4035CH (Qty 2)
- 9 O-RING, DYNAMIC (F25) for BB4025H/BB4035H/BB4035CH (Qty 2)
- 10 PIN, SPRING (5-04) for BB4025H/BB4035H/BB4035CH (Qty 1)
- 11 PIN, SPRING (8-40) for BB4025H/BB4035H/BB4035CH (Qty 1)
- 12 RUBBER STOPPER for BB4025H/BB4035H (Qty 1)
-
1#TA00042448A
SHAFT, PEDAL ROD for BB4025H/BB4035H
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
2#22137-240000
WASHER, PLAIN (F 24) for BB4025H/BB4035H
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
3#22272-000190
RING, CIRCLIP (F 19) for BB2024H/BB3026H/BB4025H/
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
5#22487-100200
PIN, HEAD (10-20) for BB2024H/BB3026H/BB4025H/
Qty Used: 4Regular price $1.69 USDRegular priceUnit price per
-
7#TA00063979A
BRAKE PEDAL for BB4025H/BB4035H
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
8#24550-025300
DRY BUSH for BB4025H/BB4035H/BB4035CH
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
9#24311-000250
O-RING, DYNAMIC (F25) for BB4025H/BB4035H/BB4035CH
Qty Used: 2Regular price $0.39 USDRegular priceUnit price per
-
10#22351-050040
PIN, SPRING (5-04) for BB4025H/BB4035H/BB4035CH
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
11#22351-080040
PIN, SPRING (8-40) for BB4025H/BB4035H/BB4035CH
Qty Used: 1Regular price $2.89 USDRegular priceUnit price per
-
12#TA00016153A
RUBBER STOPPER for BB4025H/BB4035H
Qty Used: 1Regular price $2.29 USDRegular priceUnit price per
