6' Cutter A-Arms Parts

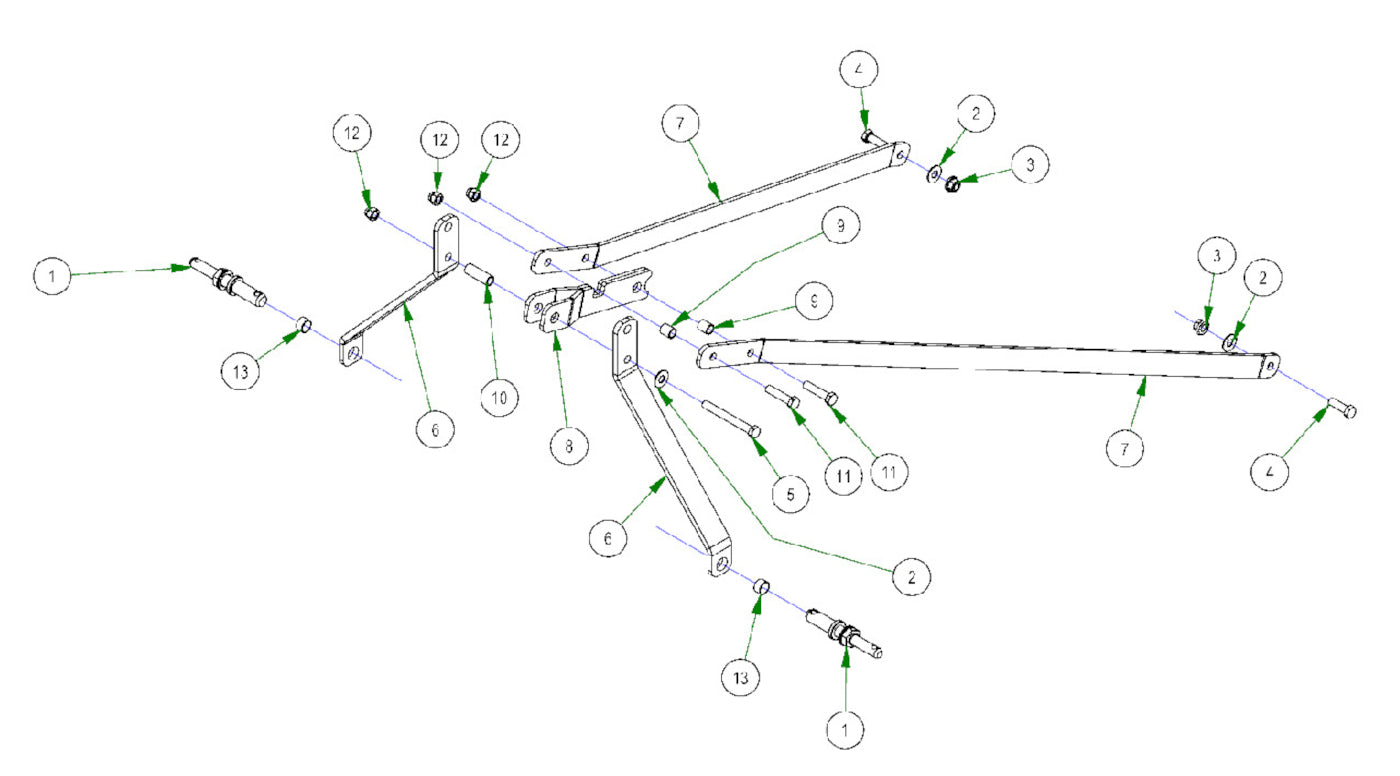

Parts Index
- 1 CAT-1 CAT-2 Lift Arm Pins With CAT-1 Threads (Qty 2)
- 2 5/8 Flat Washer (Qty 3)
- 3 5/8-11 NYL INS FLNG L/N ZC (Qty 2)
- 4 5/8-11 X 2 HEX C/S (GR 5) ZC (Qty 2)
- 5 5/8 x 5 1/2 Bolt (Qty 1)
- 6 Category 1 A-Arm - RAW (Qty 2)
- 7 Hitch Arm (Qty 2)
- 8 4', 5', 6' Top Link Weldment (Qty 1)
- 10 Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter (Qty 1)
- 11 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 2)
- 12 5/8-11 Nylon Insert Locknut Zi (Qty 3)
-
1#340-0018-00
CAT-1 CAT-2 Lift Arm Pins With CAT-1 Threads
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
2#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-

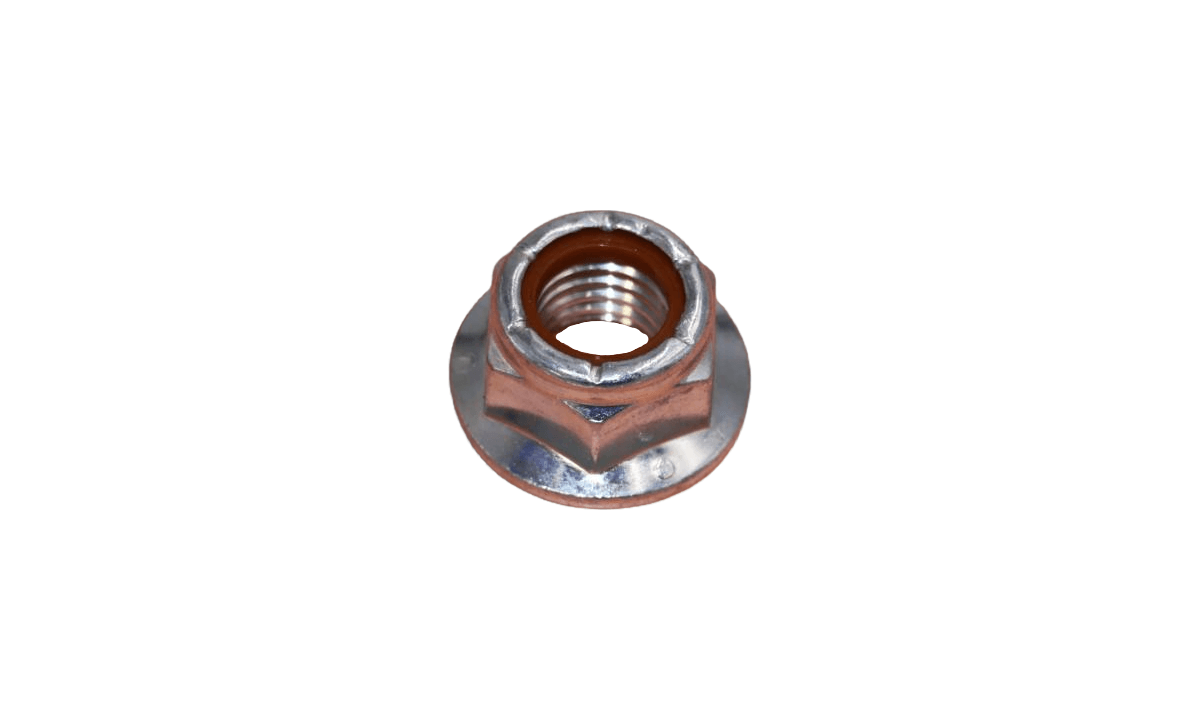

3#013-0090-00
5/8-11 NYL INS FLNG L/N ZC
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
4#318-0015-00
5/8-11 X 2 HEX C/S (GR 5) ZC
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
5#018-6016-00
5/8 x 5 1/2 Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
6#303-1022-00
Category 1 A-Arm
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
-
8#339-0057-00
4', 5', 6' Top Link Weldment
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
10#325-0004-00
Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
11#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
12#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
