5' Cutter A-Arms Parts

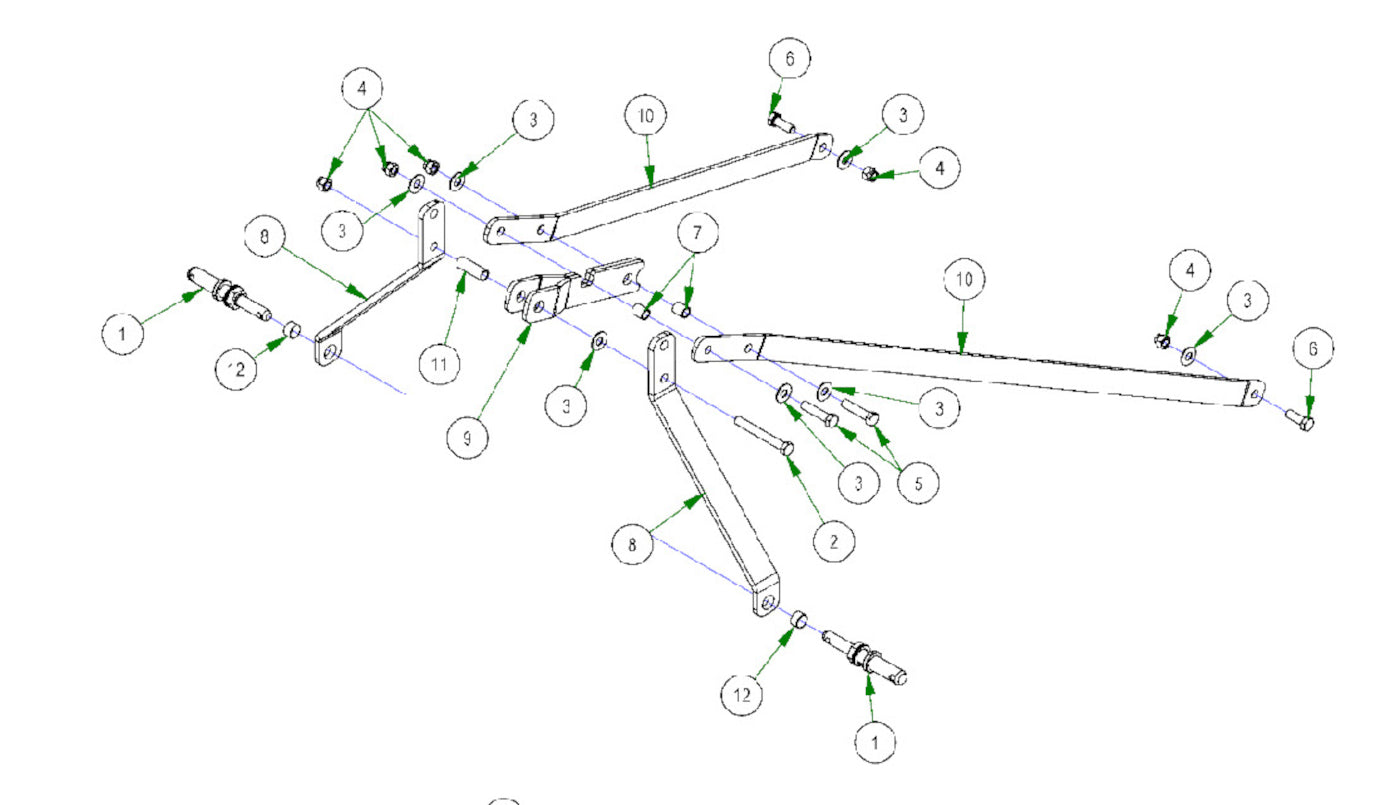

Parts Index
- 1 CAT-1 CAT-2 Lift Arm Pins With CAT-1 Threads (Qty 2)
- 2 5/8-11 X 5 GR 5 Hex Bolts Zinc (Qty 1)
- 3 5/8 Flat Washer (Qty 8)
- 4 5/8-11 Nylon Insert Locknut Zi (Qty 5)
- 5 1/2-13 x 8" Grade 5 Hex Bolt (Qty 2)
- 8 Category 1 A-Arm - RAW (Qty 2)
- 9 4', 5', 6' Top Link Weldment (Qty 1)
- 11 Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter (Qty 1)
-
1#340-0018-00
CAT-1 CAT-2 Lift Arm Pins With CAT-1 Threads
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
2#018-6015-00
5/8-11 X 5 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $2.72 USDRegular priceUnit price per
-
3#019-5038-00
5/8 Flat Washer
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
4#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 5Regular price $1.19 USDRegular priceUnit price per
-
5#018-0046-00
1/2-13 x 8" Grade 5 Hex Bolt
Qty Used: 2Regular price $3.69 USDRegular priceUnit price per
-
8#303-1022-00
Category 1 A-Arm
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
9#339-0057-00
4', 5', 6' Top Link Weldment
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
11#325-0004-00
Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
