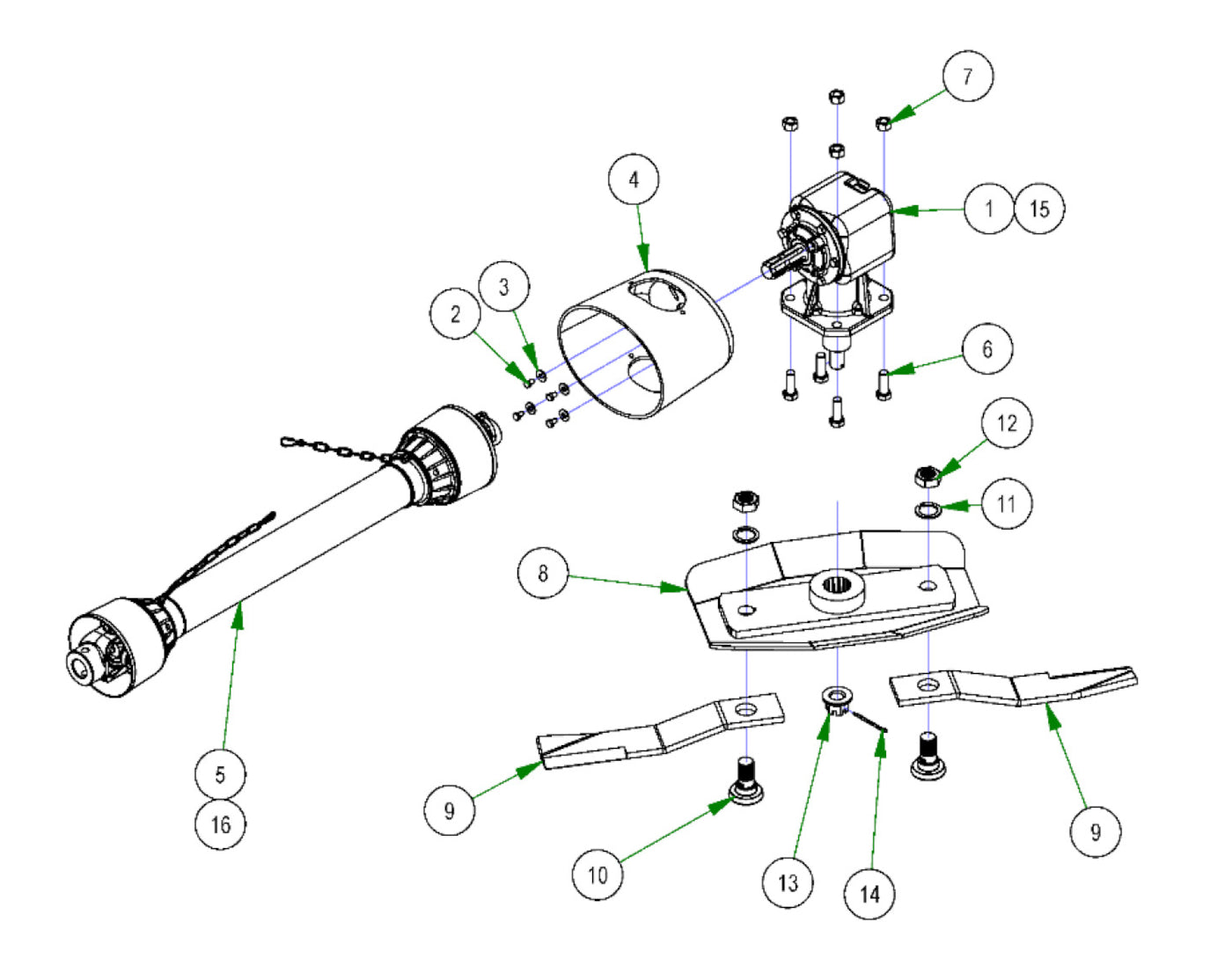

4' Cutter Gearbox Parts
Parts Index
- 2 5/16-18 x 1/2 Hex Bolt-Grade 5 (Qty 4)
- 3 5/16 USS Flat Washer Zinc (Qty 4)
- 4 PTO Guard (Qty 1)
- 5 Series 4 PTO Shaft-Shear Pin (Qty 1)
- 7 5/8 Center Lock Nut GrC-Fine (Qty 4)
- 9 4' Rotary Cutter Blade (Qty 2)
- 10 Blade Bolt Only (Qty 2)
- 11 Blade Bolt Lockwasher (Qty 2)
- 12 Blade Nut Only (Qty 2)
- 13 1" Castle Nut-Stump Jumper (Qty 1)
- 14 3/16 x2 1/4 Cotter Pin-Stump Jumper (Qty 1)
- 15 RC-30 Gearbox Shear Pin (Qty 1)
- 16 Series 4 PTO Shaft-Slip Clutch (Qty 1)
-
2#018-0057-00
5/16-18 x 1/2 Hex Bolt-Grade 5
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
3#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
-
5#350-0010-00
Series 4 PTO Shaft-Shear Pin
Qty Used: 1Regular price $259.99 USDRegular priceUnit price per
-
7#313-0005-00
5/8 Center Lock Nut GrC-Fine
Qty Used: 4Regular price $1.00 USDRegular priceUnit price per
-
9#338-0003-00
4' Rotary Cutter Blade
Qty Used: 2Regular price $54.99 USDRegular priceUnit price per
-
10#318-0001-01
Blade Bolt Only
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
11#318-0001-02
Blade Bolt Lockwasher
Qty Used: 2Regular price $11.99 USDRegular priceUnit price per
-
12#318-0001-03
Blade Nut Only
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
13#337-0003-00
1" Castle Nut-Stump Jumper
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
14#337-0002-00
3/16 x2 1/4 Cotter Pin-Stump Jumper
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
15#350-0008-00
RC-30 Gearbox Shear Pin
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
16#350-0009-00
Series 4 PTO Shaft-Slip Clutch
Qty Used: 1Regular price $299.99 USDRegular priceUnit price per
