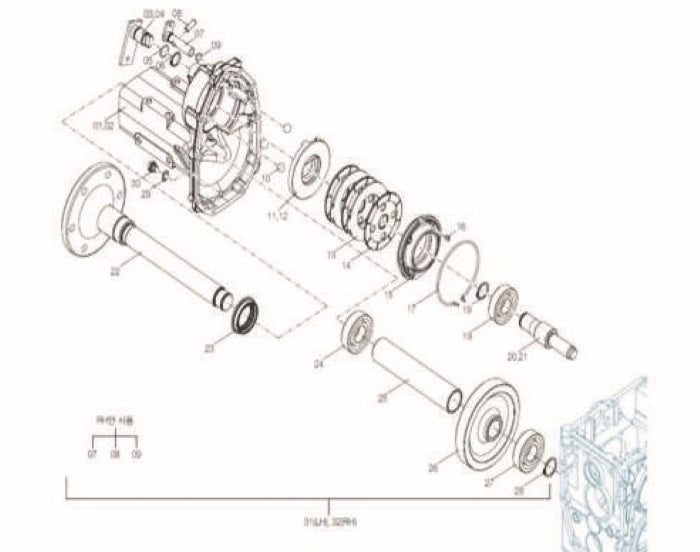

Rear Axle Assembly
Parts Index
- 3 LEVER(L),BRAKE CAM (Qty 1)
- 4 LEVER(R),BRAKE CAM (Qty 1)
- 5 O-RING (Qty 2)
- 6 C-Ring, Shaft (Qty 2)
- 8 PIN, DOWEL (10-25) (Qty 1)
- 9 O-RING, DYNAMIC (F12.5) (Qty 1)
- 10 Ball, Steel (Qty 6)
- 11 ACTUATOR(L) (Qty 1)
- 12 ACTUATOR... (Qty 1)
- 13 Plate, Brake Friction (Qty 6)
- 14 Plate, Brake Iron (Qty 4)
- 15 HOLDER,BEARING (Qty 2)
- 16 PIN (Qty 2)
- 17 CLIP (Qty 2)
- 18 SNAP RING, SHAFT (F 30) (Qty 2)
- 19 Bearing, Ball (#6306) (Qty 2)
- 20 SHAFT(L),DEFFENTIAL GEAR (Qty 1)
- 21 SHAFT(R),DIFFERENTIAL GEAR (Qty 1)
- 22/2024H ONLY AXLE, REAR (Qty 2)
- 23 SEAL,OIL (Qty 2)
- 24 BALL BEARING (Qty 2)
- 25 COLLAR 152 (Qty 2)
- 27 Bearing, Ball (#6307) (Qty 2)
- 28 SNAP RING, SHAFT (F 35) (Qty 2)
- 22/3026H ONLY REAR SHAFT (Qty 1)
-
3#FE57010000A
LEVER(L),BRAKE CAM
Qty Used: 1Regular price $27.99 USDRegular priceUnit price per
-
4#FE57020000A
LEVER(R),BRAKE CAM
Qty Used: 1Regular price $27.99 USDRegular priceUnit price per
-
-
6#22242-000250
C-Ring, Shaft
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
8#22312-100250
PIN, DOWEL (10-25)
Qty Used: 1Regular price $2.05 USDRegular priceUnit price per
-
9#24311-000125
O-RING, DYNAMIC (F12.5)
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
10#24190-200001
Ball, Steel
Qty Used: 6Regular price $1.25 USDRegular priceUnit price per
-
11#FE57060000A
ACTUATOR(L)
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
12#FE57070000A
ACTUATOR...
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
13#FE57080000A
Plate, Brake Friction
Qty Used: 6Regular price $40.99 USDRegular priceUnit price per
-
14#FE57090000A
Plate, Brake Iron
Qty Used: 4Regular price $21.99 USDRegular priceUnit price per
-
15#FE57100000A
HOLDER,BEARING
Qty Used: 2Regular price $72.99 USDRegular priceUnit price per
-
-
-
18#22242-000300
SNAP RING, SHAFT (F 30)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
19#24101-063064
Bearing, Ball (#6306)
Qty Used: 2Regular price $21.99 USDRegular priceUnit price per
-
20#FE41200000A
SHAFT(L),DEFFENTIAL GEAR
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
21#FE41210000A
SHAFT(R),DIFFERENTIAL GEAR
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
-
24#24101-062084
BALL BEARING
Qty Used: 2Regular price $30.99 USDRegular priceUnit price per
-
25#FE56050000A
COLLAR 152
Qty Used: 2Regular price $16.49 USDRegular priceUnit price per
-
27#24101-063074
Bearing, Ball (#6307)
Qty Used: 2Regular price $24.99 USDRegular priceUnit price per
-
28#22242-000350
SNAP RING, SHAFT (F 35)
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
