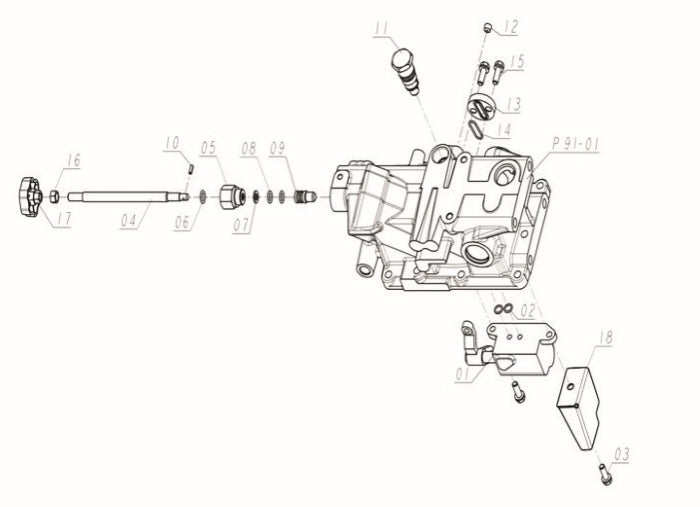

Position Valve
Parts Index
- 1 ASSY VALVE, POSITION (Qty 1)
- 2 O-RING (Qty 2)
- 3 Bolt, Hexa (8-25) for BB2024H/BB3026H (Qty 2)
- 4/2024H ONLY STOP BOLT (Qty 1)
- 5 HOLDER (Qty 1)
- 6 O-RING, DYNAMIC (F12) for BB2024H/BB3026H/BB4025H/ (Qty 1)
- 7 WASHER, PLAIN (F 08) for BB2024H/BB3026H/BB4025H/B (Qty 1)
- 8 O-RING, DYNAMIC (F11) (Qty 2)
- 9 STOP VALVE (Qty 1)
- 11 VALVE, SAFETY (Qty 1)
- 12 PLUG for BB2024H/BB3026H/BB4025H/BB4035H/BB4035CH (Qty 1)
- 14 O RING (Qty 1)
- 15 Bolt, Hexa (8-25) for BB2024H/BB3026H (Qty 2)
- 16 NUT (Qty 1)
- 18 OIL GUIDE (Qty 1)
-
1#TA00019098C
ASSY VALVE, POSITION
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
-
315#26013-080252
Bolt, Hexa (8-25) for BB2024H/BB3026H
Qty Used: 2Regular price $0.55 USDRegular priceUnit price per
-
-
-
6#24311-000120
O-RING, DYNAMIC (F12) for BB2024H/BB3026H/BB4025H/
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
7#22117-080000
WASHER, PLAIN (F 08) for BB2024H/BB3026H/BB4025H/B
Qty Used: 1Regular price $0.25 USDRegular priceUnit price per
-
8#24311-000110
O-RING, DYNAMIC (F11)
Qty Used: 2Regular price $0.49 USDRegular priceUnit price per
-
9#TA00019111A
STOP VALVE
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-

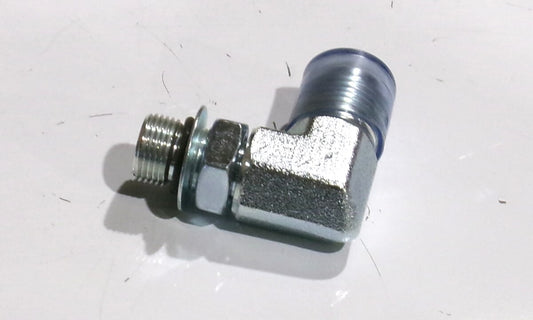

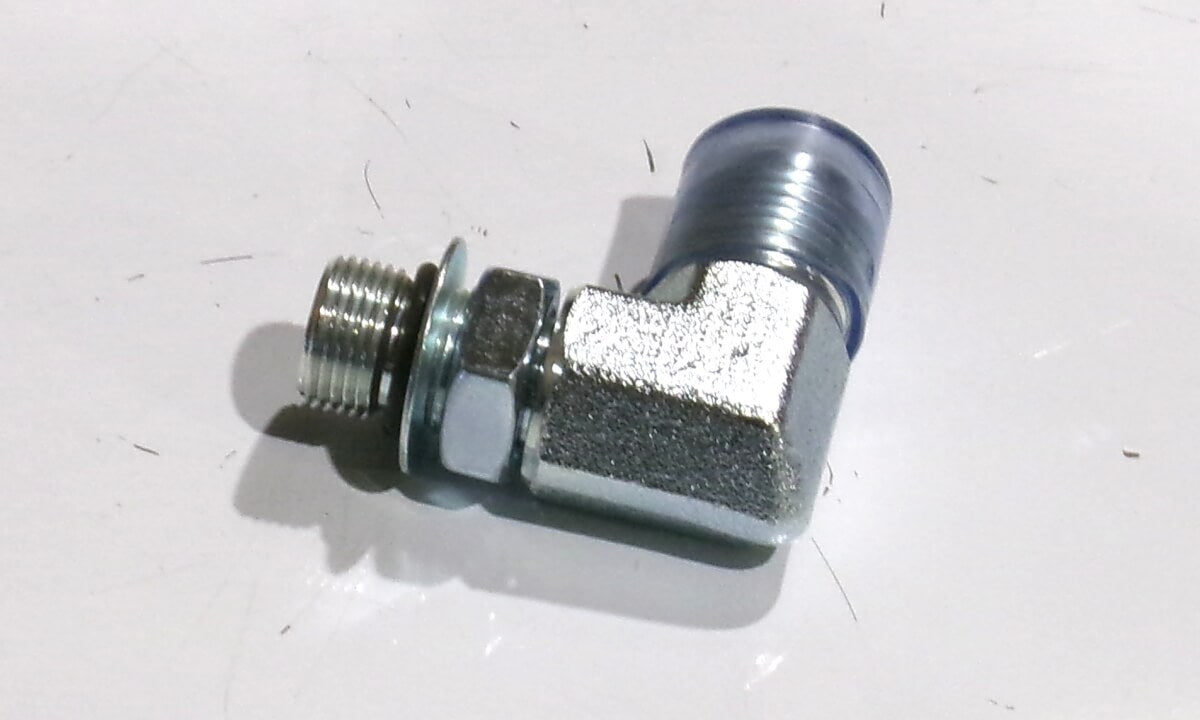

11#TA00019113B
VALVE, SAFETY
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
12#23871-010000
PLUG for BB2024H/BB3026H/BB4025H/BB4035H/BB4035CH
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
-
-
