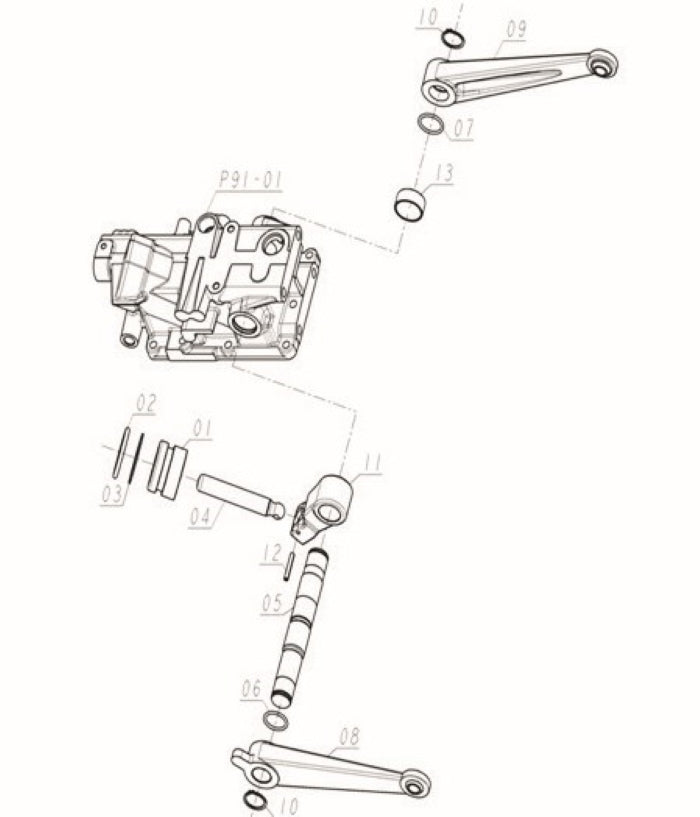

Hydraulic Piston/Lift Arm
Parts Index
- 1 HYD PISTON (D70) (Qty 1)
- 2 O-RING, HYD PISTON (Qty 1)
- 3 BACK UP RING (Qty 1)
- 4 ROD, HYD. PISTON (Qty 1)
- 5 SHAFT, HYD. ARM (Qty 1)
- 6 O RING (Qty 1)
- 7 O-RING, DYNAMIC (F38) (Qty 1)
- 9 ARM, LIFT RH (Qty 1)
- 10 SNAP RING, SHAFT (F 32) (Qty 2)
- 11 ARM, HYDRAULIC (Qty 1)
- 12 PIN, SPRING (6-40) (Qty 1)
- 13 COLLAR (Qty 1)
-

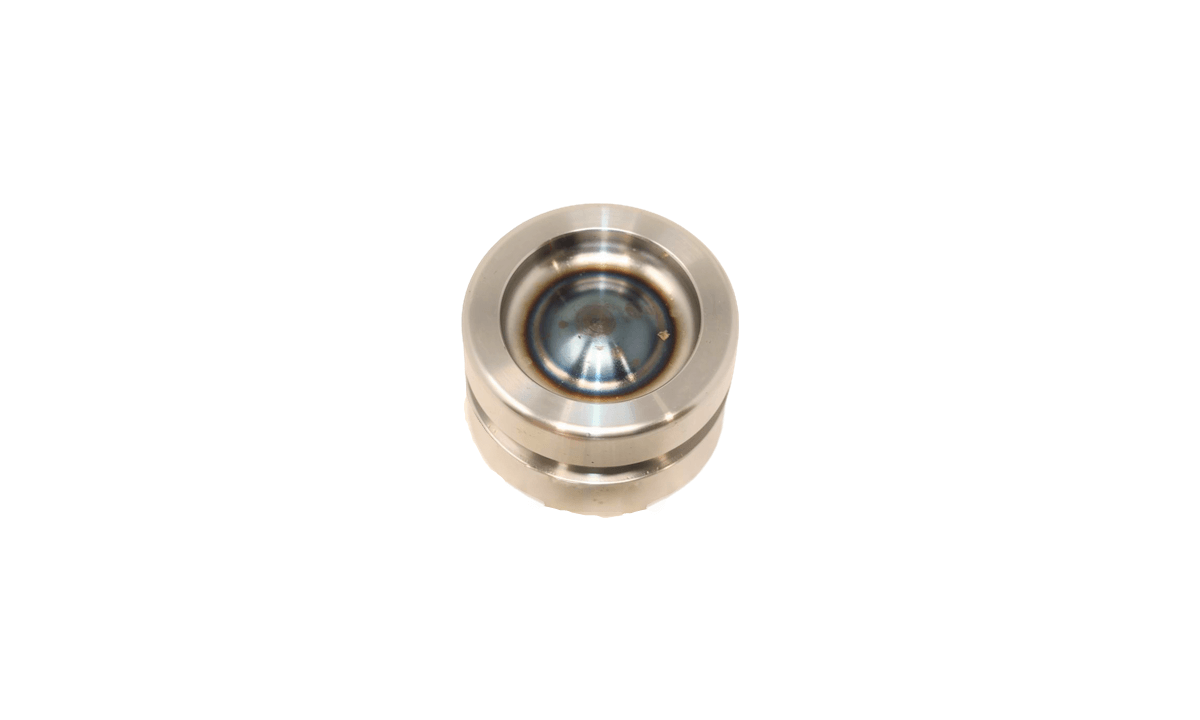

1#TA00022494B
HYD PISTON (D70)
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-

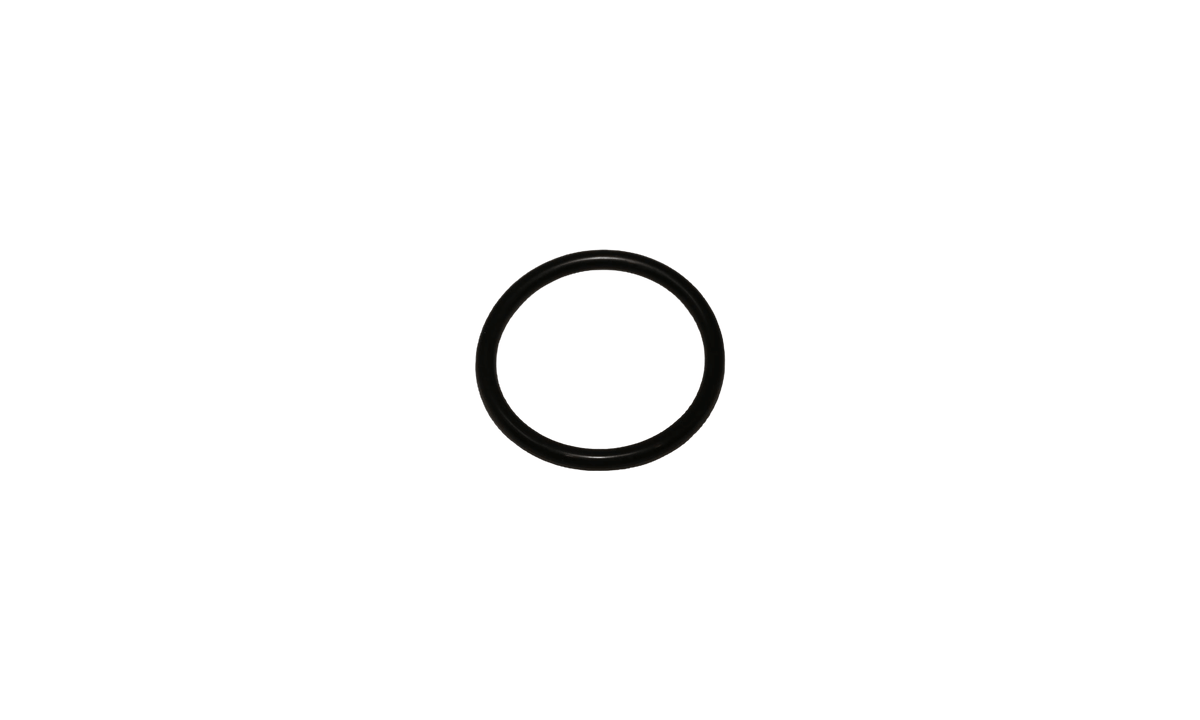

2#TA00022680A
O-RING, HYD PISTON
Qty Used: 1Regular price $5.99 USDRegular priceUnit price per
-

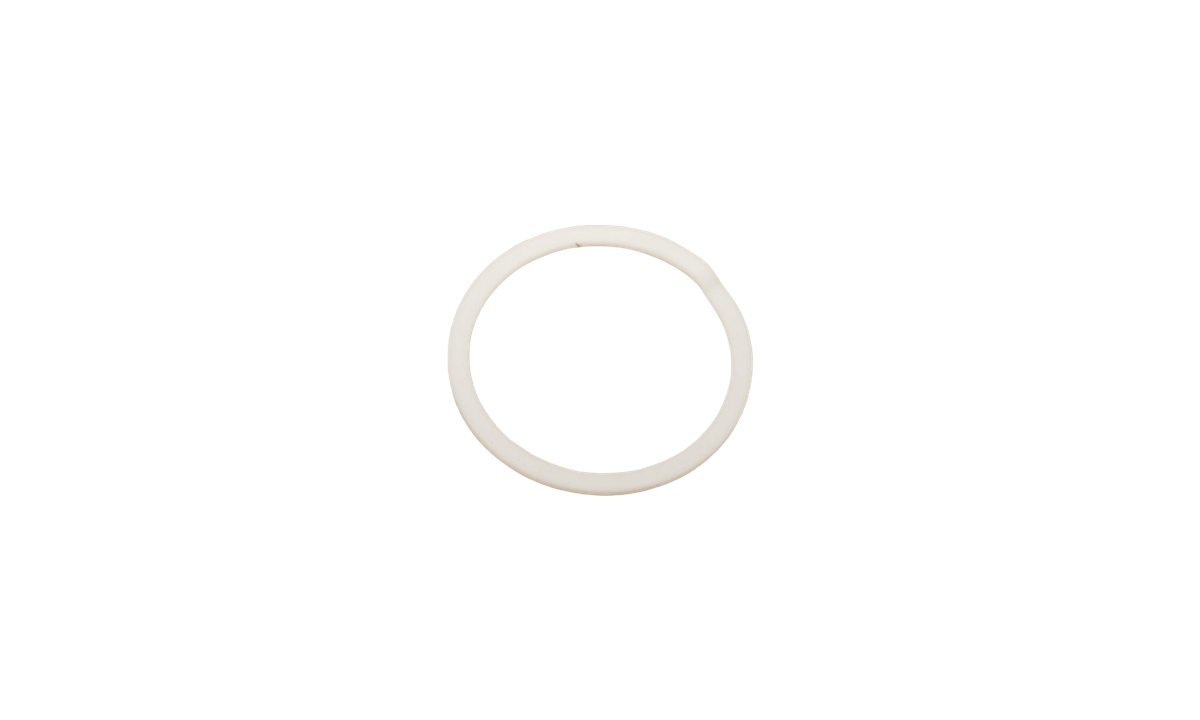

3#TA00022681A
BACK UP RING
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
4#TA00022679A
ROD, HYD. PISTON
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
5#TA00022493C
SHAFT, HYD. ARM
Qty Used: 1Regular price $218.90 USDRegular priceUnit price per
-
-
7#24311-000380
O-RING, DYNAMIC (F38)
Qty Used: 1Regular price $2.29 USDRegular priceUnit price per
-
9#TA00022497B
ARM, LIFT RH
Qty Used: 1Regular price $273.99 USDRegular priceUnit price per
-
10#22242-000320
SNAP RING, SHAFT (F 32)
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
11#TA00022966A
ARM, HYDRAULIC
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-

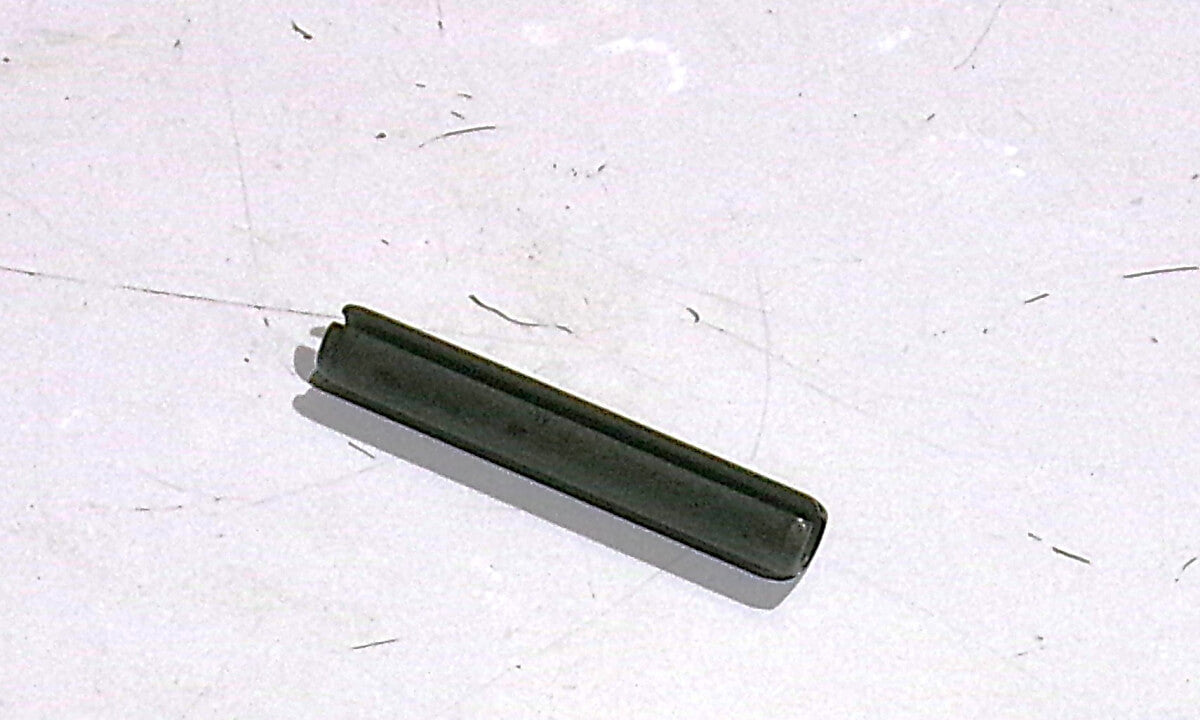

12#22351-060040
PIN, SPRING (6-40)
Qty Used: 1Regular price $1.29 USDRegular priceUnit price per
-
