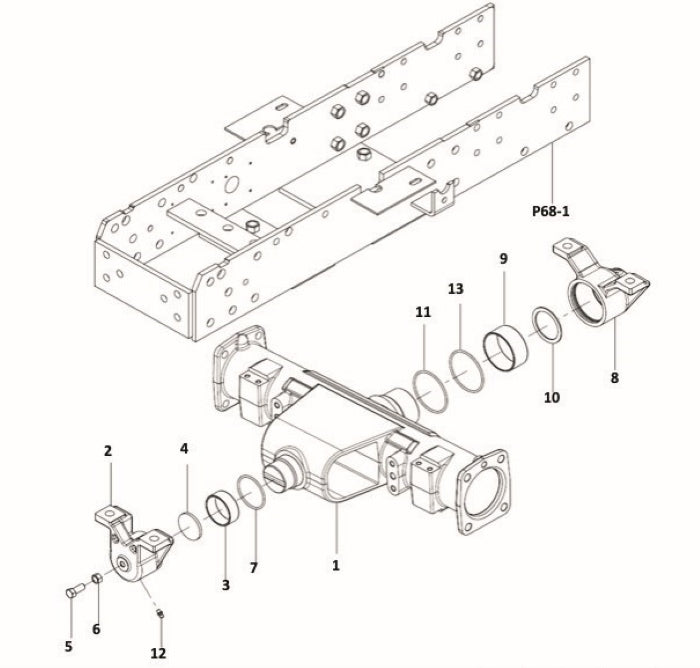

Front Axle Case
Parts Index
- 1 CASE, FRONT AXLE for BB2024H/BB3026H (Qty 1)
- 3 BUSH,DRY for BB2024h/BB3026H (Qty 1)
- 4 COLLAR, THRUST for BB2024H/BB3026H (Qty 1)
- 5 BOLT7T(100X25) for BB2024H/BB3026H (Qty 1)
- 6 NUT (Qty 1)
- 7 SEAL,O-RING for BB2024/BB3026H/BB4025H/BB4035H/ (Qty 1)
- 8 HOLDER for BB2024H/BB3026H (Qty 1)
- 9 DRY BUSH for BB2024H/BB3026H (Qty 1)
- 10 COLLAR, THRUST for BB2024H/BB3026H (Qty 1)
- 11 O-RING1AG-70 for BB2024/BB3026H/BB4025H/BB4035H/ (Qty 1)
- 12 GREASE NIPPLE for BB2024H/BB3026H/BB4025H/BB4035H/ (Qty 1)
- 13 O-RING, FIX(F65) for BB2024H/BB3026H (Qty 1)
-
1#FE76010000B
CASE, FRONT AXLE for BB2024H/BB3026H
Qty Used: 1Regular price $439.99 USDRegular priceUnit price per
-
3#24550-050200
BUSH,DRY for BB2024h/BB3026H
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
4#FE76060000A
COLLAR, THRUST for BB2024H/BB3026H
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
5#26116-100252
BOLT7T(100X25) for BB2024H/BB3026H
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
-
7#24321-000550
SEAL,O-RING for BB2024/BB3026H/BB4025H/BB4035H/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
8#FE76100000B
HOLDER for BB2024H/BB3026H
Qty Used: 1Regular price $329.99 USDRegular priceUnit price per
-
9#24550-065300
DRY BUSH for BB2024H/BB3026H
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
10#FE76120000A
COLLAR, THRUST for BB2024H/BB3026H
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
11#24321-000700
O-RING1AG-70 for BB2024/BB3026H/BB4025H/BB4035H/
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
12#24764-060000
GREASE NIPPLE for BB2024H/BB3026H/BB4025H/BB4035H/
Qty Used: 1Regular price $4.09 USDRegular priceUnit price per
-
13#24321-000650
O-RING, FIX(F65) for BB2024H/BB3026H
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
