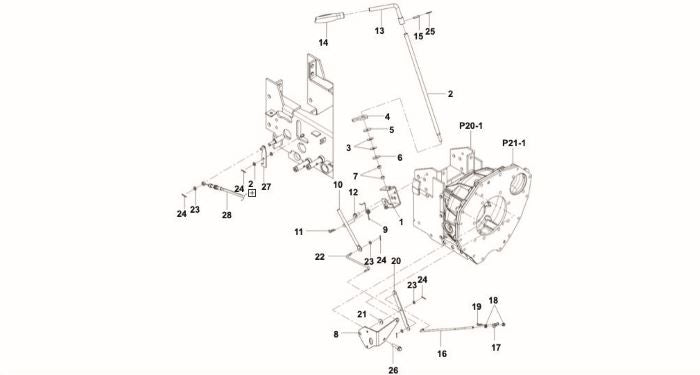

Accelerator Lever
Parts Index
- 1 BRACKET, ACCELATOR (00 SERIES) (Qty 1)
- 2 ROD, ACCELERATOR (Qty 1)
- 3 SPRING, ACCELERATOR PLATE (00 SERIES) (Qty 2)
- 4 ACCEL ARM (Qty 1)
- 6 WASHER, PLAIN (F 08) for BB2024H/BB3026H/BB4025H/B (Qty 1)
- 9 ACCEL SPRING (Qty 1)
- 10 Accelerator Link BB2024H / BB3026H (Qty 1)
- 11 PIN , SNAP (10F) (Qty 1)
- 12 BOLT (Qty 1)
- 13 LEVER, ACCEL (Qty 1)
- 14 KNOB, ACCELERATOR (Qty 1)
- 15 PIN, SPRING (Qty 1)
- 16 ROD (Qty 1)
- 17 CONNECTOR (Qty 1)
- 19 PIN , SNAP (8F) for BB2024H/BB3026H/BB4025H/4035H/ (Qty 1)
- 21 WASHER, PLAIN (F 06) for BB2024H/BB3026H/BB4025H/ (Qty 1)
- 22 ROD (Qty 1)
- 23 WASHER, PLAIN (F 06) for BB2024H/BB3026H (Qty 6)
- 24 PIN , COTTER (1-16) (Qty 5)
- 25 PIN, SPRING (Qty 1)
- 26 BOLT (Qty 2)
- 27 LINK (Qty 1)
- 28 WIRE (Qty 1)
-
1#FE04010000A
BRACKET, ACCELATOR (00 SERIES)
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
2#FE04020000A
ROD, ACCELERATOR
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
3#FE04030000A
SPRING, ACCELERATOR PLATE (00 SERIES)
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
-
6#22157-080000
WASHER, PLAIN (F 08) for BB2024H/BB3026H/BB4025H/B
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-

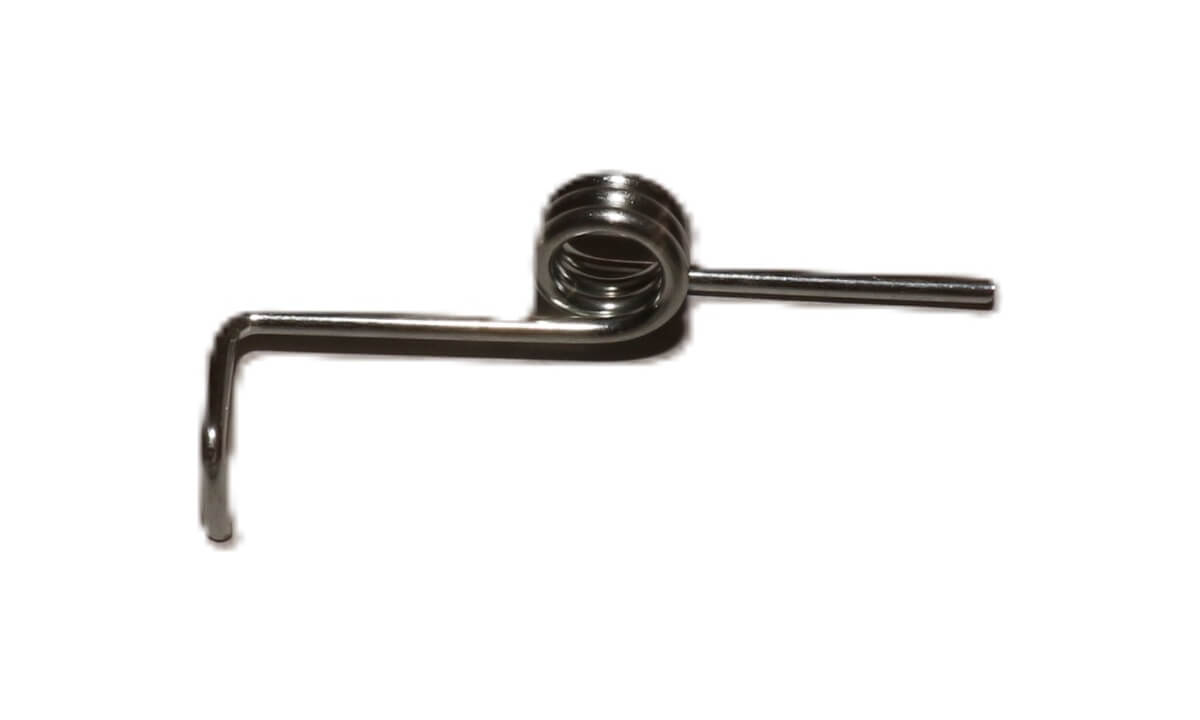

9#TA00049164A
ACCEL SPRING
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
10#TA00049134A
Accelerator Link BB2024H / BB3026H
Qty Used: 1Regular price $10.79 USDRegular priceUnit price per
-
11#22360-100000
PIN , SNAP (10F)
Qty Used: 1Regular price $0.55 USDRegular priceUnit price per
-
-

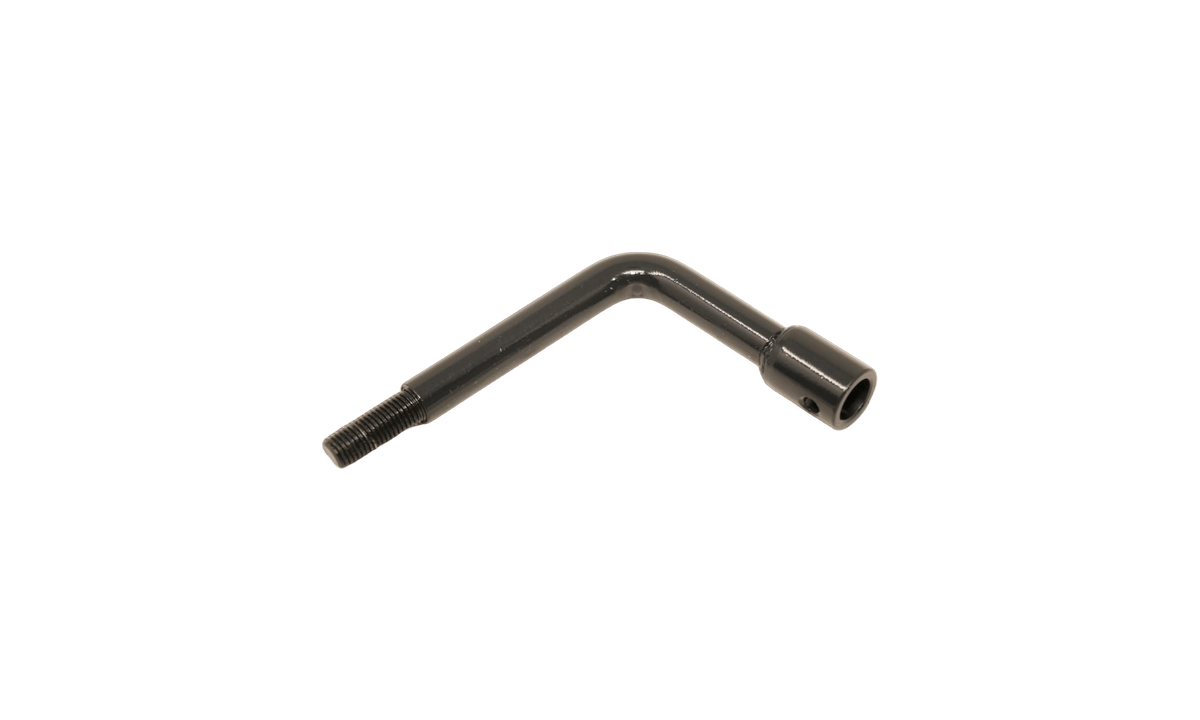

13#FE04140000B
LEVER, ACCEL
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
14#TA00044439A
KNOB, ACCELERATOR
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
15#22351-050020
PIN, SPRING
Qty Used: 1Regular price $0.49 USDRegular priceUnit price per
-
-
-
19#22360-080000
PIN , SNAP (8F) for BB2024H/BB3026H/BB4025H/4035H/
Qty Used: 1Regular price $0.49 USDRegular priceUnit price per
-
21#22157-060000
WASHER, PLAIN (F 06) for BB2024H/BB3026H/BB4025H/
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
-
23#22117-060000
WASHER, PLAIN (F 06) for BB2024H/BB3026H
Qty Used: 6Regular price $0.10 USDRegular priceUnit price per
-
24#22417-160160
PIN , COTTER (1-16)
Qty Used: 5Regular price $0.29 USDRegular priceUnit price per
-
25#22351-030020
PIN, SPRING
Qty Used: 1Regular price $0.29 USDRegular priceUnit price per
-
-
-
