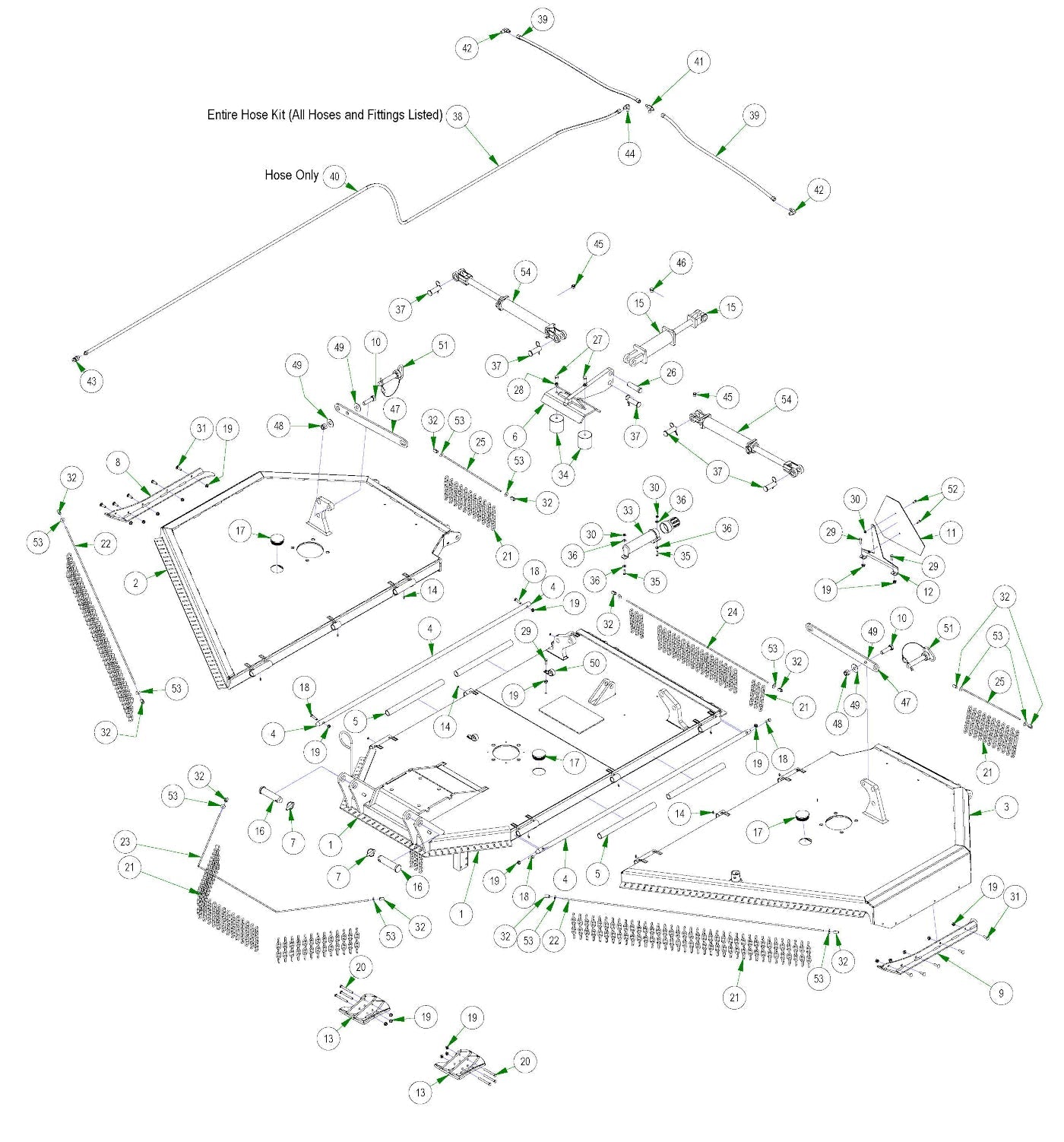

Flexwing Main Assembly Parts

Parts Index
- 7 7/16" x 2" Round Lynch Pin (Qty 2)
- 11 Slow Moving Vehicle Plastic Emblem (Qty 1)
- 14 1/8" Drive-in Grease Fitting No Ball (Qty 12)
- 18 3/8 x 1 1/2 Bolt (Qty 4)
- 19 3/8 Nylock Flange Nut (Qty 25)
- 20 3/8-16x3-1/2 Grade 5 Hex Bolt (Qty 6)
- 27 1/2-13 X 1-1/4 Hex Bolt (Qty 2)
- 28 1/2 Lockwasher Zinc (Qty 2)
- 29 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 5)
- 30 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 31 3/8-16 X 1-1/4 Carriage Bolt (Qty 10)
- 32 3/16 Stop Sleeve (Qty 12)
- 33 Document Holder (Qty 1)
- 34 Isolator (Blue Dot) (Qty 2)
- 35 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 36 1/4 USS Flat Washer Zinc (Qty 4)
- 48 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 49 3/4" Flat Washer (Qty 4)
- 50 Diesel Hydraulic Hose Clamp (Qty 3)
- 52 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 53 1/4" Flat Washer (Qty 12)
