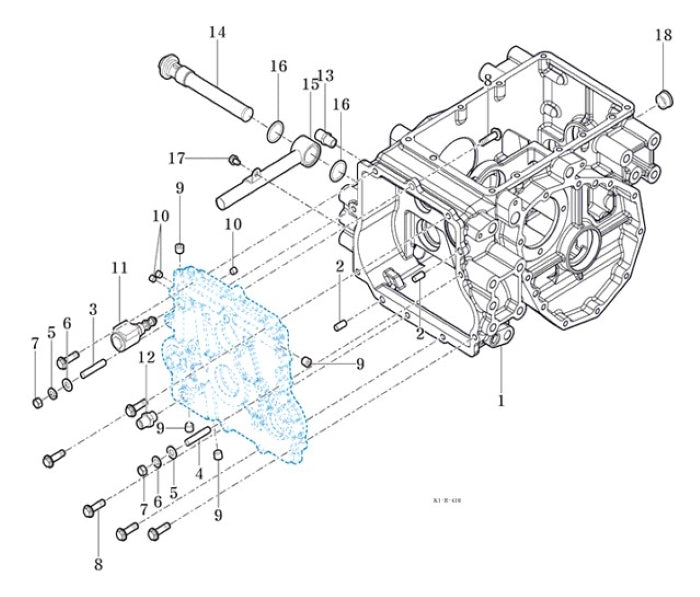

Rear Transmission Case
Parts Index
- 2 PIN, STRAIGHT (A) (Qty 2)
- 3 STUD, BOLT (Qty 1)
- 4 STUD, BOLT (Qty 1)
- 5 Washer, Plain (Qty 2)
- 6 Washer, Spring (Qty 2)
- 7 Nut, Hex/2 (Qty 2)
- 8 BOLT (Qty 7)
- 9 PLUG (Qty 4)
- 10 PLUG (Qty 3)
- 11 PTO SOL VALVE (Qty 1)
- 12 UNION , SHORT (Qty 1)
- 13 UNION , PT3/8 M18 (Qty 1)
- 14 STRAINER (Qty 1)
- 15 PIPE COMP (Qty 1)
- 16 O RING(P) (Qty 2)
- 17 BOLT(S) (Qty 1)
- 18 OIL GUIDE ASSY (Qty 1)
-

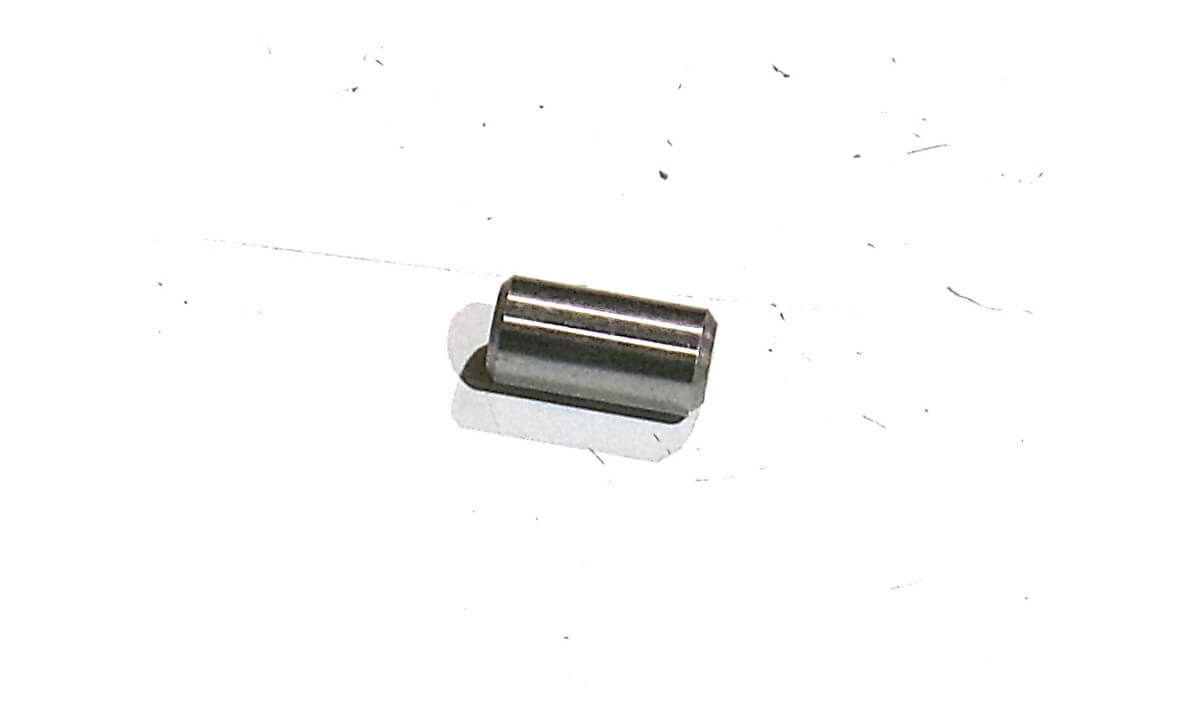

2#V5201010018
PIN, STRAIGHT (A)
Qty Used: 2Regular price $2.59 USDRegular priceUnit price per
-
34#V2514410050
STUD, BOLT
Qty Used: 1Regular price $6.99 USDRegular priceUnit price per
-
5#V4111600100
Washer, Plain
Qty Used: 2Regular price $0.59 USDRegular priceUnit price per
-
6#V4011600100
Washer, Spring
Qty Used: 2Regular price $0.70 USDRegular priceUnit price per
-
7#V3043600100
Nut, Hex/2
Qty Used: 2Regular price $1.79 USDRegular priceUnit price per
-
-
-
-

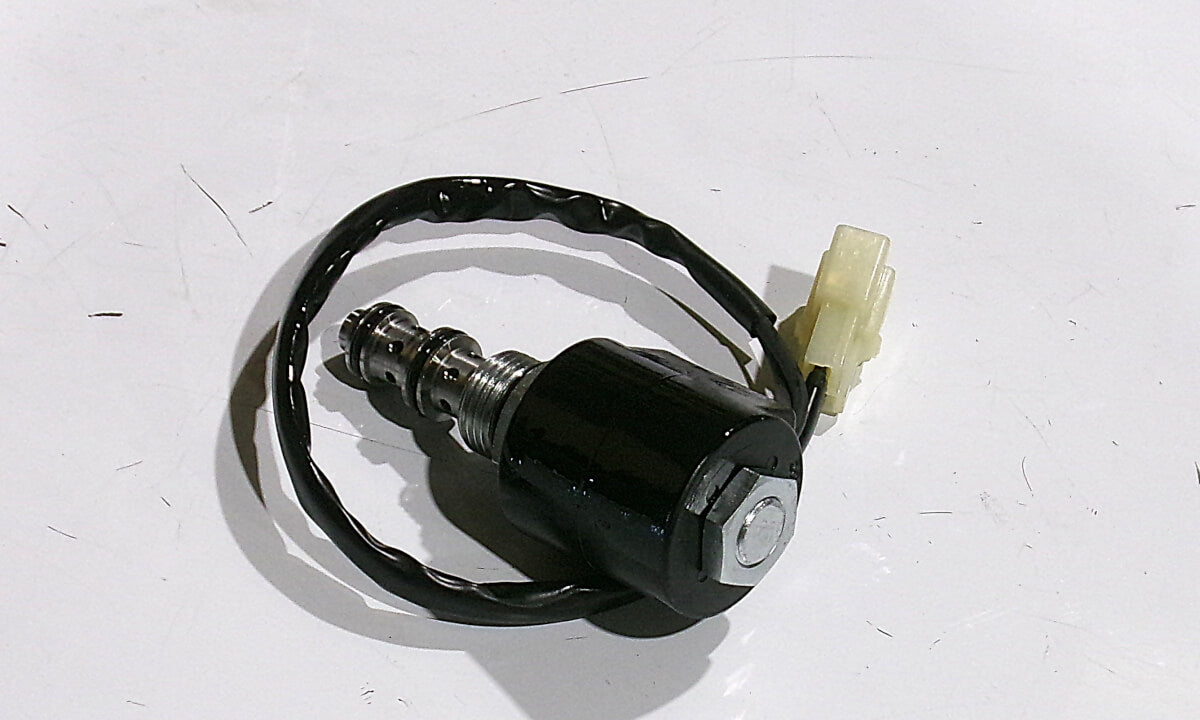

11#11102303200A
PTO SOL VALVE
Qty Used: 1Regular price $349.99 USDRegular priceUnit price per
-

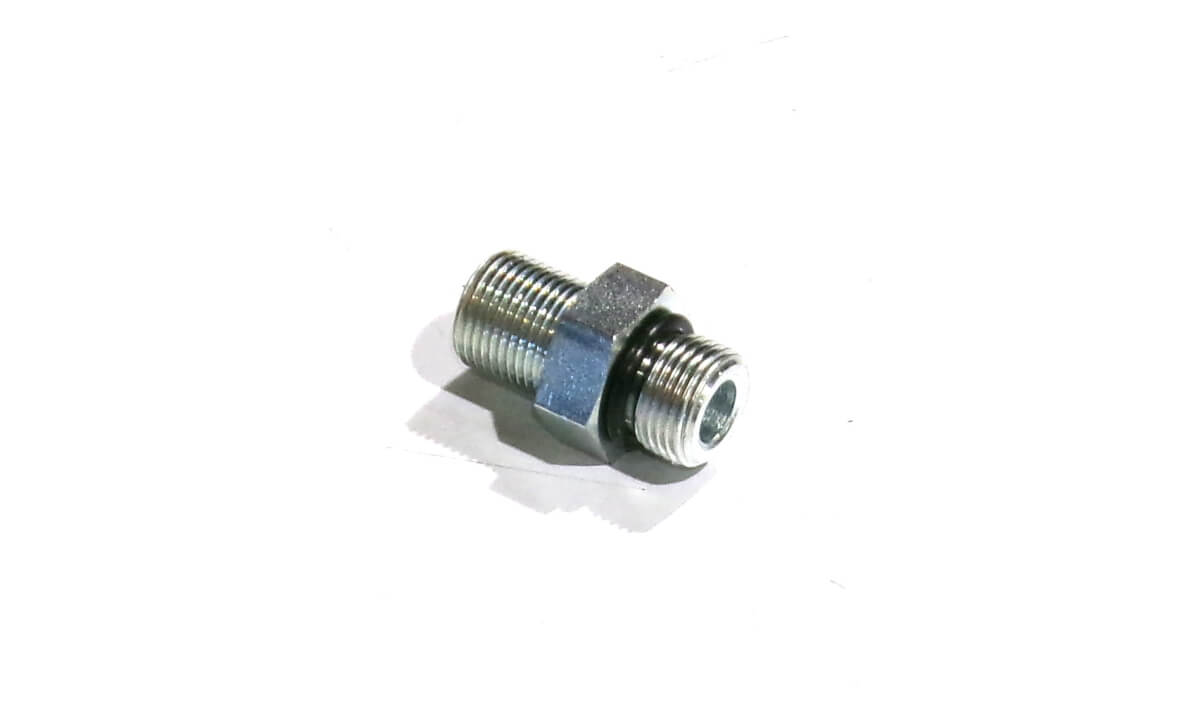

12#16994080072C
UNION , SHORT
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
13#16994080061B
UNION , PT3/8 M18
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
-
-
-
-
18#11103062000
OIL GUIDE ASSY
Qty Used: 1Regular price $14.29 USDRegular priceUnit price per
