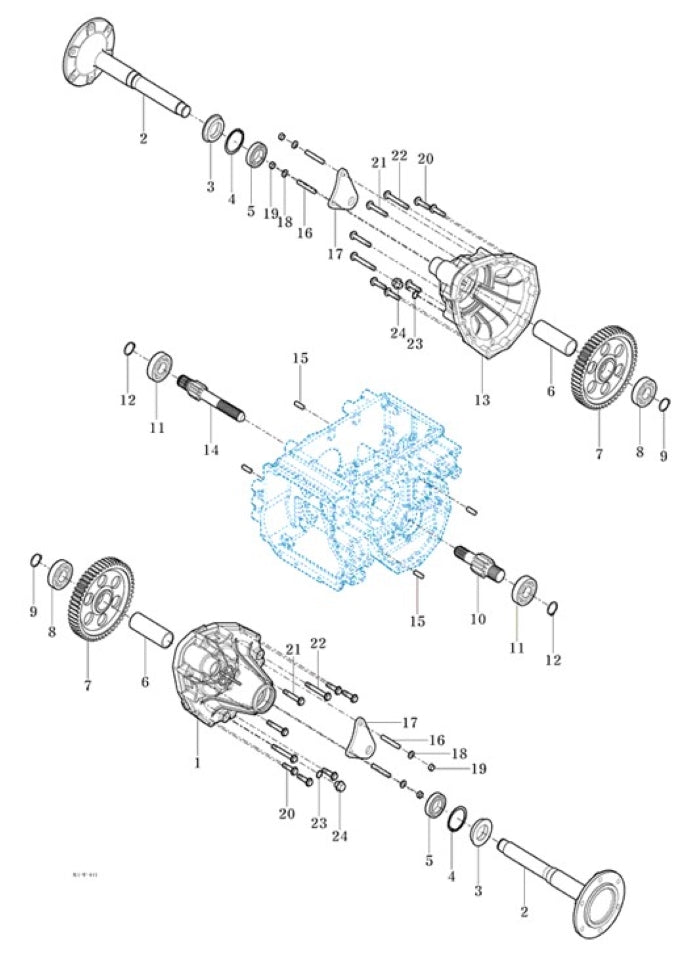

Rear Axle Housing
Parts Index
- 1 HOUSING , REAR AXLE LH (Qty 1)
- 2 SHAFT , WHEEL (Qty 2)
- 4 CIR CLIP, INTERNAL (Qty 2)
- 5 Bearing, Ball (#6007) (Qty 2)
- 6 COLLAR , 43X35X119 (Qty 2)
- 7 WHEEL GEAR (59) (Qty 2)
- 8 BEARING , BALL (Qty 2)
- 9 CIR CLIP,EXTERNAL (Qty 2)
- 10 SHAFT , PINION LH/9T (Qty 1)
- 11 BEARING , BALL (Qty 2)
- 12 CIR CLIP,EXTERNAL (Qty 2)
- 13 HOUSING , REAR AXLE RH (Qty 1)
- 14 SHAFT , PINION RH/9T (Qty 1)
- 15 PIN, STRAIGHT (A) (Qty 4)
- 16 STUD, BOLT (Qty 4)
- 17 PLATE , LOWER LINK (Qty 2)
- 18 Washer, Spring (Qty 4)
- 19 NUT (Qty 4)

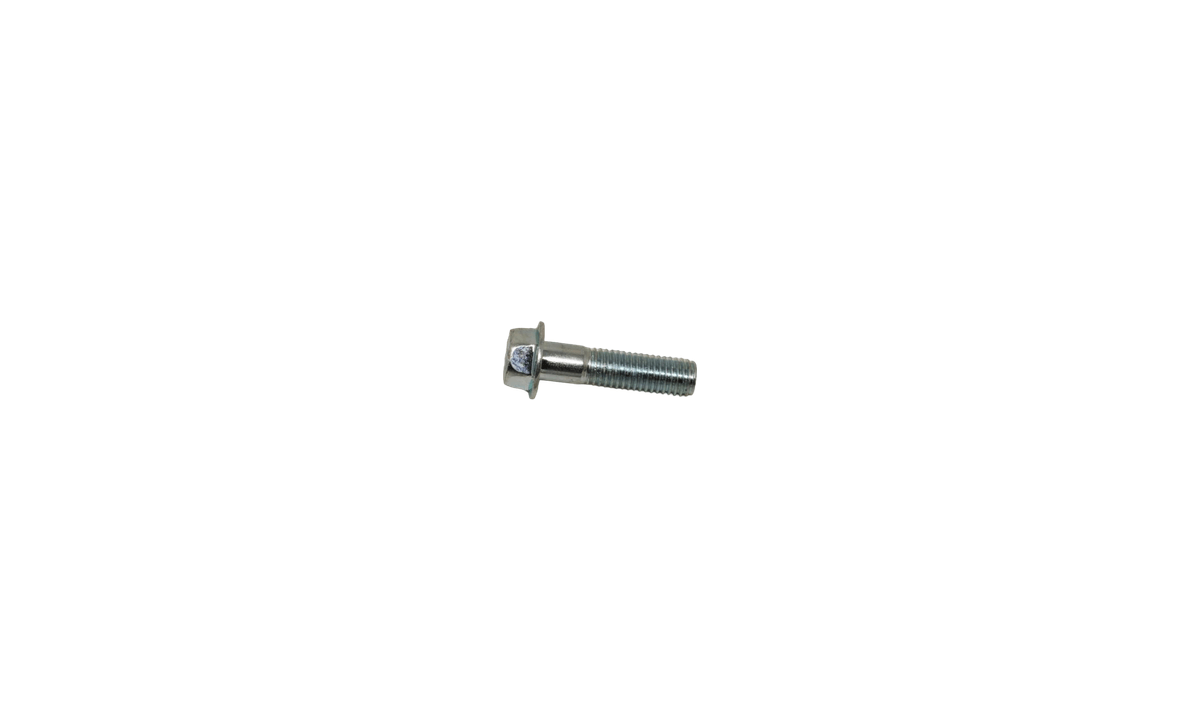

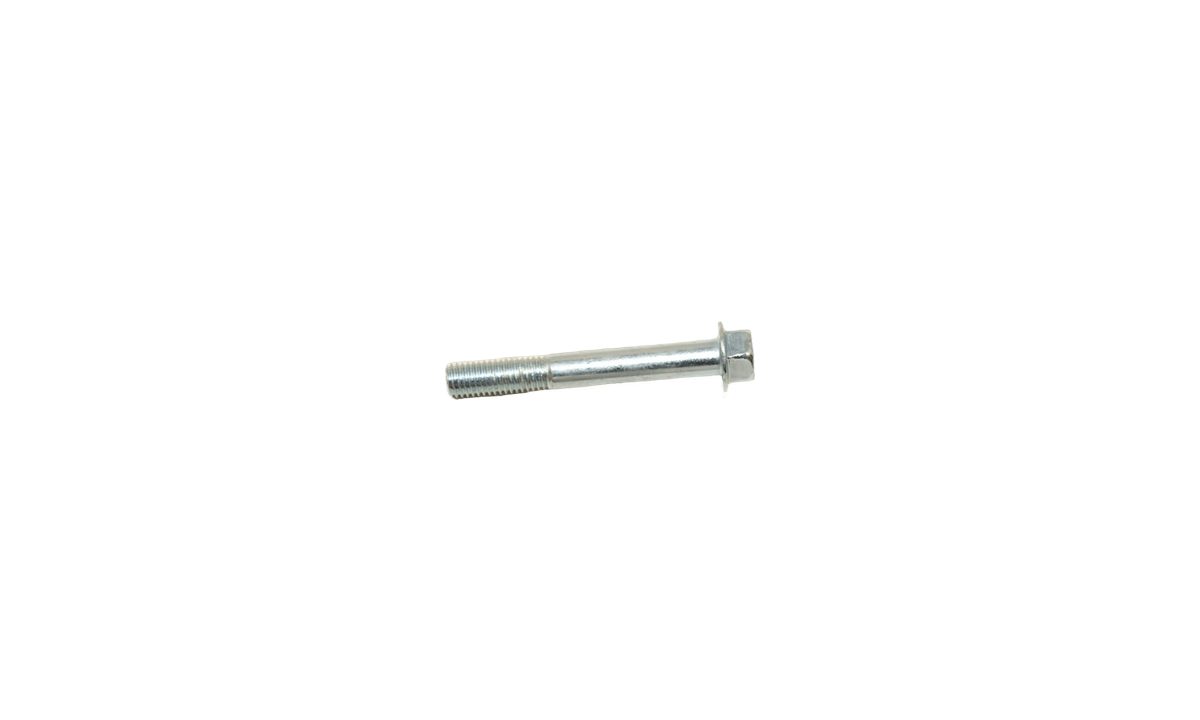

- 20 BOLT (Qty 10)
- 21 BOLT (Qty 4)
- 22 BOLT (Qty 4)
- 23 O RING(P) (Qty 2)
- 24 PLUG (M16) (Qty 2)
-

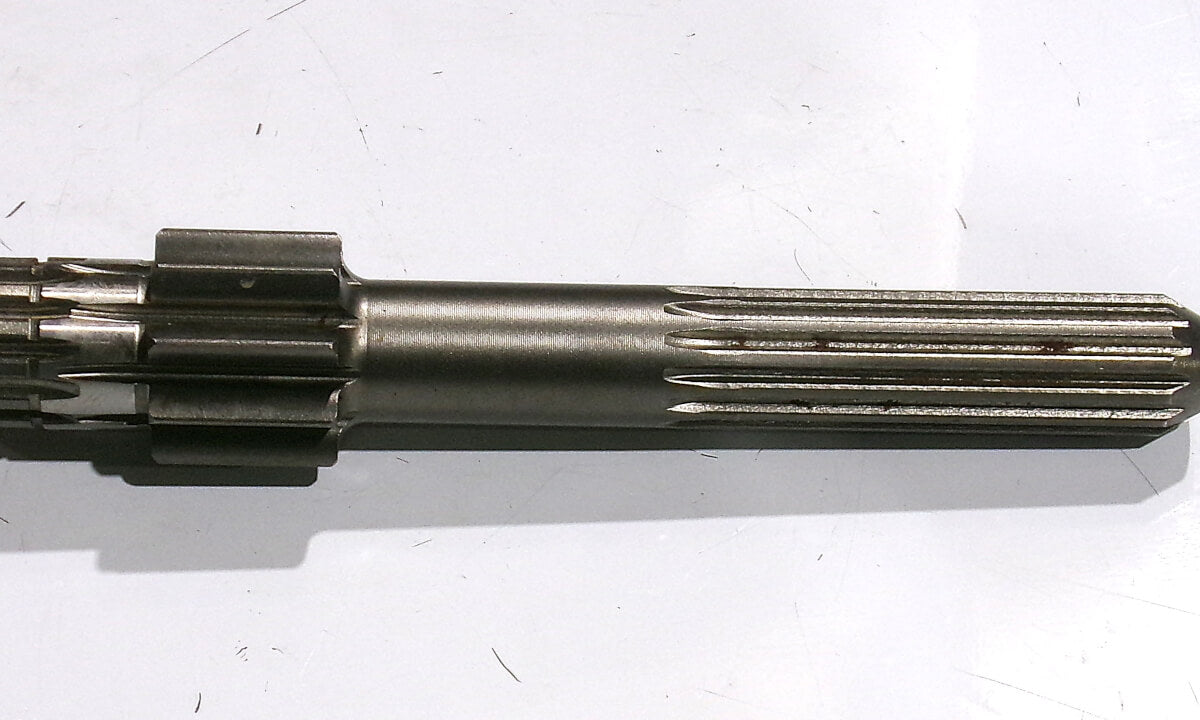

14#11203230020A
SHAFT , PINION RH/9T
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
24#11102400020
PLUG (M16)
Qty Used: 2Regular price $20.99 USDRegular priceUnit price per
-
-
-
-
-
18#V4011600100
Washer, Spring
Qty Used: 4Regular price $0.70 USDRegular priceUnit price per
-

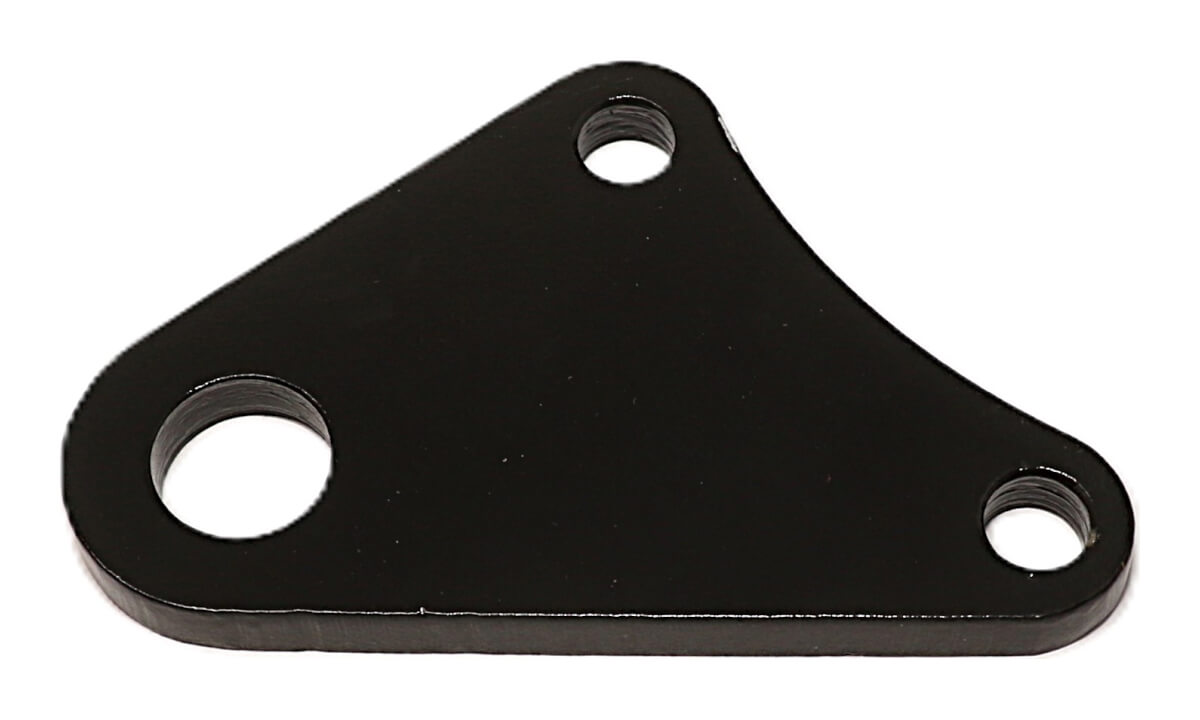

17#11105200040GB
PLATE , LOWER LINK
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
16#V2514412060
STUD, BOLT
Qty Used: 4Regular price $8.99 USDRegular priceUnit price per
-
15#V5201010018
PIN, STRAIGHT (A)
Qty Used: 4Regular price $2.59 USDRegular priceUnit price per
-
1#11103200010M
HOUSING , REAR AXLE LH
Qty Used: 1Regular price $439.99 USDRegular priceUnit price per
-
13#11103200020M
HOUSING , REAR AXLE RH
Qty Used: 1Regular price $549.99 USDRegular priceUnit price per
-

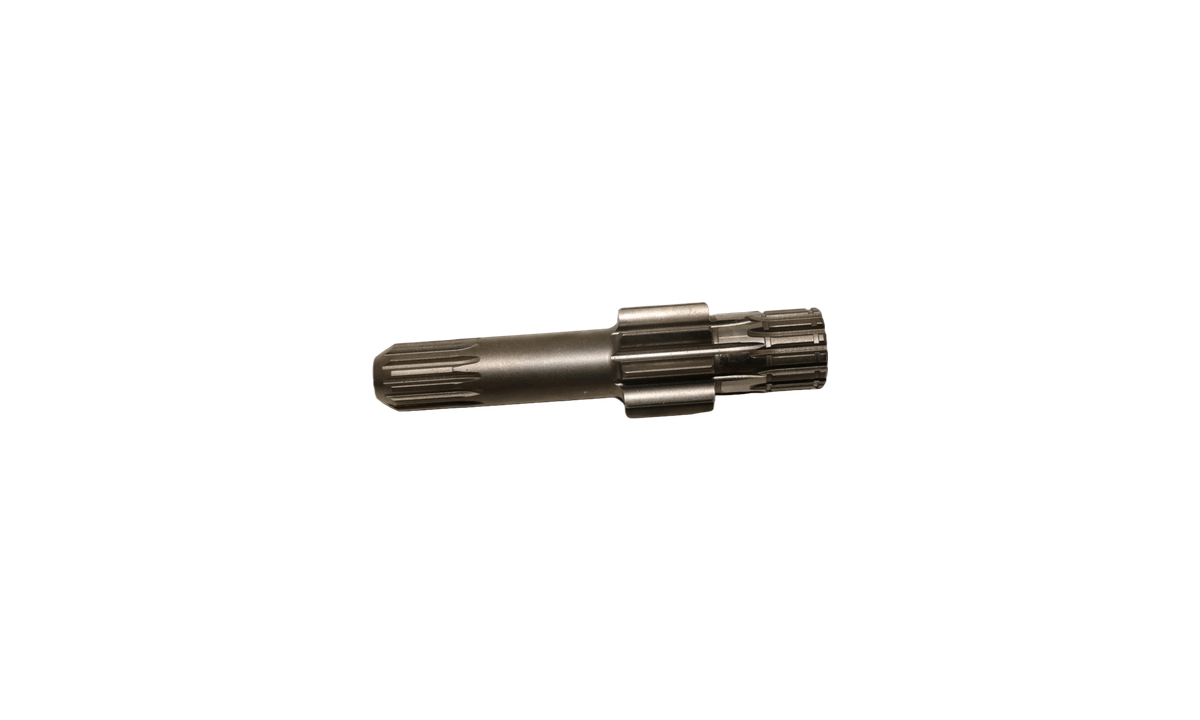

10#11203230010A
SHAFT , PINION LH/9T
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
912#V7041400300
CIR CLIP,EXTERNAL
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
811#V6001106306
BEARING , BALL
Qty Used: 2Regular price $26.49 USDRegular priceUnit price per
-

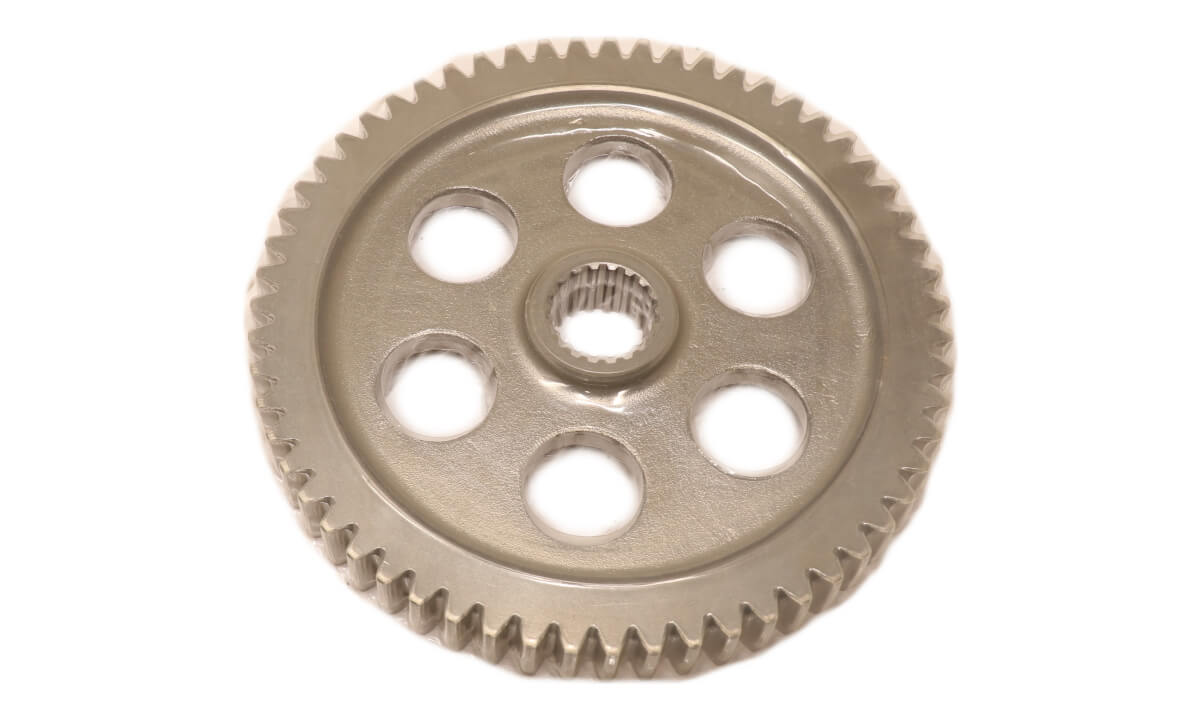

7#11203240020
WHEEL GEAR (59)
Qty Used: 2Regular price $439.99 USDRegular priceUnit price per
-
6#11103240040A
COLLAR , 43X35X119
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
5#V6001106007
Bearing, Ball (#6007)
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
4#V7051400620
CIR CLIP, INTERNAL
Qty Used: 2Regular price $8.49 USDRegular priceUnit price per
-

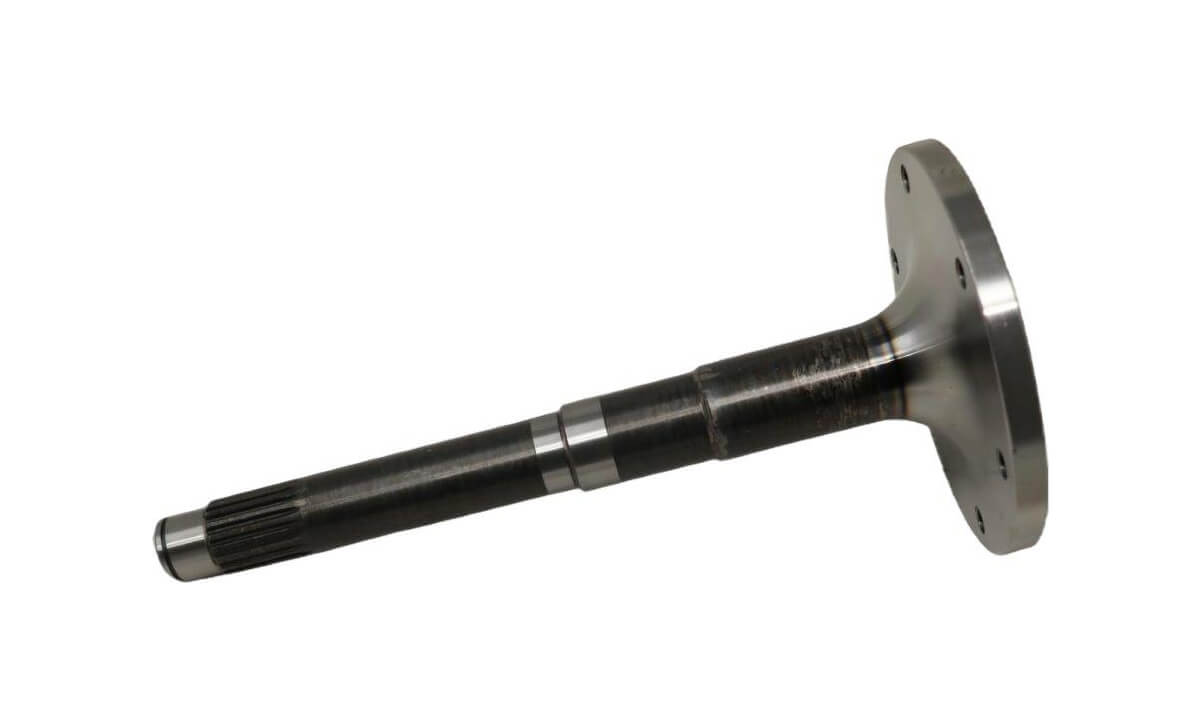

2#11103240010M
SHAFT , WHEEL
Qty Used: 2Regular price $307.99 USDRegular priceUnit price per
