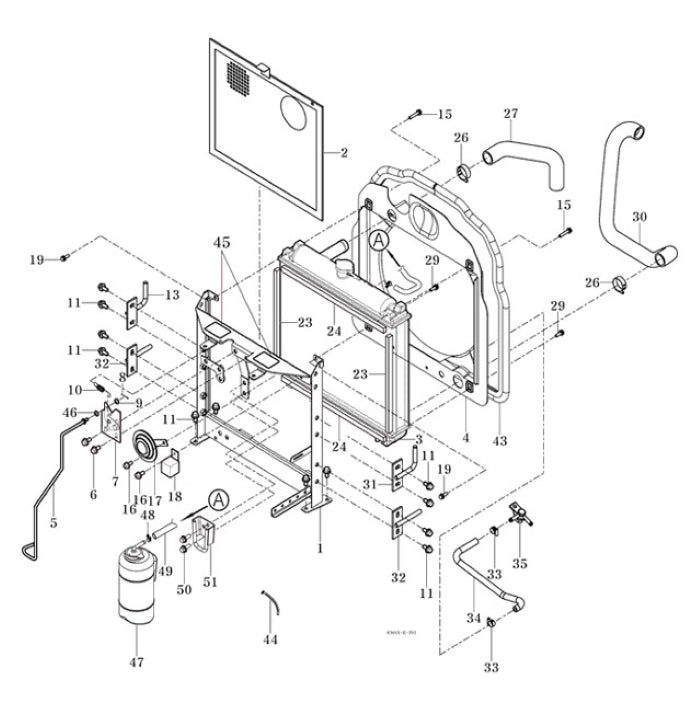

Radiator
Parts Index
- 1 FRAME COMP , FRONT (Qty 1)
- 2 NET COMP , RADIATOR (Qty 1)
- 3 RADIATOR COMP (Qty 1)
- 6 BOLT(SP) (Qty 1)
- 7 STAY SUB, HOOD (Qty 2)
- 8 PIN (Qty 1)
- 9 WASHER, PLAIN (Qty 1)
- 10 SPRING (4) (Qty 1)
- 11 BOLT(SP) (Qty 14)
- 15 BOLT(SPL) (Qty 2)
- 16 BOLT(SP) (Qty 2)

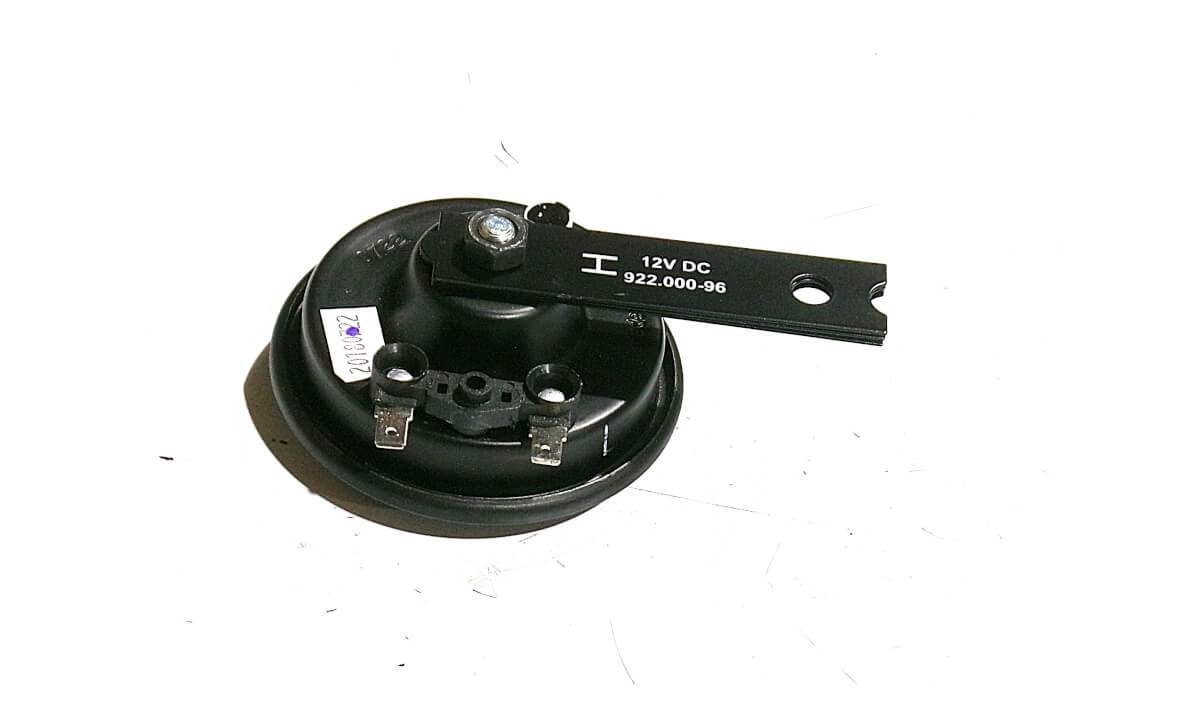

- 17 HORN (Qty 1)
- 18 RELAY , PREHEAT (Qty 1)
- 19 BOLT(SP) (Qty 2)
- 23 SPONGE (314) (Qty 2)
- 24 SPONGE (410) (Qty 2)
- 26 CLAMP 40 (Qty 2)
- 29 BOLT(SPL) (Qty 2)
- 32 PIN COMP (D) (Qty 2)
- 33 CLAMP 16 (Qty 2)
- 34 RADIATOR HOSE (Qty 1)
- 35 CONNECTOR ASSY (Qty 1)
- 44 CABLE TIE , 370 (Qty 2)
- 45 SEAL, BATTERY BRACKET (Qty 2)
- 46 O RING(P) (Qty 1)
- 47 TANK ASSY , RESERVE (Qty 1)
- 48 CLAMP 16 (Qty 2)
- 49 HOSE . 500 (Qty 1)
- 50 BOLT(SP) (Qty 2)
- 51 HOLDER COMP , TANK/RESERVE (Qty 1)
-
51#36753302201GB
HOLDER COMP , TANK/RESERVE
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-

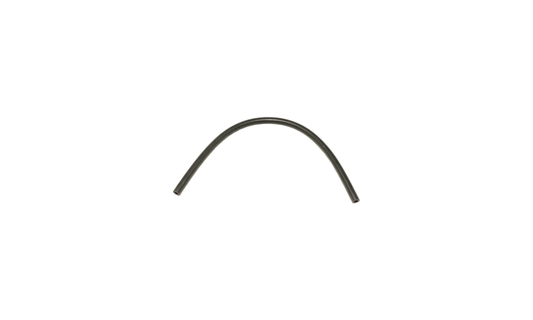

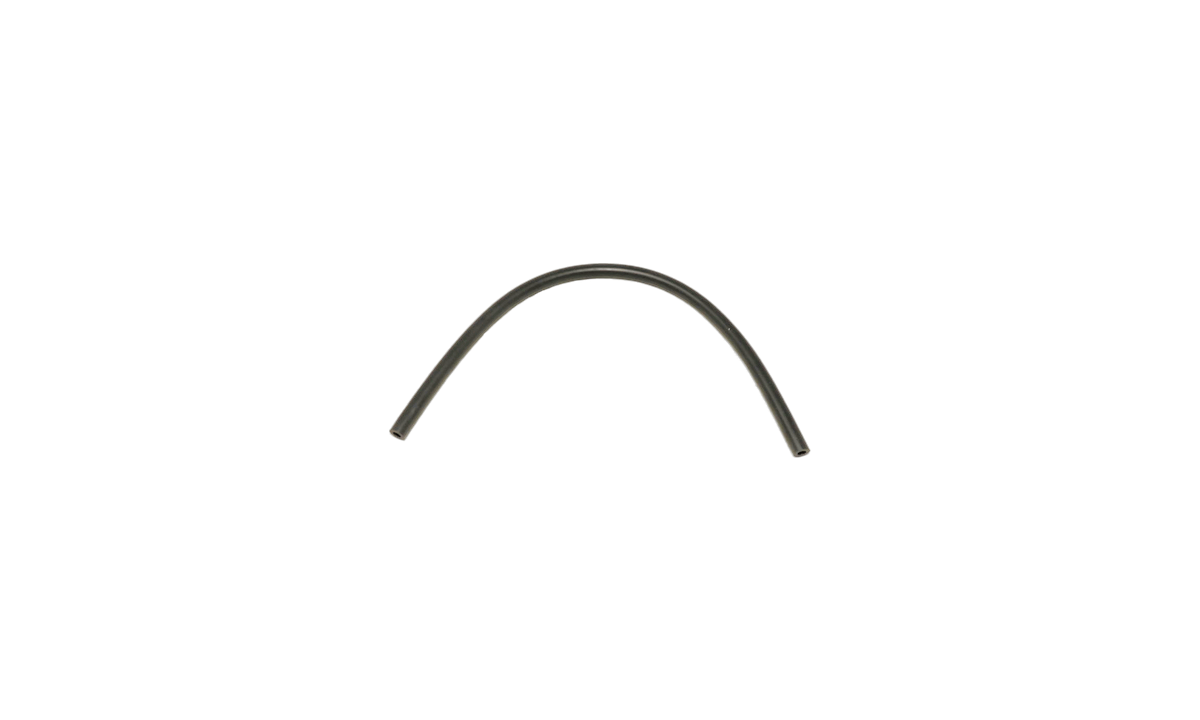

49#17995010150
HOSE . 500
Qty Used: 1Regular price $20.19 USDRegular priceUnit price per
-
47#16003302101
TANK ASSY , RESERVE
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
-

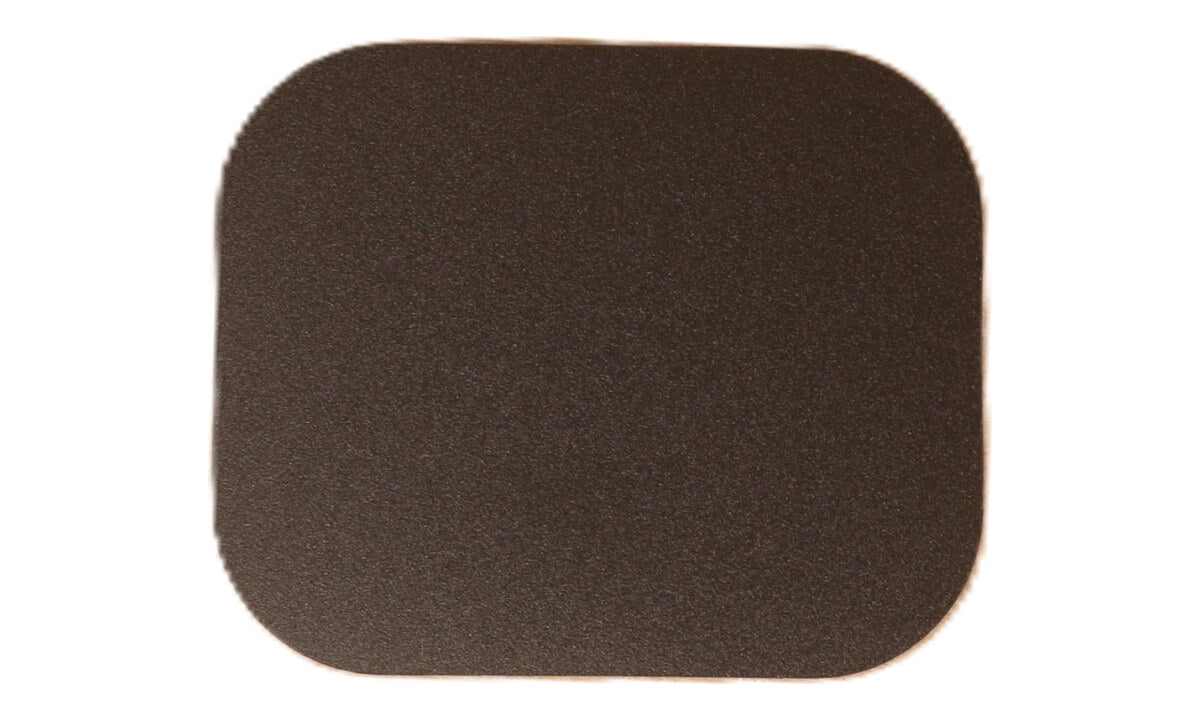

45#13016400010
SEAL, BATTERY BRACKET
Qty Used: 2Regular price $2.79 USDRegular priceUnit price per
-
44#15606950150C
CABLE TIE , 370
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
35#15601041000
CONNECTOR ASSY
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-

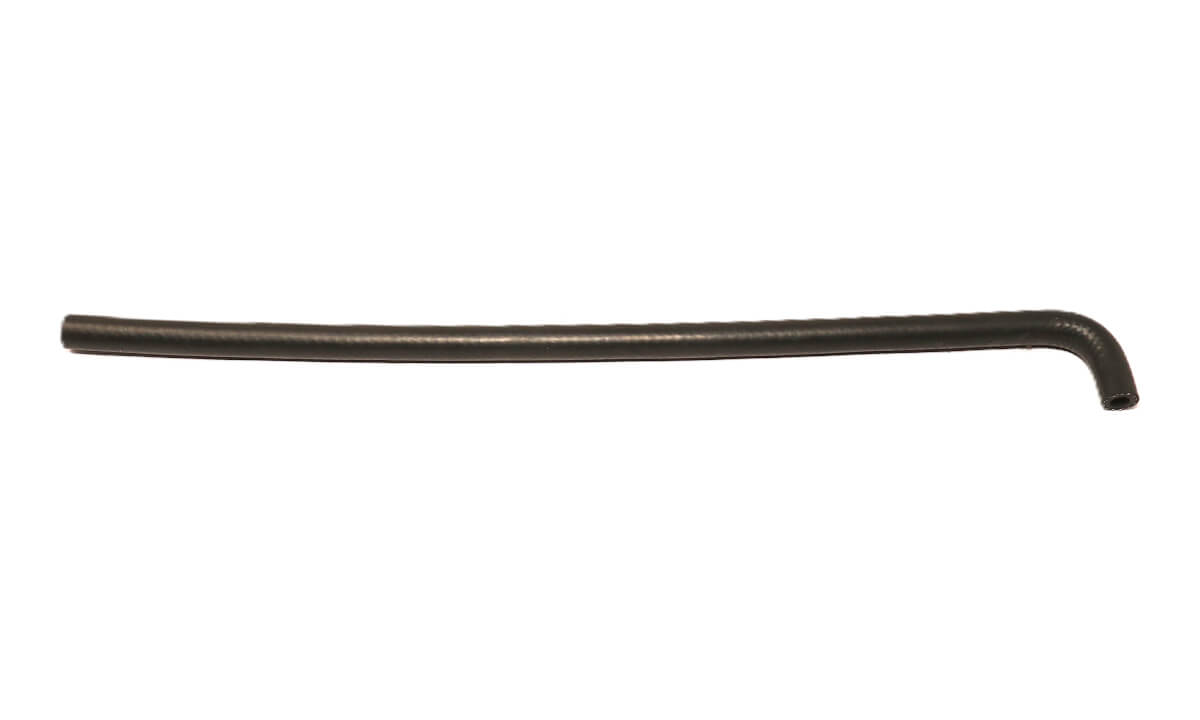

34#11111040091
RADIATOR HOSE
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
-
-

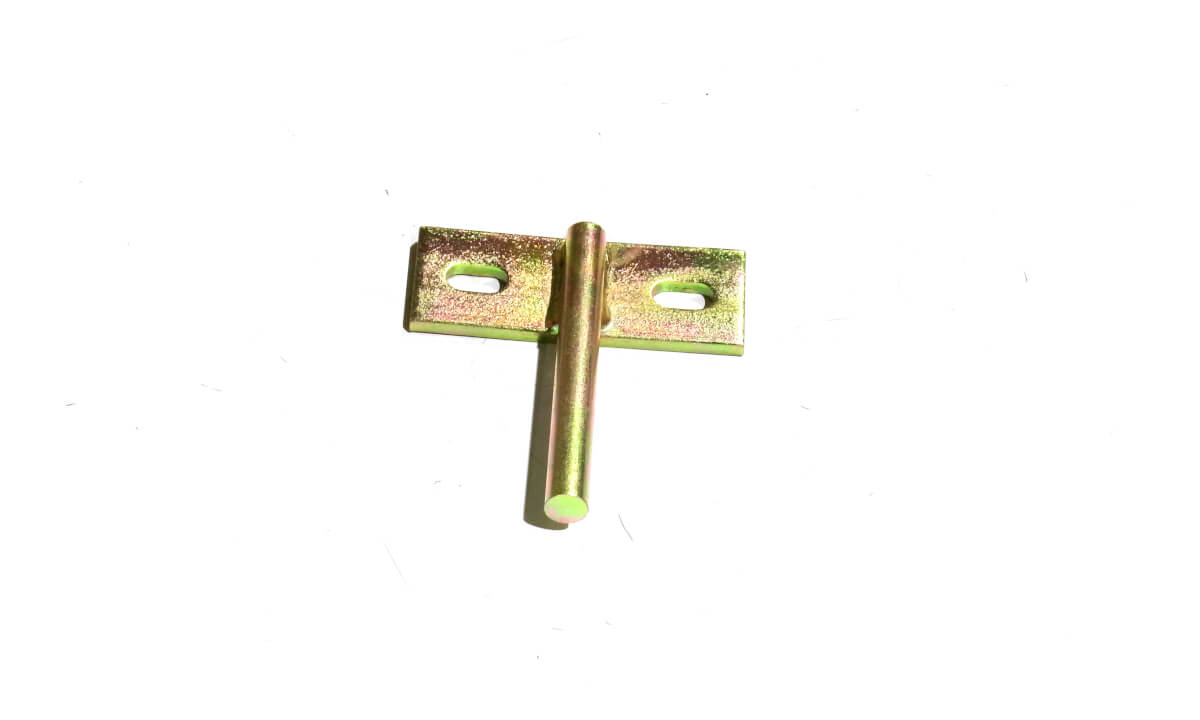

32#11116013700
PIN COMP (D)
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
-
24#11101042350
SPONGE (410)
Qty Used: 2Regular price $6.09 USDRegular priceUnit price per
-

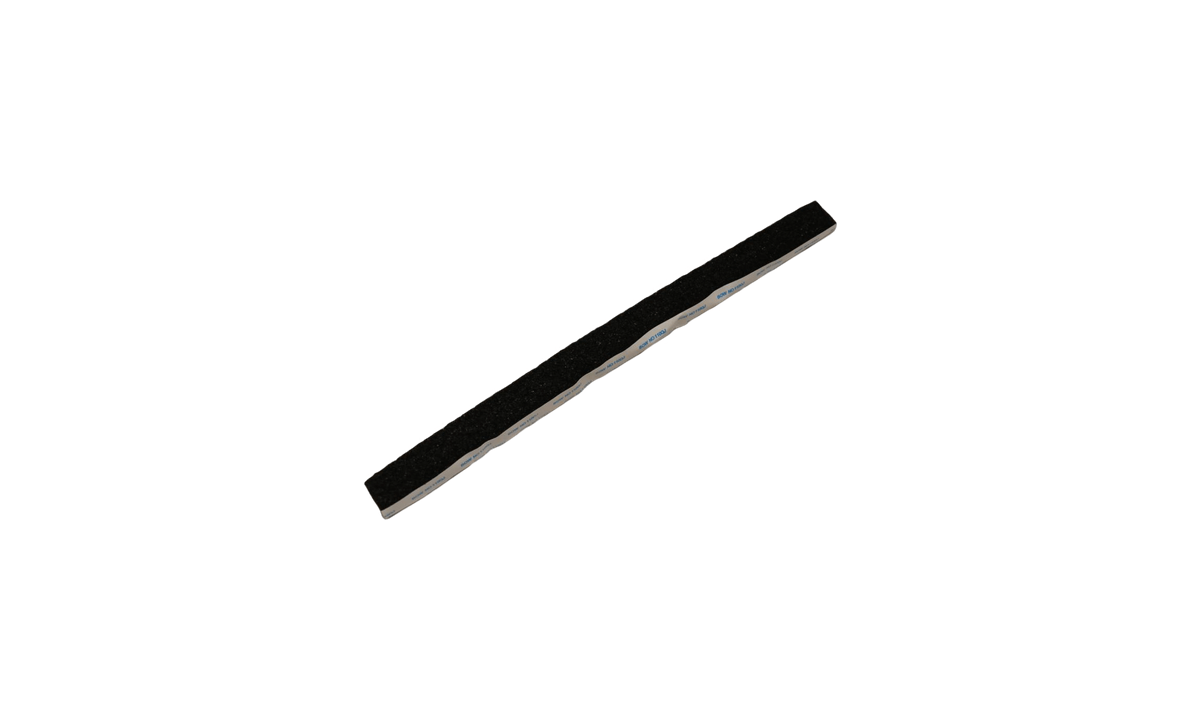

23#11101042390
SPONGE (314)
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
18#17686641110
RELAY , PREHEAT
Qty Used: 1Regular price $50.29 USDRegular priceUnit price per
-
-
-
-
10#11106020010
SPRING (4)
Qty Used: 1Regular price $6.90 USDRegular priceUnit price per
-
9#V4111600060
WASHER, PLAIN
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
-
7#11106024501
STAY SUB, HOOD
Qty Used: 2Regular price $42.99 USDRegular priceUnit price per
-
-
3#11111042000
RADIATOR COMP
Qty Used: 1Regular price $439.99 USDRegular priceUnit price per
-
2#11101042310GB
NET COMP , RADIATOR
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
1#11116081200GB
FRAME COMP , FRONT
Qty Used: 1Regular price $289.99 USDRegular priceUnit price per
