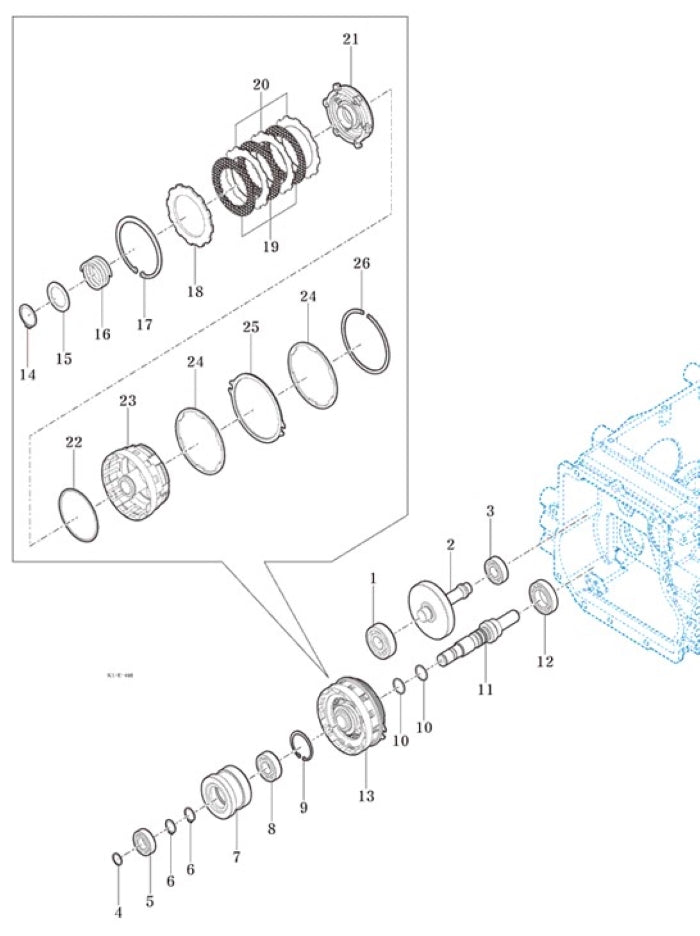

PTO Drive Shaft
Parts Index
- 1 BEARING , BALL (Qty 1)
- 2 PTO IDLE (33) (Qty 1)
- 3 BEARING , BALL (Qty 1)
- 4 SEAL , 20 (Qty 1)
- 5 BEARING, BALL (Qty 1)
- 6 CIR CLIP,EXTERNAL (Qty 2)
- 7 HUB (PTO CLUTCH) (Qty 1)
- 9 CIR CLIP, INTERNAL (Qty 1)
- 10 O RING(P) (Qty 2)
- 11 PTO CLUTCH SHAFT (Qty 1)
- 12 BEARING , BALL (Qty 1)
- 13 PTO CLUTCH ASSY (Qty 1)
- 14 CIR CLIP,EXTERNAL (Qty 1)
- 15 COLLAR (Qty 1)
- 16 SPRING (Qty 1)
- 18 PLATE(BACK) (Qty 1)
- 19 CLUTCH DISK (Qty 3)
- 20 PLATE (Qty 3)
- 21 PISTON (Qty 1)
- 22 D RING (Qty 1)
- 24 PLATE (BRAKE) (Qty 2)
- 25 DISK (BRAKE) (Qty 1)
- 26 C RING (Qty 1)
-
14#V7041400350
CIR CLIP,EXTERNAL
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
-
25#11102521110
DISK (BRAKE)
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
24#11102521120
PLATE (BRAKE)
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
-
-
-
19#11102521060
CLUTCH DISK
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
18#11102521070
PLATE(BACK)
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
-
-
1#V6001106304
BEARING , BALL
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
13#11102521000
PTO CLUTCH ASSY
Qty Used: 1Regular price $549.99 USDRegular priceUnit price per
-
12#V6001106006
BEARING , BALL
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
-

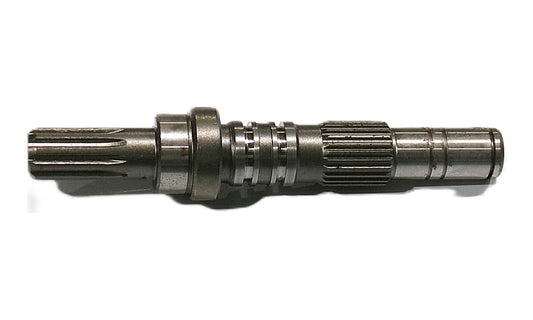

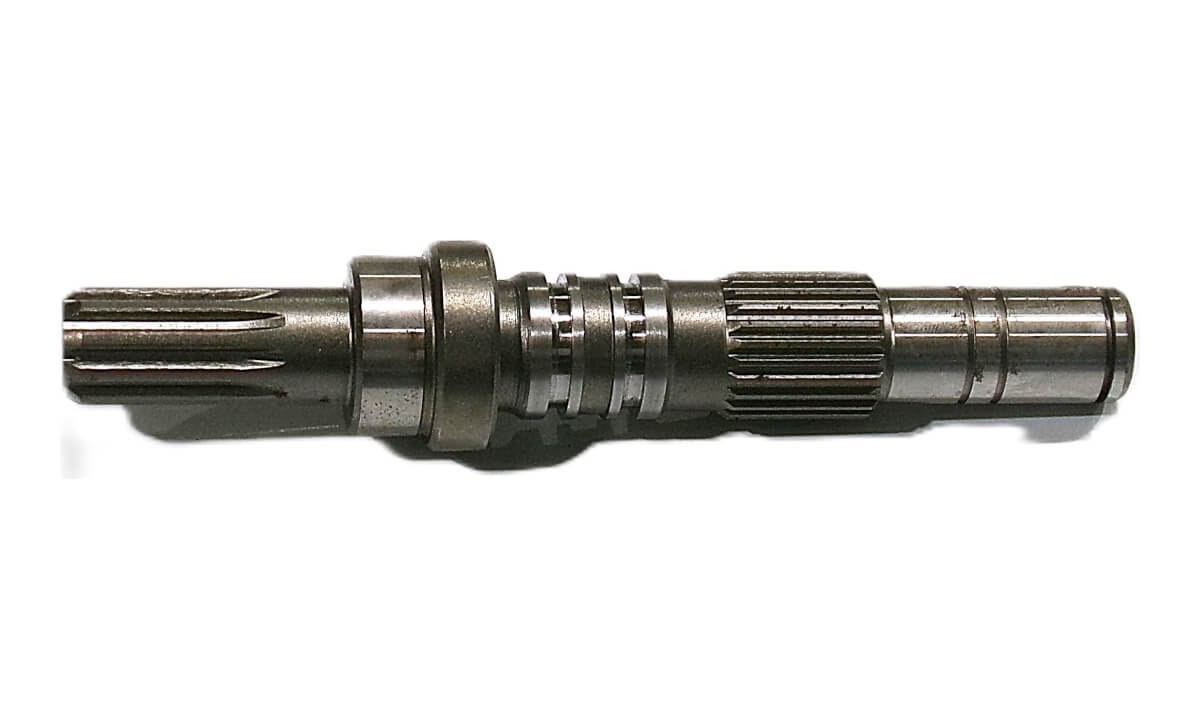

11#11102522011
PTO CLUTCH SHAFT
Qty Used: 1Regular price $204.99 USDRegular priceUnit price per
-
-
9#V7051400470
CIR CLIP, INTERNAL
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-

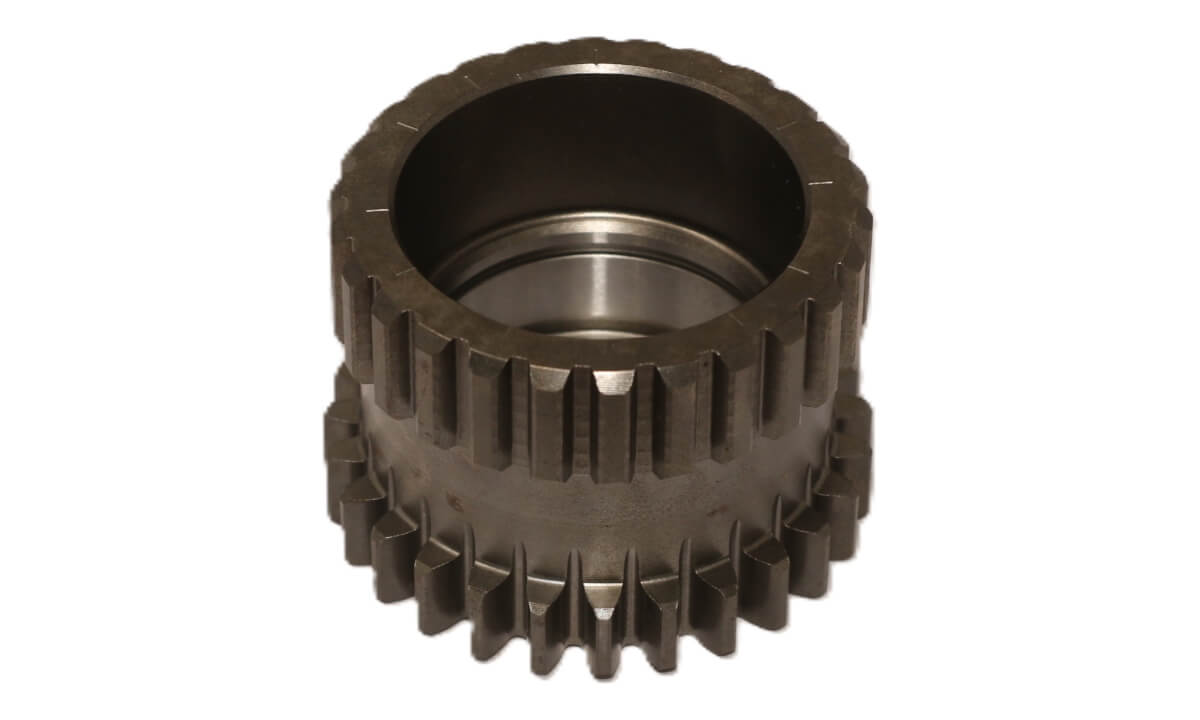

7#11102522031
HUB (PTO CLUTCH)
Qty Used: 1Regular price $200.99 USDRegular priceUnit price per
-
6#V7041400200
CIR CLIP,EXTERNAL
Qty Used: 2Regular price $2.09 USDRegular priceUnit price per
-
5#V6001106004
BEARING, BALL
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
3#V6001106203
BEARING , BALL
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-

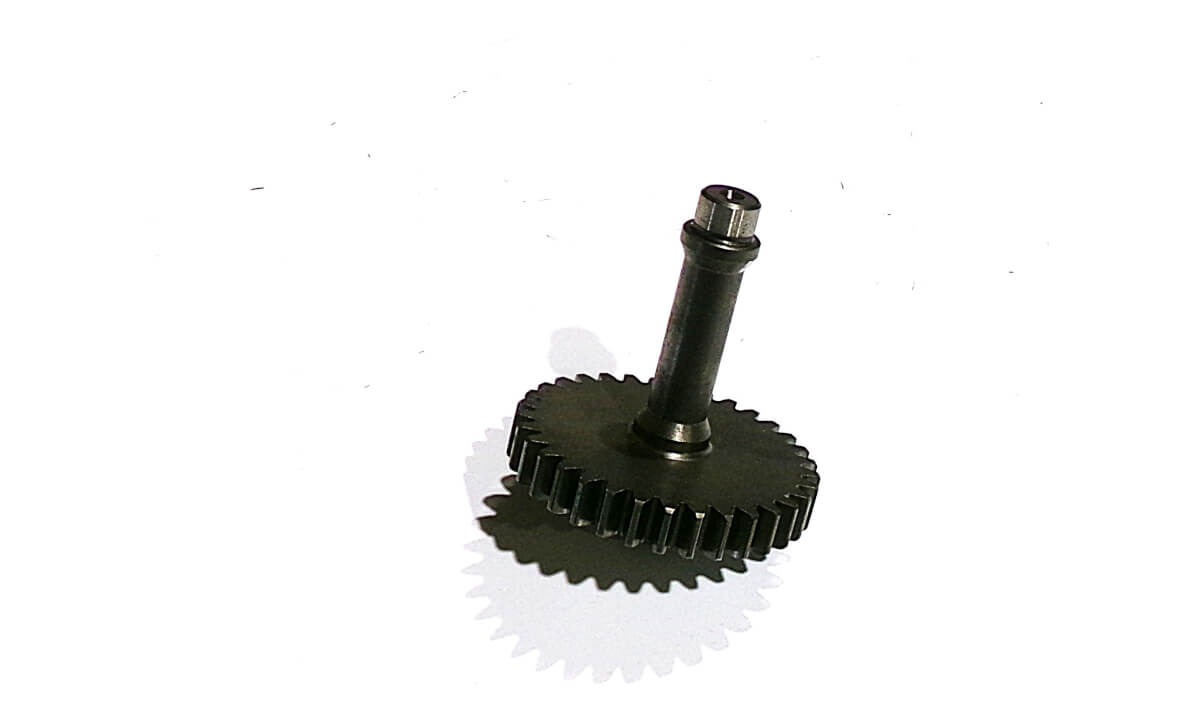

2#11102511010
PTO IDLE (33)
Qty Used: 1Regular price $259.99 USDRegular priceUnit price per
