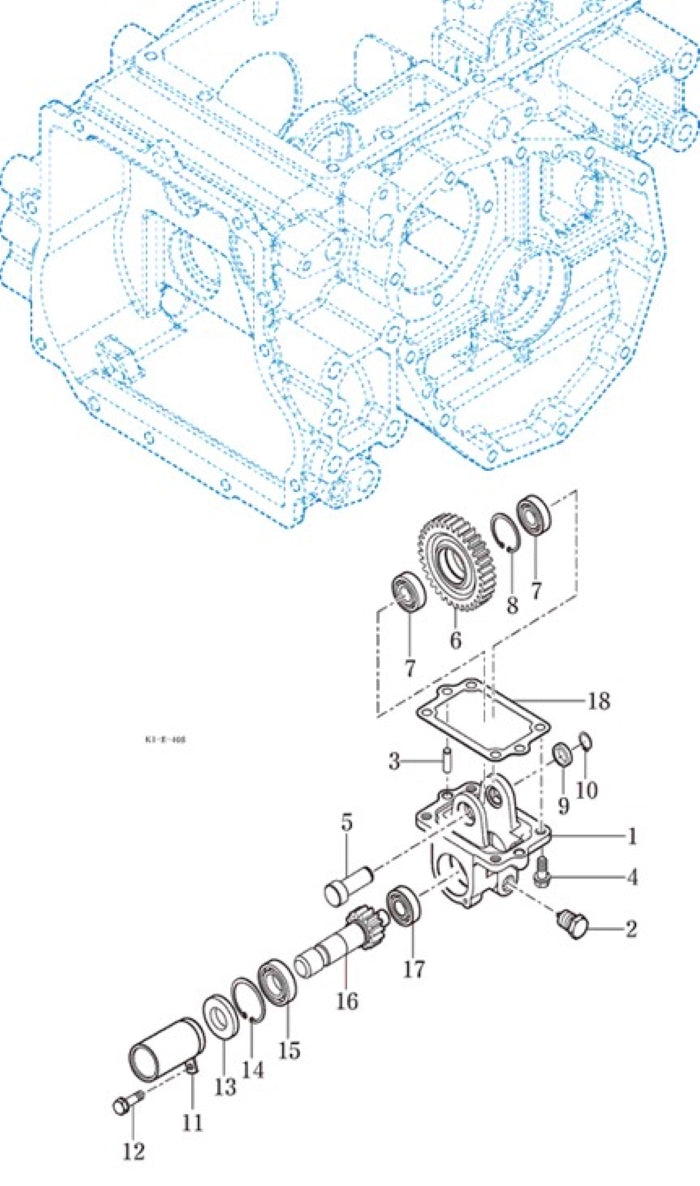

Mid PTO Gear
Parts Index
- 2 MAGNET PLUG ASSY (Qty 1)
- 3 PIN, STRAIGHT (A) (Qty 2)

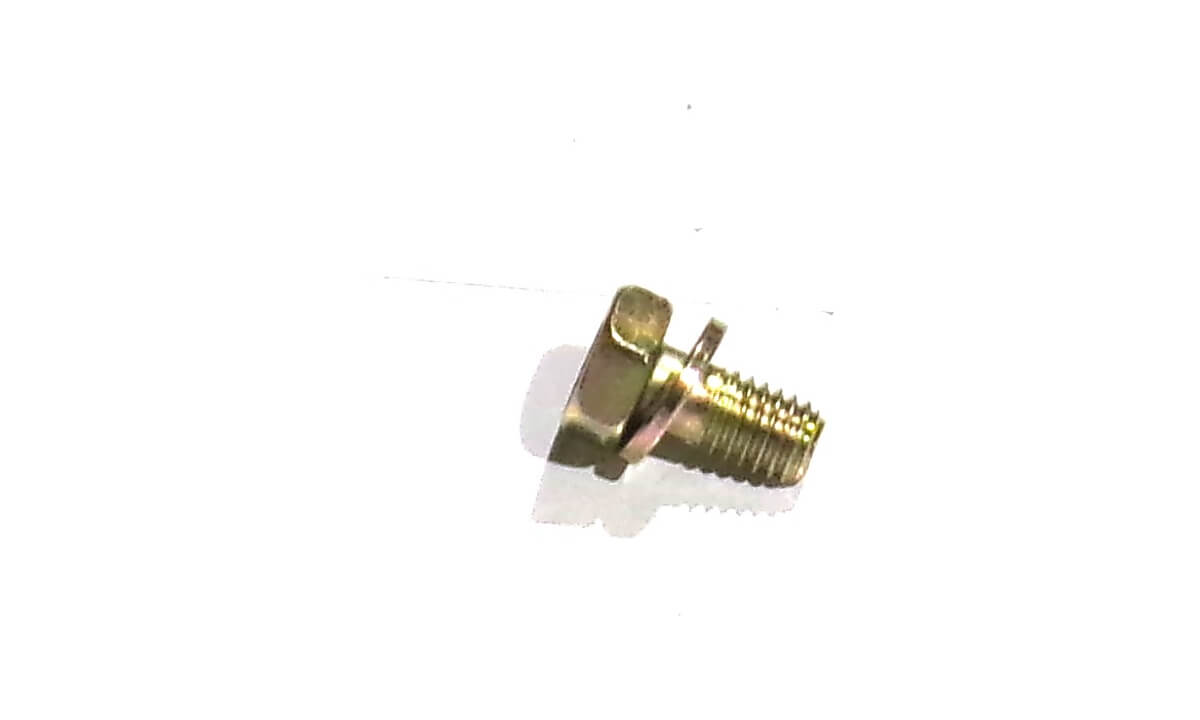

- 4 BOLT(S) (Qty 4)
- 5 MID PTO COUNTER SHAFT (Qty 1)

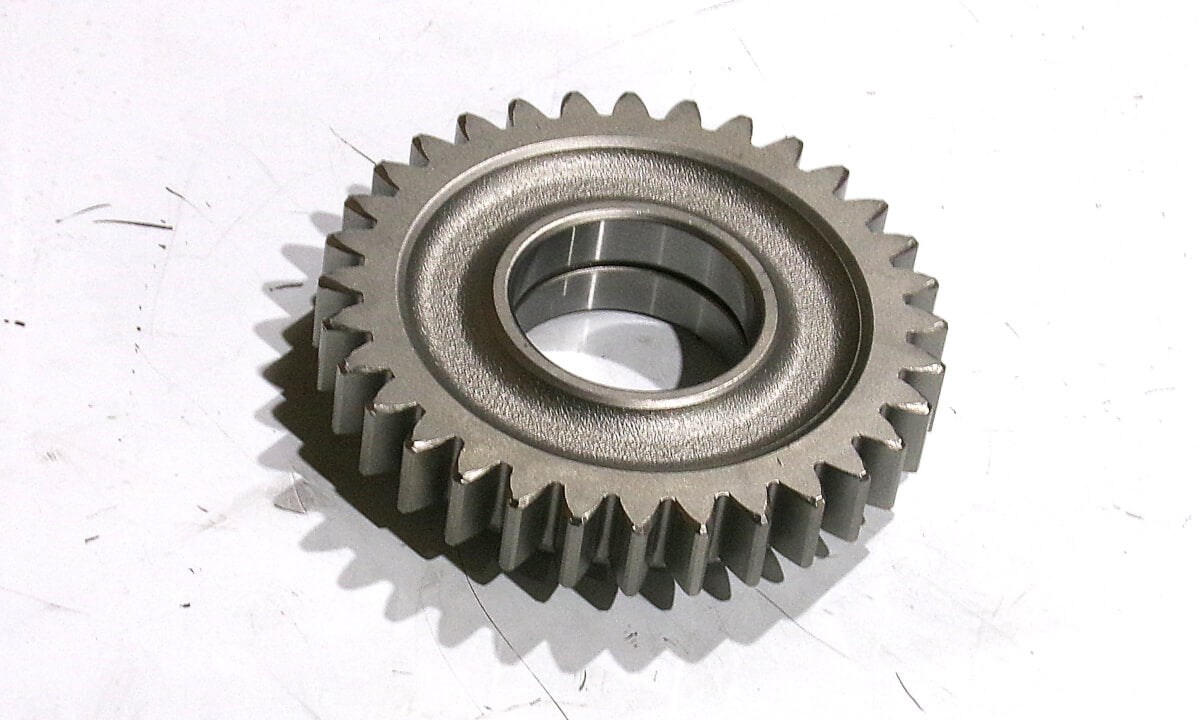

- 6 GEAR(32) (Qty 1)
- 7 BEARING , BALL (Qty 2)
- 8 CIR CLIP, INTERNAL (Qty 1)
- 9 COLLAR (17X24X6) (Qty 1)
- 10 CIR CLIP,EXTERNAL (Qty 1)
- 11 PTO SHAFT CAP(MID) (Qty 1)
- 12 BOLT(S) (Qty 1)
- 13 SEAL, OIL (D) (Qty 1)
- 14 CIR CLIP, INTERNAL (Qty 1)
- 15 BEARING, BALL (Qty 1)
- 16 MID PTO SHAFT (Qty 1)
- 17 BEARING , BALL (Qty 1)
- 18 GASKET (MID PTO) (Qty 1)
-

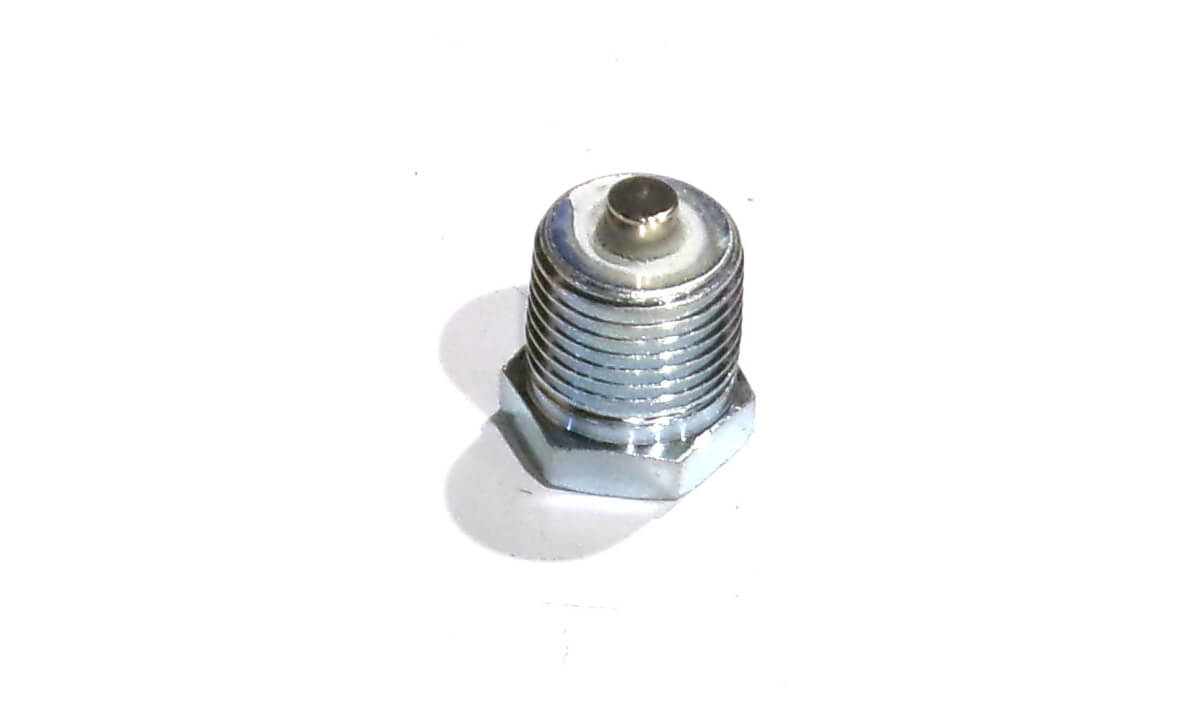

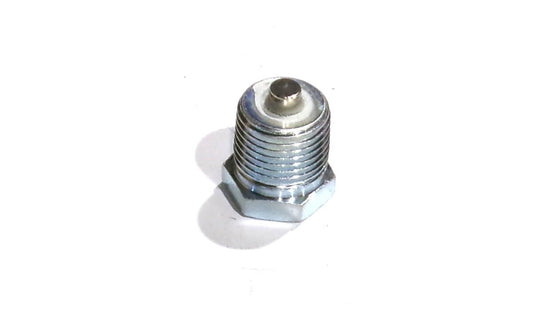

2#16701015001
MAGNET PLUG ASSY
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
3#V5201010022
PIN, STRAIGHT (A)
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
-
5#13152710020
MID PTO COUNTER SHAFT
Qty Used: 1Regular price $49.49 USDRegular priceUnit price per
-
-
717#V6001106203
BEARING , BALL
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
8#V7051400400
CIR CLIP, INTERNAL
Qty Used: 1Regular price $2.49 USDRegular priceUnit price per
-
9#14722710040
COLLAR (17X24X6)
Qty Used: 1Regular price $13.29 USDRegular priceUnit price per
-
10#V7041400170
CIR CLIP,EXTERNAL
Qty Used: 1Regular price $2.39 USDRegular priceUnit price per
-
11#14722702100A
PTO SHAFT CAP(MID)
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
-

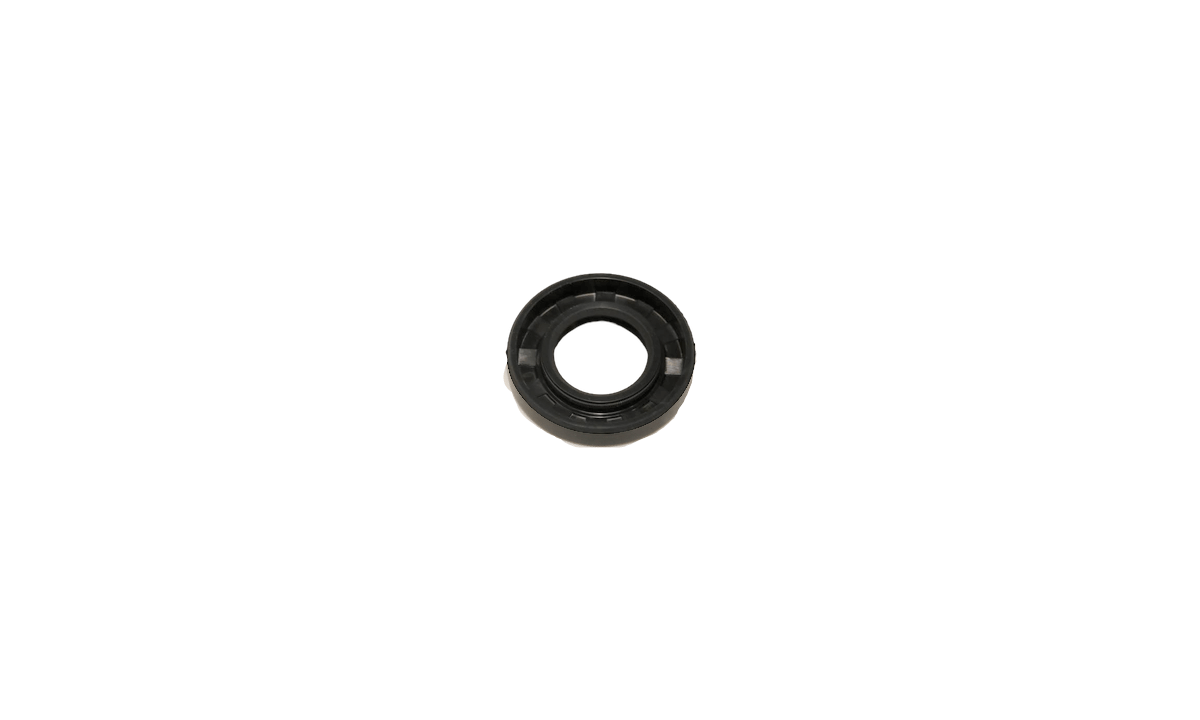

13#V7441254708
SEAL, OIL (D)
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
14#V7051400470
CIR CLIP, INTERNAL
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
15#V6001106005
BEARING, BALL
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-

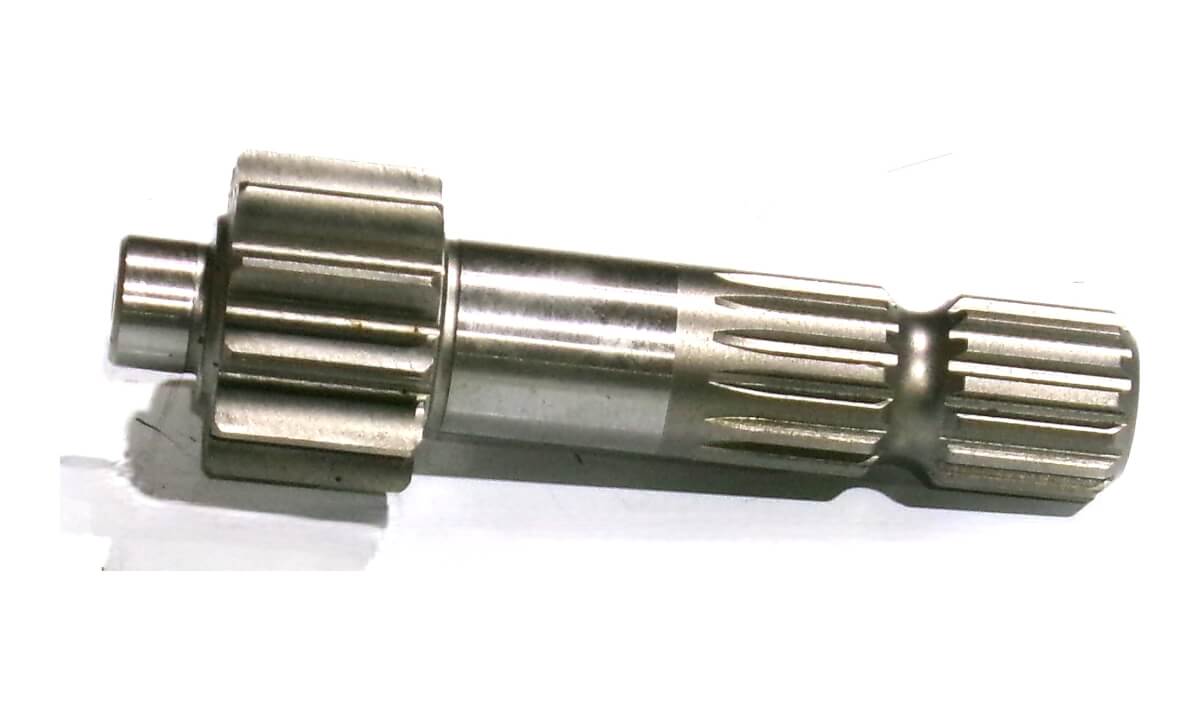

16#13152710010B
MID PTO SHAFT
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-

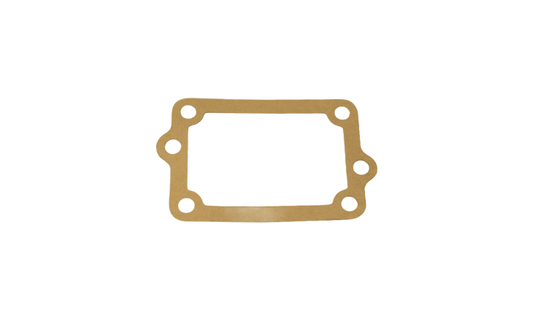

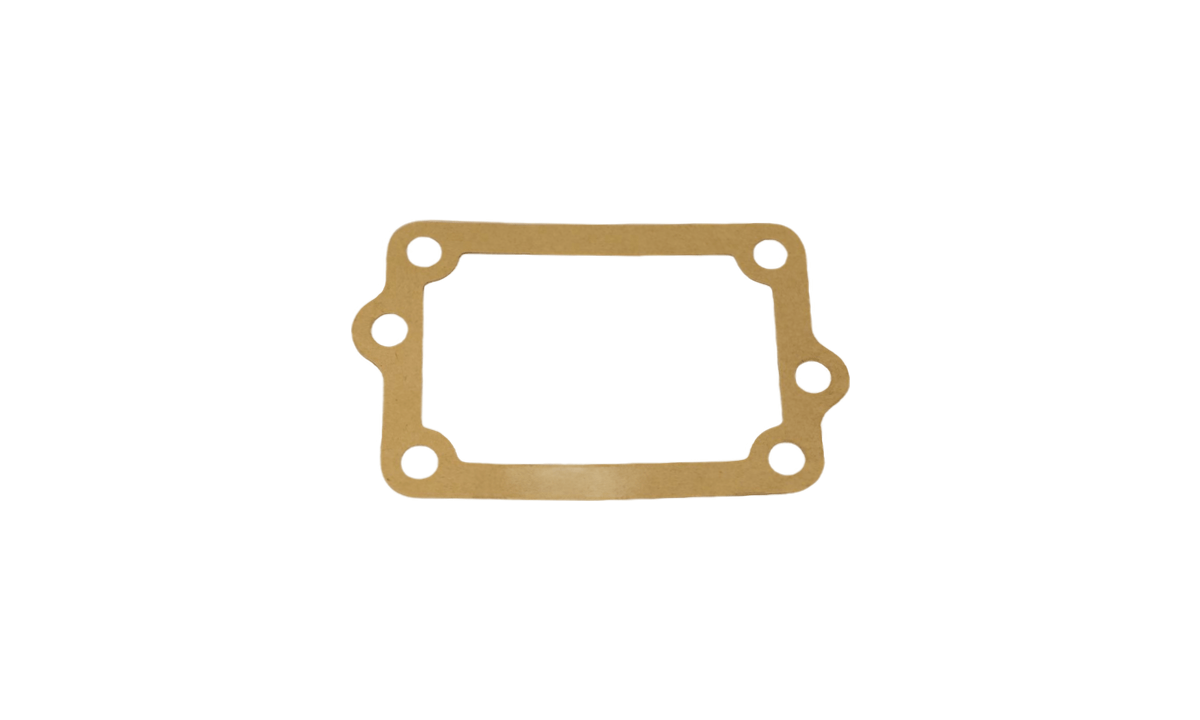

18#13152401021
GASKET (MID PTO)
Qty Used: 1Regular price $8.49 USDRegular priceUnit price per
