Lift Arm

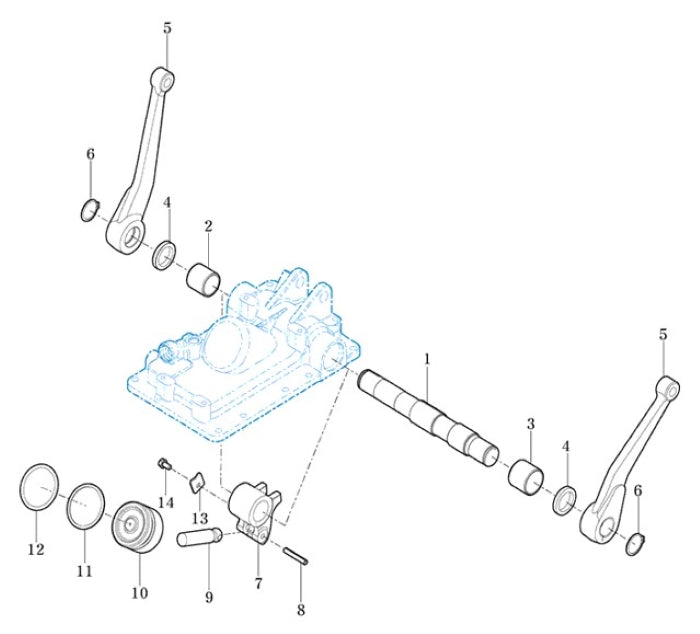

Parts Index
- 1 LIFT SHAFT (Qty 1)
- 2 BUSH (35X42X40) (Qty 1)
- 3 BUSH (40X46X40) (Qty 1)
- 4 SEAL, OIL (D) (Qty 2)
- 5 ARM , LIFT (Qty 2)
- 6 CIR CLIP,EXTERNAL (Qty 2)
- 7 CRANK , LIFT (Qty 1)
- 8 PIN, SPRING (Qty 1)
- 9 ROD , PISTON (Qty 1)
- 10 PISTON , HYD (Qty 1)
- 11 RING (Qty 1)
- 12 O RING(P) (Qty 1)
- 13 PLATE (Qty 1)
- 14 BOLT(S) (Qty 1)
-
1#11105020010B
LIFT SHAFT
Qty Used: 1Regular price $299.99 USDRegular priceUnit price per
-
2#13155010030
BUSH (35X42X40)
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-
3#13155010040
BUSH (40X46X40)
Qty Used: 1Regular price $62.99 USDRegular priceUnit price per
-
4#V7441354808
SEAL, OIL (D)
Qty Used: 2Regular price $9.09 USDRegular priceUnit price per
-

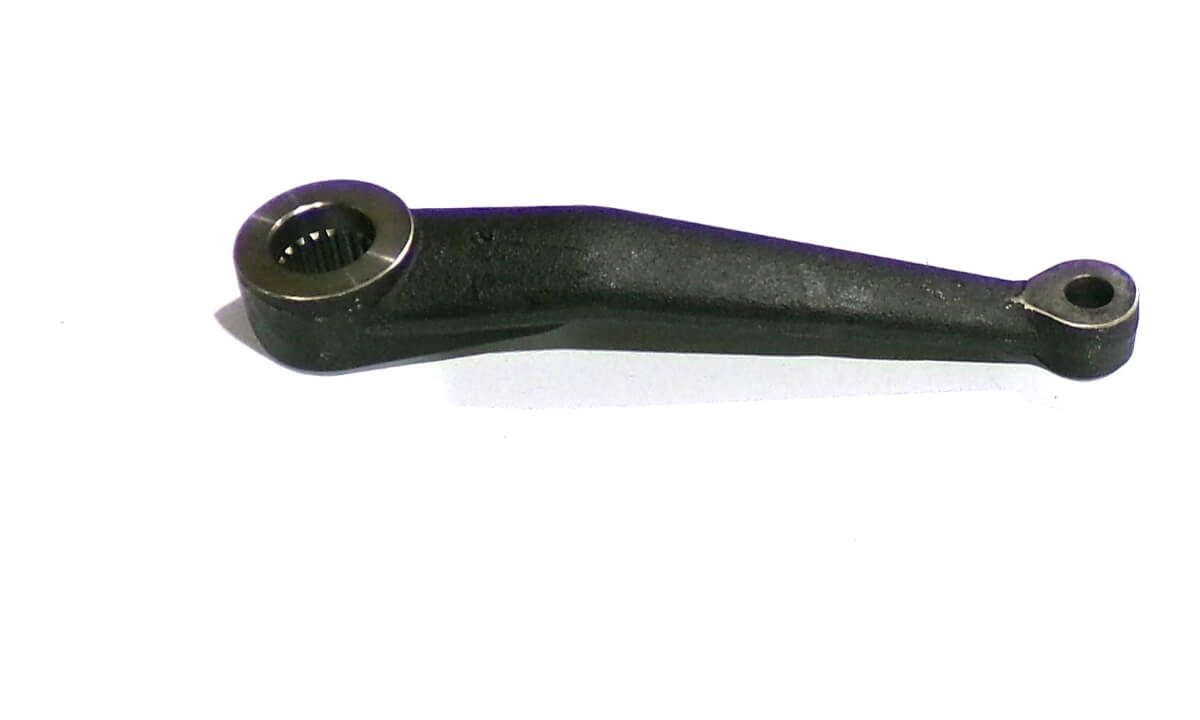

5#11105020030M
ARM , LIFT
Qty Used: 2Regular price $131.99 USDRegular priceUnit price per
-
6#V7041400350
CIR CLIP,EXTERNAL
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
7#11105020020M
CRANK , LIFT
Qty Used: 1Regular price $230.99 USDRegular priceUnit price per
-
8#V5801406050
PIN, SPRING
Qty Used: 1Regular price $2.59 USDRegular priceUnit price per
-
9#11105030061
ROD , PISTON
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
10#11105030051M
PISTON , HYD
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
-
-
-
