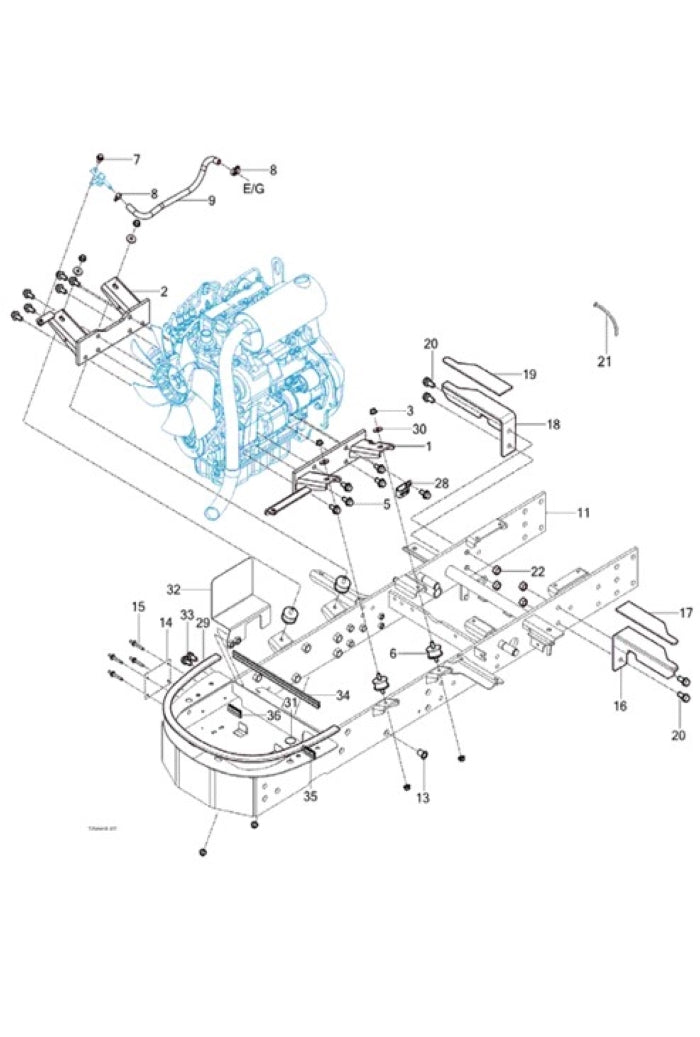

Engine Mounting
Parts Index
- 1 BRACKET COMP , MOUNT/LH (Qty 1)
- 2 BRACKET COMP, MOUNT/RH (Qty 1)
- 3 NUT (Qty 8)
- 5 BOLT(SP) (Qty 12)
- 6 ENGINE MOUNT RUBBER (Qty 4)
- 7 BOLT(SP) (Qty 1)
- 9 RADIATOR CONNECTOR2 (Qty 1)
- 11 FRAME COMP , AXLE (Qty 1)
- 13 CAP(M16) (Qty 14)
- 15 REVET (Qty 4)
- 21 CABLE TIE , 140 (Qty 5)
- 28 CLAMP , FLASHER W/HARNESS (Qty 1)
- 29 INSULATOR(COVER) (Qty 1)
- 30 WASHER (Qty 4)
- 31 LABLE(SEAL) (Qty 2)
- 33 BOLT(SP) (Qty 2)
-
1#11114073101GB
BRACKET COMP , MOUNT/LH
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
2#11114073201GB
BRACKET COMP, MOUNT/RH
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
-
-
6#11104070010A
ENGINE MOUNT RUBBER
Qty Used: 4Regular price $15.99 USDRegular priceUnit price per
-
-
9#11111040131

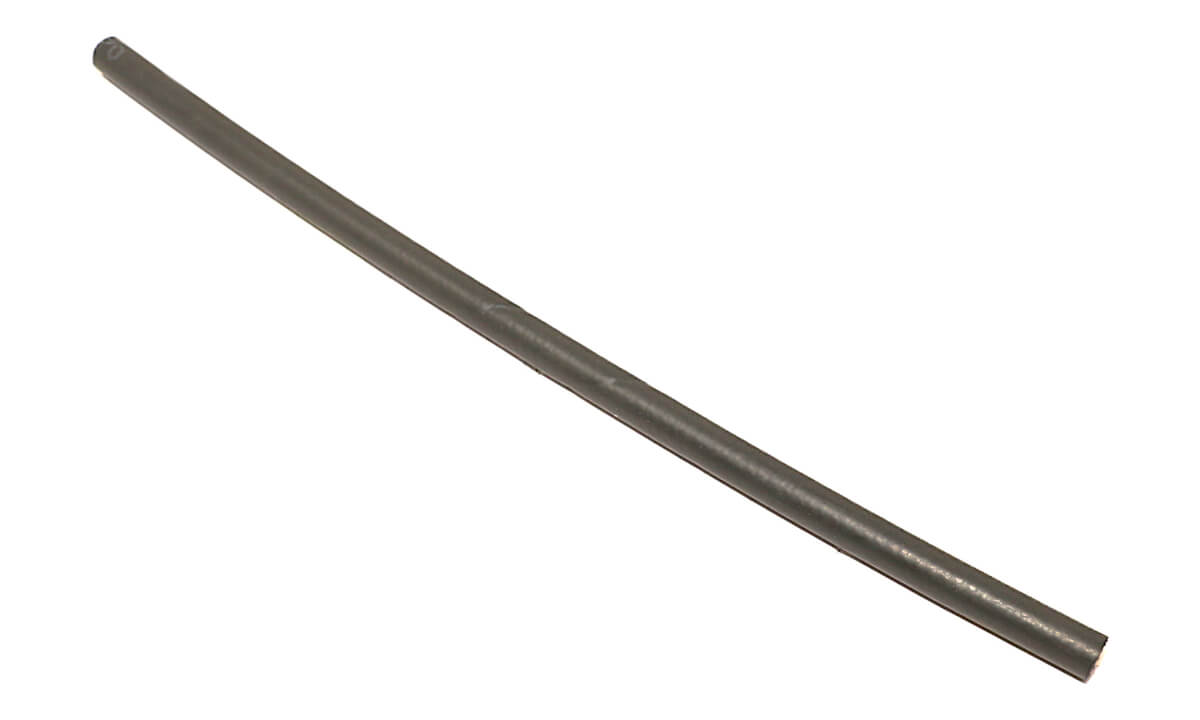

RADIATOR CONNECTOR2
Qty Used: 1Regular price $13.39 USDRegular priceUnit price per
-
11#11104082201ED
FRAME COMP , AXLE
Qty Used: 1Regular price $1,879.99 USDRegular priceUnit price per
-
-
-
21#13764020030A
CABLE TIE , 140
Qty Used: 5Regular price $0.49 USDRegular priceUnit price per
-
28#37371720110
CLAMP , FLASHER W/HARNESS
Qty Used: 1Regular price $3.49 USDRegular priceUnit price per
-
29#11106300032A

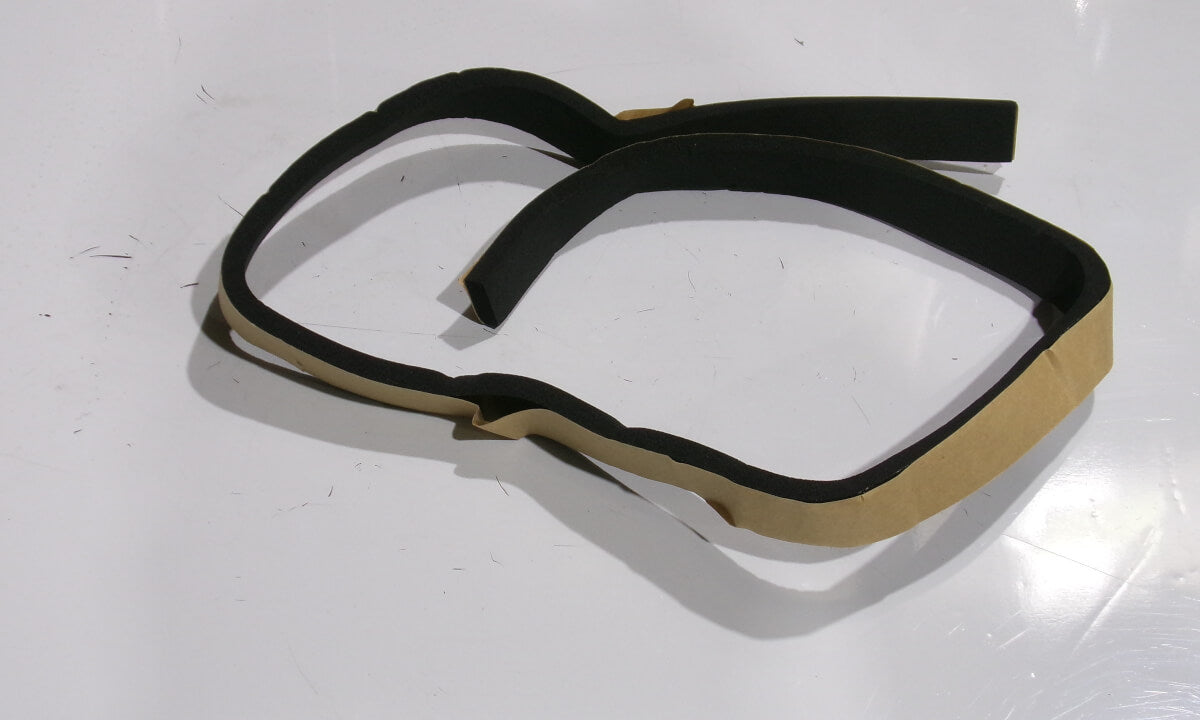

INSULATOR(COVER)
Qty Used: 1Regular price $6.69 USDRegular priceUnit price per
-
-
31#19029010070A
LABLE(SEAL)
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
