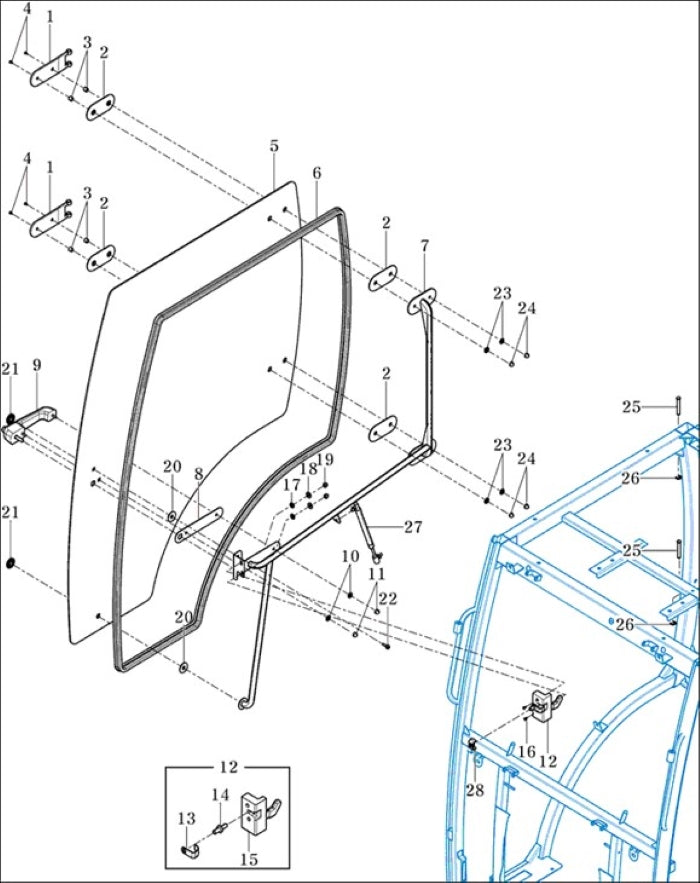

Door RH
Parts Index
- 2 GROMMET , DOOR (Qty 4)
- 3 COLLAR , 8.5X13X10.5 (Qty 4)
- 4 SCREW , C/R FLAT (Qty 4)
- 5 GLASS , DOOR/RH (Qty 1)
- 6 INSULATOR , DOOR (Qty 1)
- 8 GASKET,DOOR GRIP (Qty 1)
- 9 GRIP ASSY, LOCK/HANDLE (Qty 1)
- 10 WASHER, SPRING (Qty 2)
- 12 LOCK SET , RH/DOOR (Qty 1)
- 13 Guard (Qty 1)
- 14 Striker (Qty 1)
- 15 LOCK ASSY, RH/DOOR (Qty 1)
- 17 WASHER, PLAIN (Qty 2)
- 18 WASHER, SPRING (Qty 2)
- 19 NUT , SMALL CAP (Qty 2)
- 20 GROMMET , 13X17X02 (Qty 2)
- 21 NUT COMP , GLASS (Qty 2)
- 22 BOLT , HEX/SPL (Qty 1)
- 23 WASHER, SPRING (Qty 4)
- 24 NUT , SMALL CAP (Qty 4)
- 25 PIN, DOOR HINGE (Qty 2)
- 26 E-RING (Qty 2)
- 27 DAMPER ASSY, RR (Qty 1)
-
2#16997010180
GROMMET , DOOR
Qty Used: 4Regular price $15.49 USDRegular priceUnit price per
-
3#16997010210
COLLAR , 8.5X13X10.5
Qty Used: 4Regular price $6.99 USDRegular priceUnit price per
-
4#V1122608030
SCREW , C/R FLAT
Qty Used: 4Regular price $4.99 USDRegular priceUnit price per
-
5#11107039020
GLASS , DOOR/RH
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
6#11107039030
INSULATOR , DOOR
Qty Used: 1Regular price $142.99 USDRegular priceUnit price per
-
8#14527052150
GASKET,DOOR GRIP
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
9#14527052600
GRIP ASSY, LOCK/HANDLE
Qty Used: 1Regular price $110.99 USDRegular priceUnit price per
-
10#V4011600060
WASHER, SPRING
Qty Used: 2Regular price $1.75 USDRegular priceUnit price per
-
12#14527053700
LOCK SET , RH/DOOR
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
-
-
15#14527053710
LOCK ASSY, RH/DOOR
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
17#V4111600080
WASHER, PLAIN
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
1823#V4011600080
WASHER, SPRING
Qty Used: 4Regular price $2.09 USDRegular priceUnit price per
-
1924#V3412700080
NUT , SMALL CAP
Qty Used: 4Regular price $4.99 USDRegular priceUnit price per
-
20#15817401130
GROMMET , 13X17X02
Qty Used: 2Regular price $1.29 USDRegular priceUnit price per
-
21#14527042500
NUT COMP , GLASS
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
22#V2193606012
BOLT , HEX/SPL
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
25#16997010251
PIN, DOOR HINGE
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
-
27#14527022200
DAMPER ASSY, RR
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
