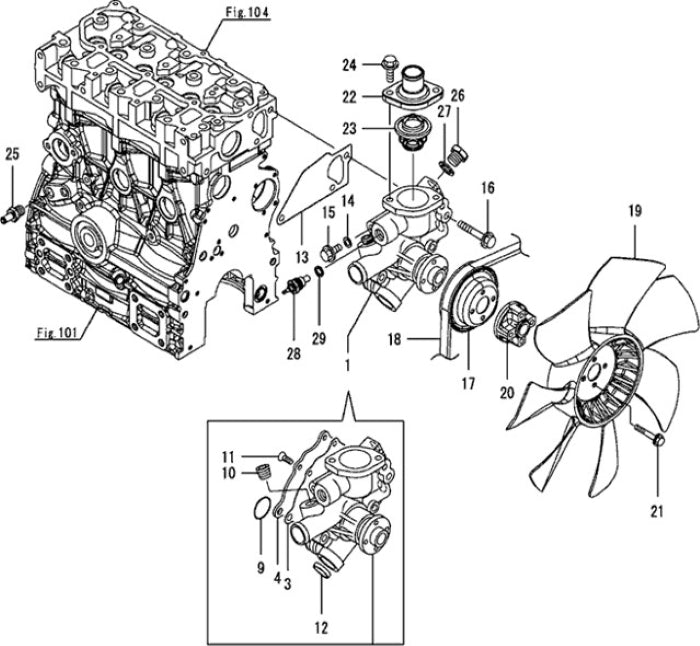

Cooling Water System
Parts Index
- 13 GASKET, WATER PUMP (Qty 1)
- 14 PACKING (Qty 1)
- 15 Bolt, Hex (8-12) for BB2024H/BB3026H/BB4025H/ (Qty 1)
- 16 SCREW,HEXFLANGEHEADCAP for BB4025H/BB4035H/ (Qty 3)
- 17 V-PULLEY, PUMP D=100 (Qty 1)
- 18 V BELT (Qty 1)
- 20 SPACER, FAN 25MM (Qty 1)
- 21 FLANGEBOLT (Qty 4)
- 22 COVER,THERMOSTAT (Qty 1)
- 23 THERMOSTAT 71 (Qty 1)
- 24 SQR FLANGE BOLT for BB4025H/BB4035H/BB4035CH (Qty 2)
- 25 JOINT,DRAINPIPE (Qty 1)
- 26 PLUG, M16 (Qty 1)
- 27 ???, 16 (Qty 1)
- 28 THERMOMETER (Qty 1)
- 29 PAING 10 (Qty 1)
-
13#119717-42020
GASKET, WATER PUMP
Qty Used: 1Regular price $60.99 USDRegular priceUnit price per
-
-
15#26106-080122
Bolt, Hex (8-12) for BB2024H/BB3026H/BB4025H/
Qty Used: 1Regular price $0.45 USDRegular priceUnit price per
-
16#26106-080502
SCREW,HEXFLANGEHEADCAP for BB4025H/BB4035H/
Qty Used: 3Regular price $0.55 USDRegular priceUnit price per
-
17#119717-42350
V-PULLEY, PUMP D=100
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
-
21#26106-060402
FLANGEBOLT
Qty Used: 4Regular price $0.39 USDRegular priceUnit price per
-
22#129350-49530
COVER,THERMOSTAT
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
23#119717-49800
THERMOSTAT 71
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
24#26106-080202
SQR FLANGE BOLT for BB4025H/BB4035H/BB4035CH
Qty Used: 2Regular price $0.55 USDRegular priceUnit price per
-
25#121550-49111
JOINT,DRAINPIPE
Qty Used: 1Regular price $104.99 USDRegular priceUnit price per
-
-
-
28#124250-49351
THERMOMETER
Qty Used: 1Regular price $186.99 USDRegular priceUnit price per
-
