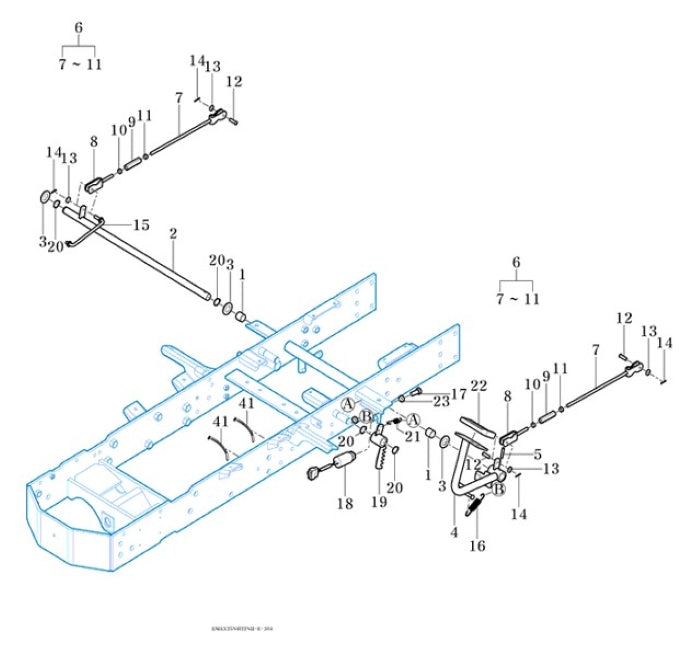

Brake Pedal & Linkage
Parts Index
- 1 BUSH (20X23X20) (Qty 2)
- 2 ARM COMP , BRAKE (Qty 1)
- 4 PEDAL COMP , BRAKE (Qty 1)
- 5 PIN, SPRING (Qty 1)
- 6 BRAKE ROD ASSY (Qty 2)
- 7 HOOK ROD COMP (Qty 2)
- 9 TURNBUCKLE (M8,60) (Qty 2)
- 10 NUT (Qty 2)
- 11 NUT (SM,LH,M8) (Qty 2)
- 12 PIN(08X25) (Qty 3)
- 13 WASHER, PLAIN (Qty 4)
- 14 PIN (Qty 4)
- 15 ROD COMP , CRUISE (Qty 1)
- 16 SPRING , RETURN (Qty 1)
- 17 BOLT (Qty 1)
- 20 CIR CLIP,EXTERNAL (Qty 4)
- 21 SPRING(66) (Qty 1)
- 22 PAD (Qty 1)
- 23 NUT (Qty 2)
- 41 CABLETIE (170) (Qty 1)
-

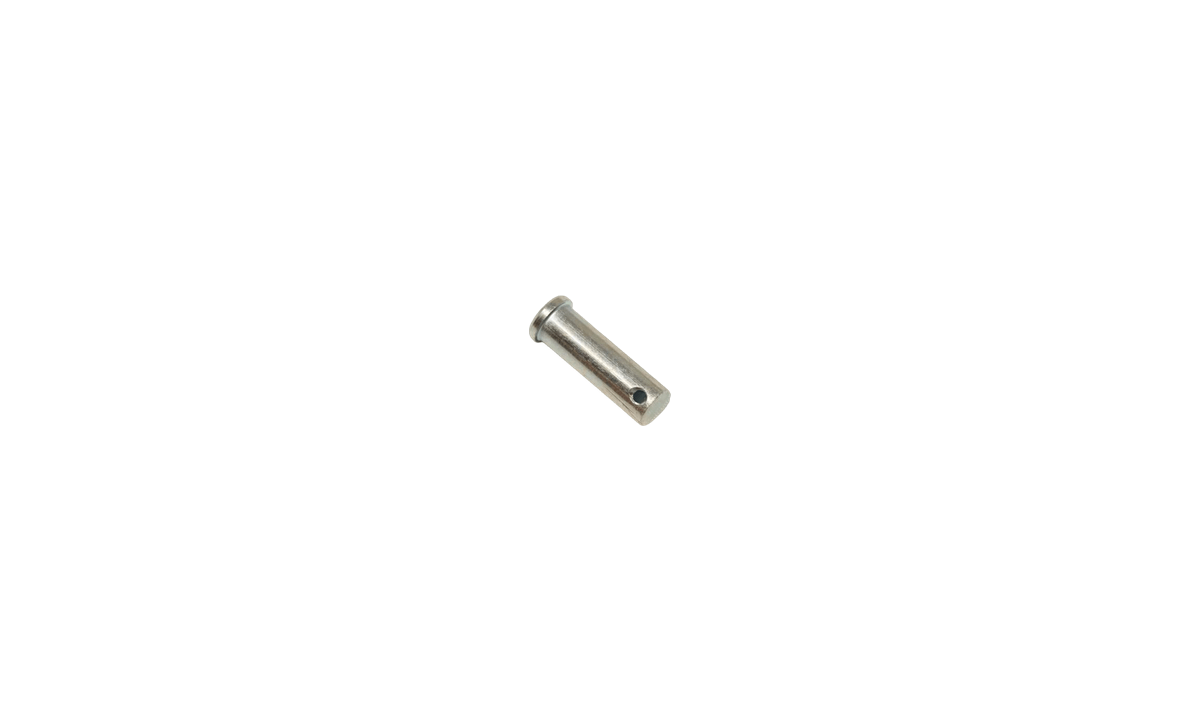

12#21443370020
PIN(08X25)
Qty Used: 3Regular price $2.99 USDRegular priceUnit price per
-
41#14216210380A
CABLETIE (170)
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
-
-
21#11102320020
SPRING(66)
Qty Used: 1Regular price $6.99 USDRegular priceUnit price per
-
20#V7041400200
CIR CLIP,EXTERNAL
Qty Used: 4Regular price $2.09 USDRegular priceUnit price per
-
-
15#11103283500C
ROD COMP , CRUISE
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
-

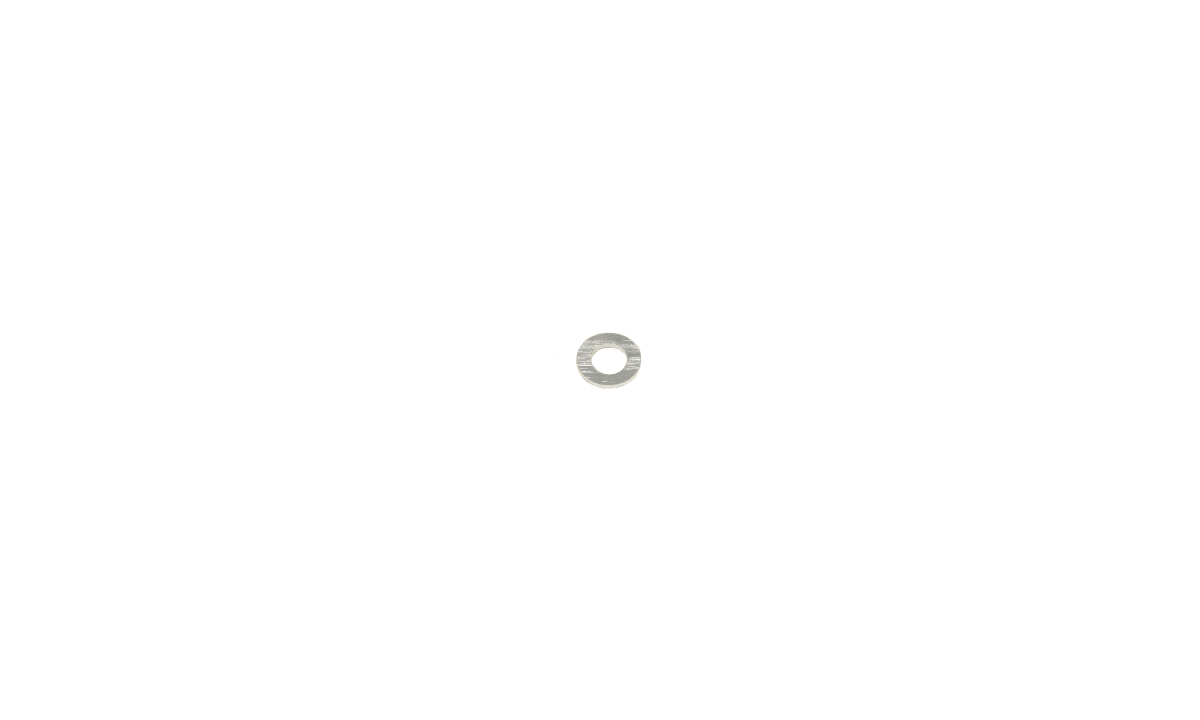

13#V4111600080
WASHER, PLAIN
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
1#11102320030
BUSH (20X23X20)
Qty Used: 2Regular price $6.99 USDRegular priceUnit price per
-
11#15601320073
NUT (SM,LH,M8)
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
-
9#16601220020
TURNBUCKLE (M8,60)
Qty Used: 2Regular price $20.99 USDRegular priceUnit price per
-
7#11103284100B
HOOK ROD COMP
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
6#11103284000B
BRAKE ROD ASSY
Qty Used: 2Regular price $39.99 USDRegular priceUnit price per
-
5#V5801406032
PIN, SPRING
Qty Used: 1Regular price $1.29 USDRegular priceUnit price per
-
4#11103283101GB
PEDAL COMP , BRAKE
Qty Used: 1Regular price $90.99 USDRegular priceUnit price per
-
2#11103282101C
ARM COMP , BRAKE
Qty Used: 1Regular price $130.99 USDRegular priceUnit price per
