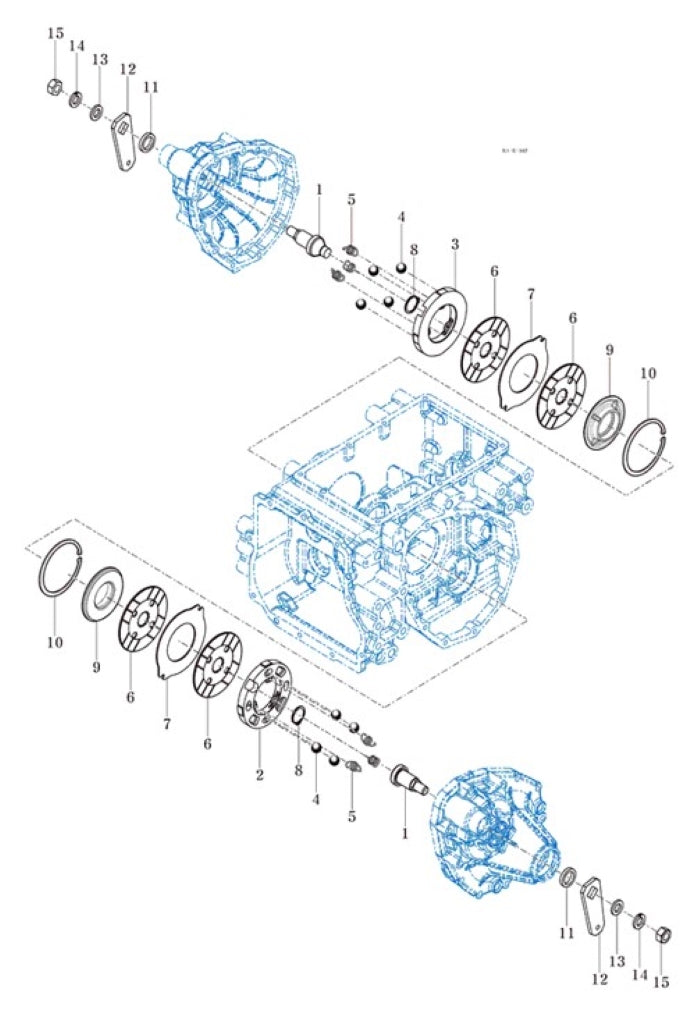

Brake
Parts Index
- 1 Cam (Qty 2)
- 2 METAL ,BRAKE LH (Qty 1)
- 3 METAL ,BRAKE RH (Qty 1)
- 4 BALL (Qty 8)
- 5 SPRING , RETURN (Qty 6)
- 6 PLATE COMP , DISC (Qty 4)
- 7 PLATE , SEPARATE (Qty 2)
- 8 CIR CLIP,EXTERNAL (Qty 2)
- 9 COVER , BRAKE (Qty 2)
- 10 SNAP RING (14) (Qty 2)
- 11 SEAL, OIL (D) (Qty 2)
- 12 BRAKE ARM (Qty 2)
- 13 Washer, Plain (Qty 2)
- 14 Washer Spring (Qty 2)
- 15 NUT (Qty 2)
-
-
-

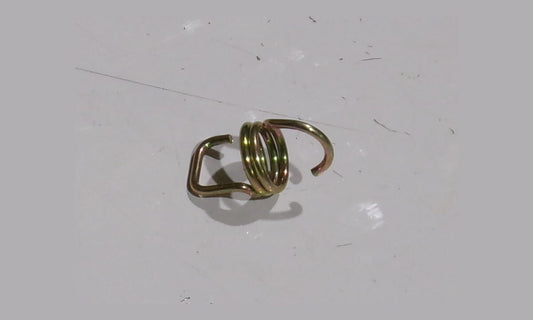

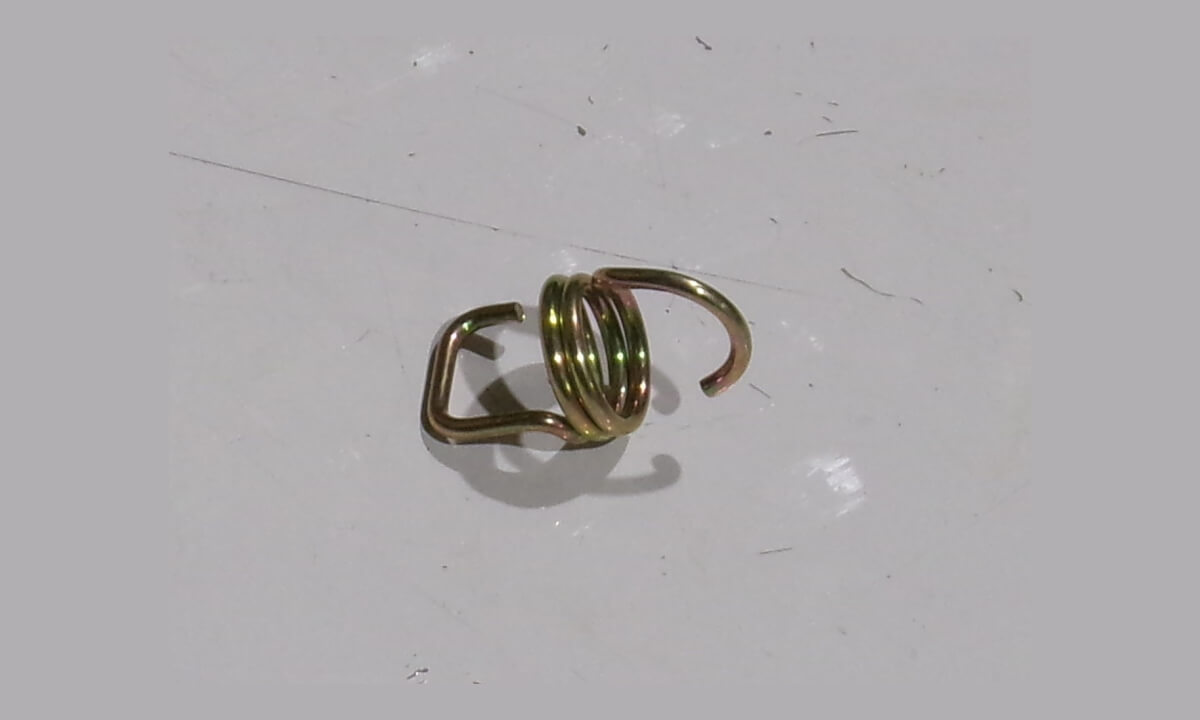

5#16703272030A
SPRING , RETURN
Qty Used: 6Regular price $2.99 USDRegular priceUnit price per
-
6#13153272100A
PLATE COMP , DISC
Qty Used: 4Regular price $39.99 USDRegular priceUnit price per
-
7#13153270030A
PLATE , SEPARATE
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
8#V7041400300
CIR CLIP,EXTERNAL
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
9#11103270010M
COVER , BRAKE
Qty Used: 2Regular price $62.99 USDRegular priceUnit price per
-

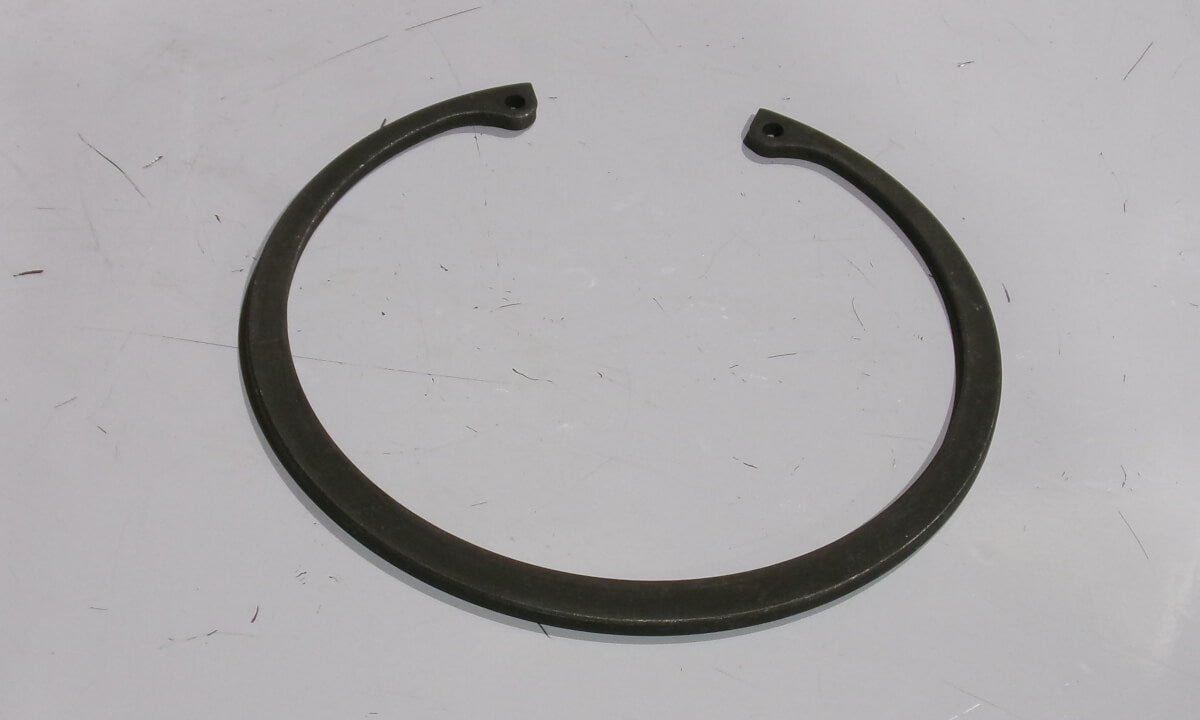

10#11103270040
SNAP RING (14)
Qty Used: 2Regular price $32.99 USDRegular priceUnit price per
-

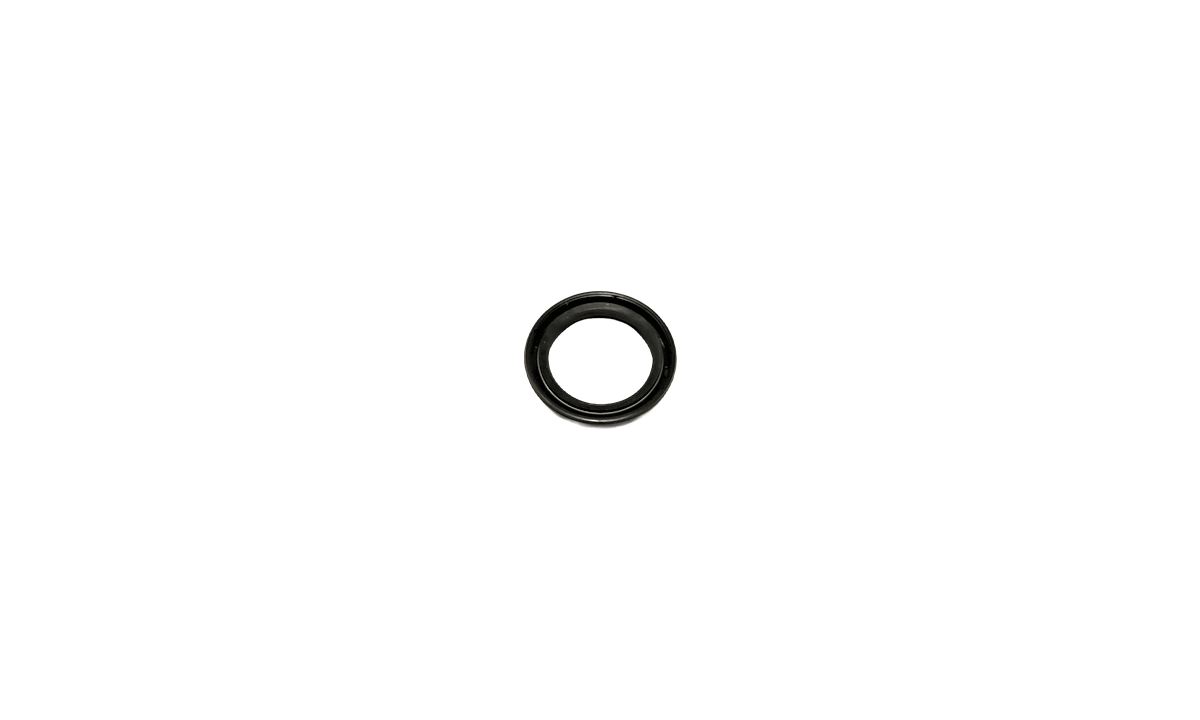

11#V7441253506
SEAL, OIL (D)
Qty Used: 2Regular price $4.09 USDRegular priceUnit price per
-
-
13#V4111600160
Washer, Plain
Qty Used: 2Regular price $2.24 USDRegular priceUnit price per
-
14#V4011600160
Washer Spring
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
