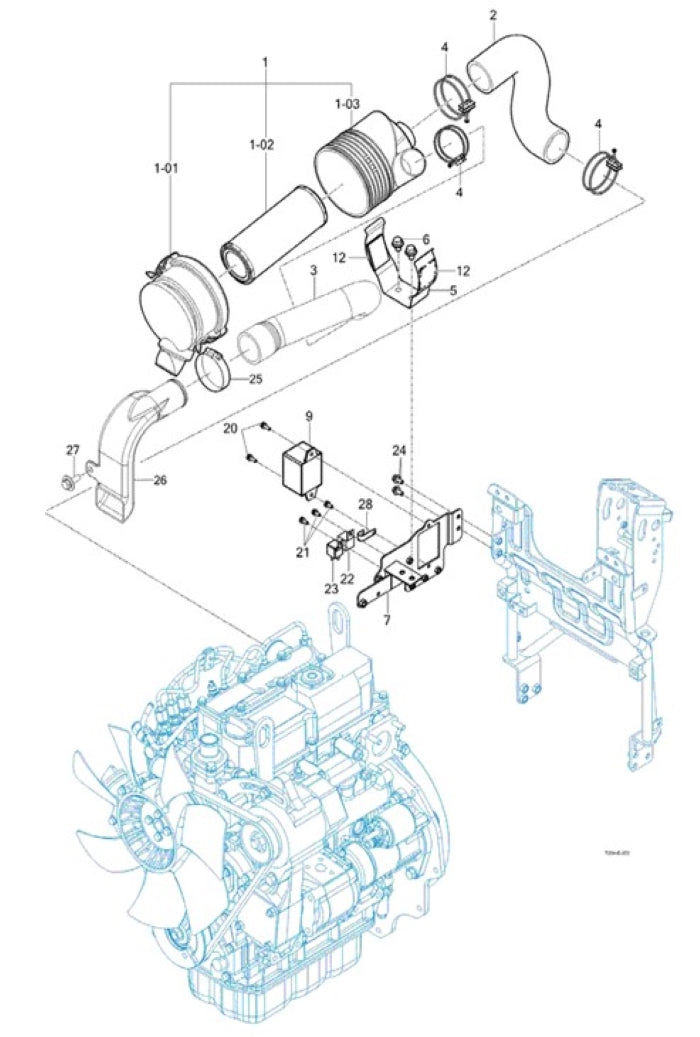

Air Cleaner
Parts Index
- 1 AIR CLEANER ASSY (Qty 1)
- 2 HOSE(AIR CLEANER/OUT) (Qty 1)
- 3 HOSE , AIRCLEANER INLET (Qty 1)
- 5 BRACKET(AIR CLEANER) (Qty 1)
- 6 BOLT(SP) (Qty 2)
- 7 DRIVER BRACKET COMP (Qty 1)
- 12 SPONGE , AIRCLEANER (Qty 2)
- 20 BOLT (Qty 2)
- 21 BOLT(SP) (Qty 3)
- 22 RELAY , PREHEAT (Qty 1)
- 23 5P RELAY (Qty 1)
- 24 BOLT(SP) (Qty 2)
- 25 BAND CLAMP 64 (Qty 1)
- 26 DUCT, AIR INLET (Qty 1)
- 27 BOLT(SPL) (Qty 1)
- 101 COVER (Qty 1)
- 102 ELEMENT (Qty 1)
- 103 BODY (Qty 1)
-
1#11201032000
AIR CLEANER ASSY
Qty Used: 1Regular price $120.99 USDRegular priceUnit price per
-
2#11111034000
HOSE(AIR CLEANER/OUT)
Qty Used: 1Regular price $81.99 USDRegular priceUnit price per
-
3#11511213100
HOSE , AIRCLEANER INLET
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
5#11101032300
BRACKET(AIR CLEANER)
Qty Used: 1Regular price $44.99 USDRegular priceUnit price per
-
-
12#11101032400
SPONGE , AIRCLEANER
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
-
-
22#17686641110
RELAY , PREHEAT
Qty Used: 1Regular price $50.29 USDRegular priceUnit price per
-
-
25#34513310040A
BAND CLAMP 64
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
26#11511213300
DUCT, AIR INLET
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
-
-
-
