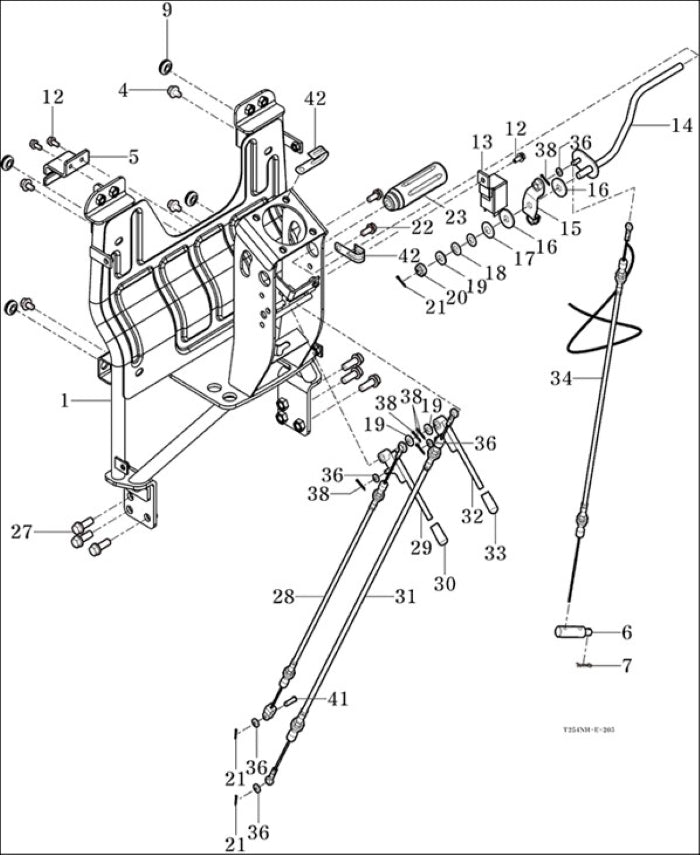

Accelerator
Parts Index
- 1 PANEL COMP , DASH (Qty 1)
- 4 BOLT(SP) (Qty 4)
- 5 FIX BRACKET , CABLE ASSY (Qty 1)
- 6 PIN, ACCELERATOR (Qty 1)
- 7 PIN(6) (Qty 1)
- 9 GROMMET(12X17X3.2) (Qty 4)
- 12 BOLT(SP) (Qty 3)
- 13 FLASHER ASSY(1905H) (Qty 1)
- 14 LEVER COMP , BAR 10 (Qty 1)
- 15 BRACKET COMP, ACCELERATOR (Qty 1)
- 16 LINING , 11X30X03 (Qty 2)
- 17 WASHER (Qty 1)
- 18 WASHER/M10 (Qty 2)
- 19 Washer, Plain (Qty 3)
- 20 NUT (Qty 1)
- 21 PIN (Qty 3)
- 22 BOLT(S) (Qty 2)
- 23 GRIP , REVERSE (Qty 1)
- 27 BOLT(S) (Qty 6)
- 28 PARKING BRAKE CABLE ASSY (Qty 1)
- 29 LEVER COMP,PARKING (Qty 1)
- 30 LEVER GRIP (RED) (Qty 1)
- 31 CRUISE CABLE ASSY (Qty 1)
- 32 LEVER COMP, CRUISE (Qty 1)
- 33 LEVER GRIP (Qty 1)
- 34 CABLE ASSY (Qty 1)
- 36 WASHER, PLAIN (Qty 5)
- 38 PIN (Qty 5)
- 41 PIN(06X16) (Qty 1)
- 42 HARNESS CLAMP (9) (Qty 2)
-
-
42#14256210040A
HARNESS CLAMP (9)
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
41#15601160083
PIN(06X16)
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
-
36#V4111600060
WASHER, PLAIN
Qty Used: 5Regular price $0.99 USDRegular priceUnit price per
-
34#11111162100B
CABLE ASSY
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
33#14445070030
LEVER GRIP
Qty Used: 1Regular price $2.29 USDRegular priceUnit price per
-

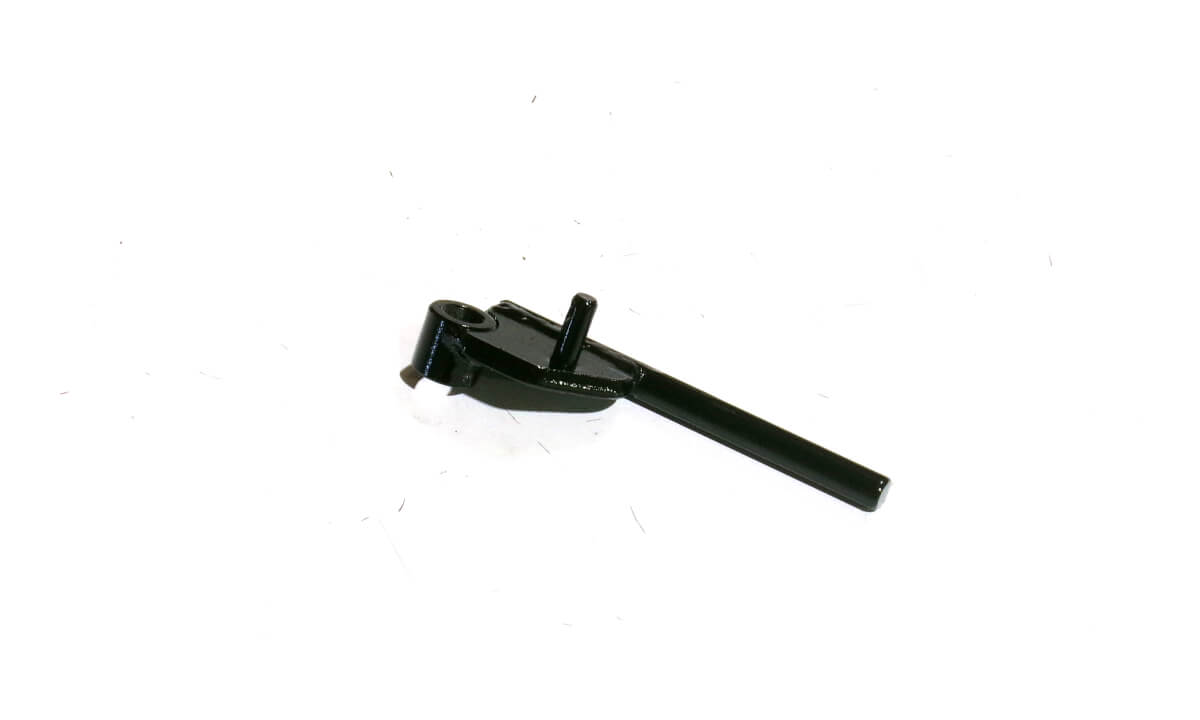

32#11106304000GB
LEVER COMP, CRUISE
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
-
31#11106304101
CRUISE CABLE ASSY
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-

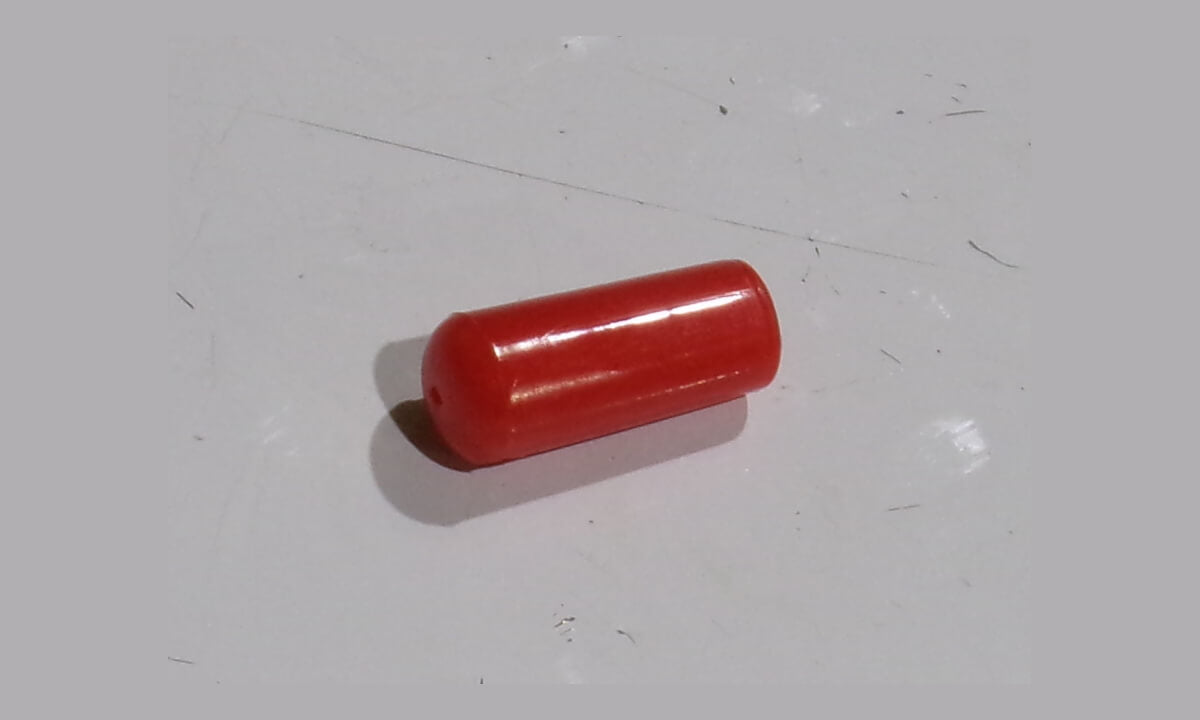

30#21615250020
LEVER GRIP (RED)
Qty Used: 1Regular price $4.49 USDRegular priceUnit price per
-
29#11106301000GB
LEVER COMP,PARKING
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
28#11103286300A
PARKING BRAKE CABLE ASSY
Qty Used: 1Regular price $50.99 USDRegular priceUnit price per
-
-
23#17681170050
GRIP , REVERSE
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
-

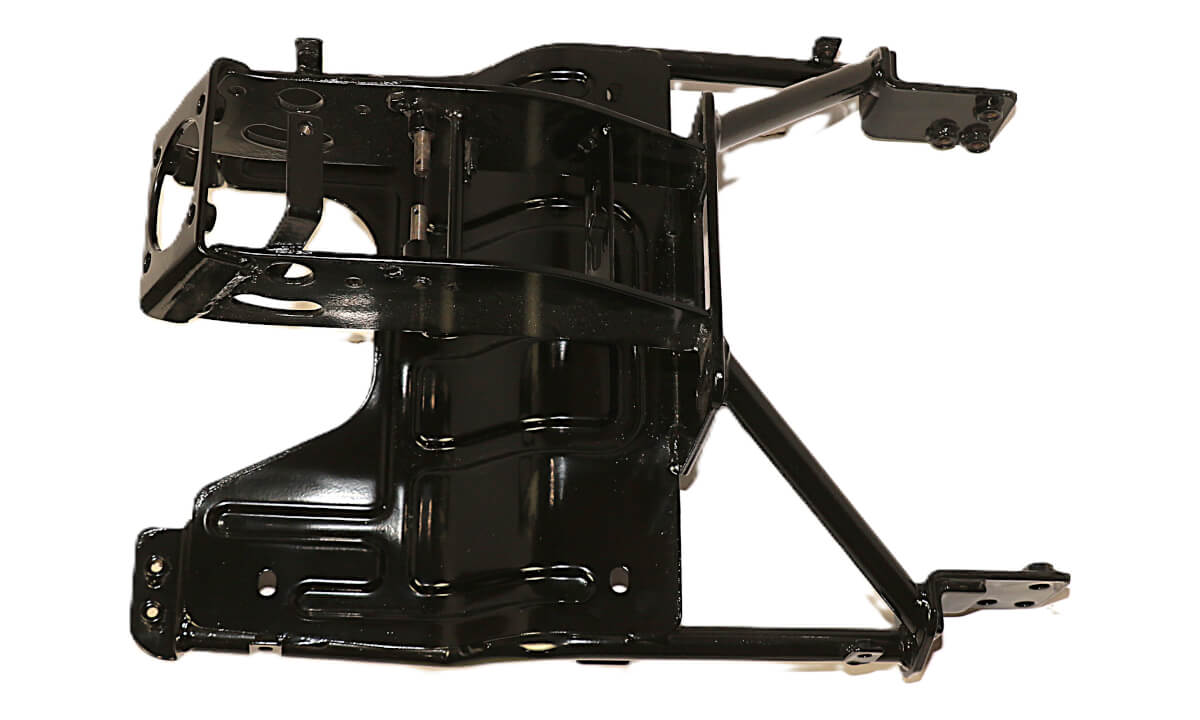

1#11116302001GB
PANEL COMP , DASH
Qty Used: 1Regular price $459.99 USDRegular priceUnit price per
-
-
19#V4111600100
Washer, Plain
Qty Used: 3Regular price $0.59 USDRegular priceUnit price per
-
18#14527060010
WASHER/M10
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
-
16#15965120021
LINING , 11X30X03
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
15#11101162600B
BRACKET COMP, ACCELERATOR
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
14#11111162500GB
LEVER COMP , BAR 10
Qty Used: 1Regular price $44.99 USDRegular priceUnit price per
-
13#11466642400
FLASHER ASSY(1905H)
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
-

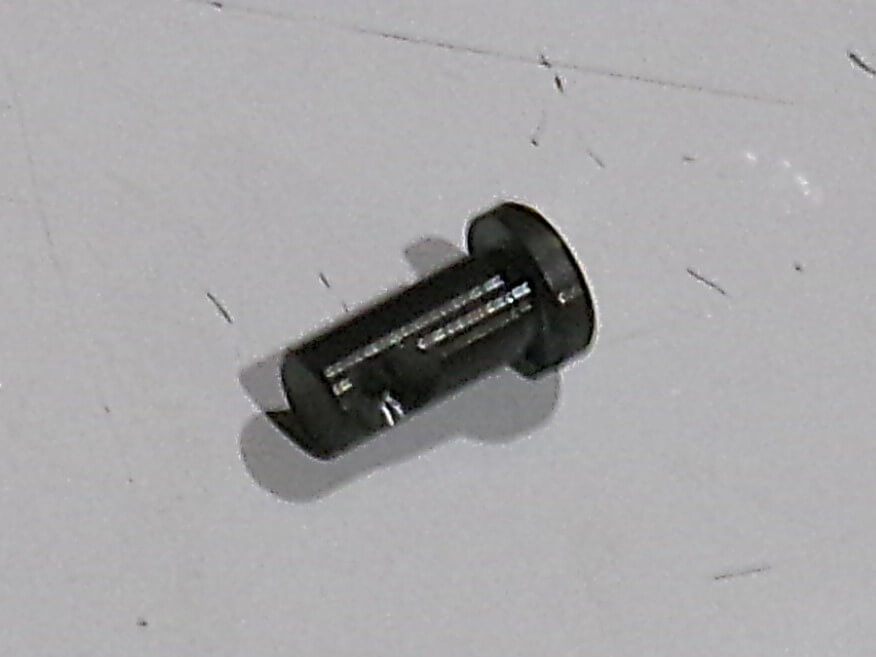

9#19026642010
GROMMET(12X17X3.2)
Qty Used: 4Regular price $4.99 USDRegular priceUnit price per
-
-
6#11111162411
PIN, ACCELERATOR
Qty Used: 1Regular price $10.19 USDRegular priceUnit price per
-
5#10516302380GB
FIX BRACKET , CABLE ASSY
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
