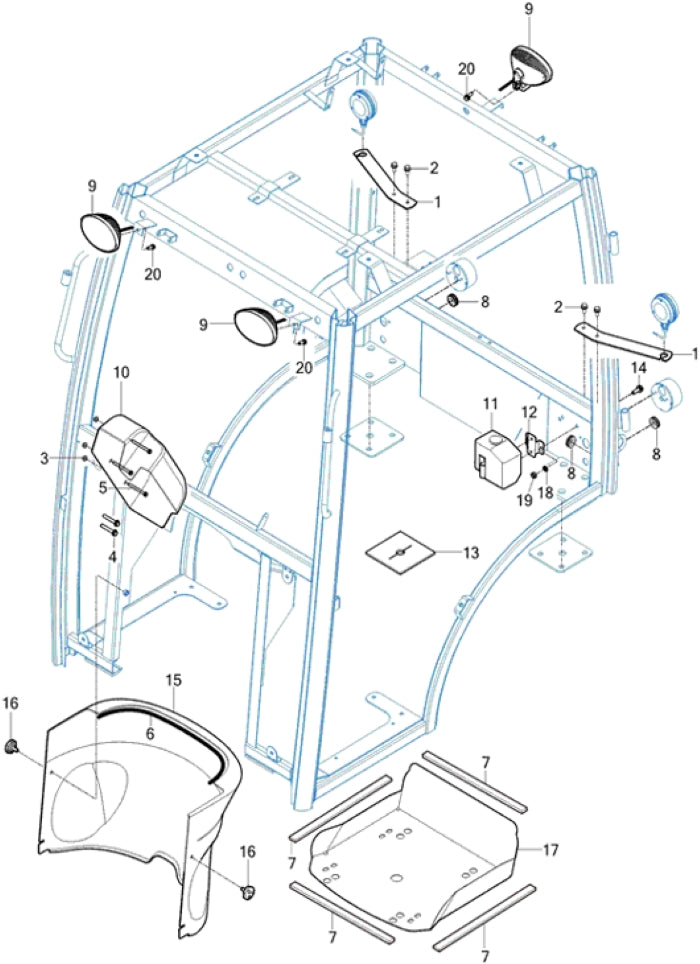

Working Lamp & Fender Cover
Parts Index
- 1 BRACKET , COMBI (Qty 2)
- 2 BOLT(SPL) (Qty 4)
- 3 NUT (Qty 3)
- 4 Bolt, Hex (Qty 2)
- 5 Bolt, Hex/s (Qty 3)
- 6 INSULATOR , AIR INTAKE (Qty 1)
- 7 INSULATOR , SEAT (Qty 4)
- 8 CAP(20) (Qty 3)
- 10 COVERVALVE (Qty 1)
- 11 TANK ASSY , 1MOTOR (Qty 1)
- 12 BRACKET , WASHER TANK (Qty 1)
- 13 COVER , DUST/CLUTCH (Qty 4)
- 14 BOLT(SP) (Qty 2)
- 15 AIR INTAKE COVER (Qty 1)
- 16 BOLT , HANDLE(1905H) (Qty 2)
- 18 WASHER, SPRING (Qty 2)
- 19 NUT (Qty 2)
- 20 BOLT(SP) (Qty 3)
-
10#11297036010
COVERVALVE
Qty Used: 1Regular price $274.99 USDRegular priceUnit price per
-
-
18#V4011600080
WASHER, SPRING
Qty Used: 2Regular price $2.09 USDRegular priceUnit price per
-
16#13766010031A
BOLT , HANDLE(1905H)
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
15#11297036020
AIR INTAKE COVER
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
-
13#11107036050
COVER , DUST/CLUTCH
Qty Used: 4Regular price $16.49 USDRegular priceUnit price per
-
12#11297032270
BRACKET , WASHER TANK
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
11#12426695500
TANK ASSY , 1MOTOR
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
1#11297037051GB
BRACKET , COMBI
Qty Used: 2Regular price $6.99 USDRegular priceUnit price per
-
-
7#11297037080
INSULATOR , SEAT
Qty Used: 4Regular price $15.49 USDRegular priceUnit price per
-
6#11297036030
INSULATOR , AIR INTAKE
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
5#V2173608070
Bolt, Hex/s
Qty Used: 3Regular price $2.00 USDRegular priceUnit price per
-
-
-
