Speed Control

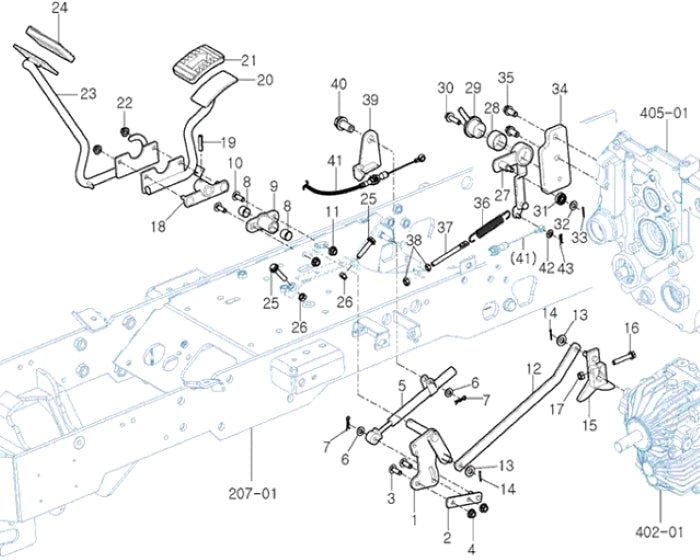

Parts Index
- 1 PEDAL LINK COMP , HST (Qty 1)
- 2 DAMPER PIN COMP (Qty 1)
- 3 CUP HEAD SQUARE NECK BOLT (Qty 2)
- 4 NUT (Qty 2)
- 5 DAMPER , OIL (Qty 1)
- 6 WASHER, PLAIN (Qty 2)
- 7 PIN, SNAP (Qty 2)
- 8 BUSH (16X18X15) (Qty 2)
- 9 BOSS (Qty 1)
- 10 BOLT , ROUND (Qty 2)
- 11 NUT , HEX FLANGE (Qty 2)
- 12 CONTROL PLATE (Qty 1)
- 13 Washer, Plain (Qty 2)
- 14 PIN (Qty 2)
- 15 COMP , HOLDER (Qty 1)
- 16 BOLT(S) (Qty 1)
- 17 NUT (Qty 1)
- 18 COMP , PEDAL BOSS (Qty 1)
- 19 PIN, SPRING (Qty 1)
- 20 COMP , PEDAL(REVERSE) (Qty 1)
- 21 PAD (Qty 1)
- 22 NUT (Qty 2)
- 23 COMP , PEDAL(FORWARD) (Qty 1)
- 24 PAD (Qty 1)
- 25 BOLT , HEX (Qty 2)
- 26 NUT (Qty 2)
- 27 ARM COMP , CAM (Qty 1)
- 28 BUSHING (Qty 1)
- 29 COMP , NEUTRAL LEVER (Qty 1)
- 30 BOLT .HEX FINE MACHINE/S (Qty 1)
- 31 Ball Bearing (Qty 1)
- 32 WASHER, PLAIN (Qty 1)
- 33 PIN (Qty 1)
- 34 BRACKET (Qty 1)
- 35 BOLT , HEX/S (Qty 2)
- 36 SPRING (RETURN) (Qty 1)
- 37 ROD , CHAIN(TENSION)(82) (Qty 1)
- 38 NUT (Qty 2)
- 39 BRACKET COMP , FIX (Qty 1)
- 40 BOLT , HEX (Qty 1)
- 41 CABLE ASSY , AUTO THROTTLE (Qty 1)
- 42 WASHER, PLAIN (Qty 1)
- 43 PIN, SNAP (Qty 1)
-
-
-

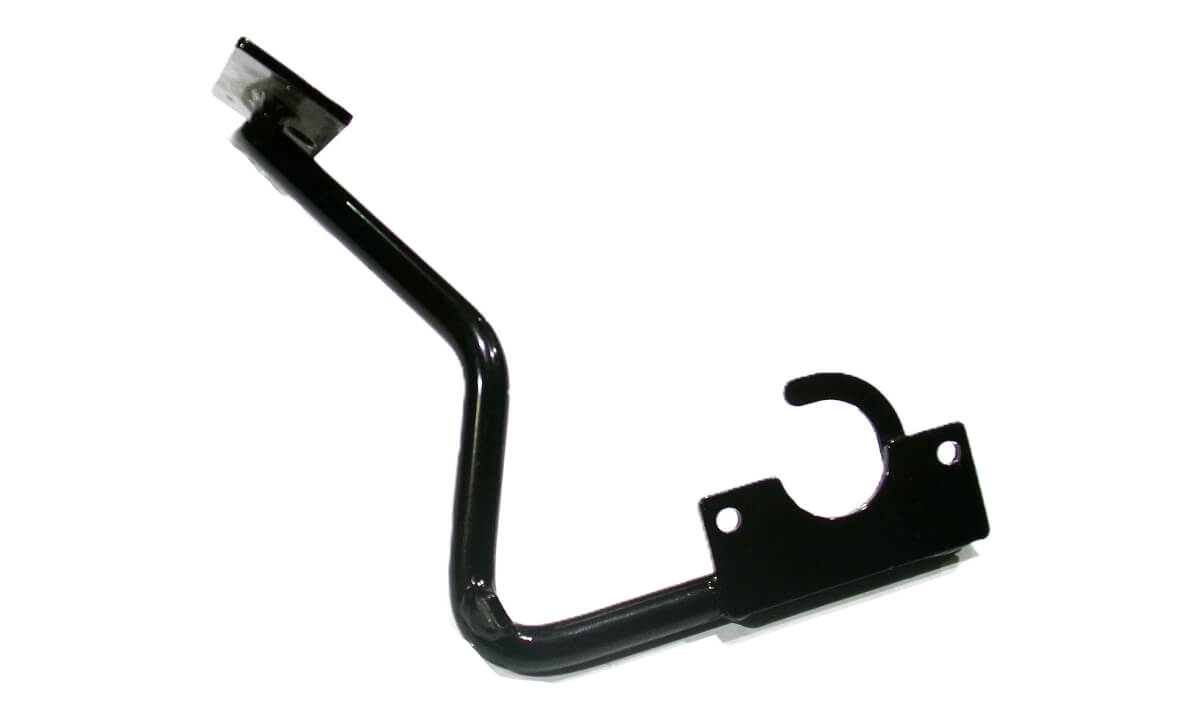

23#11612322201GB
COMP , PEDAL(FORWARD)
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
-

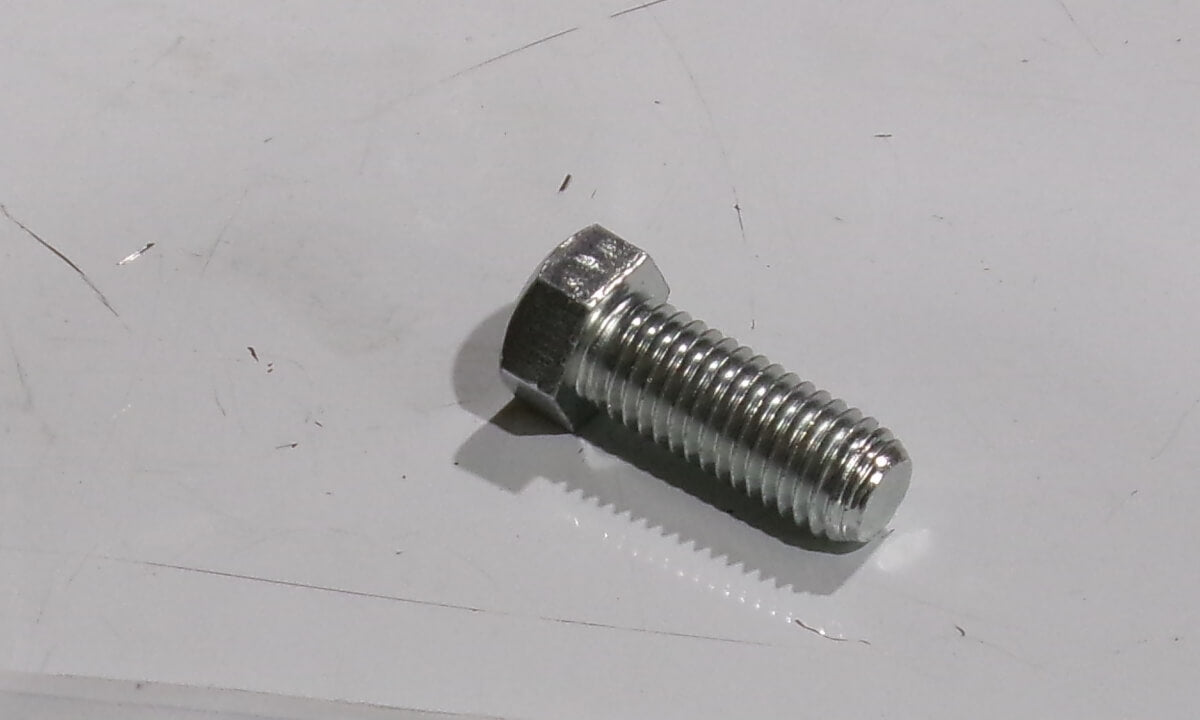

25#V2013608030
BOLT , HEX
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
27#11612324200
ARM COMP , CAM
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
-
29#11612324400
COMP , NEUTRAL LEVER
Qty Used: 1Regular price $17.59 USDRegular priceUnit price per
-
30#V2143610035
BOLT .HEX FINE MACHINE/S
Qty Used: 1Regular price $2.79 USDRegular priceUnit price per
-
31#14722310060
Ball Bearing
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
20#11632322100GB
COMP , PEDAL(REVERSE)
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-

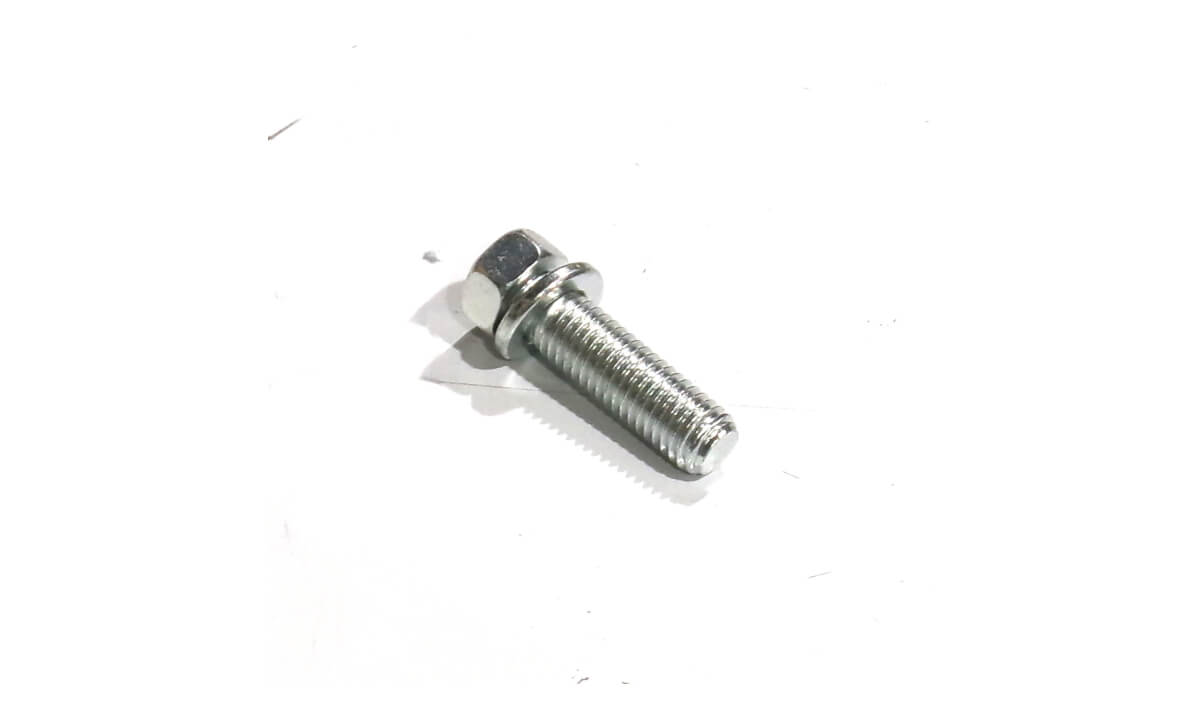

35#V2174610035
BOLT , HEX/S
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
36#14722310033
SPRING (RETURN)
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
37#34522150080
ROD , CHAIN(TENSION)(82)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
39#10506253300GB
BRACKET COMP , FIX
Qty Used: 1Regular price $41.99 USDRegular priceUnit price per
-
40#V2013614035
BOLT , HEX
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
41#10501812700
CABLE ASSY , AUTO THROTTLE
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
42#V4111600060
WASHER, PLAIN
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
-
10#11612320050
BOLT , ROUND
Qty Used: 2Regular price $2.29 USDRegular priceUnit price per
-

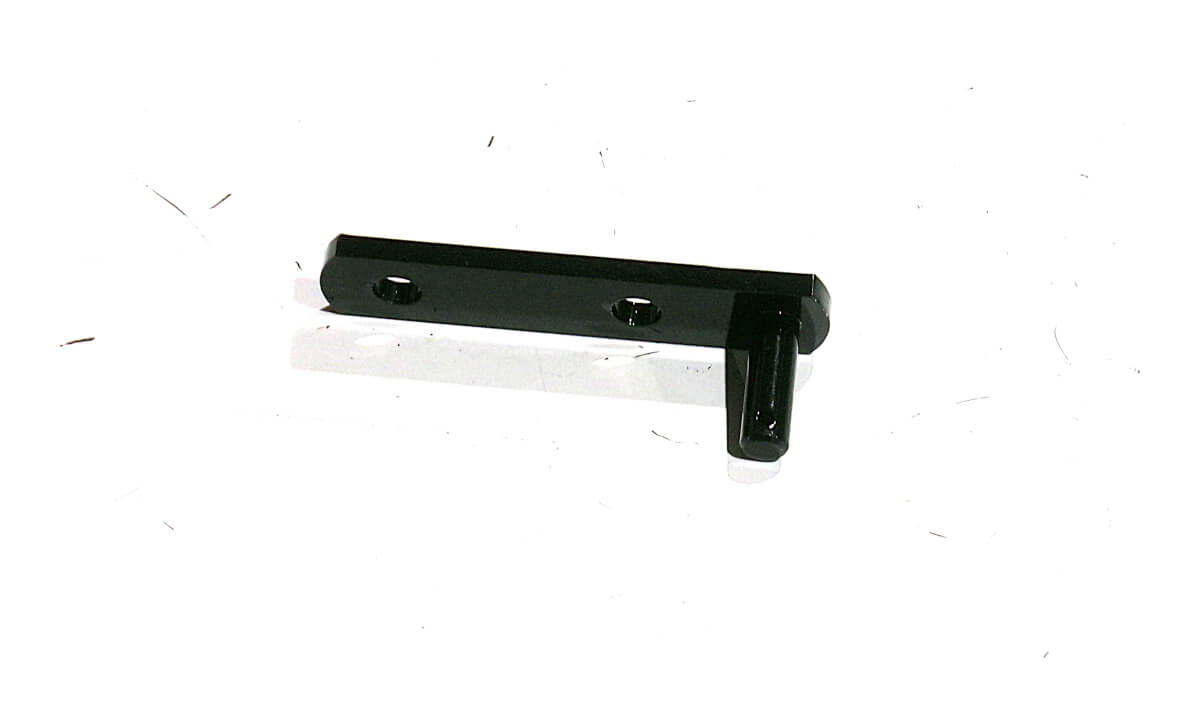

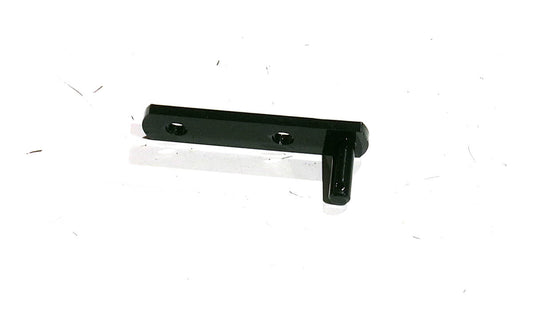

2#11612326200GB
DAMPER PIN COMP
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-

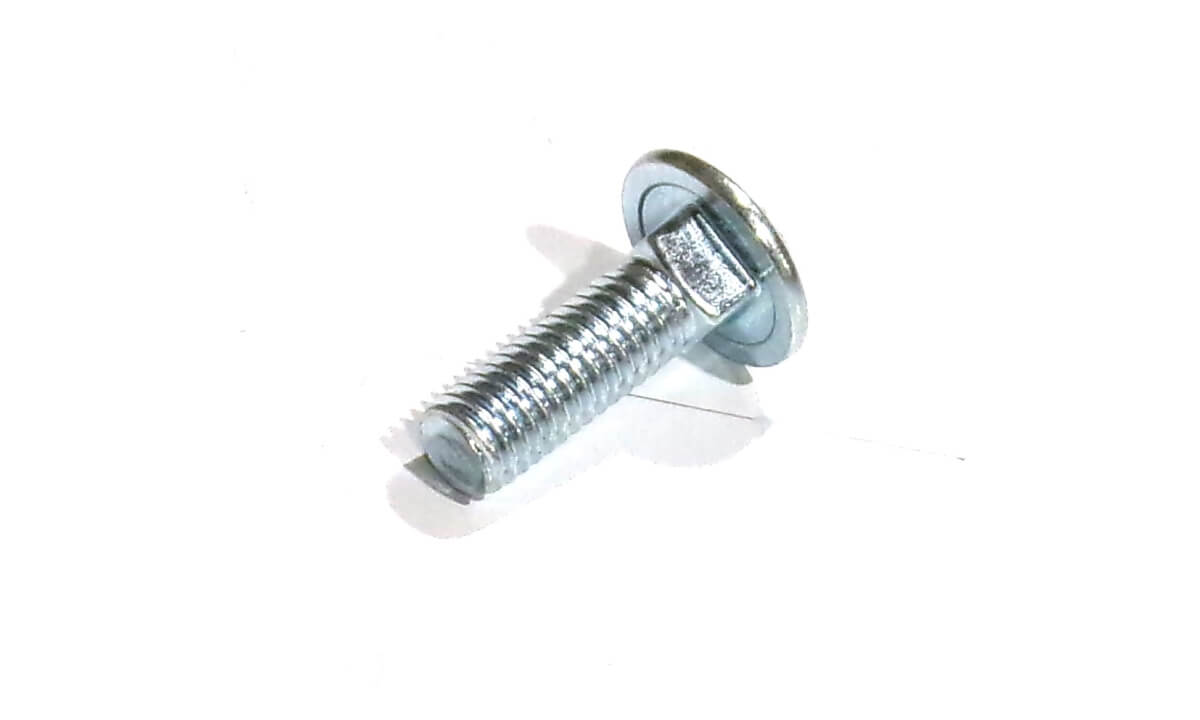

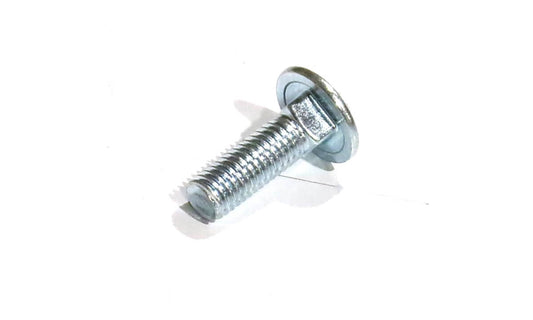

3#11616402400
CUP HEAD SQUARE NECK BOLT
Qty Used: 2Regular price $2.29 USDRegular priceUnit price per
-
-
5#14722312401
DAMPER , OIL
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
632#V4111600080
WASHER, PLAIN
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
-
8#15603142910
BUSH (16X18X15)
Qty Used: 2Regular price $2.29 USDRegular priceUnit price per
-
-
1#11612326100
PEDAL LINK COMP , HST
Qty Used: 1Regular price $65.99 USDRegular priceUnit price per
-
11#V3802600100
NUT , HEX FLANGE
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
12#11612320040GB
CONTROL PLATE
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
13#V4111600100
Washer, Plain
Qty Used: 2Regular price $0.59 USDRegular priceUnit price per
-
-
15#11612323000
COMP , HOLDER
Qty Used: 1Regular price $60.99 USDRegular priceUnit price per
-
-
18#11612327000
COMP , PEDAL BOSS
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
19#V5801408036
PIN, SPRING
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
