ROPS

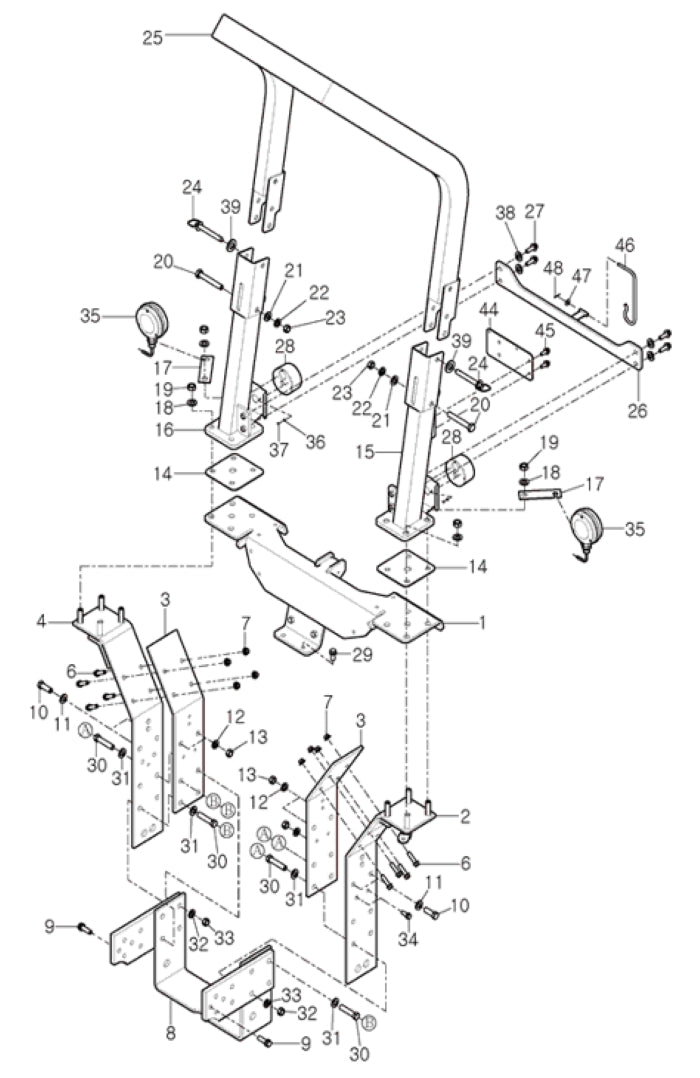

Parts Index
- 2 FRAME COMP , LH/SPRT (Qty 1)
- 3 REINFORCE BRACKET , MID/SUPPOR (Qty 2)
- 4 FRAME COMP , RH/SPRT (Qty 1)
- 6 BOLT(S) (Qty 8)
- 7 NUT , HEX FLANGE (Qty 8)
- 8 FRAME COMP , HITCH (Qty 1)
- 9 BOLT(S) (Qty 12)
- 10 BOLT , HEX (Qty 4)
- 11 WASHER, PLAIN (Qty 4)
- 12 WASHER, SPRING (14) (Qty 4)
- 13 NUT (Qty 4)
- 14 PAD(ROPS) (Qty 2)
- 15 FRAME COMP , LH/LOW/ROPS (Qty 1)
- 16 FRAME COMP , RH/LOW/ROPS (Qty 1)
- 17 PLATE , LAMP (Qty 2)
- 18 WASHER, SPRING (14) (Qty 8)
- 19 NUT (Qty 8)
- 20 BOLT SUB TO-> TA00056412A (Qty 2)
- 21 WASHER, PLAIN (Qty 2)
- 22 WASHER, SPRING (14) (Qty 2)
- 23 NUT (Qty 2)
- 24 PIN COMP , FIXED (Qty 2)
- 25 FRAME COMP , UPR (Qty 1)
- 26 FRAME COMP , CROSS (Qty 1)
- 27 BOLT , HEX/S (Qty 4)
- 28 STOP LAMP ASS`Y (Qty 2)
- 29 BOLT , HEX/S (Qty 2)
- 30 BOLT , HEX (Qty 8)
- 31 WASHER, PLAIN (Qty 8)
- 32 WASHER, SPRING (14) (Qty 8)
- 33 NUT (Qty 8)
- 34 BOLT(SP) (Qty 2)
- 35 TURN SIGNAL LIGHT (Qty 2)
- 36 WASHER, SPRING (Qty 4)
- 37 NUT (Qty 4)
- 38 Washer, Plain (Qty 4)
- 39 GROMMET , 15X36X3 (Qty 2)
- 45 BOLT(SP) (Qty 2)
- 46 HOOK(TON LINK) BB1022H / BB1025H (Qty 1)
- 47 WASHER, PLAIN (Qty 1)
- 48 PIN (Qty 1)
-
20#V2014614095
BOLT SUB TO-> TA00056412A
Qty Used: 2Regular price $5.99 USDRegular priceUnit price per
-
-
47#V4111600050
WASHER, PLAIN
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-

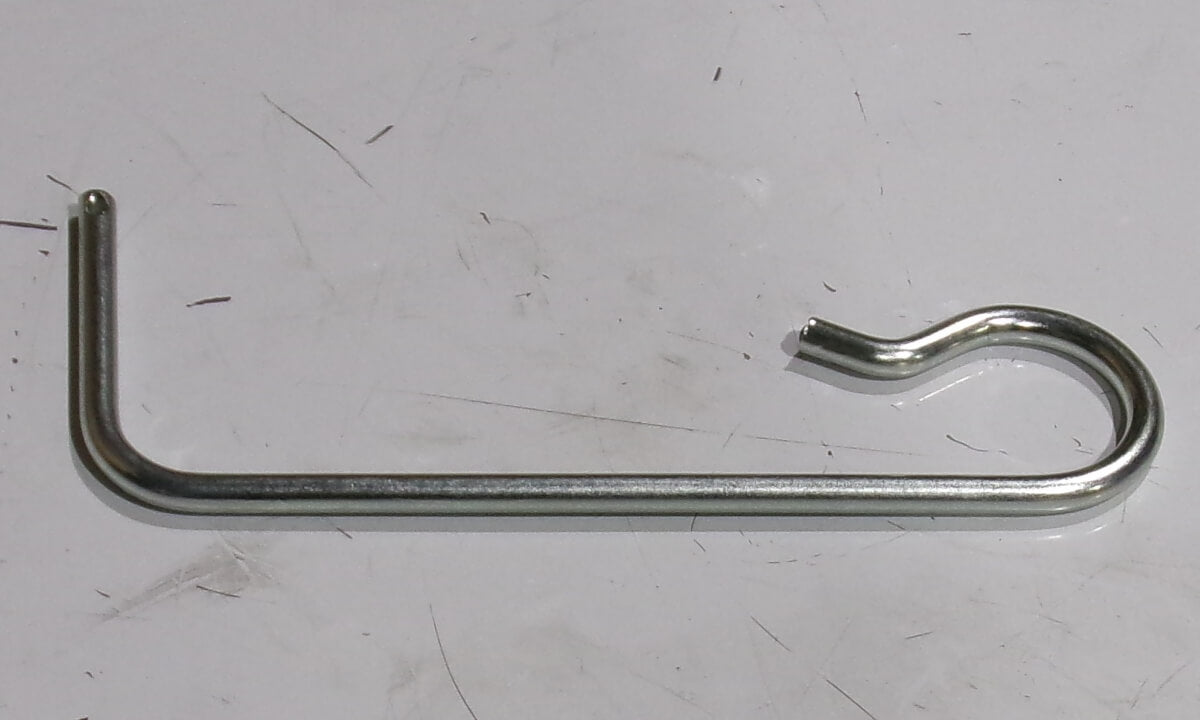

46#16705251100
HOOK(TON LINK) BB1022H / BB1025H
Qty Used: 1Regular price $19.19 USDRegular priceUnit price per
-
-
39#19027722030
GROMMET , 15X36X3
Qty Used: 2Regular price $3.09 USDRegular priceUnit price per
-
38#V4111600100
Washer, Plain
Qty Used: 4Regular price $0.59 USDRegular priceUnit price per
-
-
36#V4011600050
WASHER, SPRING
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-

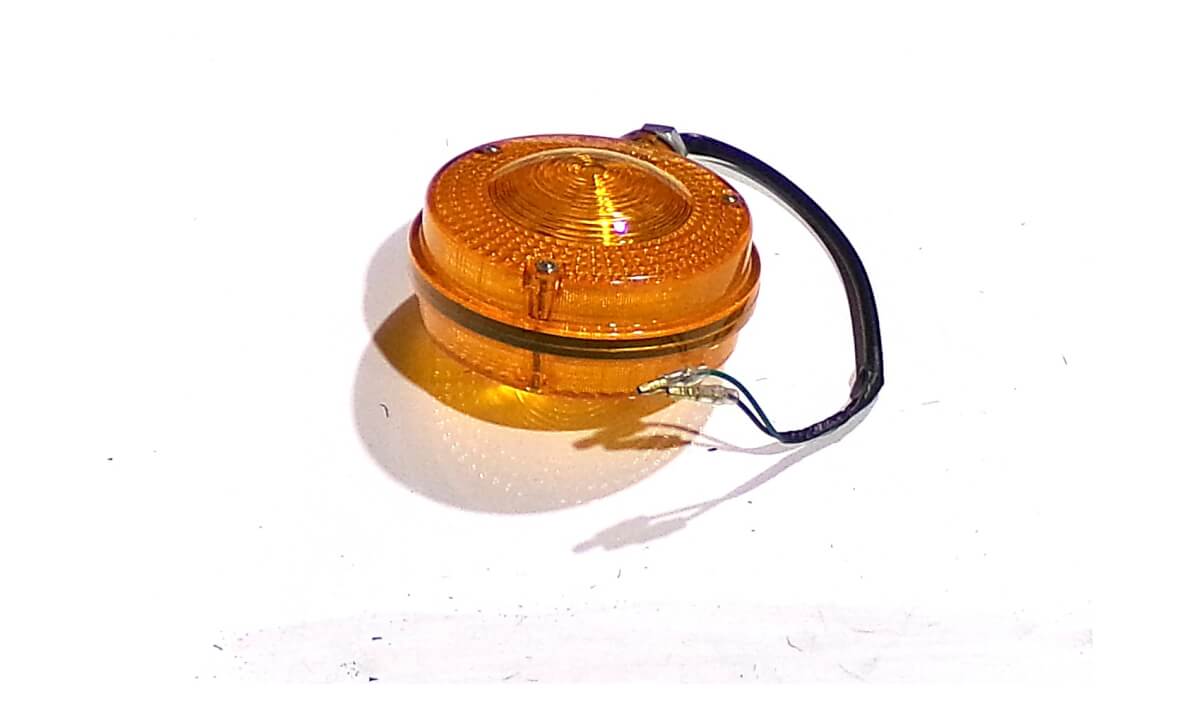

35#11616562000
TURN SIGNAL LIGHT
Qty Used: 2Regular price $69.99 USDRegular priceUnit price per
-
-
30#V2004614070
BOLT , HEX
Qty Used: 8Regular price $6.09 USDRegular priceUnit price per
-

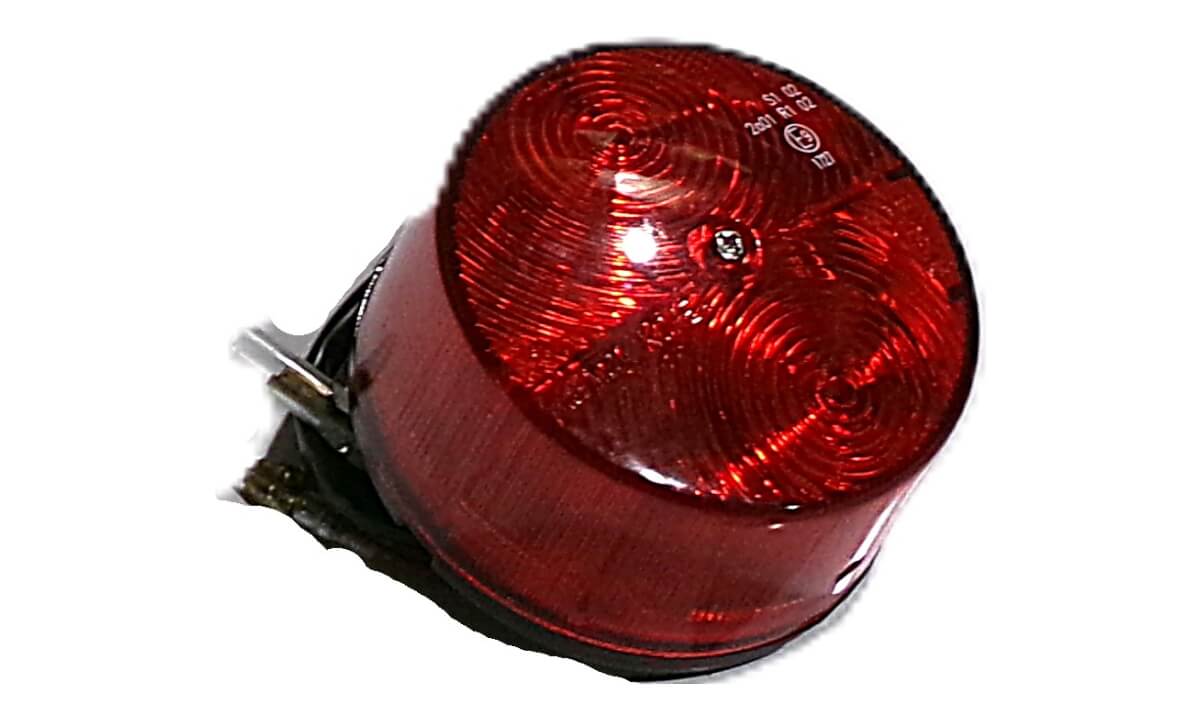

28#11106563002
STOP LAMP ASS`Y
Qty Used: 2Regular price $59.99 USDRegular priceUnit price per
-
2729#V2174610035
BOLT , HEX/S
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
26#11657022300GB
FRAME COMP , CROSS
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
25#11617024100GB
FRAME COMP , UPR
Qty Used: 1Regular price $439.99 USDRegular priceUnit price per
-
2#11617022400GB
FRAME COMP , LH/SPRT
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
17#11616562111GB
PLATE , LAMP
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
16#11617022200GB
FRAME COMP , RH/LOW/ROPS
Qty Used: 1Regular price $209.99 USDRegular priceUnit price per
-
15#11617022102GB
FRAME COMP , LH/LOW/ROPS
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
-
-
12182232#V4011600140
WASHER, SPRING (14)
Qty Used: 8Regular price $2.19 USDRegular priceUnit price per
-
112131#V4111600140
WASHER, PLAIN
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
10#V2013614040
BOLT , HEX
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
-
8#11615212101GB
FRAME COMP , HITCH
Qty Used: 1Regular price $274.99 USDRegular priceUnit price per
-
7#V3802600100
NUT , HEX FLANGE
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
-
4#11617022500GB
FRAME COMP , RH/SPRT
Qty Used: 1Regular price $197.99 USDRegular priceUnit price per
-
3#11617022700GB
REINFORCE BRACKET , MID/SUPPOR
Qty Used: 2Regular price $120.99 USDRegular priceUnit price per
