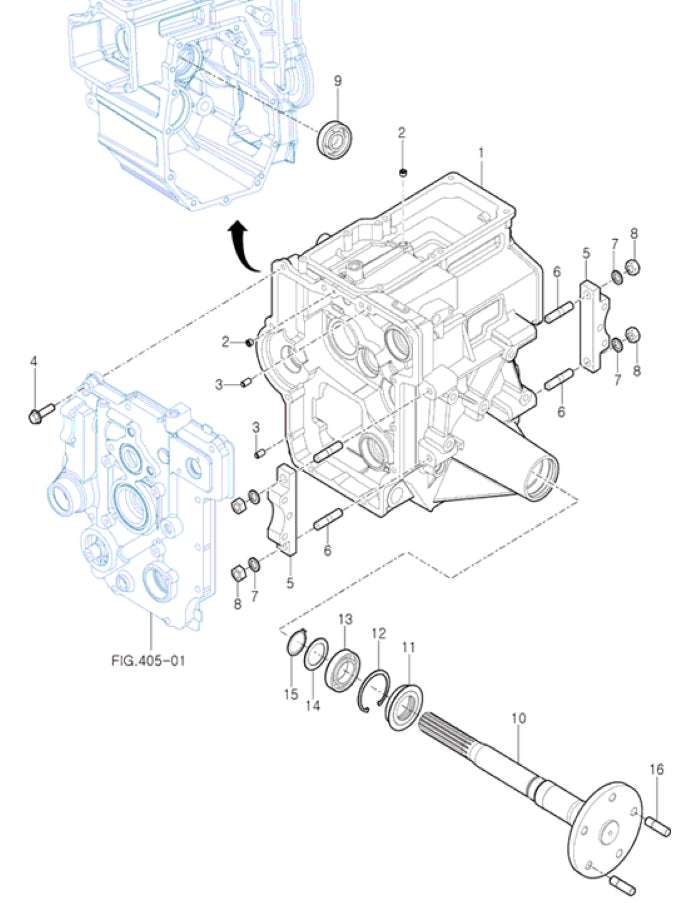

Rear Transmission Case
Parts Index
- 1 Case, Rear TM (Qty 1)
- 3 PIN, STRAIGHT (A) (Qty 2)
- 4 BOLT (Qty 11)
- 5 BRACKET , MTG (Qty 2)
- 6 BOLT , STUD/2 (Qty 4)
- 7 WASHER, SPRING (Qty 4)
- 8 NUT , HEX/2 (Qty 4)
- 9 Roller Bearing (Qty 1)
- 10 SHAFT, REAR WHEEL (Qty 1)
- 11 Seal, Shaft 40 (Qty 1)
- 12 CIR CLIP, INTERNAL (Qty 1)
- 13 Bearing, Ball (#6007) (Qty 1)
- 14 WASHER , 35X50X02 (Qty 1)
- 15 CIR CLIP,EXTERNAL (Qty 1)
- 16 WHEEL , STUD (Qty 2)
-
1#11612400010M
Case, Rear TM
Qty Used: 1Regular price $1,539.99 USDRegular priceUnit price per
-
3#V5201010020
PIN, STRAIGHT (A)
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
-
5#11614074100
BRACKET , MTG
Qty Used: 2Regular price $59.99 USDRegular priceUnit price per
-
6#V2514412030
BOLT , STUD/2
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
7#V4011600120
WASHER, SPRING
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
8#V3042600120
NUT , HEX/2
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
9#V6221100305
Roller Bearing
Qty Used: 1Regular price $230.99 USDRegular priceUnit price per
-
10#11613247110
SHAFT, REAR WHEEL
Qty Used: 1Regular price $362.99 USDRegular priceUnit price per
-
11#11103240030
Seal, Shaft 40
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
12#V7051400620
CIR CLIP, INTERNAL
Qty Used: 1Regular price $8.49 USDRegular priceUnit price per
-
13#V6001106007
Bearing, Ball (#6007)
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
14#11613240030
WASHER , 35X50X02
Qty Used: 1Regular price $43.99 USDRegular priceUnit price per
-
15#V7041400350
CIR CLIP,EXTERNAL
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
16#11613247120
WHEEL , STUD
Qty Used: 2Regular price $21.99 USDRegular priceUnit price per
