Radiator

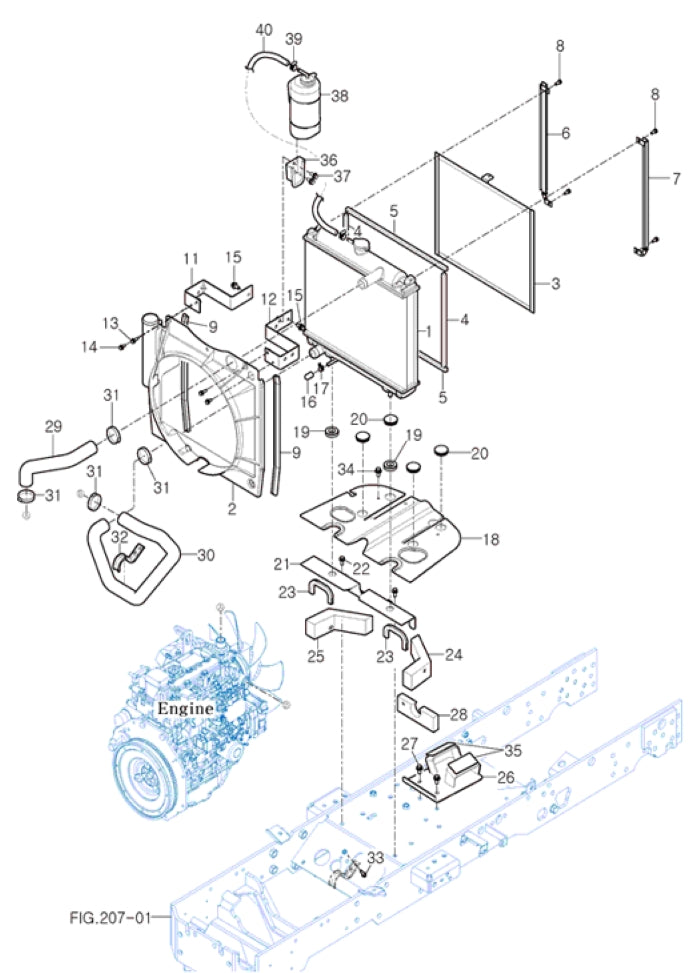

Parts Index
- 1 RADIATOR COMP (Qty 1)
- 2 SHROUD (Qty 1)
- 3 NET COMP , RADIATOR (Qty 1)
- 4 SPONGE(315) (Qty 2)
- 5 SPONGE (410) (Qty 2)
- 6 NET FIX COMP RH (Qty 1)
- 7 NET FIX COMP LH (Qty 1)
- 8 BOLT , HEX /S (Qty 4)
- 9 INSULATOR 400 (Qty 2)
- 12 RAD. BKT. LH (Qty 1)
- 13 BOLT(SP) (Qty 2)
- 14 BOLT(SP) (Qty 2)
- 15 BOLT(SP) (Qty 2)
- 16 CAP , RADIATOR (Qty 1)
- 17 CLAMP 16 (Qty 1)
- 18 DASH BOTTOM COVER (Qty 1)
- 19 CUSHION RUBBER A , RADIATOR (Qty 2)
- 20 CAP , RUBBER 30 (Qty 4)
- 21 RAD, BOTTOM BKT (Qty 1)
- 22 BOLT(SP) (Qty 2)
- 23 PROTECTOR , 120 (Qty 2)
- 24 DASH BOTTOM SPG. LH (Qty 1)
- 25 DASH BOTTOM SPG. RH (Qty 1)
- 26 SUPPORT COMP , FLOOR (Qty 1)
- 27 BOLT(SP) (Qty 2)
- 28 DASH BOTTOM SPG , CENTER (Qty 1)
- 29 RAD. HOSE , INLET (Qty 1)
- 30 RAD. HOSE , OUTLET (Qty 1)
- 31 CLAMP 40 (Qty 4)
- 32 RAD HOSE HOLDER (Qty 1)
- 33 BOLT(SP) (Qty 1)
- 34 BOLT(SP) (Qty 3)
- 35 SPONGE , 30X70 (Qty 2)
- 36 HOLDER COMP , TANK/RESERVE (Qty 1)
- 37 BOLT(SP) (Qty 2)
- 38 TANK ASSY , RESERVE (Qty 1)
- 39 CLIP , HOSE D=12.5 (Qty 2)
- 40 HOSE , RESERVOIR TANK (Qty 1)
-
1#11111042000
RADIATOR COMP
Qty Used: 1Regular price $439.99 USDRegular priceUnit price per
-
-

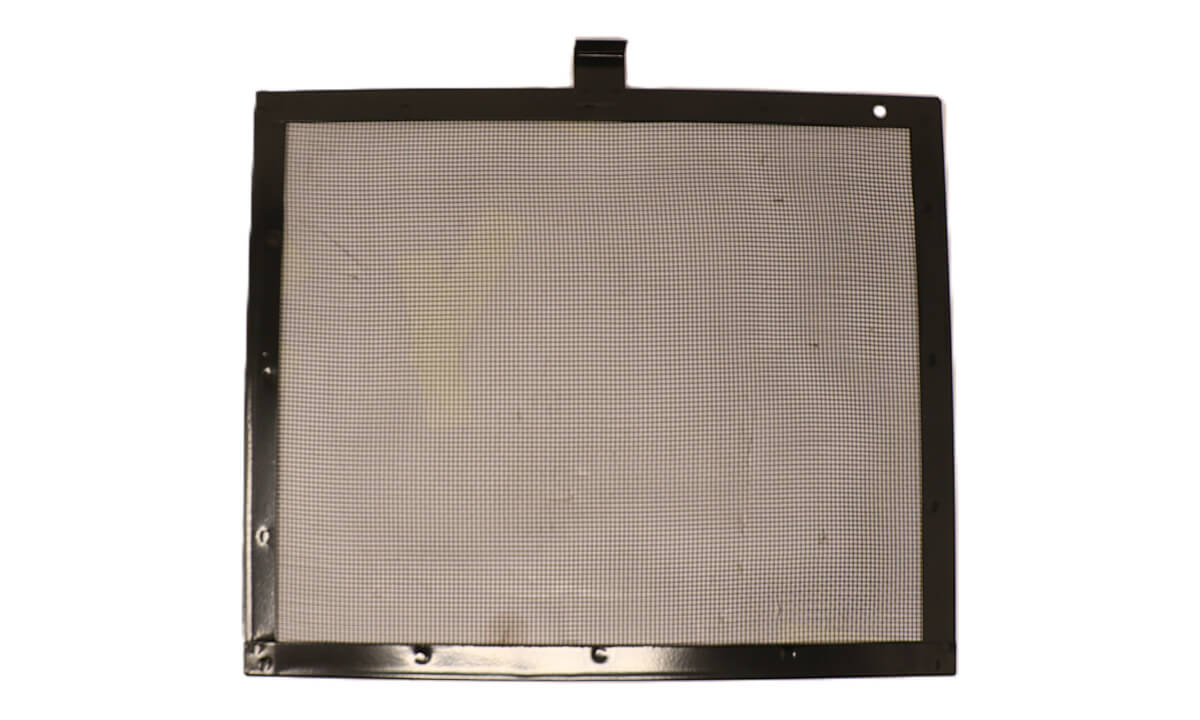

3#11101042310GB
NET COMP , RADIATOR
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
4#11611512800
SPONGE(315)
Qty Used: 2Regular price $3.39 USDRegular priceUnit price per
-

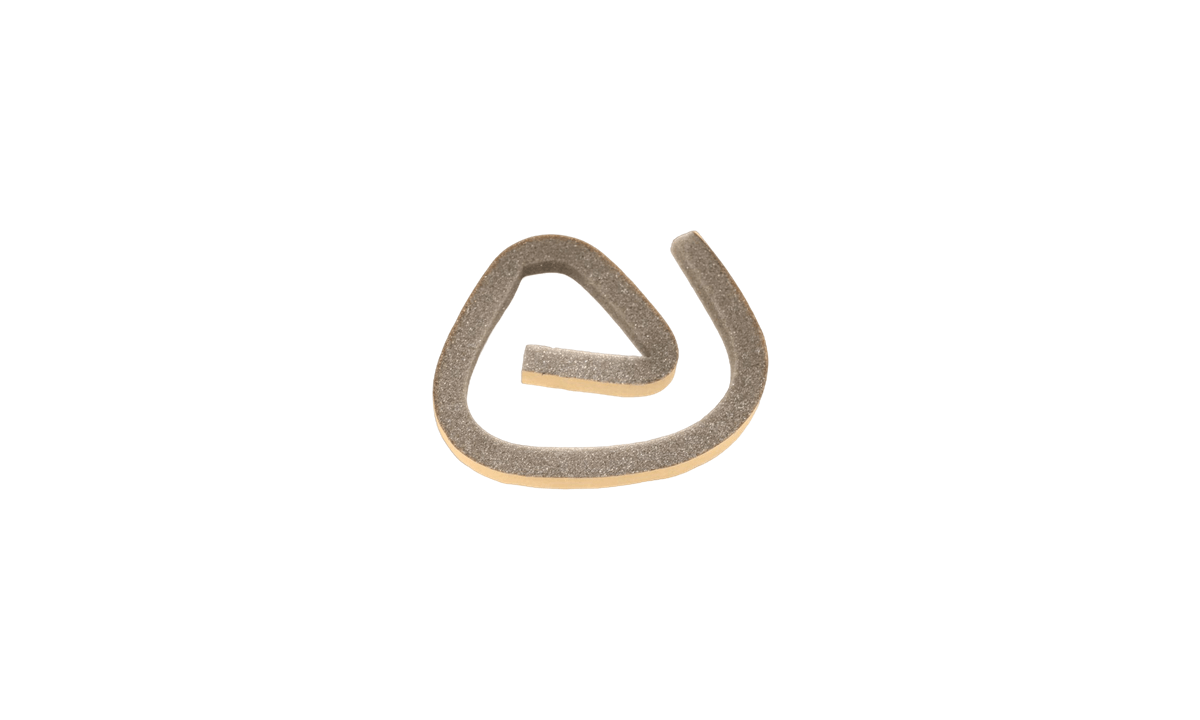

5#11101042350
SPONGE (410)
Qty Used: 2Regular price $6.09 USDRegular priceUnit price per
-

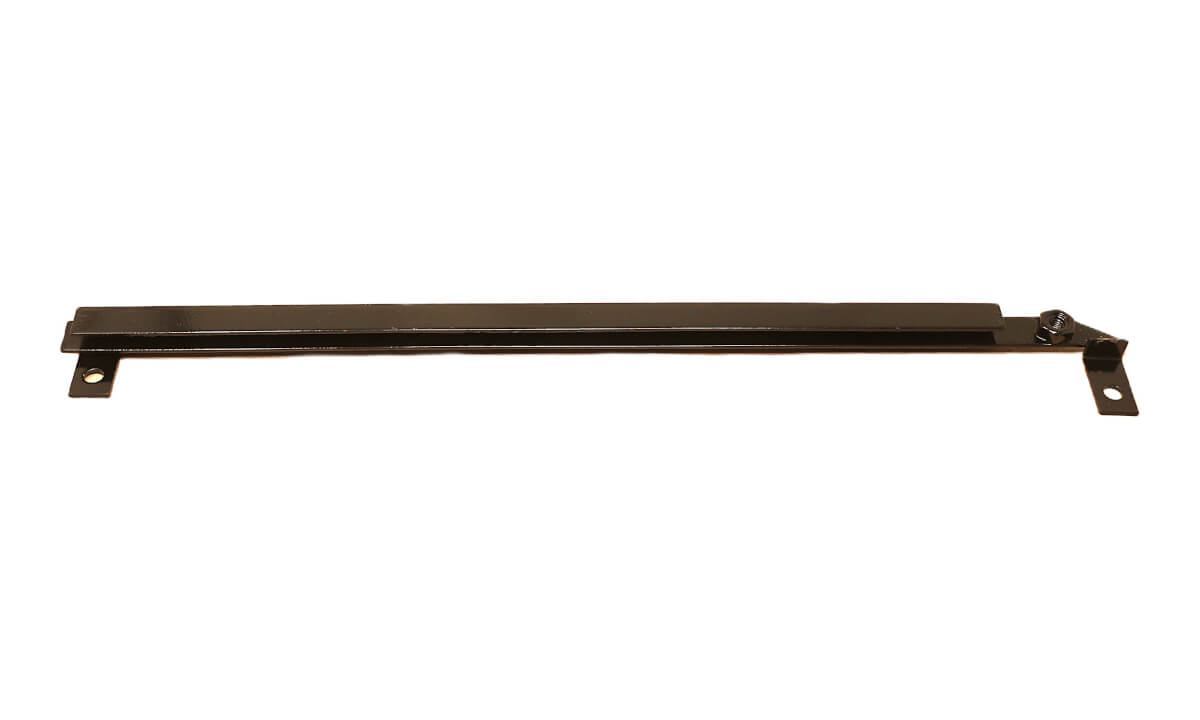

6#11611511300GB
NET FIX COMP RH
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
7#11611511200GB
NET FIX COMP LH
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
8#V2113606016
BOLT , HEX /S
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
9#11611512300
INSULATOR 400
Qty Used: 2Regular price $5.99 USDRegular priceUnit price per
-
12#11611511600GB
RAD. BKT. LH
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
-
-
-
16#12651040300
CAP , RADIATOR
Qty Used: 1Regular price $2.39 USDRegular priceUnit price per
-
-
18#11611812700
DASH BOTTOM COVER
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
19#15156210300
CUSHION RUBBER A , RADIATOR
Qty Used: 2Regular price $18.99 USDRegular priceUnit price per
-
20#16606510210
CAP , RUBBER 30
Qty Used: 4Regular price $4.99 USDRegular priceUnit price per
-
21#11611511800GB
RAD, BOTTOM BKT
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
23#36502010080
PROTECTOR , 120
Qty Used: 2Regular price $4.49 USDRegular priceUnit price per
-
24#11611813100
DASH BOTTOM SPG. LH
Qty Used: 1Regular price $14.39 USDRegular priceUnit price per
-
25#11611813200
DASH BOTTOM SPG. RH
Qty Used: 1Regular price $14.39 USDRegular priceUnit price per
-
26#11611813400
SUPPORT COMP , FLOOR
Qty Used: 1Regular price $50.99 USDRegular priceUnit price per
-
28#11611813300
DASH BOTTOM SPG , CENTER
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
29#11611511400
RAD. HOSE , INLET
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
-

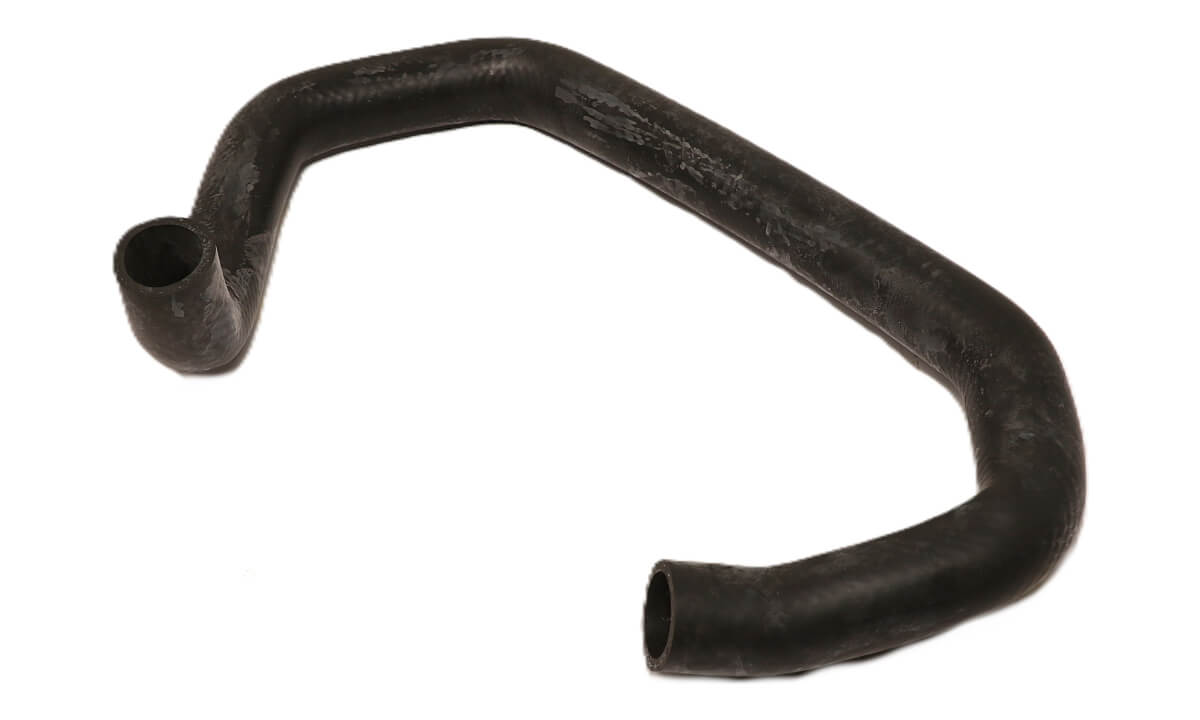

30#11651511500
RAD. HOSE , OUTLET
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
-
32#11611512500GB
RAD HOSE HOLDER
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
-

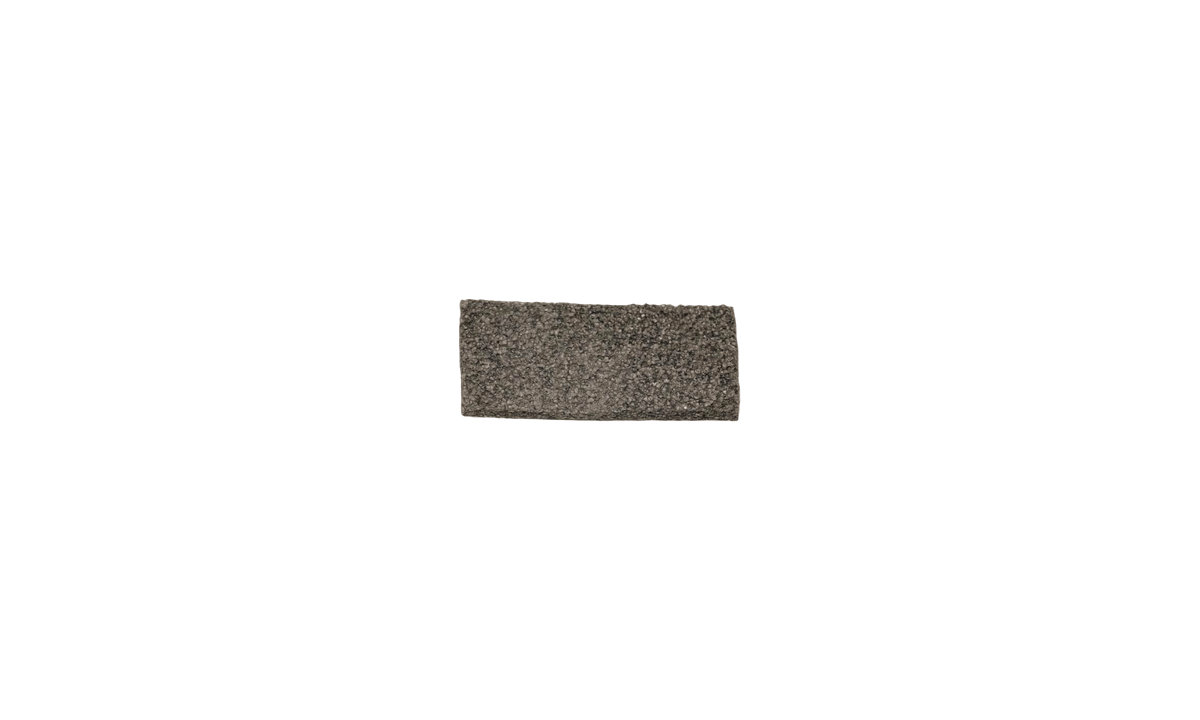

35#11611813450
SPONGE , 30X70
Qty Used: 2Regular price $2.29 USDRegular priceUnit price per
-
36#36753302201GB
HOLDER COMP , TANK/RESERVE
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-

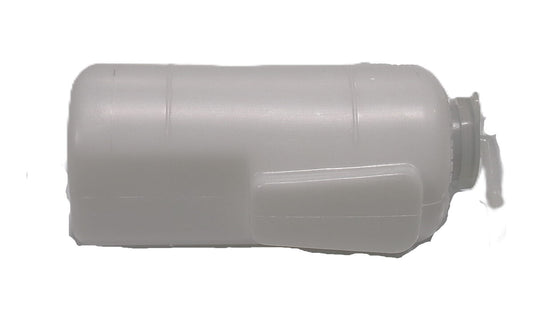

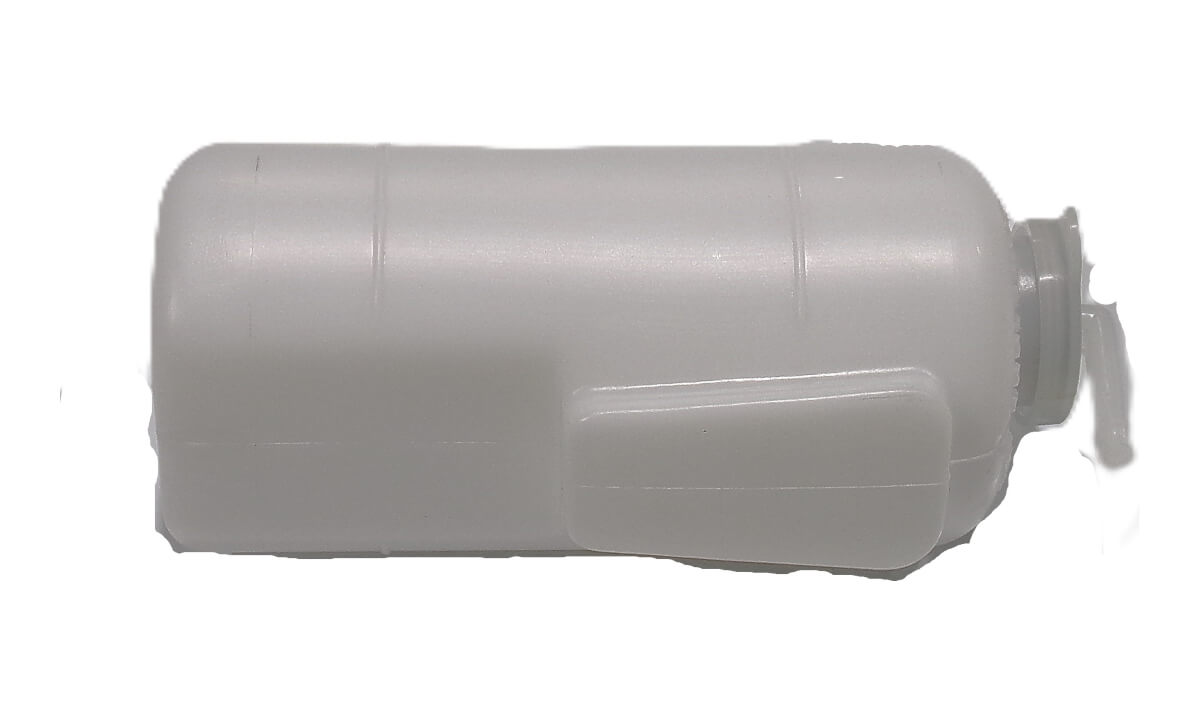

38#16003302101
TANK ASSY , RESERVE
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
39#36423600080
CLIP , HOSE D=12.5
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-

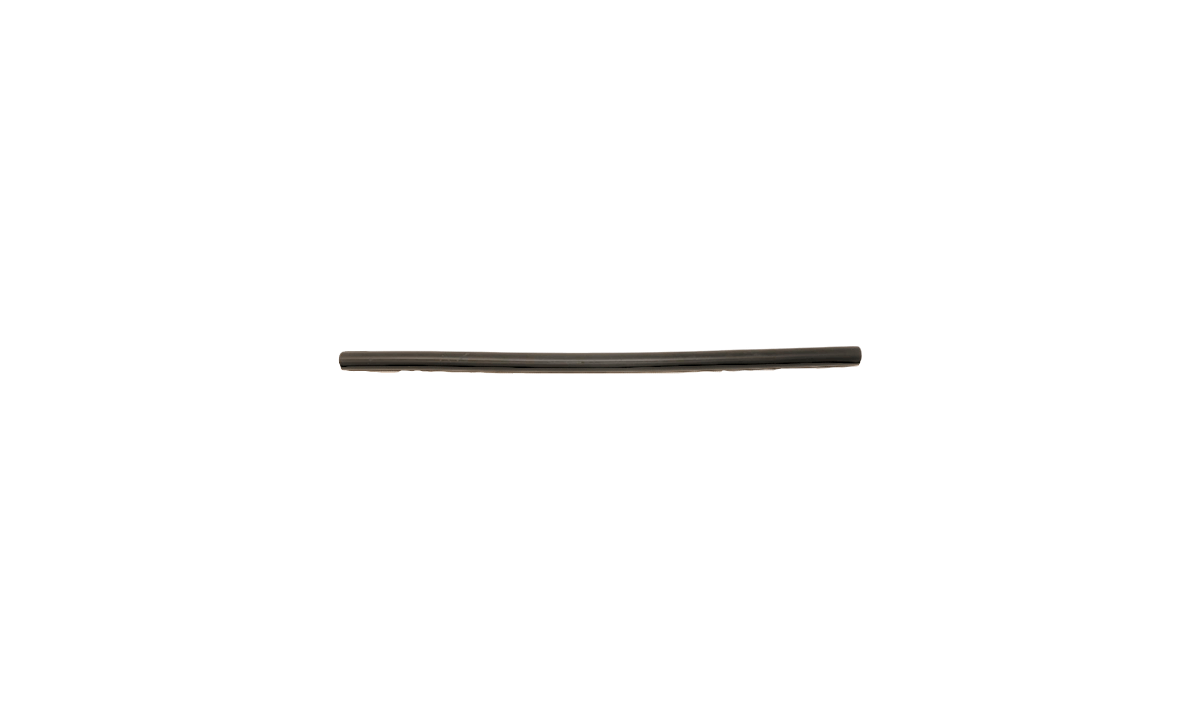

40#13831510400
HOSE , RESERVOIR TANK
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
