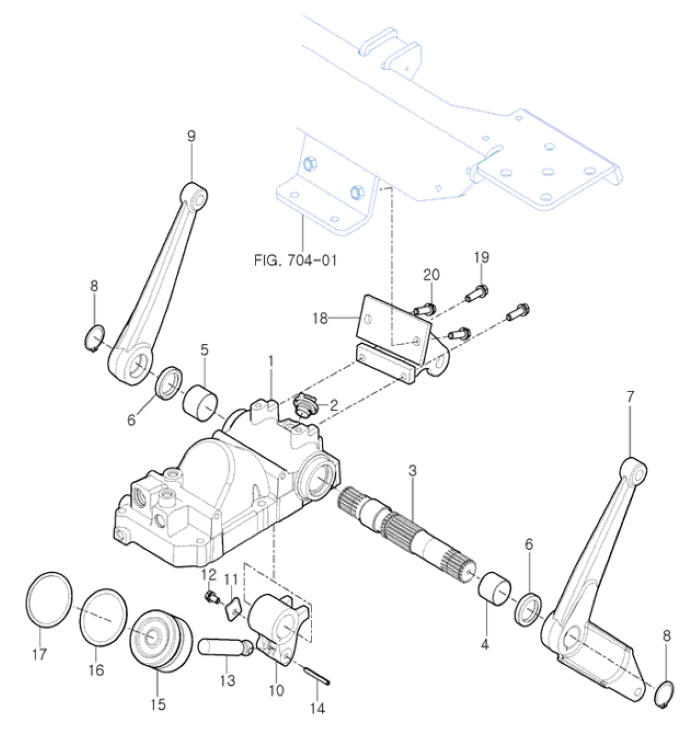

Lift Arm
Parts Index
- 1 CASE , CYLINDER (Qty 1)
- 2 CAP ASSY , OIL (Qty 1)

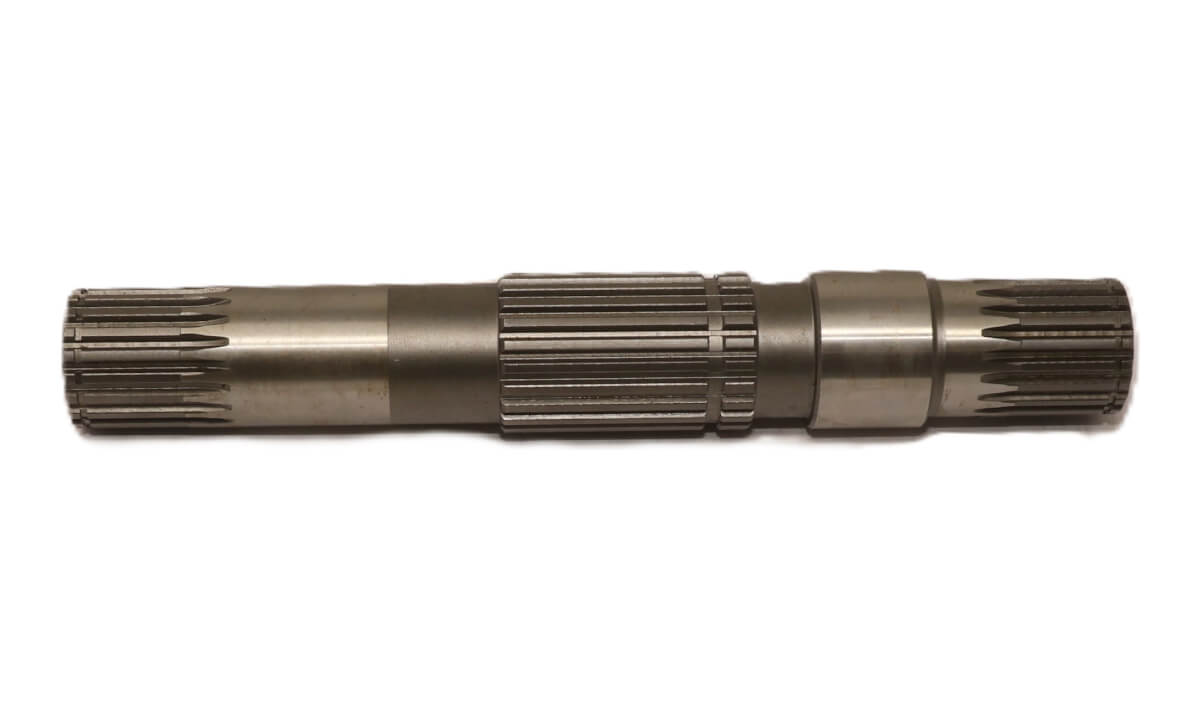

- 3 BAR (Qty 1)
- 4 BUSH (40X43X30) (Qty 1)
- 5 BUSH (35X39X30) (Qty 1)
- 6 SEAL, OIL (D) (Qty 2)
- 7 LIFT ARM(LH) (Qty 1)
- 8 CIR CLIP,EXTERNAL (Qty 2)
- 9 LIFT ARM(RH) (Qty 1)
- 10 CRANK , LIFT (Qty 1)

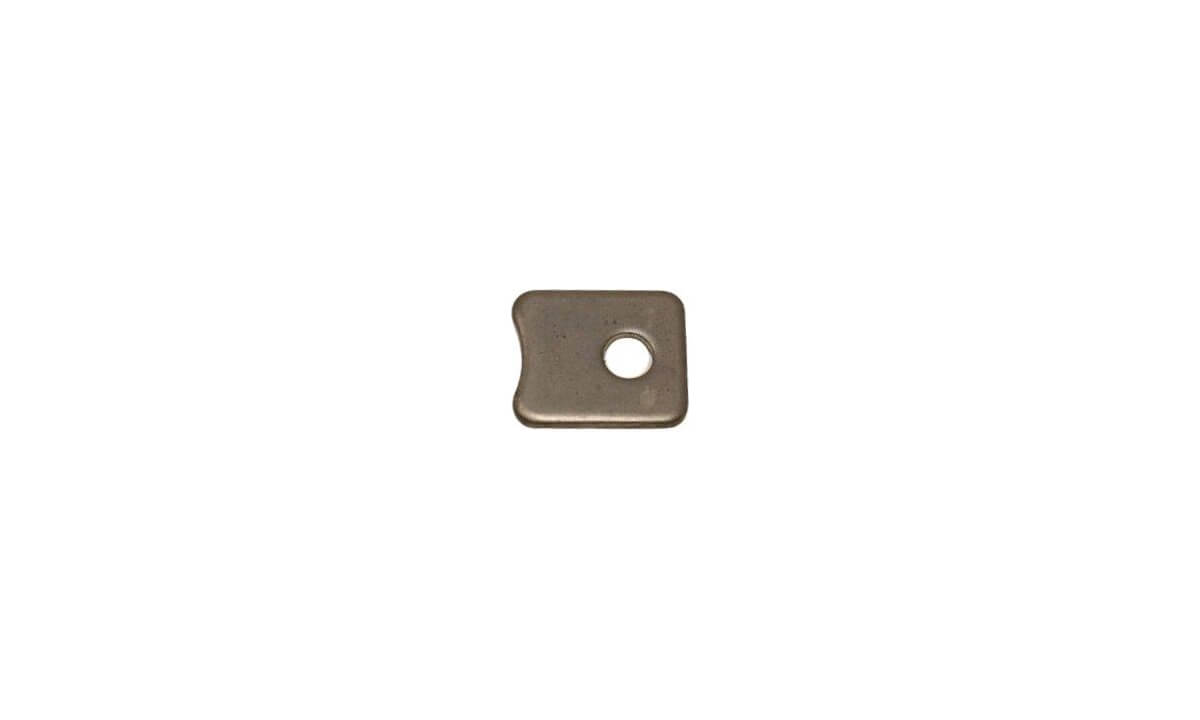

- 11 PLATE (Qty 1)

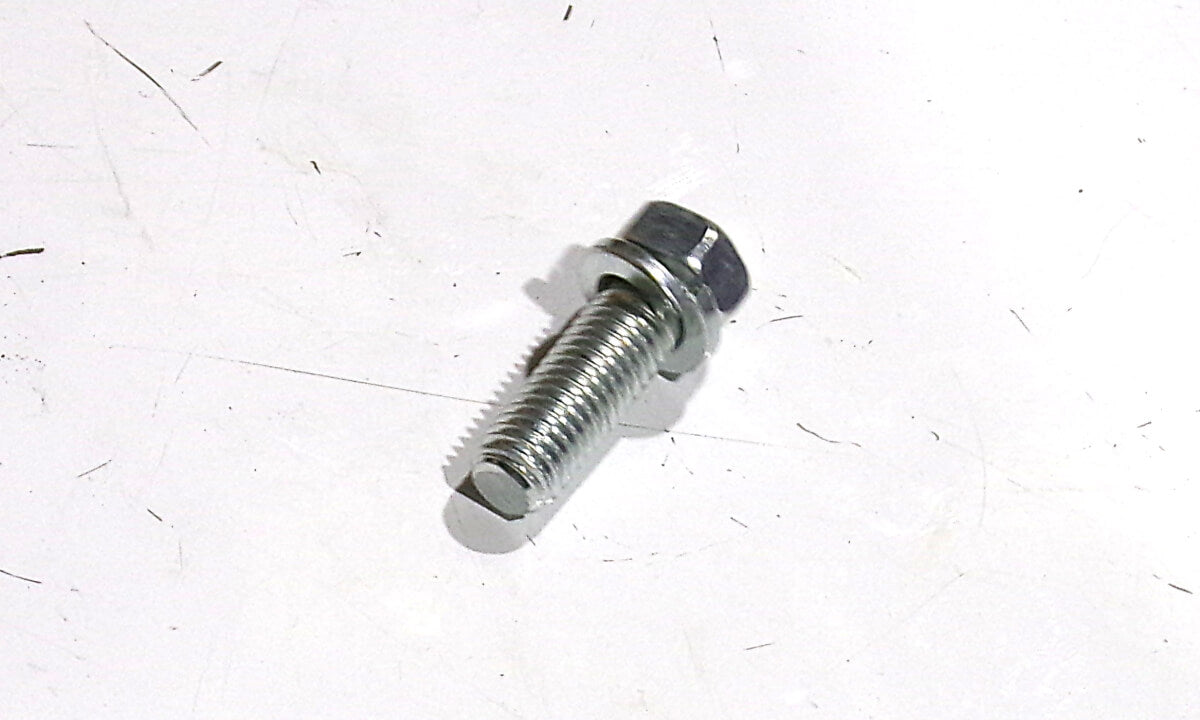

- 12 BOLT(S) (Qty 1)
- 13 ROD , PISTON (Qty 1)
- 14 PIN, SPRING (Qty 1)

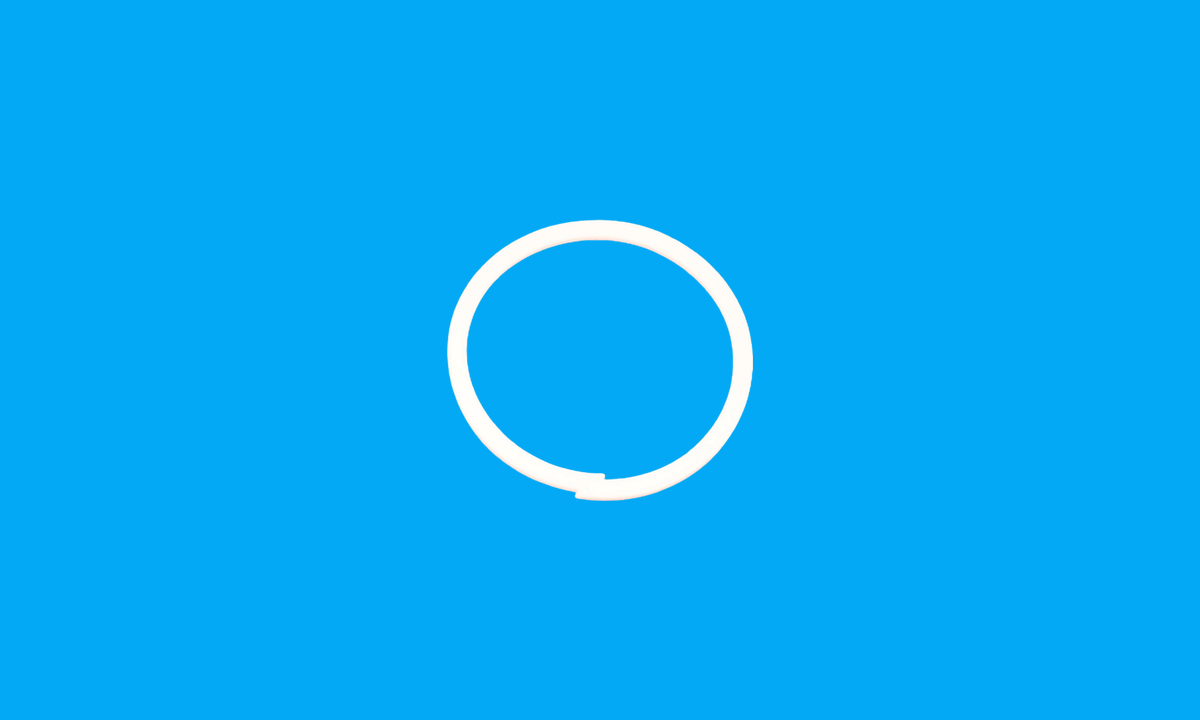

- 16 RING (Qty 1)
- 17 O RING(P) (Qty 1)
- 18 BRACKET COMP , TOP LINK (Qty 1)
- 19 BOLT(S) (Qty 2)
- 20 BOLT(S) (Qty 2)
-
10#11105020020M
CRANK , LIFT
Qty Used: 1Regular price $230.99 USDRegular priceUnit price per
-
-
-

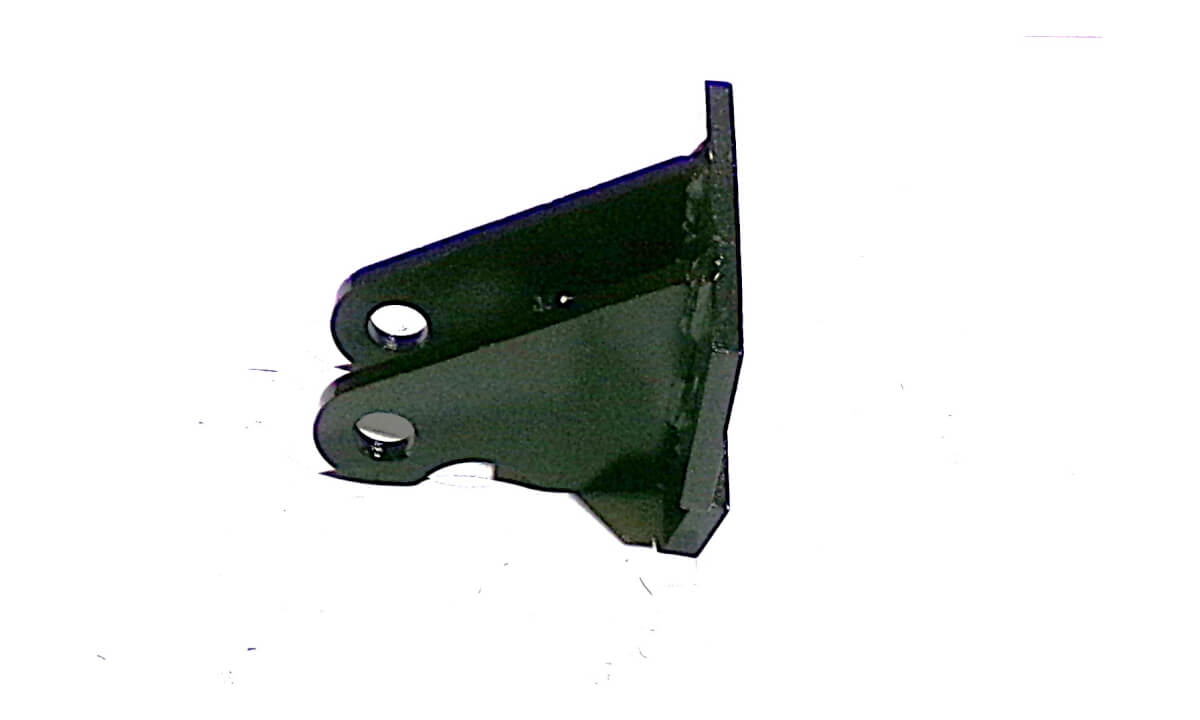

18#11655208100GB
BRACKET COMP , TOP LINK
Qty Used: 1Regular price $120.99 USDRegular priceUnit price per
-
-
-
14#V5801406050
PIN, SPRING
Qty Used: 1Regular price $2.59 USDRegular priceUnit price per
-
13#11105030061
ROD , PISTON
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
-
1#11615010011M
CASE , CYLINDER
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
9#11615020040M
LIFT ARM(RH)
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
8#V7041400350
CIR CLIP,EXTERNAL
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
7#11615020030M
LIFT ARM(LH)
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-

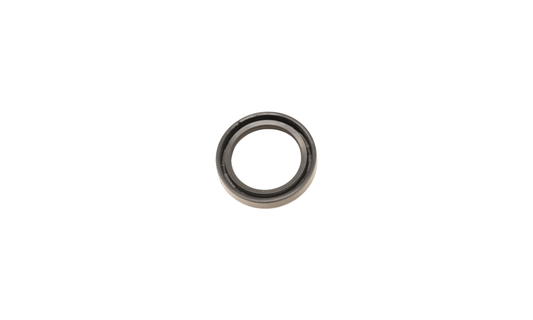

6#V7441354808
SEAL, OIL (D)
Qty Used: 2Regular price $9.09 USDRegular priceUnit price per
-
5#11615010030
BUSH (35X39X30)
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
4#11615010040
BUSH (40X43X30)
Qty Used: 1Regular price $85.99 USDRegular priceUnit price per
-
-
2#11615012100
CAP ASSY , OIL
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
