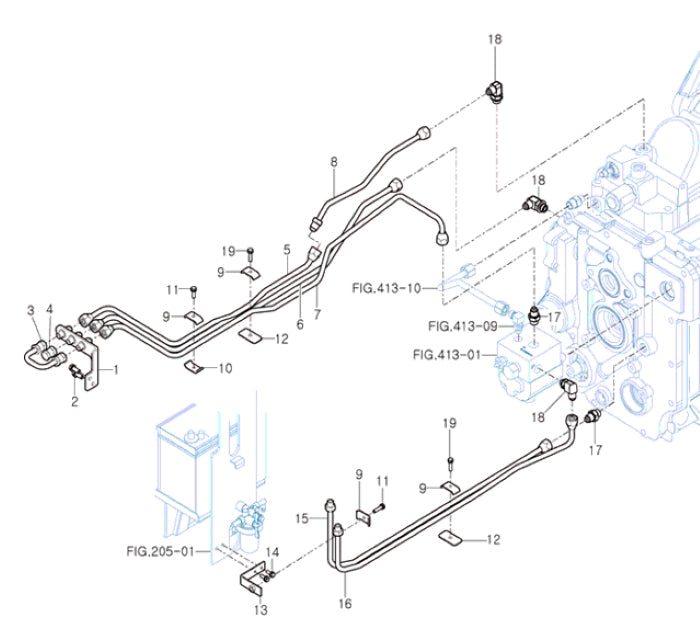

Hydraulic Sub-Assembly
Parts Index
- 1 BRACKET COMP , LOADER (Qty 1)
- 2 BOLT(S) (Qty 2)
- 3 PIPE COMP (Qty 1)
- 4 CAP , PF1/4 (Qty 1)
- 5 PIPE COMP , LOADER C/RR (Qty 1)
- 6 PIPE COMP , LOADER T (Qty 1)
- 7 PIPE COMP , LOADER P (Qty 1)
- 8 PIPE COMP , LOADER C/FR (Qty 1)
- 9 CLIP (Qty 4)
- 10 CLIP (Qty 1)
- 11 BOLT , HEX /S (Qty 2)
- 12 RUBBER , VIBRATION (Qty 2)
- 13 BRACKET COMP , FIX (Qty 1)
- 14 BOLT , HEX /S (Qty 2)
- 15 PIPE COMP , STEERING T (Qty 1)
- 16 PIPE COMP , STEERING P (Qty 1)
- 17 UNION , M16 PF3/8 (Qty 2)
- 18 ELBOW , M16 PF3/8 (Qty 3)
- 19 BOLT(S) (Qty 2)
-
-
-

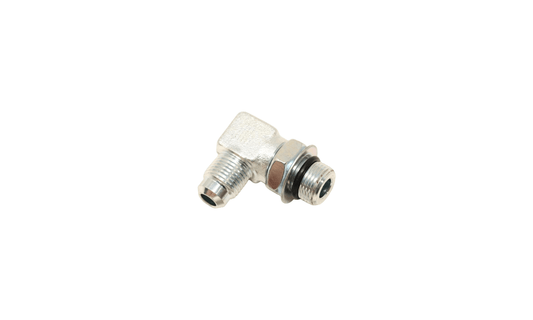

18#11615400010
ELBOW , M16 PF3/8
Qty Used: 3Regular price $32.99 USDRegular priceUnit price per
-

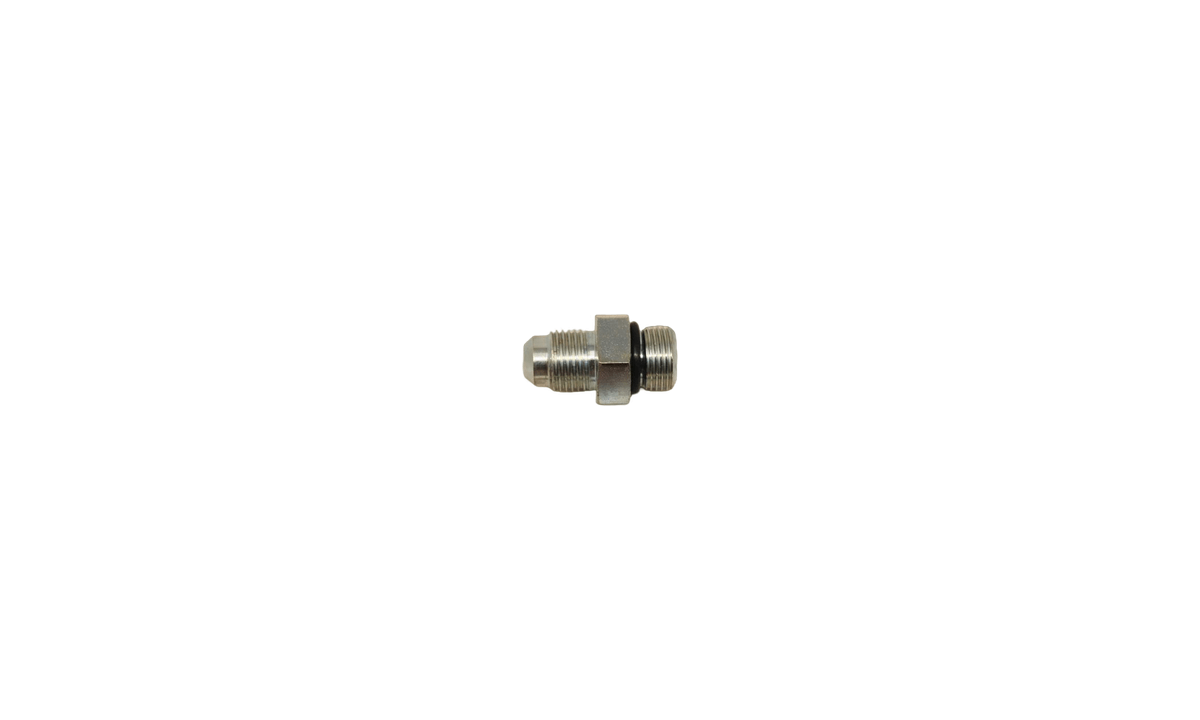

17#11615400020
UNION , M16 PF3/8
Qty Used: 2Regular price $32.99 USDRegular priceUnit price per
-

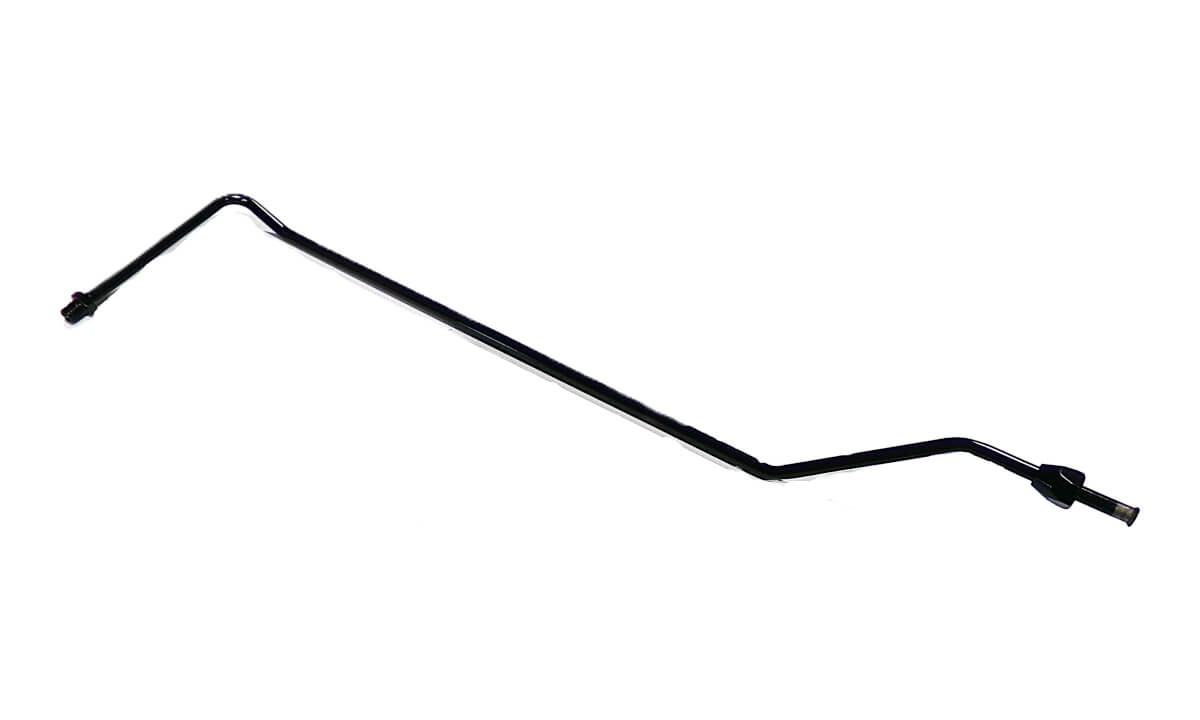

15#11614072200GB
PIPE COMP , STEERING T
Qty Used: 1Regular price $65.99 USDRegular priceUnit price per
-
14#V2113606016
BOLT , HEX /S
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
13#11615204100GB
BRACKET COMP , FIX
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
12#11615400070
RUBBER , VIBRATION
Qty Used: 2Regular price $2.29 USDRegular priceUnit price per
-
11#V2113606020
BOLT , HEX /S
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
1#11616252200GB
BRACKET COMP , LOADER
Qty Used: 1Regular price $84.99 USDRegular priceUnit price per
-
-
8#11615162200GB
PIPE COMP , LOADER C/FR
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-

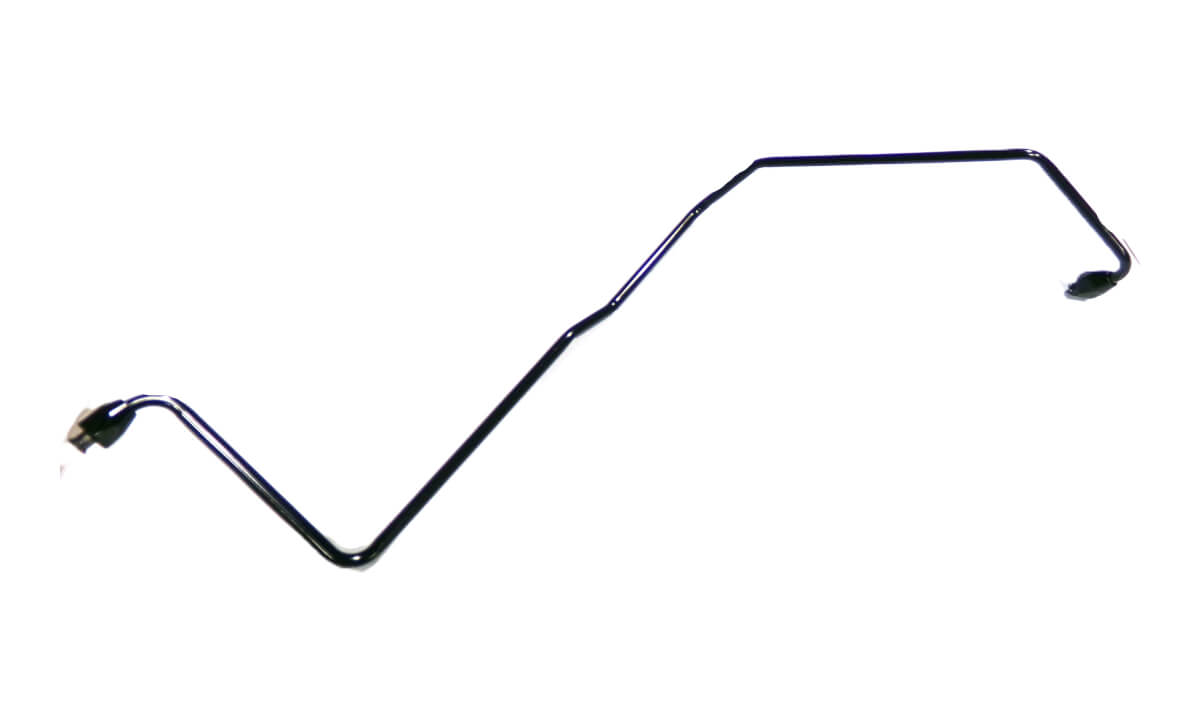

7#11615162100GB
PIPE COMP , LOADER P
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-

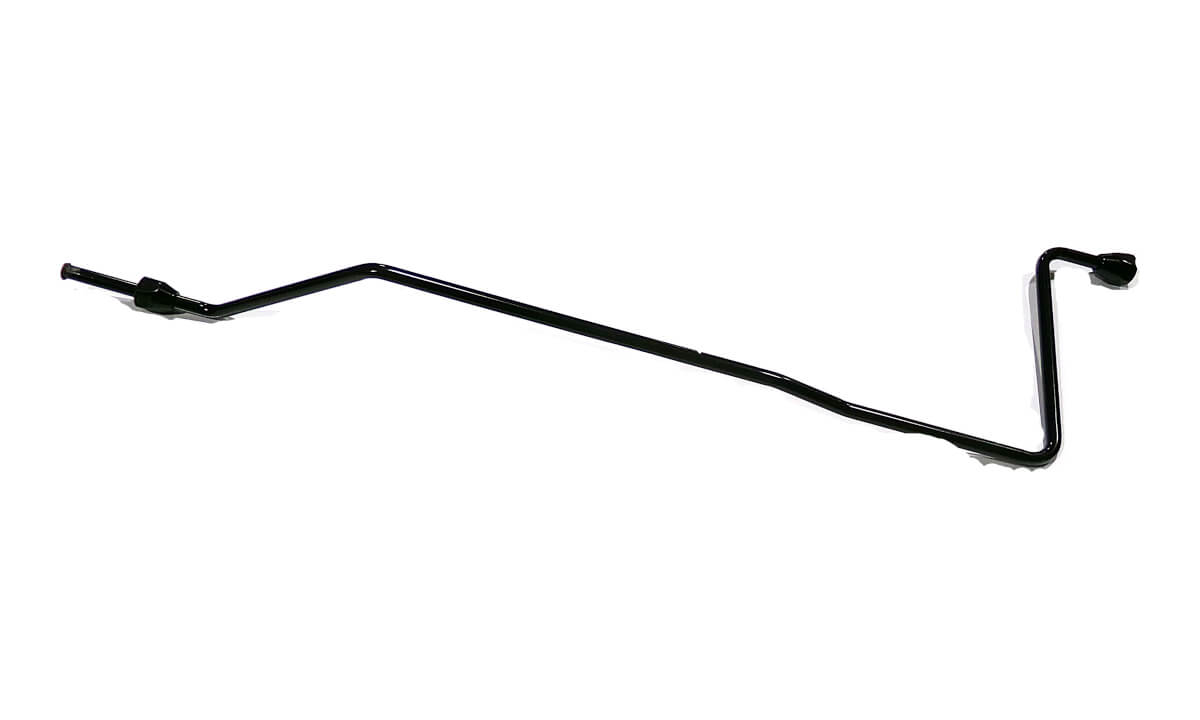

6#11615162300GB
PIPE COMP , LOADER T
Qty Used: 1Regular price $90.99 USDRegular priceUnit price per
-

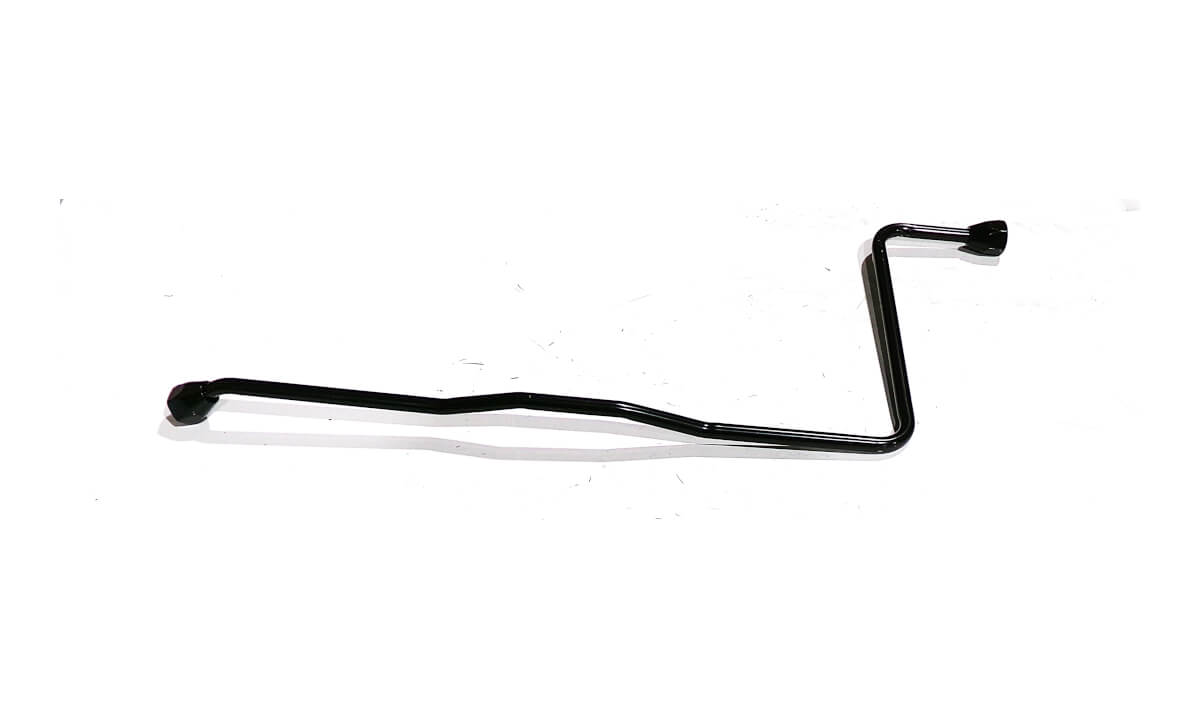

5#11615162600GB
PIPE COMP , LOADER C/RR
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-

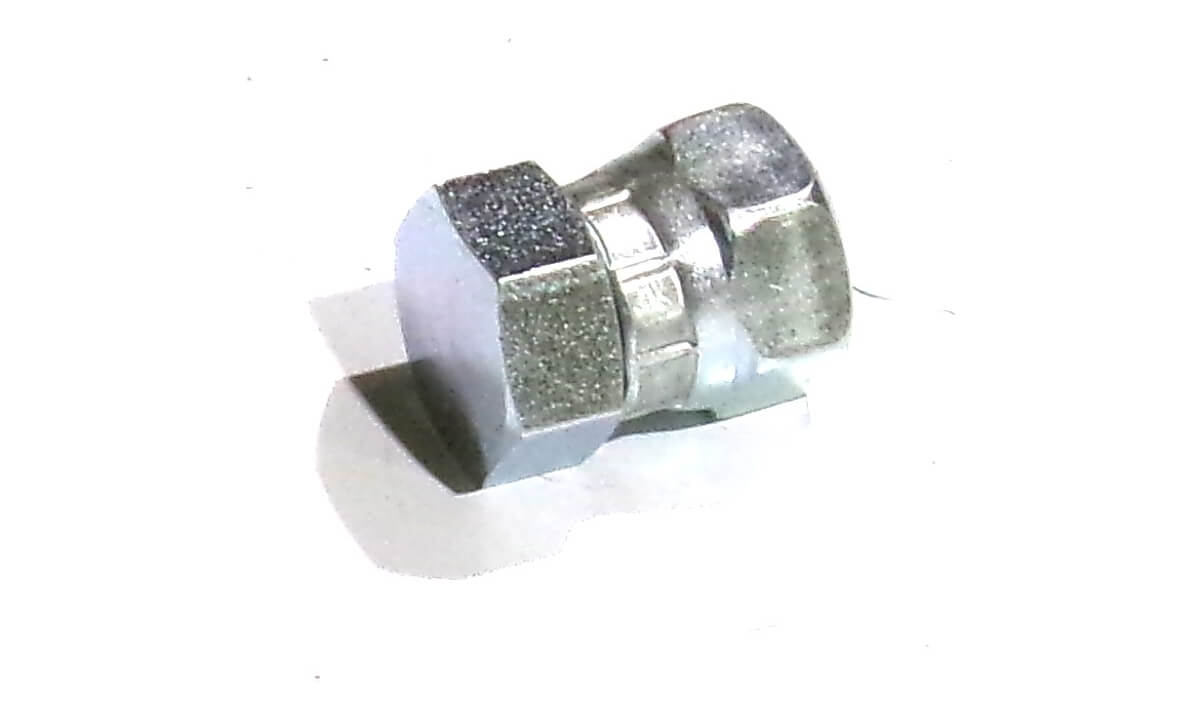

4#11616250010
CAP , PF1/4
Qty Used: 1Regular price $10.29 USDRegular priceUnit price per
-
-
