Heater Sub

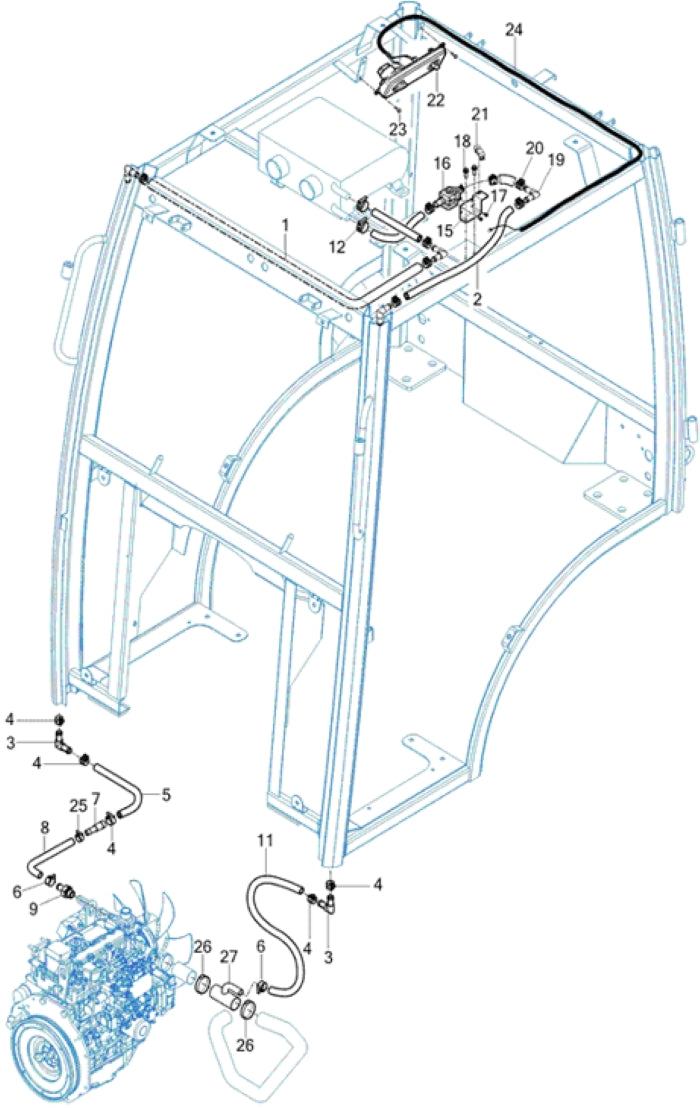

Parts Index
- 1 HEATER HOSE, THERMOSTAT (Qty 1)
- 2 HOSE , HEATER(1905H) (Qty 1)
- 3 ELBOW , 90 (Qty 2)
- 4 CLAMP,HOSE/19.3 (Qty 4)
- 5 HOSE , ENGINE/OUT (Qty 1)
- 6 BAND CLAMP 25 (Qty 2)
- 7 CONNECTOR , HEATER HOSE (Qty 1)
- 8 HOSE , 320 (Qty 1)
- 9 NIPPLE , M16 (Qty 1)
- 11 HOSE , ENGINE/IN (Qty 1)
- 15 BRACKET, WATER VALVE (Qty 1)
- 16 VALVE ASSY , WATER (Qty 1)
- 17 SCREW , TAPPING C/R PAN (Qty 2)
- 18 BOLT(SP) (Qty 2)
- 19 ELBOW , 90 (Qty 4)
- 20 CLAMP,HOSE/19.3 (Qty 4)
- 21 CLIP , CABLE (Qty 1)
- 22 CONTROLLER ASSY, HEATER (Qty 1)
- 24 CABLE ASSY, WATER VALVE (Qty 1)
- 25 CLAMP,HOSE/148 (Qty 1)
- 26 CLAMP 40 (Qty 2)
- 27 PIPE COMP (Qty 1)
-

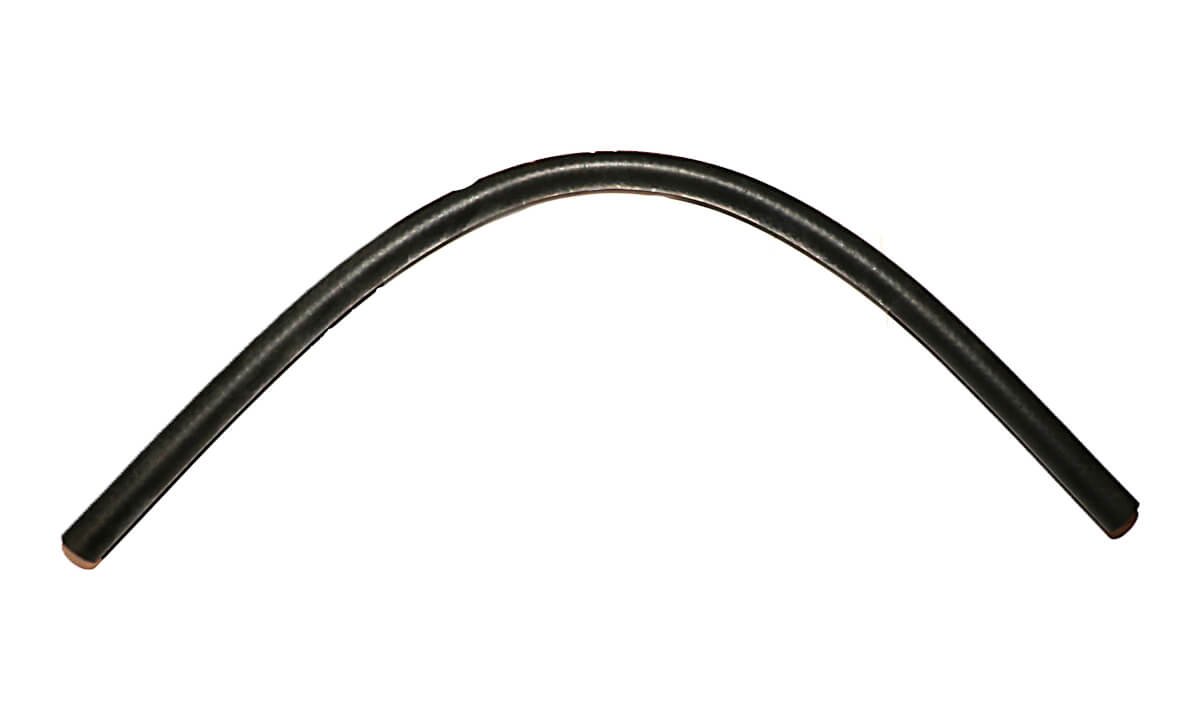

11#11657081120
HOSE , ENGINE/IN
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
-
-
25#14527081170
CLAMP,HOSE/148
Qty Used: 1Regular price $0.39 USDRegular priceUnit price per
-
22#11107082220
CONTROLLER ASSY, HEATER
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
21#17687025300
CLIP , CABLE
Qty Used: 1Regular price $2.19 USDRegular priceUnit price per
-
-
17#V1902604008
SCREW , TAPPING C/R PAN
Qty Used: 2Regular price $0.29 USDRegular priceUnit price per
-
16#17688202100
VALVE ASSY , WATER
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
15#14527082311
BRACKET, WATER VALVE
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
1#11107081120
HEATER HOSE, THERMOSTAT
Qty Used: 1Regular price $94.99 USDRegular priceUnit price per
-
9#11291060100
NIPPLE , M16
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
8#11291122300
HOSE , 320
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
7#11291060200
CONNECTOR , HEATER HOSE
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
6#37681850160A
BAND CLAMP 25
Qty Used: 2Regular price $2.59 USDRegular priceUnit price per
-
5#11297081130
HOSE , ENGINE/OUT
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
420#14527081160
CLAMP,HOSE/19.3
Qty Used: 4Regular price $0.59 USDRegular priceUnit price per
-
319#17688200050
ELBOW , 90
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
2#11107081130
HOSE , HEATER(1905H)
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
