Front Glass

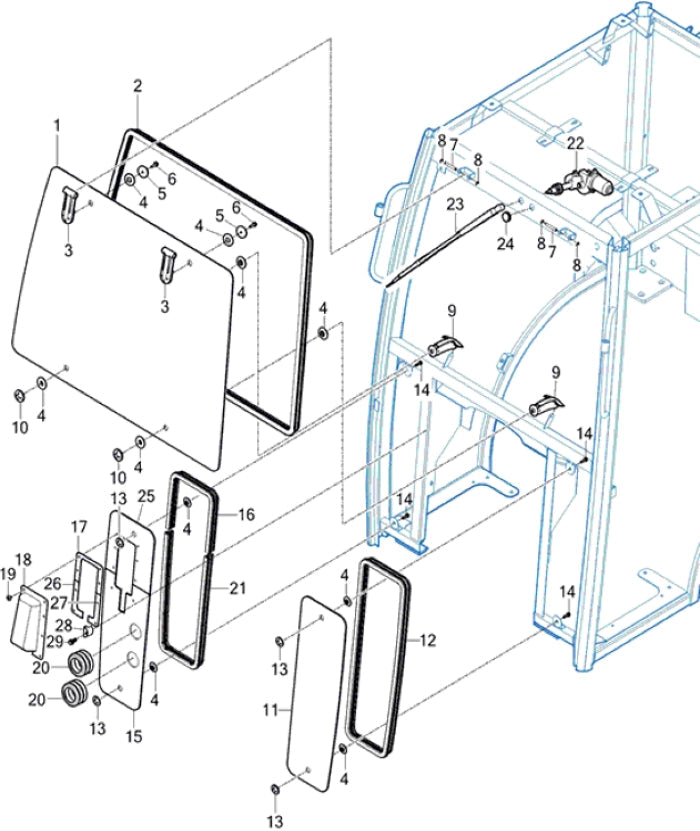

Parts Index
- 1 GLASS , FR/UPR (Qty 1)
- 2 INSULATOR, GLASS/UPR (Qty 1)
- 3 HINGE , REAR GLASS/M6 (Qty 2)
- 4 GROMMET , 13X17X02 (Qty 10)
- 6 BOLT , HEX/SPL (Qty 2)
- 7 PIN , RR / HINGE (Qty 2)
- 8 HEX BOLT WITH WASHER (Qty 4)
- 9 LOCK UNIT , WINDOW/SIDE (Qty 2)
- 10 BOLT COMP,GLASS (Qty 2)
- 11 GLASS , FR/LOW (Qty 1)
- 12 INSULATOR, PC/LOW (Qty 1)
- 13 NUT COMP , GLASS (Qty 4)
- 14 BOLT , HEX/SPL (Qty 4)
- 15 PC, FRONT/LOWER (Qty 1)
- 16 INSULATOR, PC/UP (Qty 1)
- 17 PLATE , COVER/A (Qty 1)
- 18 RUBBER COVER (Qty 1)
- 20 BOOT , A (Qty 2)
- 21 INSULATOR, PC/LOW (Qty 1)
- 22 MOTOR ASSY, FR/ WIPER (Qty 1)
- 23 WIPER ARM&BLADE ASSY (Qty 1)
- 24 CAP(20) (Qty 1)
- 25 PC , FRONT/UPPER (Qty 1)
- 27 PLATE , COVER/C (Qty 1)
- 28 BRACKET , FIXED GLASS (Qty 1)
- 29 SCREW , C/R FLAT (Qty 1)
-
15#11297034121
PC, FRONT/LOWER
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
29#V1122605035
SCREW , C/R FLAT
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
28#16997010061
BRACKET , FIXED GLASS
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
27#11297035181GB
PLATE , COVER/C
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
25#11297034111
PC , FRONT/UPPER
Qty Used: 1Regular price $209.99 USDRegular priceUnit price per
-
-
23#14527023200

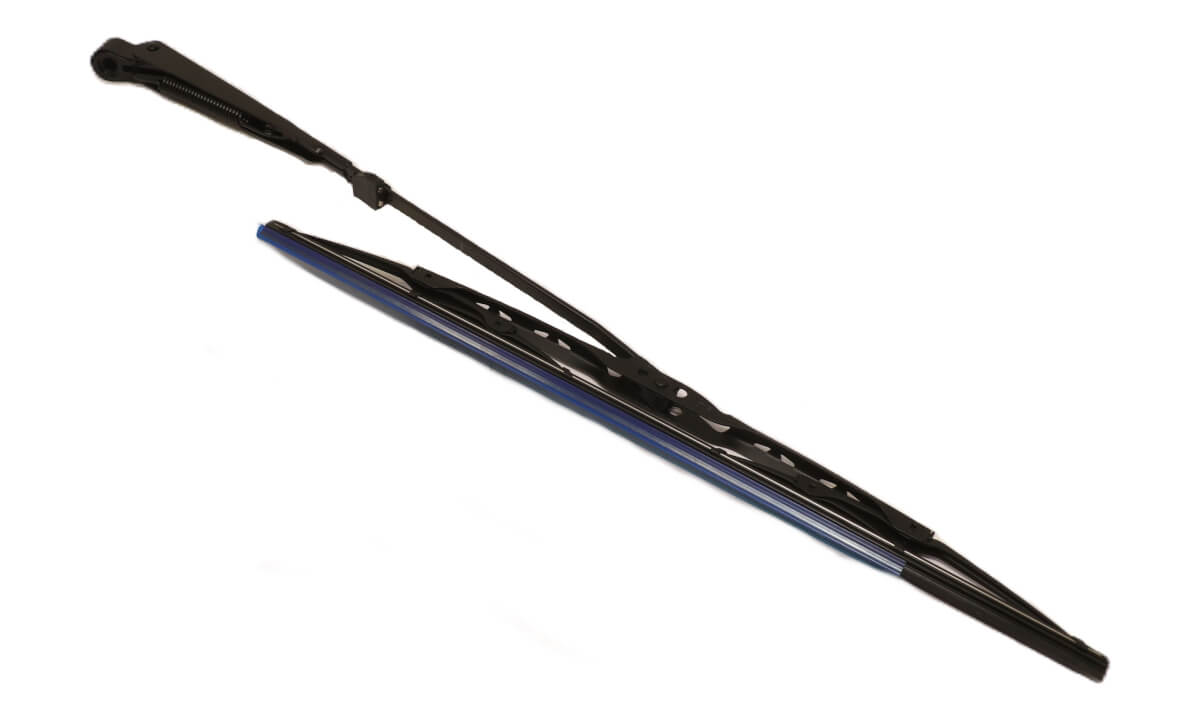

WIPER ARM&BLADE ASSY
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
22#14527062600
MOTOR ASSY, FR/ WIPER
Qty Used: 1Regular price $449.99 USDRegular priceUnit price per
-
-
18#11297035171
RUBBER COVER
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
17#11297035150GB
PLATE , COVER/A
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
16#11297033220
INSULATOR, PC/UP
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
1#11297033110
GLASS , FR/UPR
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
13#14527042500
NUT COMP , GLASS
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
1221#11297033210
INSULATOR, PC/LOW
Qty Used: 1Regular price $90.99 USDRegular priceUnit price per
-
11#11297033130
GLASS , FR/LOW
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
10#14527032200
BOLT COMP,GLASS
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
9#14527032402
LOCK UNIT , WINDOW/SIDE
Qty Used: 2Regular price $62.99 USDRegular priceUnit price per
-
8#V7082400070
HEX BOLT WITH WASHER
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
7#14527040060
PIN , RR / HINGE
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
614#V2193606012
BOLT , HEX/SPL
Qty Used: 4Regular price $0.59 USDRegular priceUnit price per
-
4#15817401130
GROMMET , 13X17X02
Qty Used: 10Regular price $1.29 USDRegular priceUnit price per
-
3#14527042301
HINGE , REAR GLASS/M6
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
2#11297033180
INSULATOR, GLASS/UPR
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
