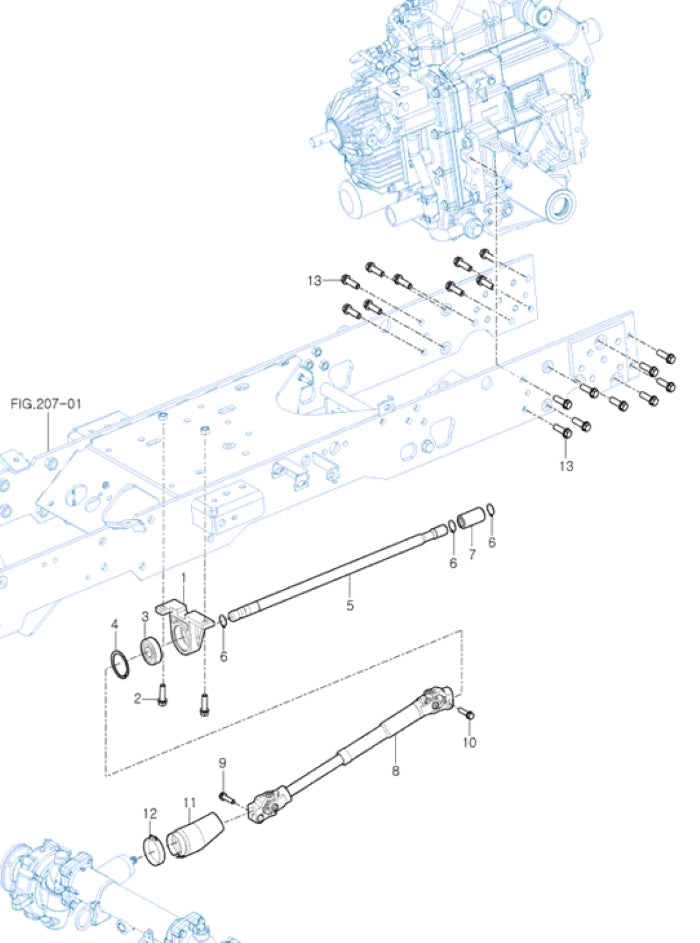

Front Drive Shaft
Parts Index
- 1 SUPPORT , 4WD ASSY (Qty 1)

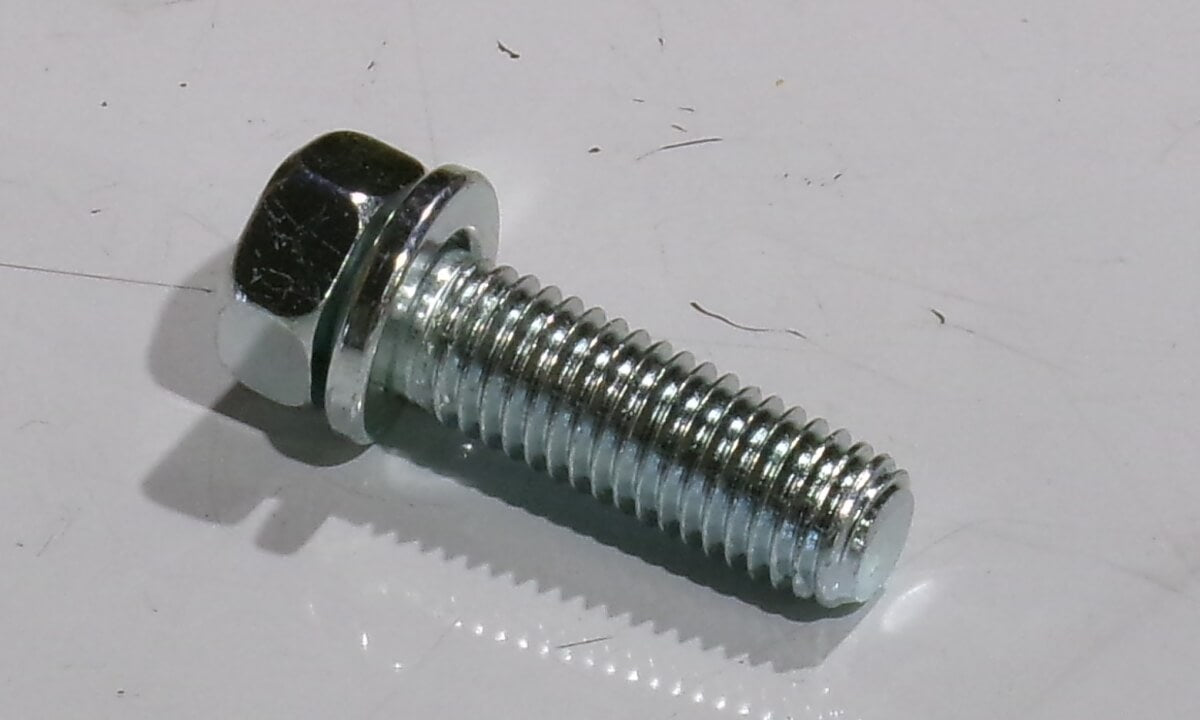

- 2 BOLT(S) (Qty 2)
- 3 BEARING , BALL (Qty 1)
- 4 C-RING , HOLE (Qty 1)
- 5 SHAFT , PROPELLER (Qty 1)
- 6 CIR CLIP,EXTERNAL (Qty 3)
- 7 COUPLING (Qty 1)
- 8 4WD UNIVERSAL JOINT SHAFT ASSY (Qty 1)
- 9 BOLT(S) (Qty 1)
- 10 BOLT(S) (Qty 1)
- 11 COVER, 4WD (Qty 1)
- 12 CLAMP 75 (Qty 1)
- 13 BOLT(S) (Qty 18)
-
1#11614103100
SUPPORT , 4WD ASSY
Qty Used: 1Regular price $104.99 USDRegular priceUnit price per
-
-
3#V6001506304
BEARING , BALL
Qty Used: 1Regular price $20.99 USDRegular priceUnit price per
-
4#V7051400520
C-RING , HOLE
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-

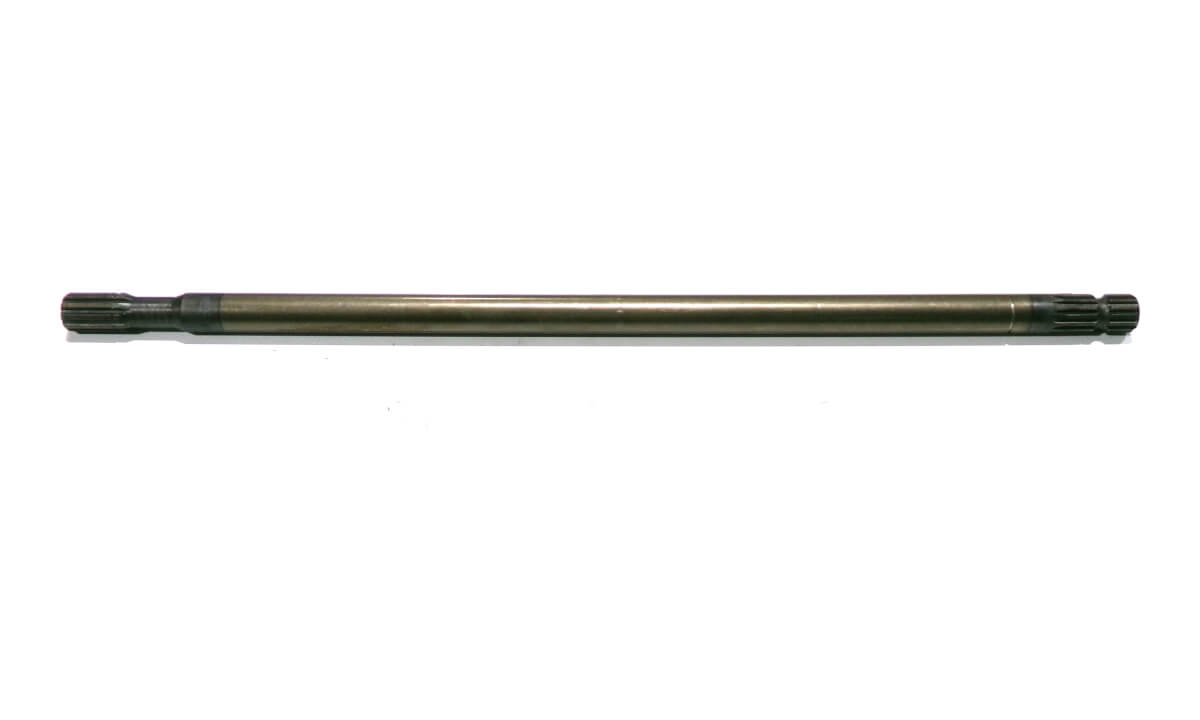

5#11614100010
SHAFT , PROPELLER
Qty Used: 1Regular price $100.99 USDRegular priceUnit price per
-
6#V7041400200
CIR CLIP,EXTERNAL
Qty Used: 3Regular price $2.09 USDRegular priceUnit price per
-
-

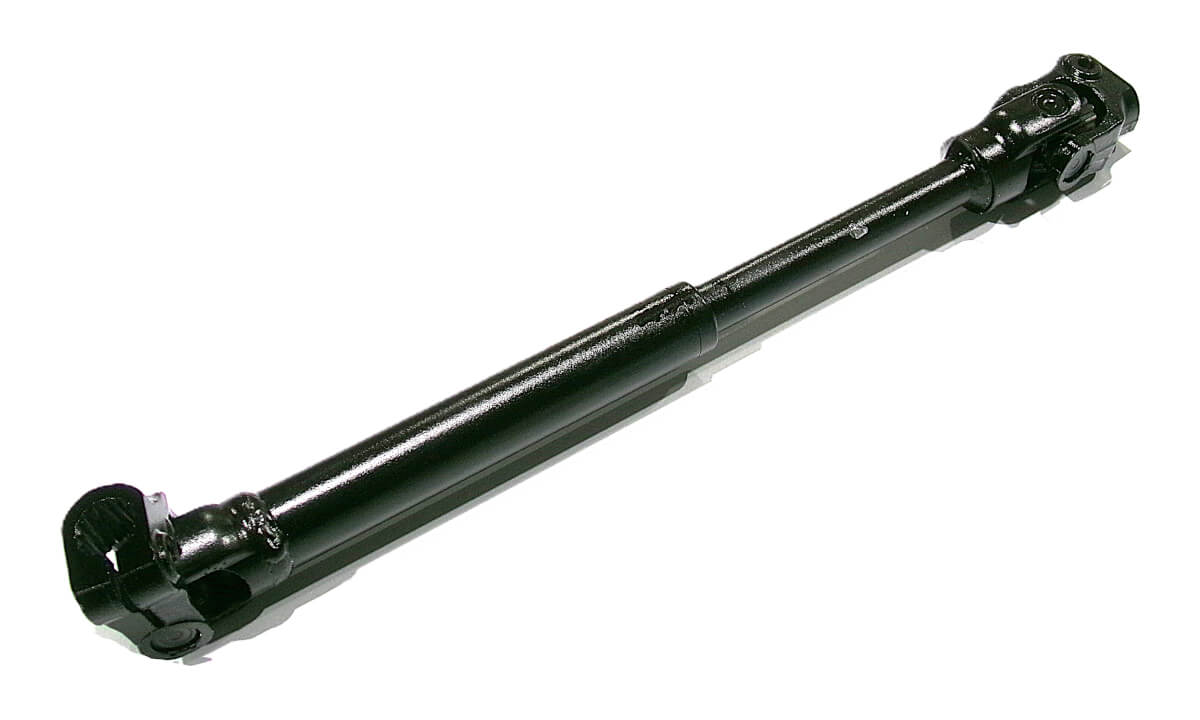

8#11614102000
4WD UNIVERSAL JOINT SHAFT ASSY
Qty Used: 1Regular price $252.99 USDRegular priceUnit price per
-
-
11#11614200010
COVER, 4WD
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
-
