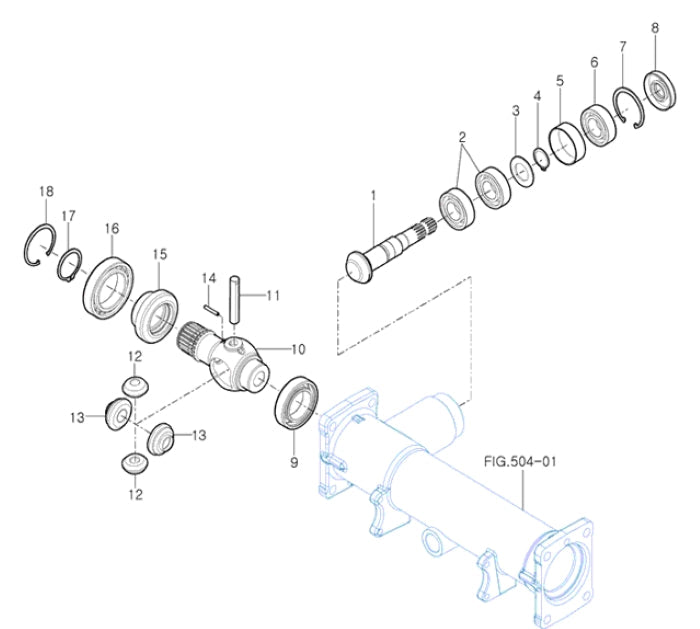

Front Differential Gear
Parts Index
- 1 PINION , BEVEL 9T (Qty 1)
- 2 BEARING, BALL (Qty 2)
- 3 WASHER , 25X42X2 (Qty 1)
- 4 C-Ring, Shaft (Qty 1)
- 5 COLLAR , 48X52X17 (Qty 1)
- 6 BEARING, BALL (Qty 1)
- 7 C-RING , HOLE (Qty 1)
- 8 SEAL , OIL (Qty 1)
- 9 BEARING , BALL (Qty 1)
- 10 CASE , FR DIFF (Qty 1)
- 11 SHAFT , DIFF PINION (Qty 1)

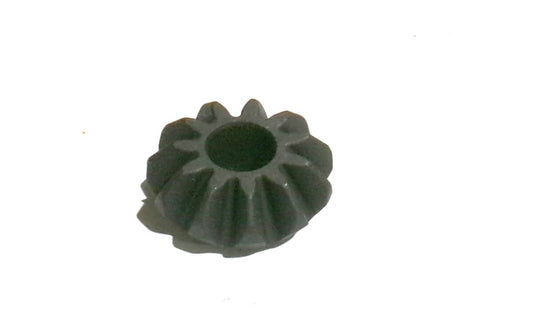

- 12 PINION , DIFF 11T (Qty 2)

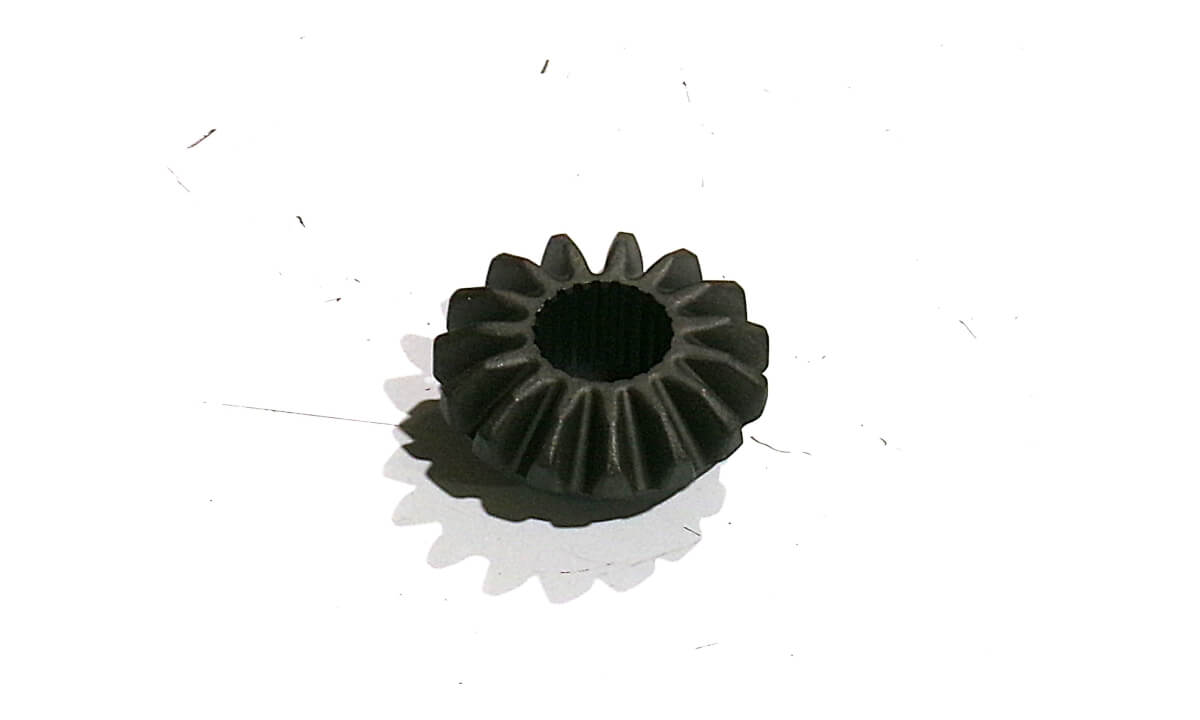

- 13 GEAR , DIFF (15) (Qty 2)
- 14 PIN , SPRING (Qty 1)
- 15 GEAR , BEVEL 18T (Qty 1)
- 17 CIR CLIP,EXTERNAL (Qty 1)
- 18 C-RING , HOLE (Qty 1)
-

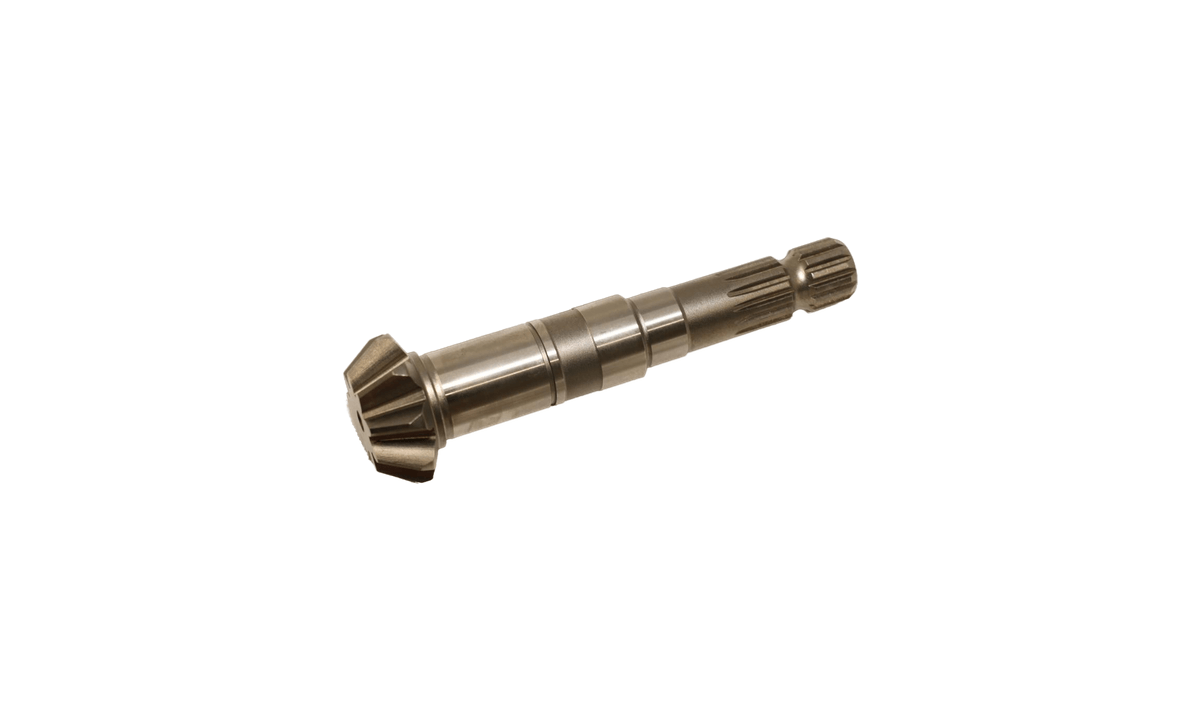

1#11614112110
PINION , BEVEL 9T
Qty Used: 1Regular price $142.99 USDRegular priceUnit price per
-
26#V6001106205
BEARING, BALL
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
3#11614112130
WASHER , 25X42X2
Qty Used: 1Regular price $6.09 USDRegular priceUnit price per
-
4#V7041400250
C-Ring, Shaft
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
5#11614112120
COLLAR , 48X52X17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
7#V7051400520
C-RING , HOLE
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
8#11614130180
SEAL , OIL
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
9#V6001106008
BEARING , BALL
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
-
10#11614112260M
CASE , FR DIFF
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
11#11614112270
SHAFT , DIFF PINION
Qty Used: 1Regular price $59.00 USDRegular priceUnit price per
-

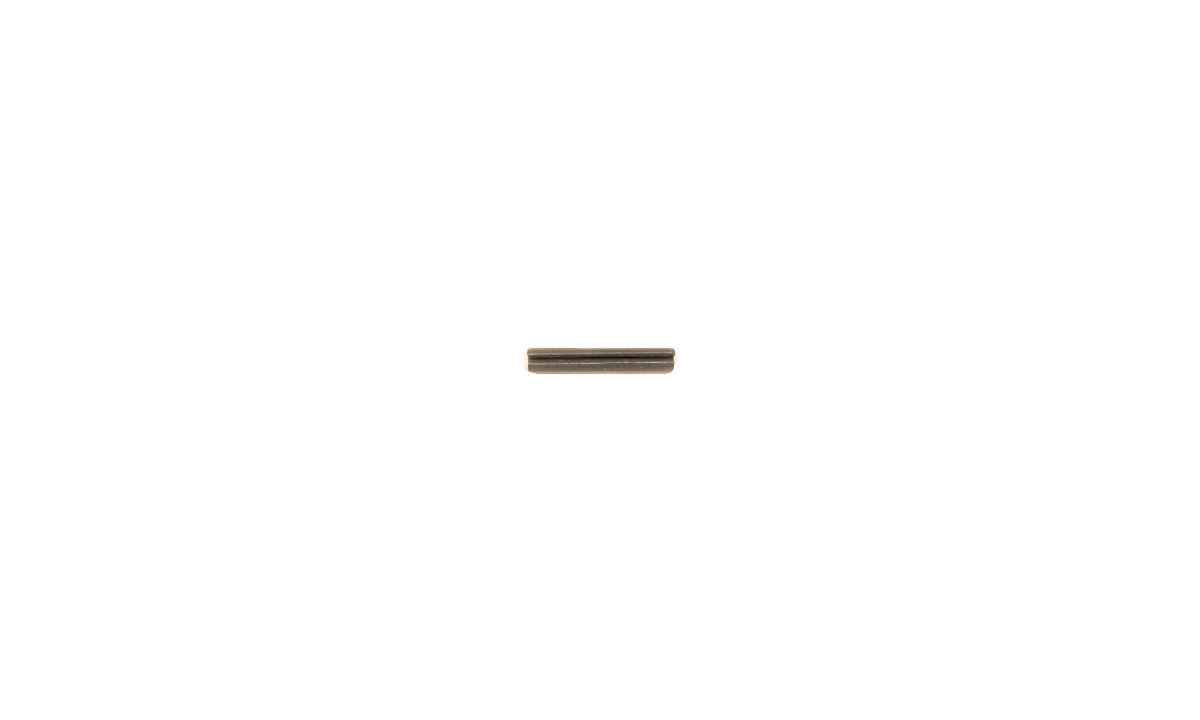

14#V5801404025
PIN , SPRING
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
15#11614112210
GEAR , BEVEL 18T
Qty Used: 1Regular price $186.99 USDRegular priceUnit price per
-
17#V7041400400
CIR CLIP,EXTERNAL
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
18#V7051400800
C-RING , HOLE
Qty Used: 1Regular price $7.69 USDRegular priceUnit price per
