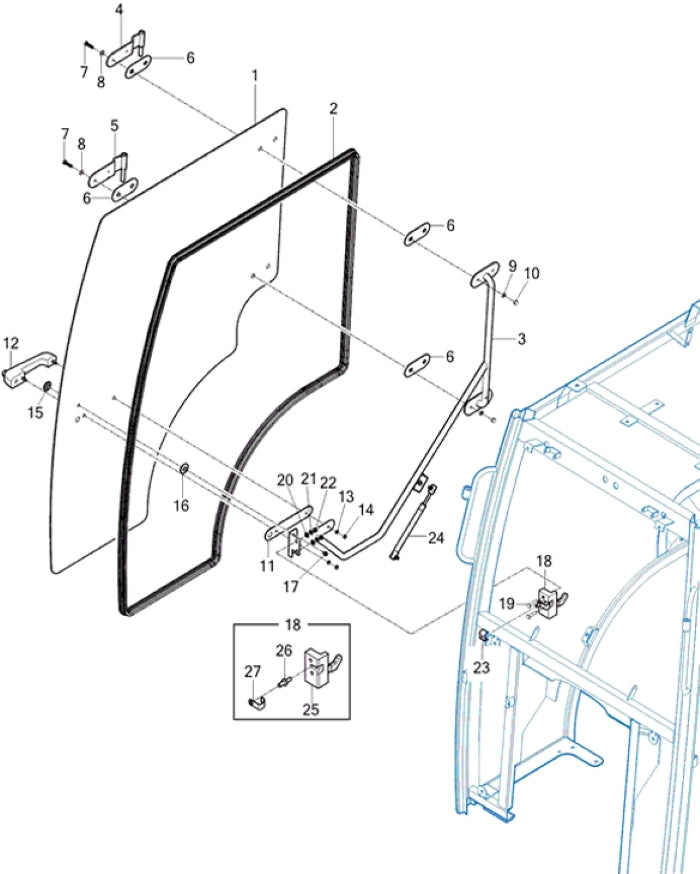

Door RH
Parts Index
- 1 GLASS , DOOR/RH (Qty 1)
- 2 INSULATOR , DOOR (Qty 1)
- 3 GUIDE COMP , RH/DOOR (Qty 1)
- 4 HINGE COMP , DOOR/RH/UP (Qty 1)
- 5 HINGE COMP , DOOR/RH/LOW (Qty 1)
- 6 GROMMET , DOOR (Qty 4)
- 7 SCREW , C/R FLAT (Qty 4)
- 8 COLLAR , 8.5X13X10.5 (Qty 4)
- 9 WASHER, SPRING (Qty 4)
- 10 NUT , SMALL CAP (Qty 4)
- 11 GASKET,DOOR GRIP (Qty 1)
- 12 GRIP ASSY, LOCK/HANDLE (Qty 1)
- 13 WASHER, SPRING (Qty 2)
- 15 NUT COMP , GLASS (Qty 1)
- 16 GROMMET , 13X17X02 (Qty 1)
- 17 BOLT , HEX/SPL (Qty 1)
- 18 LOCK SET , RH/DOOR (Qty 1)
- 20 WASHER, PLAIN (Qty 2)
- 21 WASHER, SPRING (Qty 2)
- 22 NUT , SMALL CAP (Qty 2)
- 24 DAMPER ASSY, RR (Qty 1)
- 25 LOCK ASSY, RH/DOOR (Qty 1)
- 26 Striker (Qty 1)
- 27 Guard (Qty 1)
-
12#14527052600
GRIP ASSY, LOCK/HANDLE
Qty Used: 1Regular price $110.99 USDRegular priceUnit price per
-
-
-

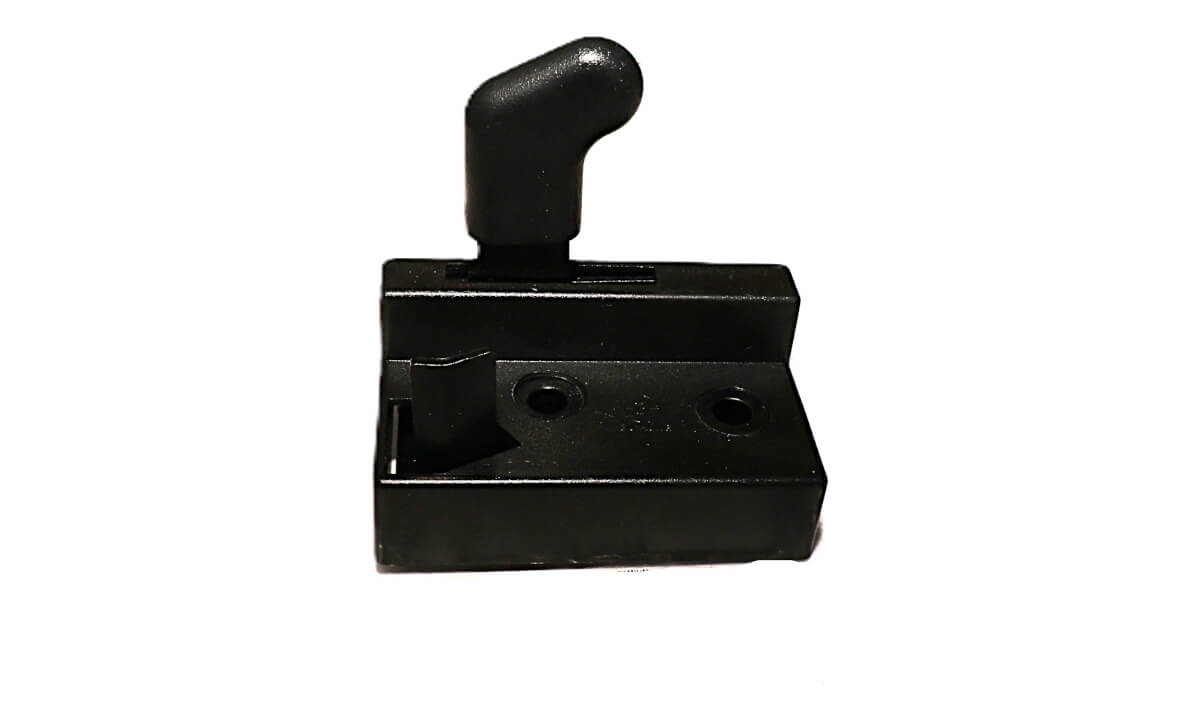

25#14527053710
LOCK ASSY, RH/DOOR
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
24#14527022200
DAMPER ASSY, RR
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
20#V4111600080
WASHER, PLAIN
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
18#14527053700
LOCK SET , RH/DOOR
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
17#V2193606012
BOLT , HEX/SPL
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
16#15817401130
GROMMET , 13X17X02
Qty Used: 1Regular price $1.29 USDRegular priceUnit price per
-
15#14527042500
NUT COMP , GLASS
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
13#V4011600060
WASHER, SPRING
Qty Used: 2Regular price $1.75 USDRegular priceUnit price per
-
1#11297039020
GLASS , DOOR/RH
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
11#14527052150
GASKET,DOOR GRIP
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
1022#V3412700080
NUT , SMALL CAP
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
921#V4011600080
WASHER, SPRING
Qty Used: 2Regular price $2.09 USDRegular priceUnit price per
-
8#16997010210
COLLAR , 8.5X13X10.5
Qty Used: 4Regular price $6.99 USDRegular priceUnit price per
-
7#V1122608030
SCREW , C/R FLAT
Qty Used: 4Regular price $4.99 USDRegular priceUnit price per
-
6#16997010180
GROMMET , DOOR
Qty Used: 4Regular price $15.49 USDRegular priceUnit price per
-
5#11297022800GB
HINGE COMP , DOOR/RH/LOW
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
4#11297022700GB
HINGE COMP , DOOR/RH/UP
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
3#11297039200GB
GUIDE COMP , RH/DOOR
Qty Used: 1Regular price $299.99 USDRegular priceUnit price per
-
2#11297039040
INSULATOR , DOOR
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
