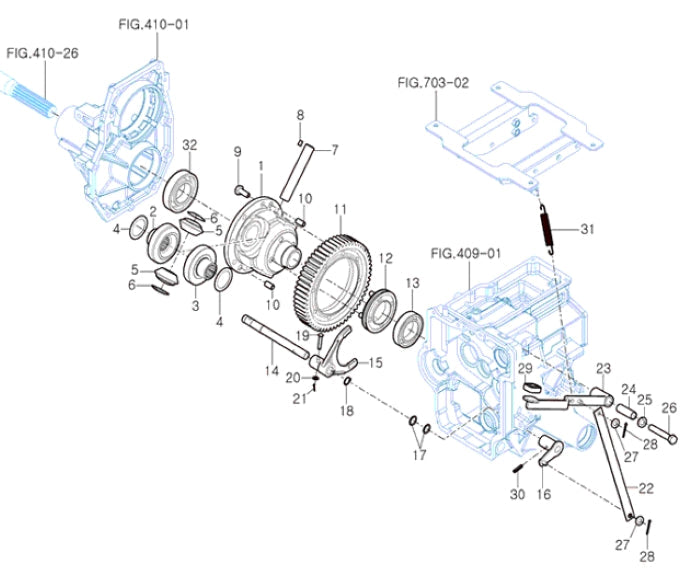

Differential Lock
Parts Index
- 1 CASE , DIFF (Qty 1)
- 2 GEAR , BEVEL 20T (Qty 1)
- 3 GEAR , BEVEL 20T (Qty 1)
- 4 THRUST WASHER , 38X52X01 (Qty 2)
- 5 PINION , DIFF 12T (Qty 2)
- 6 WASHER , DIFF PINION (Qty 2)
- 7 SHAFT , DIFF PINION (Qty 1)
- 8 KEY (Qty 1)
- 9 BOLT(S) (Qty 8)
- 10 PIN, STRAIGHT (A) (Qty 2)
- 12 SLEEVE COMP , DIFF LOCK (Qty 1)
- 13 BEARING , BALL (Qty 1)
- 14 SHAFT , DIFF LOCK (Qty 1)
- 15 FORK , DIFF LOCK (Qty 1)
- 16 ARM COMP , DIFF LOCK (Qty 1)
- 17 O RING(P) (Qty 2)
- 18 CIR CLIP,EXTERNAL (Qty 1)
- 19 PIN (6X32) (Qty 1)
- 20 WASHER, PLAIN (Qty 1)
- 21 PIN (Qty 1)
- 22 LINK , DIFF (Qty 1)
- 24 BUSH (Qty 1)
- 25 WASHER, SPRING (Qty 1)
- 26 BOLT , HEX (Qty 1)
- 27 WASHER, PLAIN (Qty 2)
- 28 PIN (Qty 2)
- 29 Brake Pad (Qty 1)
- 30 PIN , SPRING (Qty 1)
- 32 BEARING , BALL (Qty 1)
-
16#11613193200
ARM COMP , DIFF LOCK
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
32#V6001106210
BEARING , BALL
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-

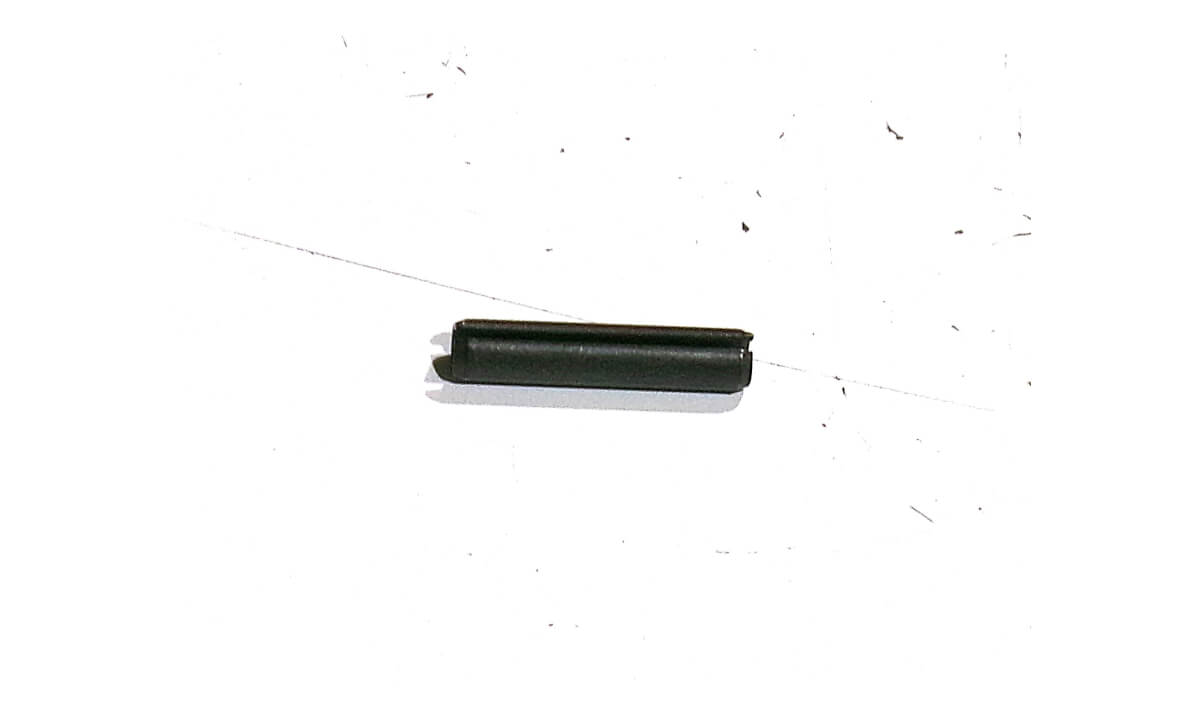

30#V5801405025
PIN , SPRING
Qty Used: 1Regular price $1.45 USDRegular priceUnit price per
-
-
-
27#V4111600080
WASHER, PLAIN
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
26#V2013612080
BOLT , HEX
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
25#V4011600120
WASHER, SPRING
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
-
22#11613190020
LINK , DIFF
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
-
20#V4111600060
WASHER, PLAIN
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
19#11613190040
PIN (6X32)
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
18#V7041400160
CIR CLIP,EXTERNAL
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
-
1#11613180010M
CASE , DIFF
Qty Used: 1Regular price $229.99 USDRegular priceUnit price per
-
15#11613190010M
FORK , DIFF LOCK
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
14#11613192100
SHAFT , DIFF LOCK
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
13#V6001106009
BEARING , BALL
Qty Used: 1Regular price $40.90 USDRegular priceUnit price per
-
12#11613192200
SLEEVE COMP , DIFF LOCK
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
10#V5201010022
PIN, STRAIGHT (A)
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
-
-
7#11613180070
SHAFT , DIFF PINION
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
6#11613180050
WASHER , DIFF PINION
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
5#11613180040
PINION , DIFF 12T
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4#11613180090
THRUST WASHER , 38X52X01
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
3#11613180080
GEAR , BEVEL 20T
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
2#11613180030
GEAR , BEVEL 20T
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
