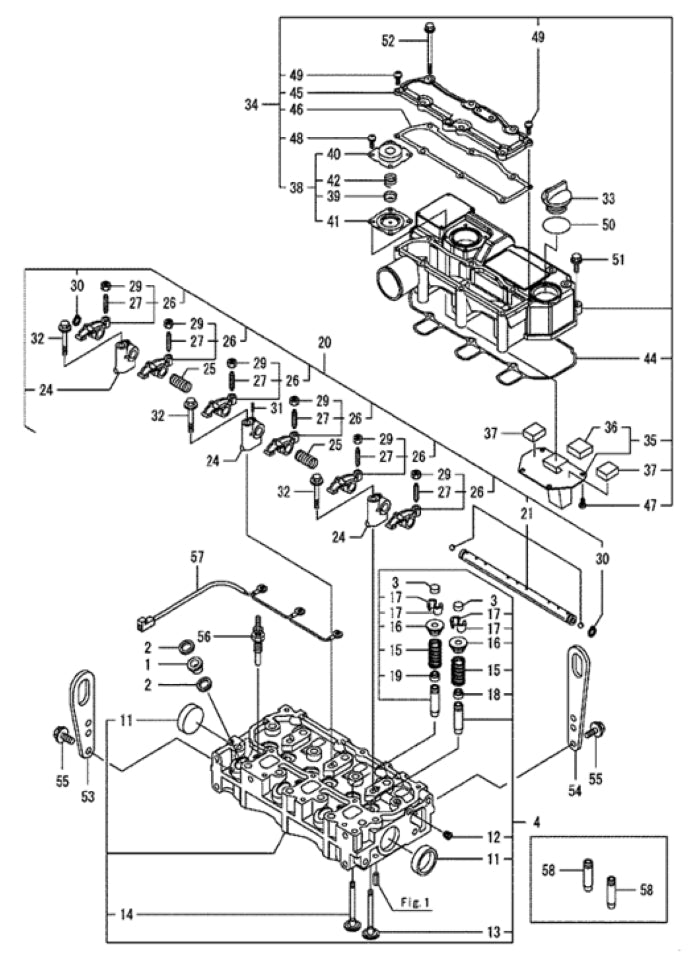

Cylinder Head and Bonnet
Parts Index
- 1 PROTECTOR, NOZZLE (Qty 3)
- 2 GASKET, NOZZLE (Qty 6)
- 3 INSULATOR (Qty 6)
- 4 HEAD ASSY, CYLINDER (Qty 1)
- 11 PLUG, 35 (Qty 2)
- 12 PLUG, R005 (Qty 1)
- 17 COTTER,VALVE (Qty 12)
- 18 SEAL,VALVE STEM (Qty 3)
- 19 SEAL,VALVE STEM (Qty 3)
- 20 SUPPORT ASSY, ROCKER (Qty 1)
- 27 SCREW, VALVE ADJUST (Qty 6)
- 29 NUT, M8XP1.0 (Qty 6)
- 30 Snap Ring, Shaft (12) (Qty 2)
- 32 HEX FLANGE BOLT (Qty 3)
- 33 CAP,OILFIL, (Qty 1)
- 34 BONNET ASSY, HEAD (Qty 1)
- 47 SCREW, 5X10 (Qty 4)
- 48 SCREW, 5X10 (Qty 4)
- 49 SCREW (Qty 2)
- 50 O-RING, DYNAMIC (F32) for BB2024H/BB3026/BB4025H/ (Qty 1)
- 51 HEX FLANGE BOLT (Qty 3)
- 53 LIFTER, ENGINE (Qty 1)
- 54 LIFTER, ENGINE (Qty 1)
- 55 HEX FLANGE BOLT (Qty 4)
- 57 CONNECTOR, GLOW PLUG (Qty 1)
- 58 GUIDE, VALVE (Qty 6)
-
1#129901-11450
PROTECTOR, NOZZLE
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
-
4#119C10-11750
HEAD ASSY, CYLINDER
Qty Used: 1Regular price $2,749.99 USDRegular priceUnit price per
-
12#23876-005000
PLUG, R005
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
17#119717-11190
COTTER,VALVE
Qty Used: 12Regular price $15.99 USDRegular priceUnit price per
-
18#119717-11340
SEAL,VALVE STEM
Qty Used: 3Regular price $11.99 USDRegular priceUnit price per
-
19#119717-11350
SEAL,VALVE STEM
Qty Used: 3Regular price $11.99 USDRegular priceUnit price per
-
27#129150-11230
SCREW, VALVE ADJUST
Qty Used: 6Regular price $8.99 USDRegular priceUnit price per
-
29#129150-11750
NUT, M8XP1.0
Qty Used: 6Regular price $4.99 USDRegular priceUnit price per
-
30#22242-000120
Snap Ring, Shaft (12)
Qty Used: 2Regular price $0.49 USDRegular priceUnit price per
-
32#26106-080402
HEX FLANGE BOLT
Qty Used: 3Regular price $0.82 USDRegular priceUnit price per
-
33#124160-01751
CAP,OILFIL,
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
4748#22857-500100
SCREW, 5X10
Qty Used: 4Regular price $2.75 USDRegular priceUnit price per
-
-
50#24311-000320
O-RING, DYNAMIC (F32) for BB2024H/BB3026/BB4025H/
Qty Used: 1Regular price $5.09 USDRegular priceUnit price per
-
51#26106-060202
HEX FLANGE BOLT
Qty Used: 3Regular price $0.39 USDRegular priceUnit price per
-
53#119226-07900
LIFTER, ENGINE
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
54#129900-07900
LIFTER, ENGINE
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
55#26106-080162
HEX FLANGE BOLT
Qty Used: 4Regular price $0.59 USDRegular priceUnit price per
-
57#119717-77820
CONNECTOR, GLOW PLUG
Qty Used: 1Regular price $164.99 USDRegular priceUnit price per
-

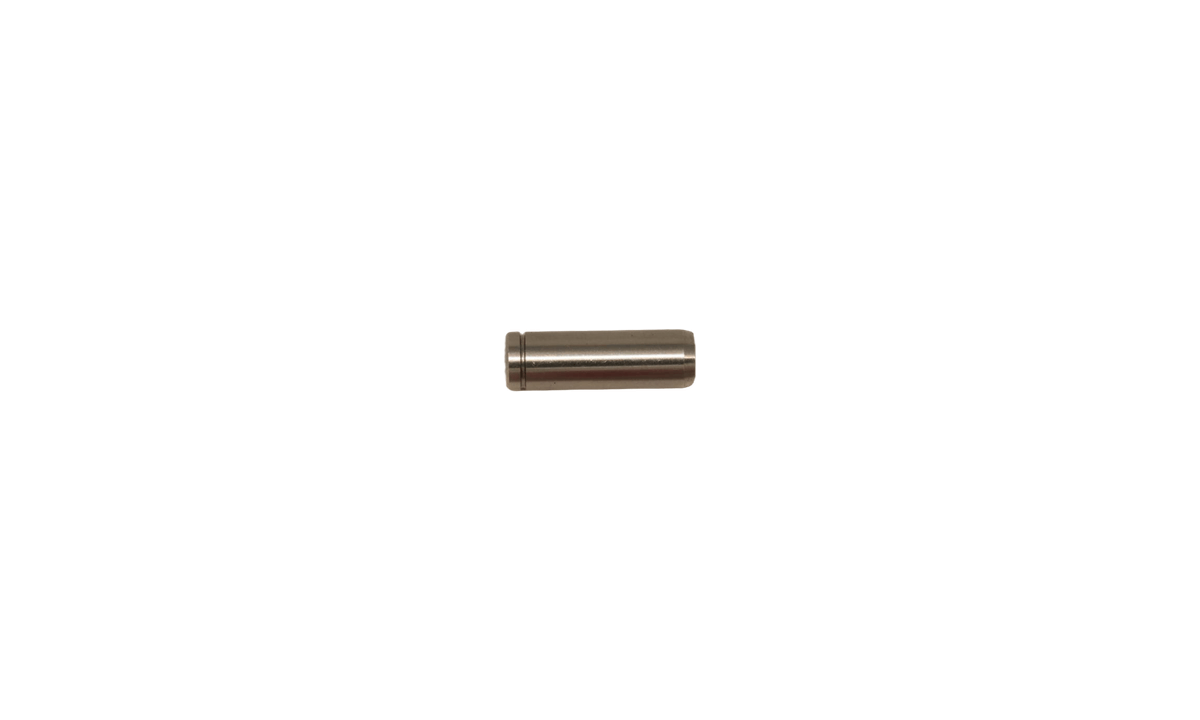

58#119515-11800
GUIDE, VALVE
Qty Used: 6Regular price $120.99 USDRegular priceUnit price per
