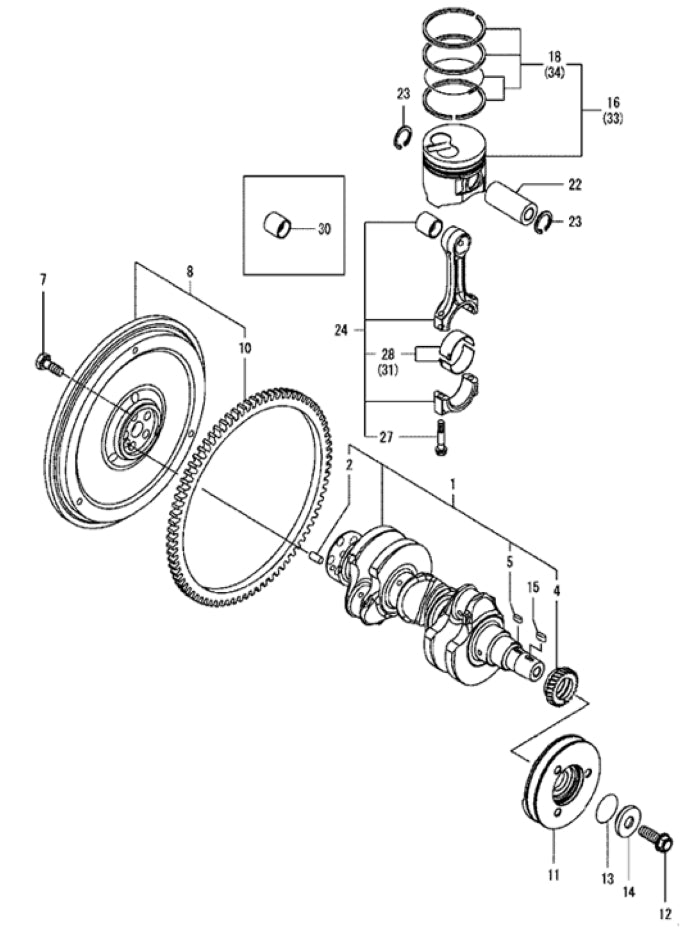

Crankshaft and Piston
Parts Index
- 1 CRANKSHAFT ASSY (Qty 1)
- 2 PIN, PARALLEL 8X16 (Qty 1)
- 5 KEY, 4X 12 (Qty 1)
- 8 FLYWHEEL ASSY (Qty 1)
- 11 V-PULLEY, CRANKSHAFT (Qty 1)
- 13 PACKING, WASHER (Qty 1)
- 15 KEY, 5X 12. (Qty 1)
- 16 PISTON ASSY (Qty 3)
- 18 RING SET, PISTON (Qty 3)
- 22 PIN, PISTON (Qty 3)
- 23 RING, CIRCLIP (F 22) (Qty 6)
- 24 ROD ASSY, CONNECTING (Qty 3)
- 30 BUSH, PISTON PIN (Qty 3)
- 33 PISTON ASSY, 0.25 OS (Qty 3)
- 34 RING SET, PISTON .25 (Qty 3)
-
1#119D00-21700
CRANKSHAFT ASSY
Qty Used: 1Regular price $2,499.99 USDRegular priceUnit price per
-
2#129100-01580
PIN, PARALLEL 8X16
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-

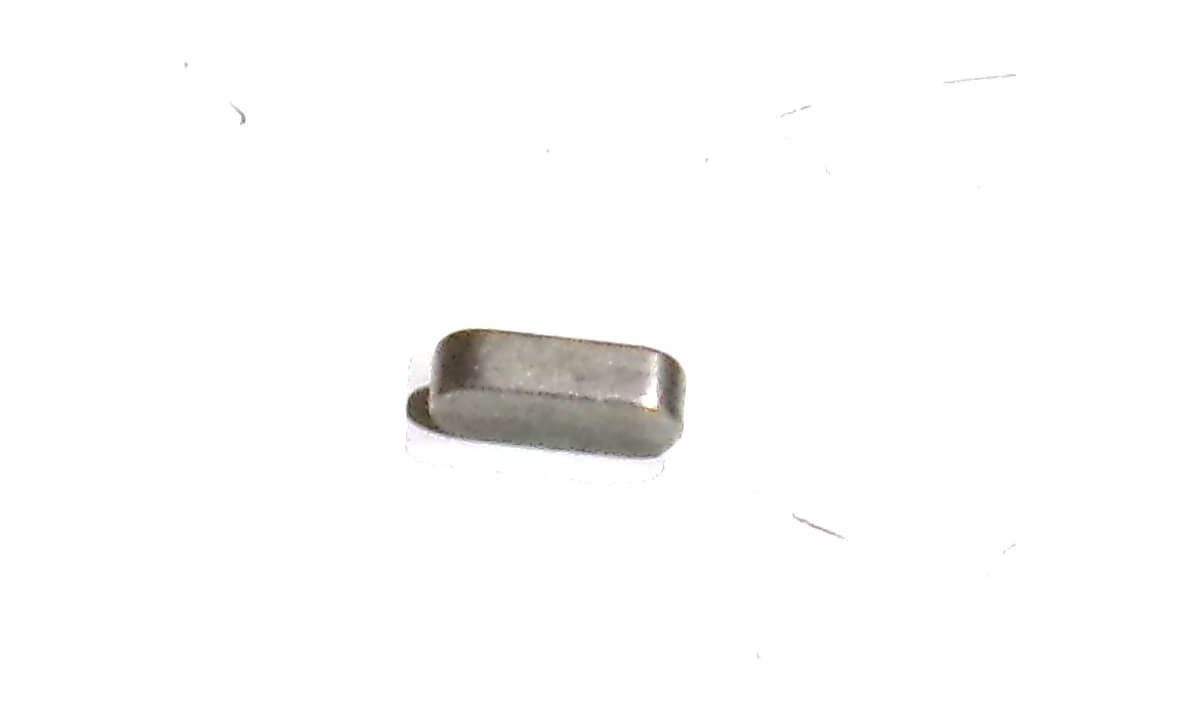

5#22512-040120
KEY, 4X 12
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
11#119D21-21670
V-PULLEY, CRANKSHAFT
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
13#119C10-21931
PACKING, WASHER
Qty Used: 1Regular price $7.69 USDRegular priceUnit price per
-

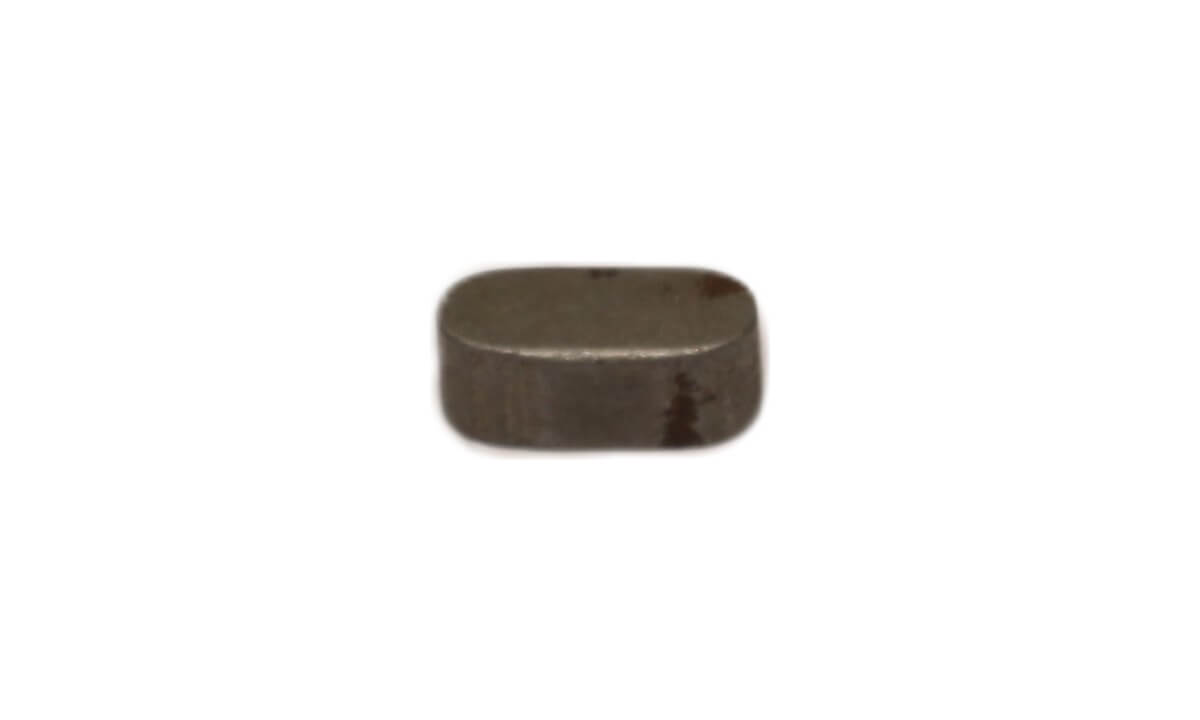

15#22512-050120
KEY, 5X 12.
Qty Used: 1Regular price $2.09 USDRegular priceUnit price per
-

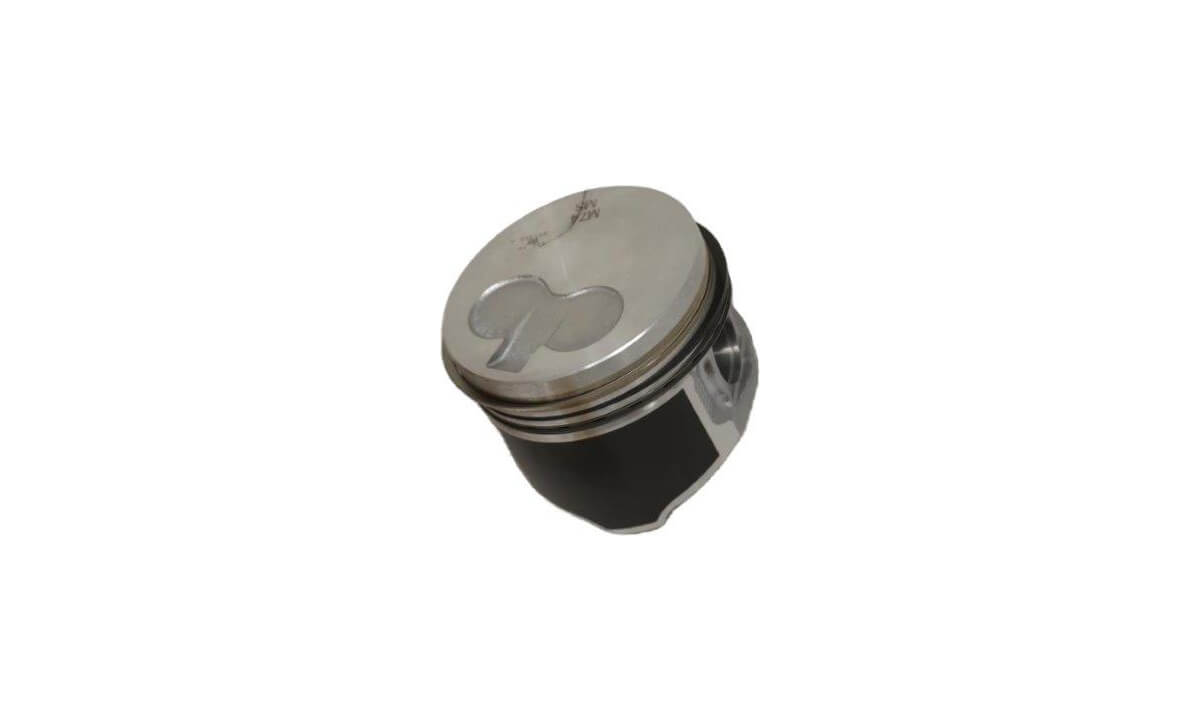

16#119D00-22080
PISTON ASSY
Qty Used: 3Regular price $439.99 USDRegular priceUnit price per
-
18#119C10-22500
RING SET, PISTON
Qty Used: 3Regular price $249.99 USDRegular priceUnit price per
-
22#119717-22300
PIN, PISTON
Qty Used: 3Regular price $131.99 USDRegular priceUnit price per
-
23#22252-000220
RING, CIRCLIP (F 22)
Qty Used: 6Regular price $0.55 USDRegular priceUnit price per
-

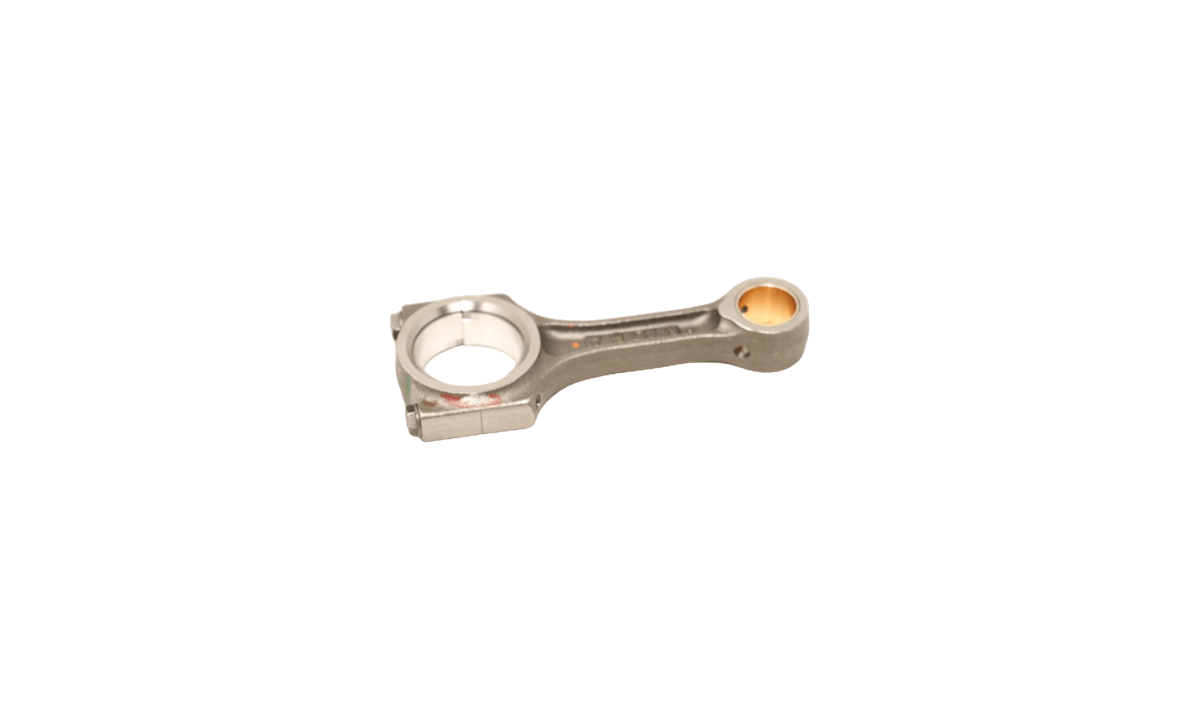

24#119515-23001
ROD ASSY, CONNECTING
Qty Used: 3Regular price $719.99 USDRegular priceUnit price per
-
30#119717-23911
BUSH, PISTON PIN
Qty Used: 3Regular price $34.99 USDRegular priceUnit price per
-
33#119D00-22900
PISTON ASSY, 0.25 OS
Qty Used: 3Regular price $599.99 USDRegular priceUnit price per
-
34#119C10-22550
RING SET, PISTON .25
Qty Used: 3Regular price $249.99 USDRegular priceUnit price per
