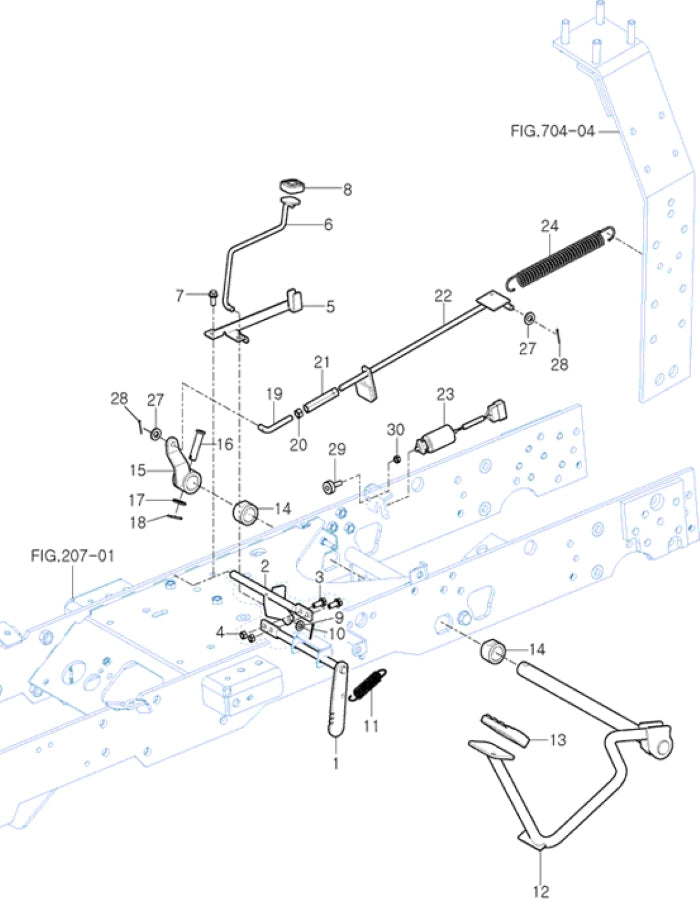

Brake Pedal and Linkage
Parts Index
- 1 ROD COMP , PARKING BRAKE A (Qty 1)
- 2 ROD COMP , PARKING BRAKE B (Qty 1)

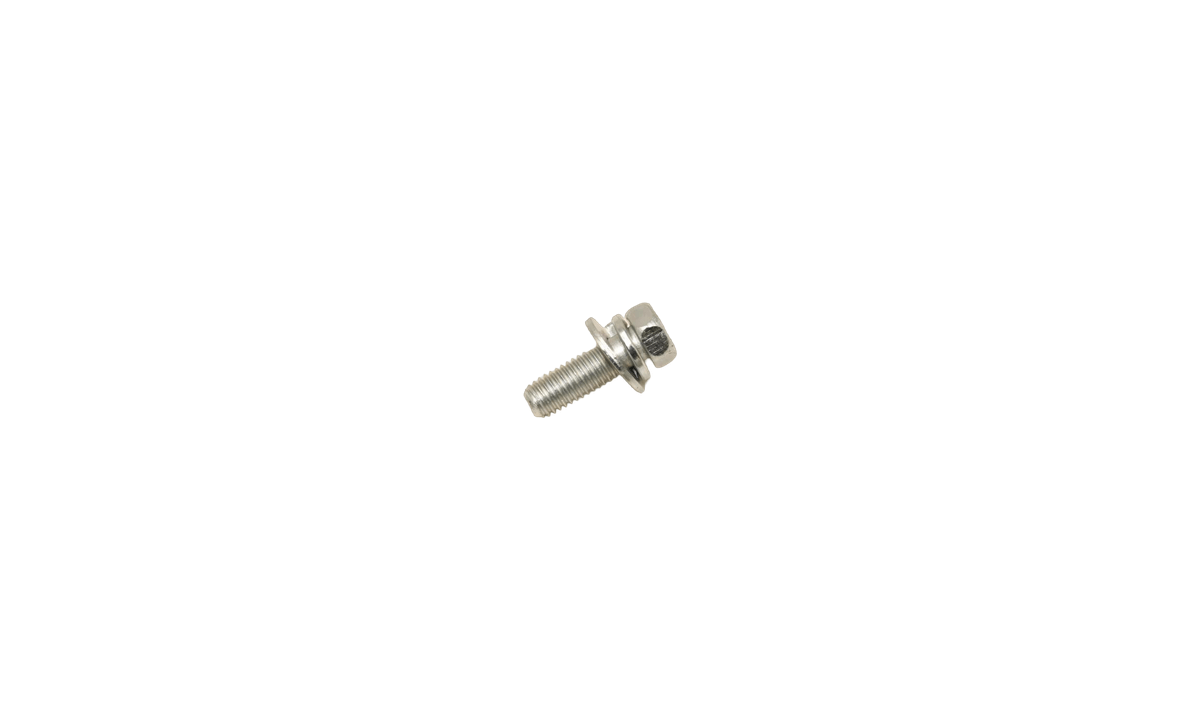

- 3 BOLT(SP) (Qty 2)
- 5 BRACKET COMP , PARKING GUIDE (Qty 1)
- 6 PEDAL COMP , PARKING BRAKE (Qty 1)
- 7 BOLT(S) (Qty 1)
- 8 Brake Pad (Qty 1)
- 9 WASHER, PLAIN (Qty 1)
- 10 PIN (Qty 1)
- 11 SPRING , RETURN (Qty 1)
- 12 PEDAL COMP , BRAKE (Qty 1)
- 13 PAD , BRAKE (Qty 1)
- 14 HUB(25X38X25) (Qty 2)
- 15 ARM COMP , BRAKE (Qty 1)
- 16 PIN (Qty 1)
- 17 Plain Washer (Qty 1)
- 18 Pin, Split (Qty 1)
- 19 ROD , BRAKE FORWARD (Qty 1)
- 20 Nut, Hex/2 (Qty 1)
- 21 TURNBUCKLE , M10 (Qty 1)
- 24 SPRING (Qty 1)
- 27 Washer, Plain (Qty 2)
- 28 PIN (Qty 2)
- 29 RUBBER , CUSHION B (Qty 1)
- 30 NUT (Qty 1)
-
15#11613282200

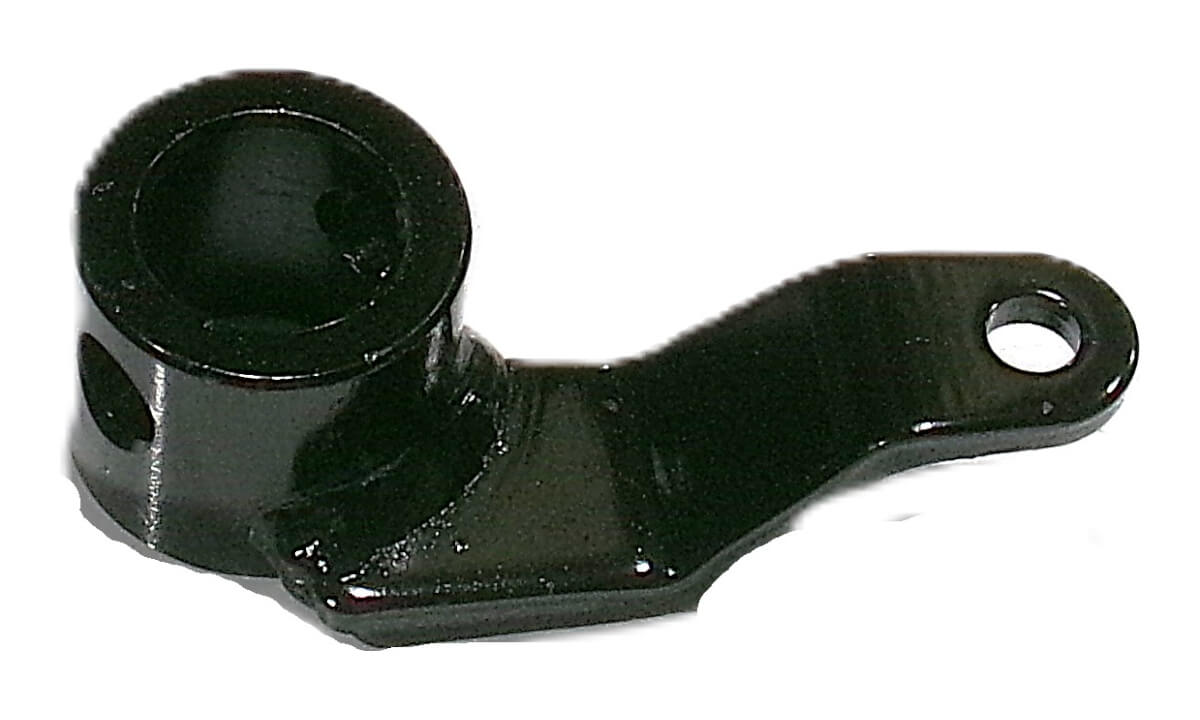

ARM COMP , BRAKE
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
-
29#14216020051C
RUBBER , CUSHION B
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
-
27#V4111600100
Washer, Plain
Qty Used: 2Regular price $0.59 USDRegular priceUnit price per
-
-
21#36422120020
TURNBUCKLE , M10
Qty Used: 1Regular price $20.99 USDRegular priceUnit price per
-
20#V3043600100
Nut, Hex/2
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
19#11613283010
ROD , BRAKE FORWARD
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
18#V5001930025

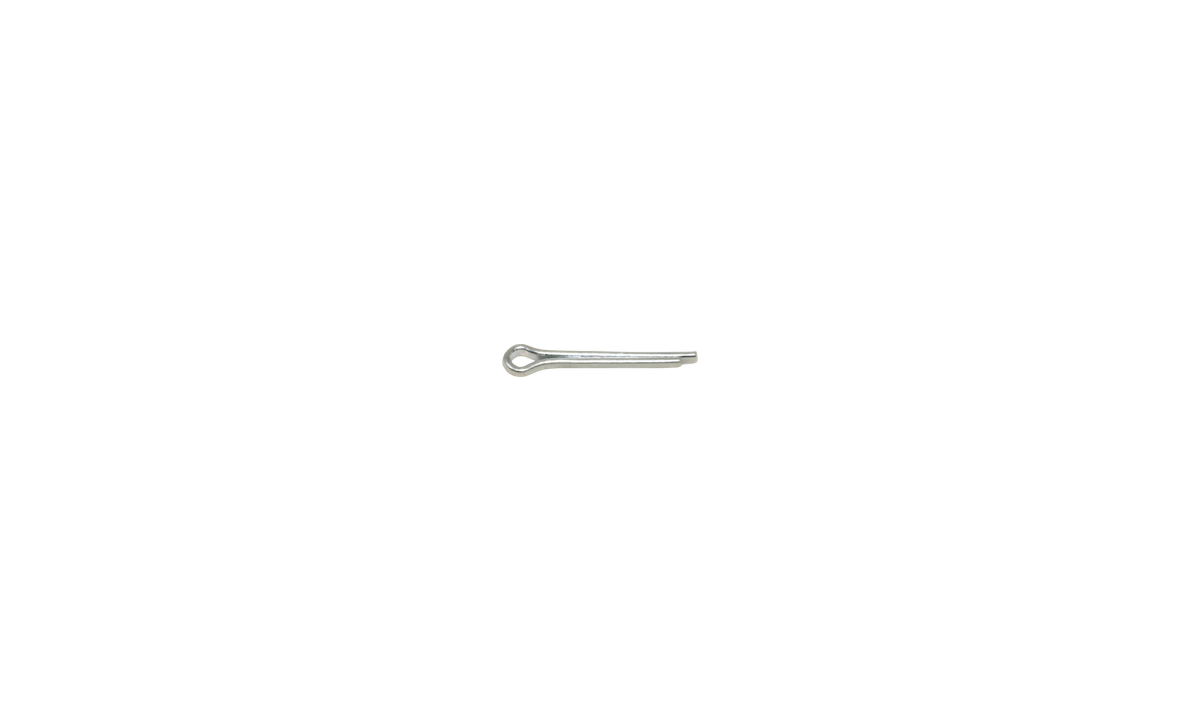

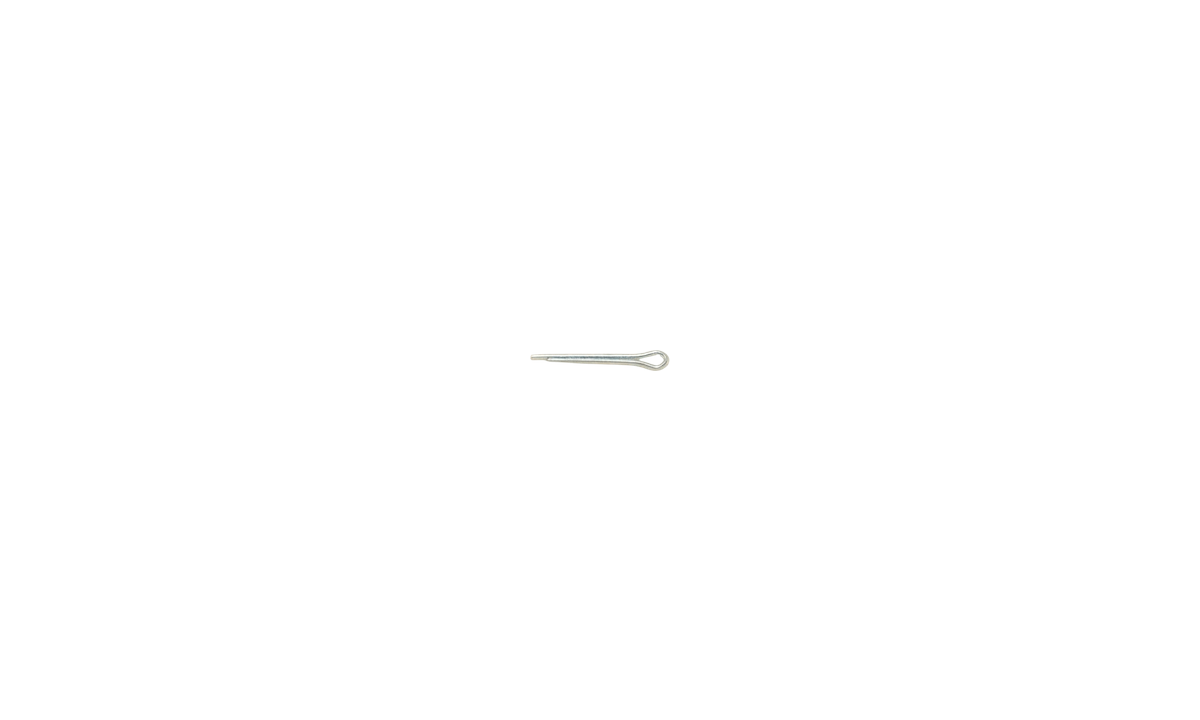

Pin, Split
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
17#V4111600120
Plain Washer
Qty Used: 1Regular price $1.29 USDRegular priceUnit price per
-
-
1#11613282300

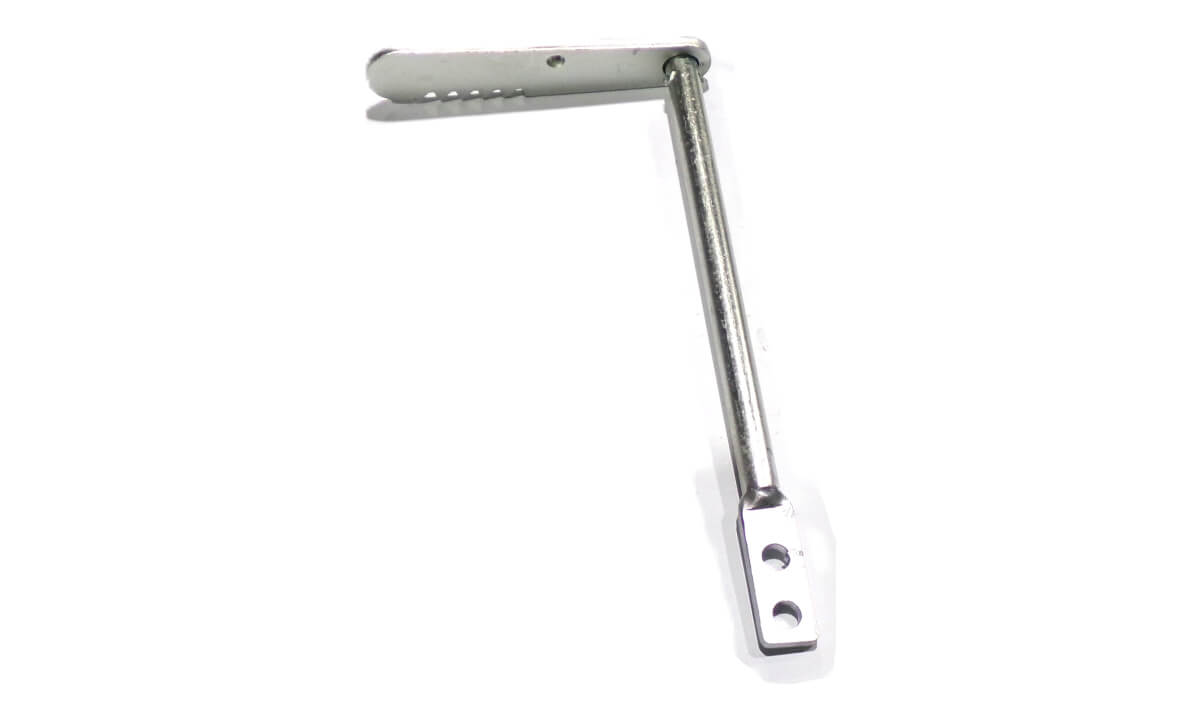

ROD COMP , PARKING BRAKE A
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
14#11613280010
HUB(25X38X25)
Qty Used: 2Regular price $40.99 USDRegular priceUnit price per
-
13#11503280020
PAD , BRAKE
Qty Used: 1Regular price $14.39 USDRegular priceUnit price per
-
12#11633282100
PEDAL COMP , BRAKE
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
-
9#V4111600080
WASHER, PLAIN
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
-
-
6#11613282500
PEDAL COMP , PARKING BRAKE
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
5#11613282600GB

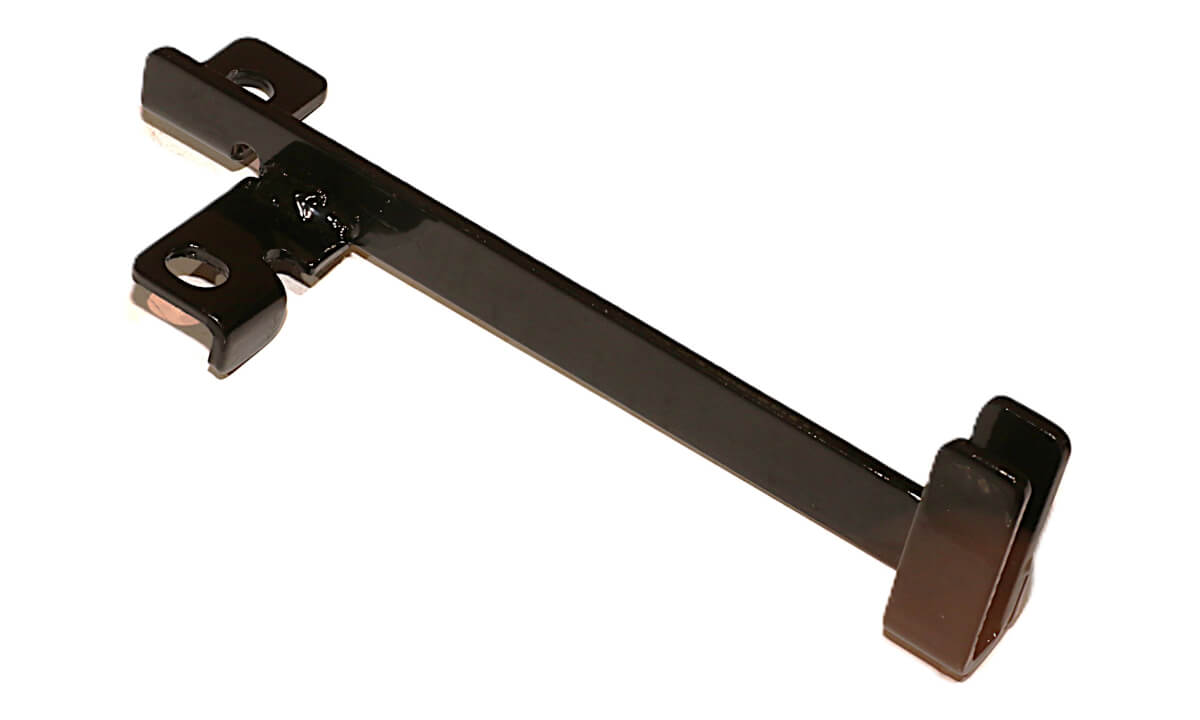

BRACKET COMP , PARKING GUIDE
Qty Used: 1Regular price $65.99 USDRegular priceUnit price per
-
-
2#11613282400

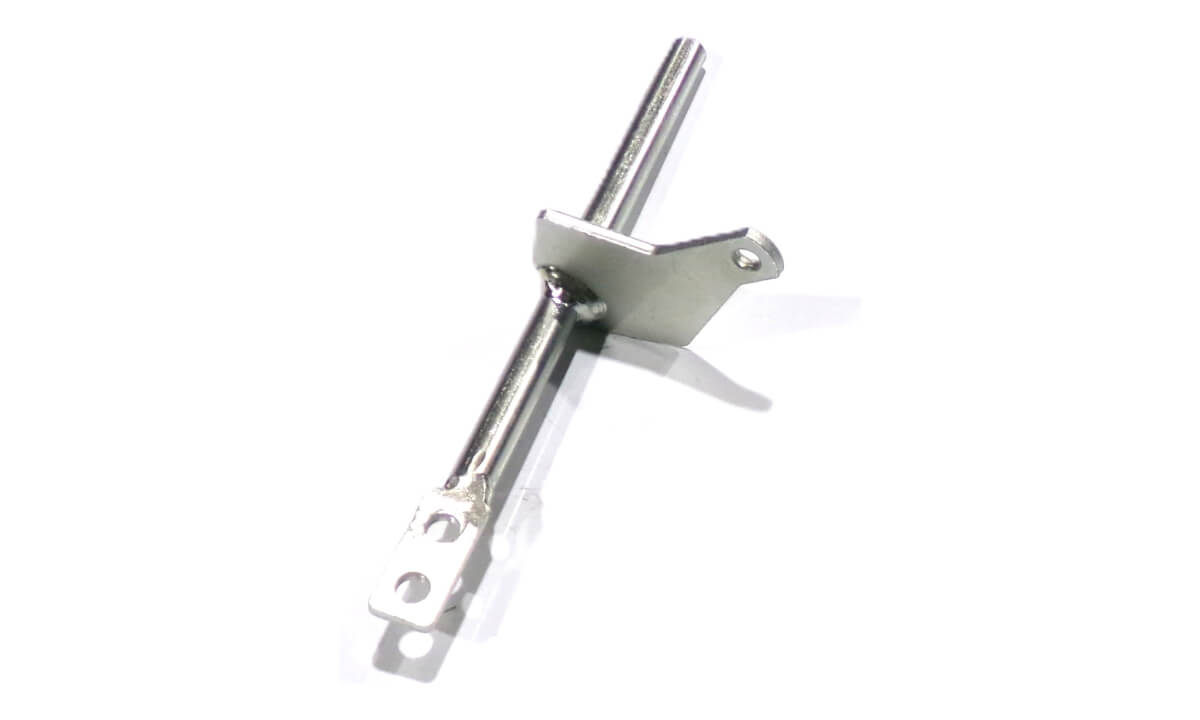

ROD COMP , PARKING BRAKE B
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
