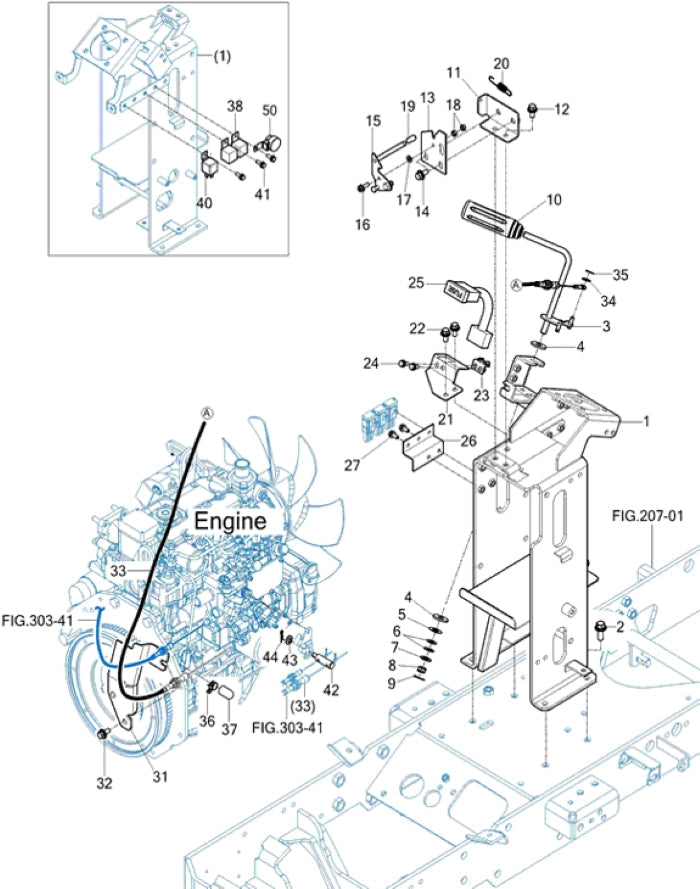

Accelerator
Parts Index
- 1 PANEL COMP, DASH (Qty 1)
- 2 BOLT(SP) (Qty 4)
- 3 ACCELERATOR LEVER COMP (Qty 1)
- 4 LINING , 11X30X03 (Qty 2)
- 5 WASHER (Qty 1)
- 6 WASHER/M10 (Qty 2)
- 7 Washer, Plain (Qty 1)
- 8 NUT (Qty 1)
- 9 PIN (Qty 1)
- 10 GRIP , REVERSE (Qty 1)
- 12 BOLT(SP) (Qty 2)
- 14 BOLT(SP) (Qty 2)
- 16 BOLT , HEX (Qty 1)
- 17 WASHER, PLAIN (Qty 1)
- 18 NUT (Qty 2)
- 19 LEVER GRIP (Qty 1)
- 20 SPRING , TENSION 53 (Qty 1)
- 21 FUSE BOX BKT (Qty 1)
- 22 BOLT(SP) (Qty 2)
- 23 BRACKET COMP , FUSE BOX (Qty 1)
- 24 BOLT(SP) (Qty 2)
- 25 FUSE BOX ASSY (Qty 1)
- 26 FUSE PLATE (Qty 1)
- 27 BOLT(SP) (Qty 2)
- 31 ACCEL WIRE HOLDER (Qty 1)
- 32 BOLT(SP) (Qty 1)
- 33 ACCEL. CABLE ASSY (Qty 1)
- 34 WASHER, PLAIN (Qty 1)
- 35 PIN (Qty 1)
- 36 CLIP , HOSE D=12.5 (Qty 1)
- 37 CAP , RADIATOR (Qty 1)
- 38 5P RELAY (Qty 2)
- 40 RELAY , PREHEAT (Qty 1)
- 41 BOLT(SP) (Qty 3)
- 42 PIN, ACCELERATOR (Qty 1)
- 43 WASHER, PLAIN (Qty 1)
- 44 PIN, SNAP (Qty 1)
- 50 HORN COMP (Qty 1)
-
1#11611811000GB
PANEL COMP, DASH
Qty Used: 1Regular price $239.99 USDRegular priceUnit price per
-
-
3#11611812500GB
ACCELERATOR LEVER COMP
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
4#15965120021
LINING , 11X30X03
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
-
6#14527060010

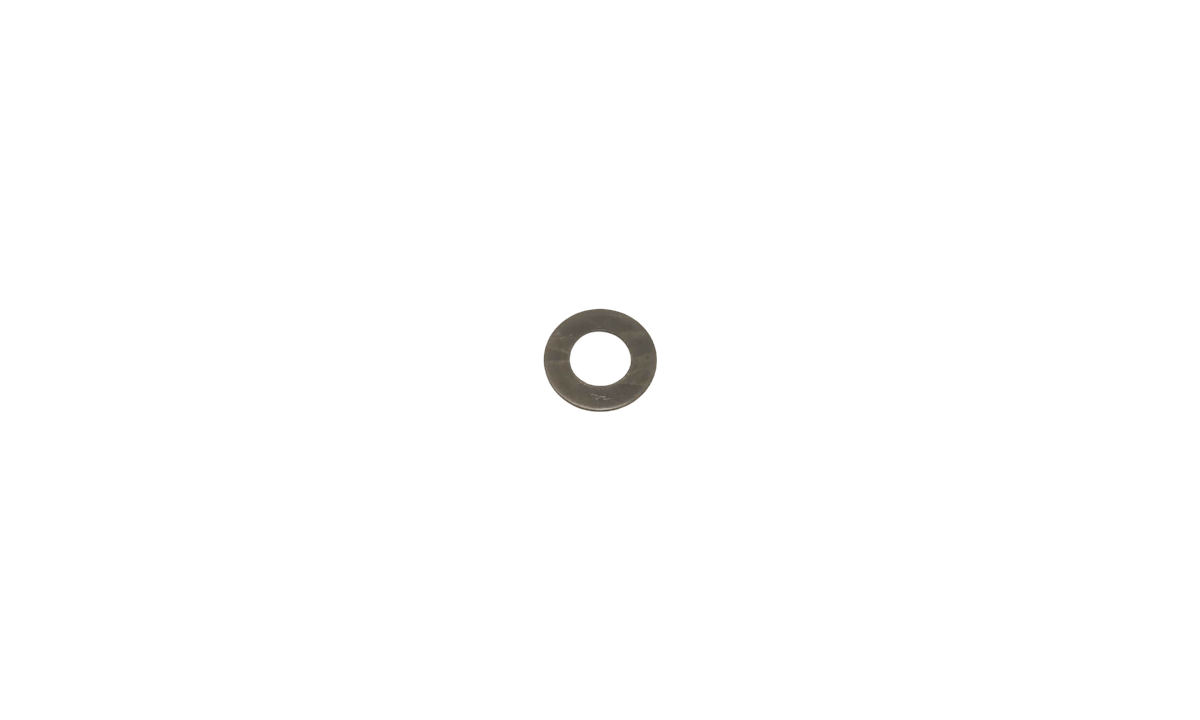

WASHER/M10
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
7#V4111600100
Washer, Plain
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
-
-
10#17681170050

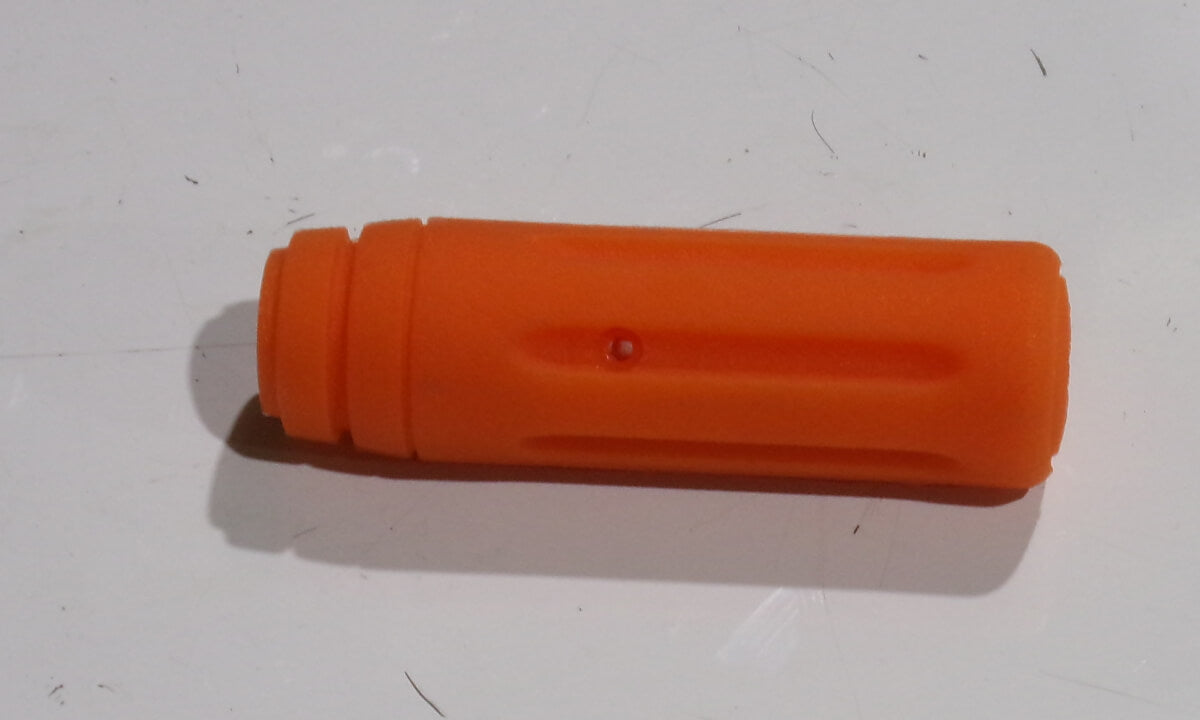

GRIP , REVERSE
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
-
16#V2003606020
BOLT , HEX
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
173443#V4111600060
WASHER, PLAIN
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
-
19#14445070030
LEVER GRIP
Qty Used: 1Regular price $2.29 USDRegular priceUnit price per
-
20#14143120020

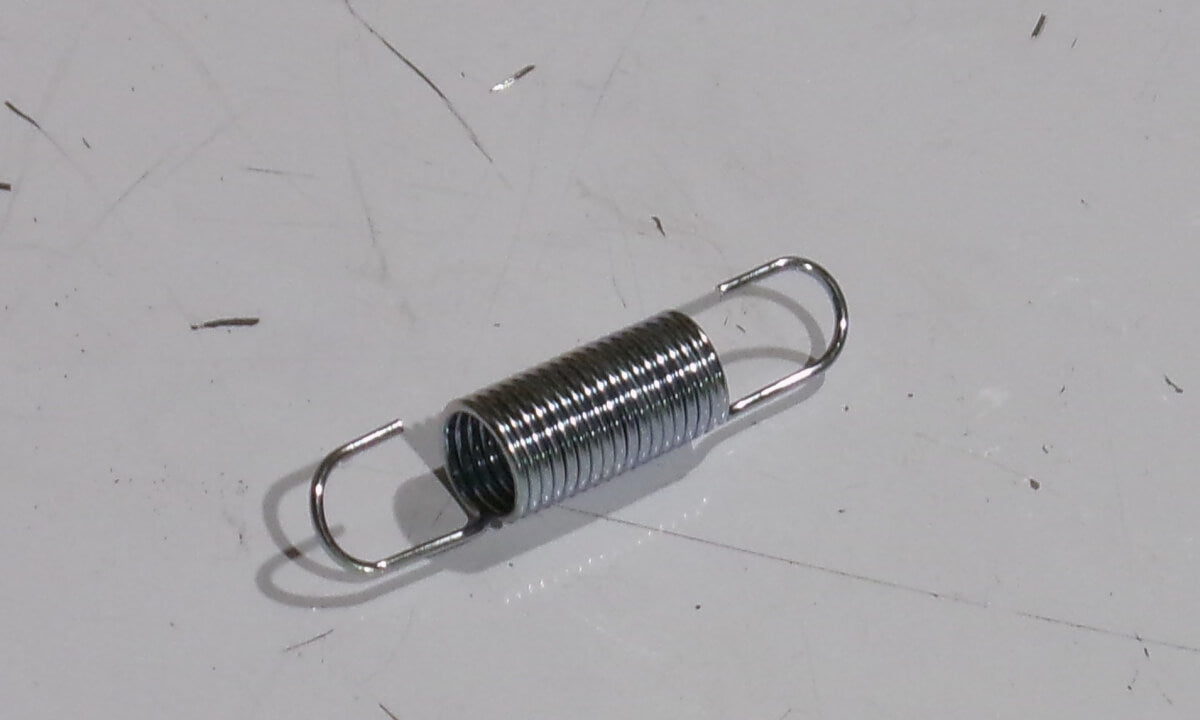

SPRING , TENSION 53
Qty Used: 1Regular price $2.29 USDRegular priceUnit price per
-
21#11611812300GB
FUSE BOX BKT
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
23#18507024200
BRACKET COMP , FUSE BOX
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
-
25#11616802500
FUSE BOX ASSY
Qty Used: 1Regular price $60.09 USDRegular priceUnit price per
-
26#11611812400GB
FUSE PLATE
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
31#11651611100GB
ACCEL WIRE HOLDER
Qty Used: 1Regular price $47.99 USDRegular priceUnit price per
-
-
33#10501812600
ACCEL. CABLE ASSY
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
-
36#36423600080
CLIP , HOSE D=12.5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
37#12651040300
CAP , RADIATOR
Qty Used: 1Regular price $2.39 USDRegular priceUnit price per
-
-
40#17686641110
RELAY , PREHEAT
Qty Used: 1Regular price $50.29 USDRegular priceUnit price per
-
42#11111162411
PIN, ACCELERATOR
Qty Used: 1Regular price $10.19 USDRegular priceUnit price per
-
-
