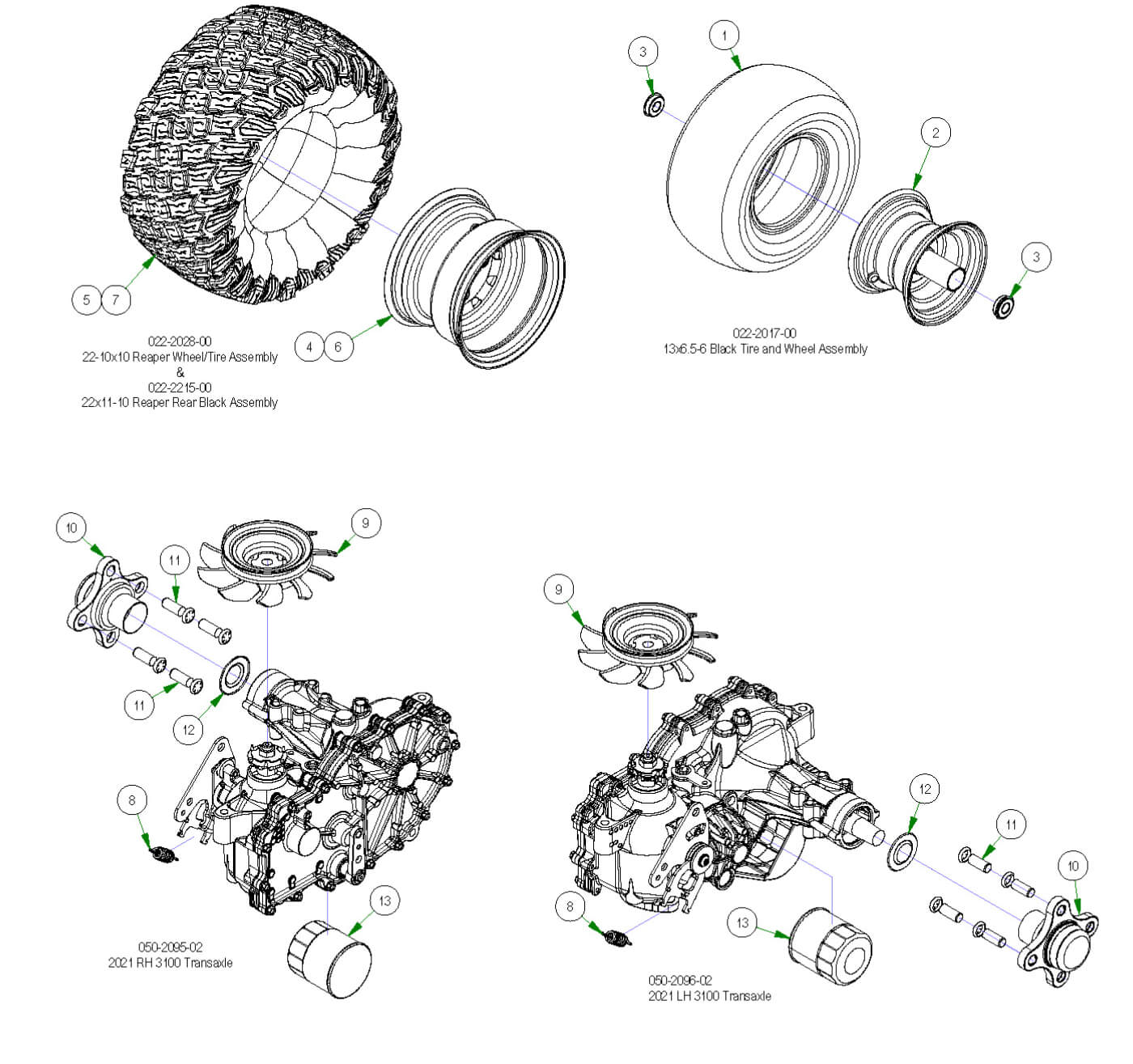

Wheel Subassemblies
Parts Index
- 1 13 x 6.50 - 6 Tire (Qty 1)
- 2 6 x 4.5 Black Wheel - Small Bore (Qty 1)
- 3 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 2)
- 4 2017 48 ZT 10" Black Wheel (Qty 1)
- 5 22-10 x 10 Reaper Tire Only (Qty 1)
- 6 2017 ZT Black Wheel (Qty 1)
- 8 Gold Transaxle Spring (Qty 1)
- 9 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 10 ZT Transaxle Wheel Hub (Qty 1)
- 11 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 12 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 13 ZT Hydraulic Filter (Qty 1)
-
1#022-5347-00
13 x 6.50 - 6 Tire
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
2#022-7007-00
6 x 4.5 Black Wheel - Small Bore
Qty Used: 1Regular price $53.09 USDRegular priceUnit price per
-
3#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 2Regular price $12.49 USDRegular priceUnit price per
-
4#022-2019-17
2017 48 ZT 10" Black Wheel
Qty Used: 1Regular price $92.99 USDRegular priceUnit price per
-
5#022-2028-RT
22-10 x 10 Reaper Tire Only
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
6#022-2015-50
2017 ZT Black Wheel
Qty Used: 1Regular price $104.99 USDRegular priceUnit price per
-
8#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
9#050-2070-00
2021 ZT/Maverick Transaxle Fan/Pulley Kit
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
10#050-2076-00
ZT Transaxle Wheel Hub
Qty Used: 1Regular price $84.64 USDRegular priceUnit price per
-
11#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 4Regular price $5.10 USDRegular priceUnit price per
-
12#050-8010-00
2021 ZT/Maverick Transaxle Seal Kit (ZT-2800)
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
13#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
