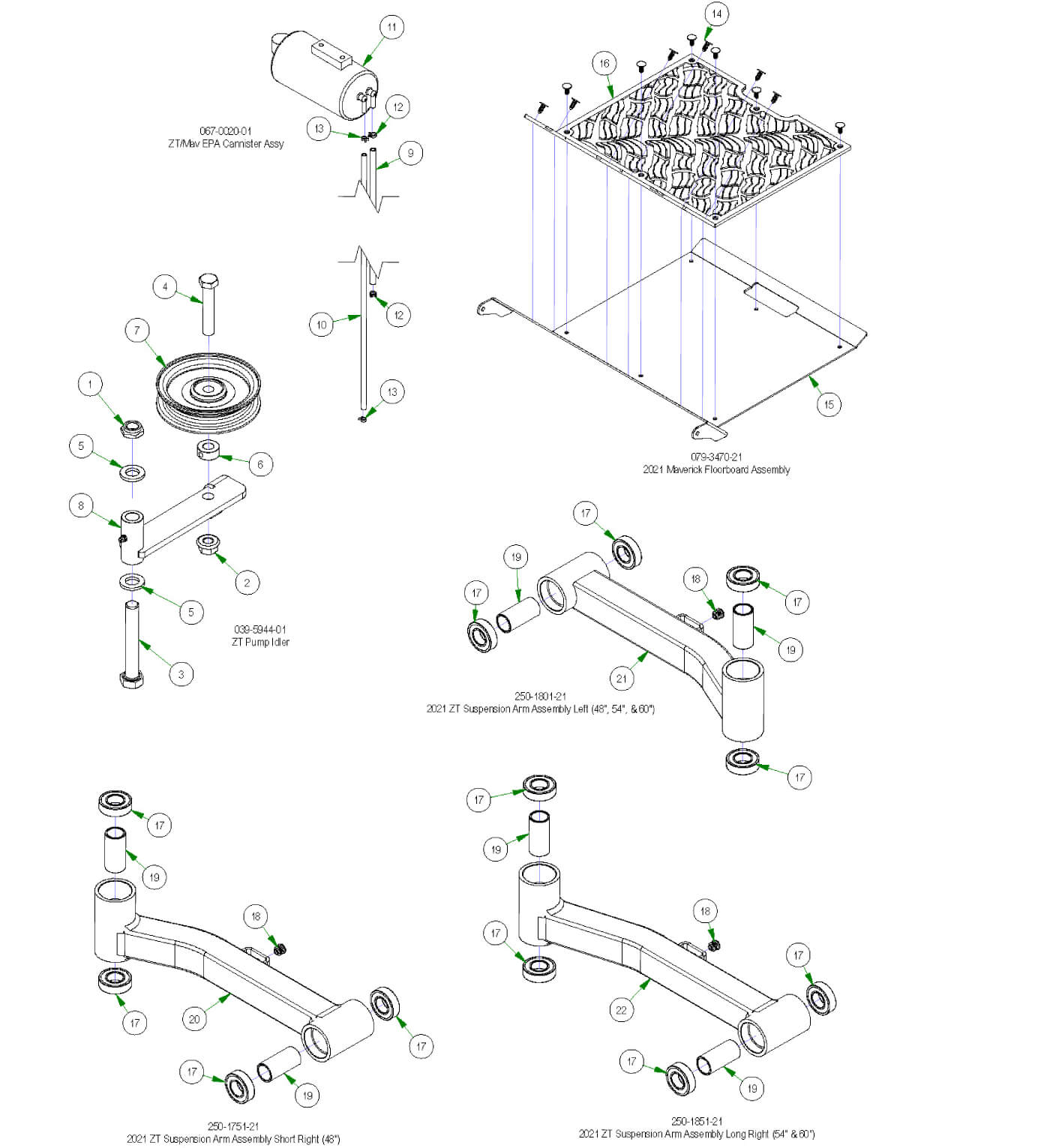

Frame Subassemblies
Parts Index
- 1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 6 1/2 Set Collar w/set collar (Qty 1)
- 7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 8 Idler Bracket (Qty 1)
- 9 1/4 Vinyl 46" EPA Line (Qty 1)
- 10 3/16 Vinyl 55" EPA Line (Qty 1)
- 11 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 12 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 13 3/16" Vinyl Hose Clamp (Qty 2)
- 14 Ratchet Fastener - Floorboard (Qty 12)
- 15 Maverick Floor Panel--Orange (Qty 1)
- 16 2021 Maverick Floor Mat W/ Reaper Tread (Qty 1)
- 17 Caster Bearing (Qty 4)
- 18 5/8 Round Insert - Deck (Qty 1)
- 19 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
-
1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
8#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
9#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
10#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
11#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
12#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
13#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
14#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
15#079-3470-18
Maverick Floor Panel--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
16#081-4001-00
2021 Maverick Floor Mat W/ Reaper Tread
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
17#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
18#014-3010-00
5/8 Round Insert - Deck
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
19#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
