Engine - Kohler

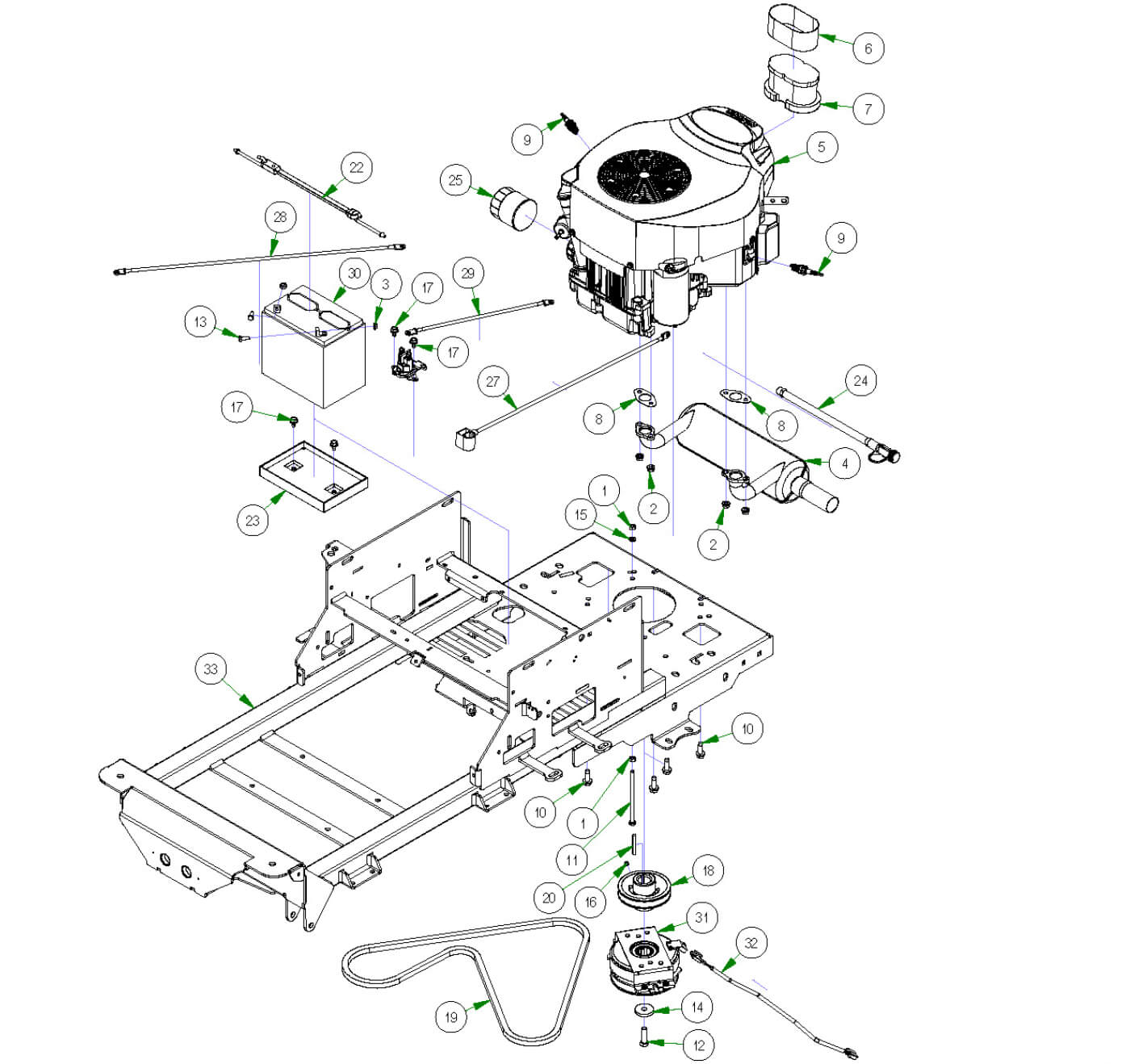

Parts Index
- 1 5/16-18 Hex Nuts Zinc (Qty 2)
- 2 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 3 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 4 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 5 New KT745 Kohler Engine (Qty 1)
- 6 Air Pre-Cleaner for 015-2026-00 (Qty 1)
- 7 Exhaust Gaskets for 27,30 hp (Qty 1)
- 8 Exhaust Gaskets for 27,30 hp (Qty 2)
- 9 Spark Plug-Kohler/Briggs (Qty 2)
- 10 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 11 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 12 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 13 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 14 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 15 5/16 Lock washer Zinc (Qty 1)
- 16 5/16-24 x 1/4 Set Screw (Qty 1)
- 17 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 18 4 3/4 Motor Pulley (Qty 1)
- 19 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 20 1/4 X 2 Square Key Stock (Qty 1)
- 21 2023 Battery Hold Down Assembly (Qty 1)
- 22 2023 Rubber Battery Hold Down Strap (Qty 1)
- 23 2023 Battery Tray Only (Qty 1)
- 24 Kohler Oil Drain Hose (Qty 1)
- 25 25 HP Kohler Oil Filter ZT/MZ (Qty 1)
- 26 Universal Inline Fuel Filter (Qty 1)
- 27 24 inch Black Cable - MZ/ZT (Qty 1)
- 29 14" Red Battery Cable (Qty 1)
- 30 Battery - All models except Renegade and Revolt (Qty 1)
- 31 Clutch For 1-1/8" Shaft (Qty 1)
- 32 Clutch Pigtail (Qty 1)
- 33 2024 ZT Elite Frame--Orange (Qty 1)
- 34 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
3#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
4#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
5#015-2018-00
New KT745 Kohler Engine
Qty Used: 1Regular price $2,399.99 USDRegular priceUnit price per
-
6#015-2026-02
Air Pre-Cleaner for 015-2026-00
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
78#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
9#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
10#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
11#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
12#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
13#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
14#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
15#019-8051-00
5/16 Lock washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
17#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
18#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
19#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
20#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
21#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
22#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
23#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
24#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
25#063-5004-00
25 HP Kohler Oil Filter ZT/MZ
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
26#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
27#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
29#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
30#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
32#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
33#070-2402-00
2024 ZT Elite Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
34#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
