Engine - Kawasaki

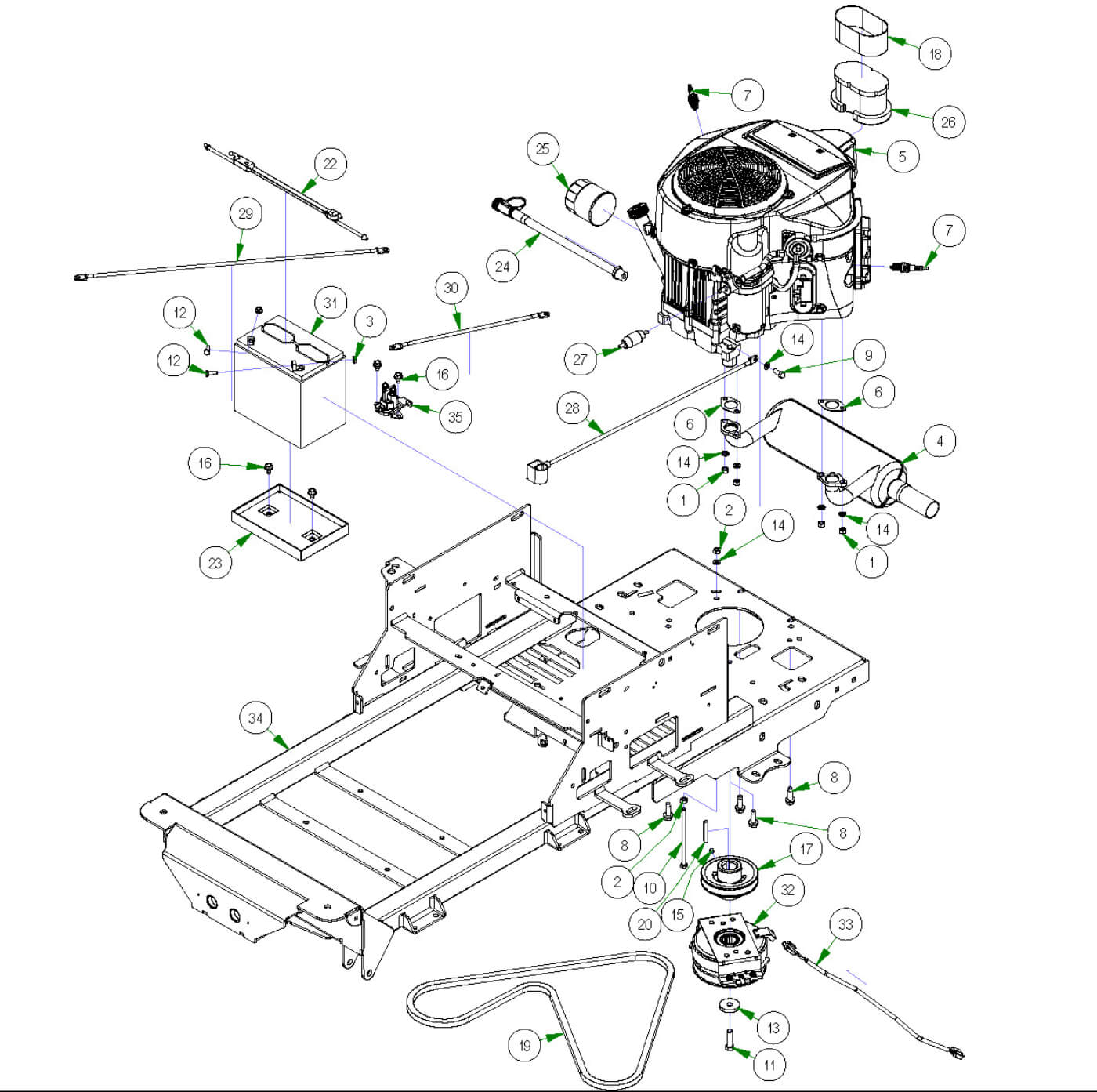

Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 2 5/16-18 Hex Nuts Zinc (Qty 2)
- 3 1/4-20 Hex Flange Nuts Zinc w/ (Qty 3)
- 4 2017 Kawasaki Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 5 FR730V-S16 Kawasaki Engine (Qty 1)
- 6 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 7 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 8 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 9 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 10 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 11 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 12 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 13 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 14 5/16 Lock washer Zinc (Qty 17)
- 15 5/16-24 x 1/4 Set Screw (Qty 10)
- 16 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 7)
- 17 4 3/4 Motor Pulley (Qty 1)
- 18 Air Filter Pre-Cleaner for KAW (Qty 1)
- 19 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 20 1/4 X 2 Square Key Stock (Qty 1)
- 21 2023 Battery Hold Down Assembly (Qty 1)
- 22 2023 Rubber Battery Hold Down Strap (Qty 1)
- 23 2023 Battery Tray Only (Qty 1)
- 24 Kawasaki Oil Drain (Qty 1)
- 25 22-26 Kaw Oil Filter FR Engine (Qty 1)
- 26 22-26 Kaw Air Filter FR / FS (Qty 1)
- 27 Universal Inline Fuel Filter (Qty 3)
- 28 24 inch Black Cable - MZ/ZT (Qty 1)
- 29 24 Red Battery Cable (Qty 1)
- 30 14" Red Battery Cable (Qty 1)
- 31 Battery - All models except Renegade and Revolt (Qty 1)
- 32 Clutch For 1-1/8" Shaft (Qty 1)
- 33 Clutch Pigtail (Qty 1)
- 34 2024 ZT Elite Frame--Orange (Qty 1)
- 35 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
4#015-0052-00
2017 Kawasaki Exhaust MZ/ZT/Mav/Comp
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
5#015-0090-00
FR730V-S16 Kawasaki Engine
Qty Used: 1Regular price $2,299.99 USDRegular priceUnit price per
-
6#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
7#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
8#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
9#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
10#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
11#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
12#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
13#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
14#019-8051-00
5/16 Lock washer Zinc
Qty Used: 17Regular price $0.79 USDRegular priceUnit price per
-
15#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 10Regular price $1.59 USDRegular priceUnit price per
-
16#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 7Regular price $0.89 USDRegular priceUnit price per
-
17#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
18#041-4000-00
Air Filter Pre-Cleaner for KAW
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
19#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
20#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
21#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
22#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
23#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
24#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
25#063-2096-00
22-26 Kaw Oil Filter FR Engine
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
26#063-2097-00
22-26 Kaw Air Filter FR / FS
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
27#063-6000-00
Universal Inline Fuel Filter
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
28#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
29#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
30#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
31#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
33#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
34#070-2402-00
2024 ZT Elite Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
35#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
